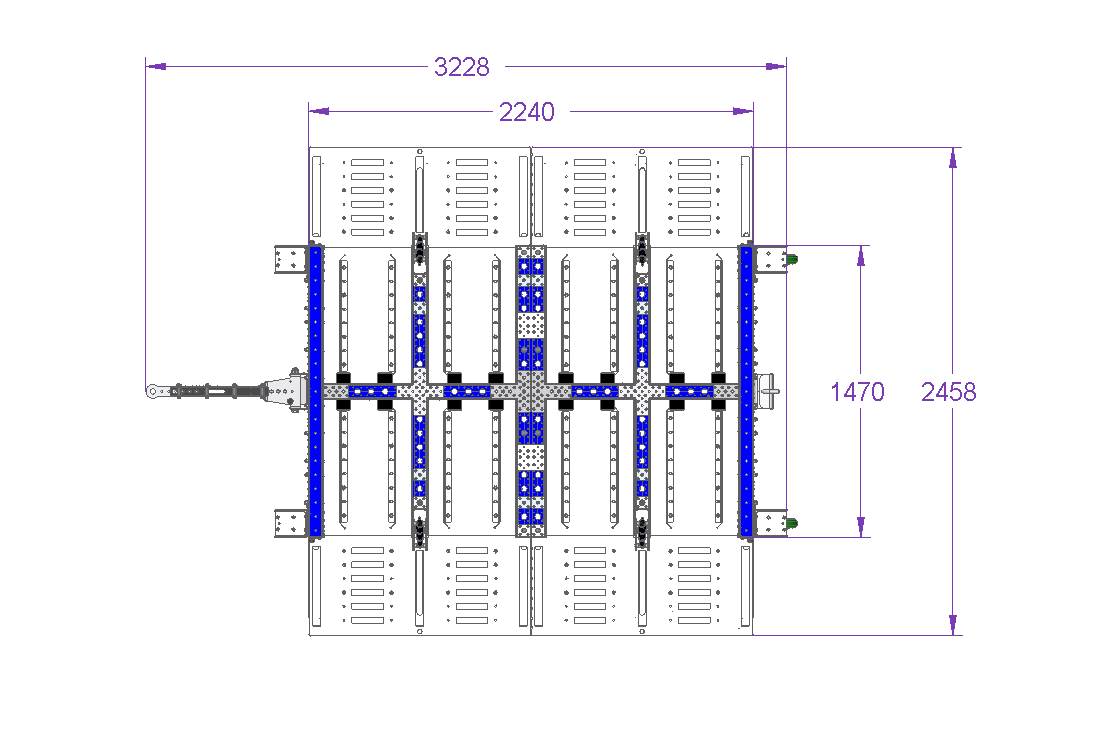

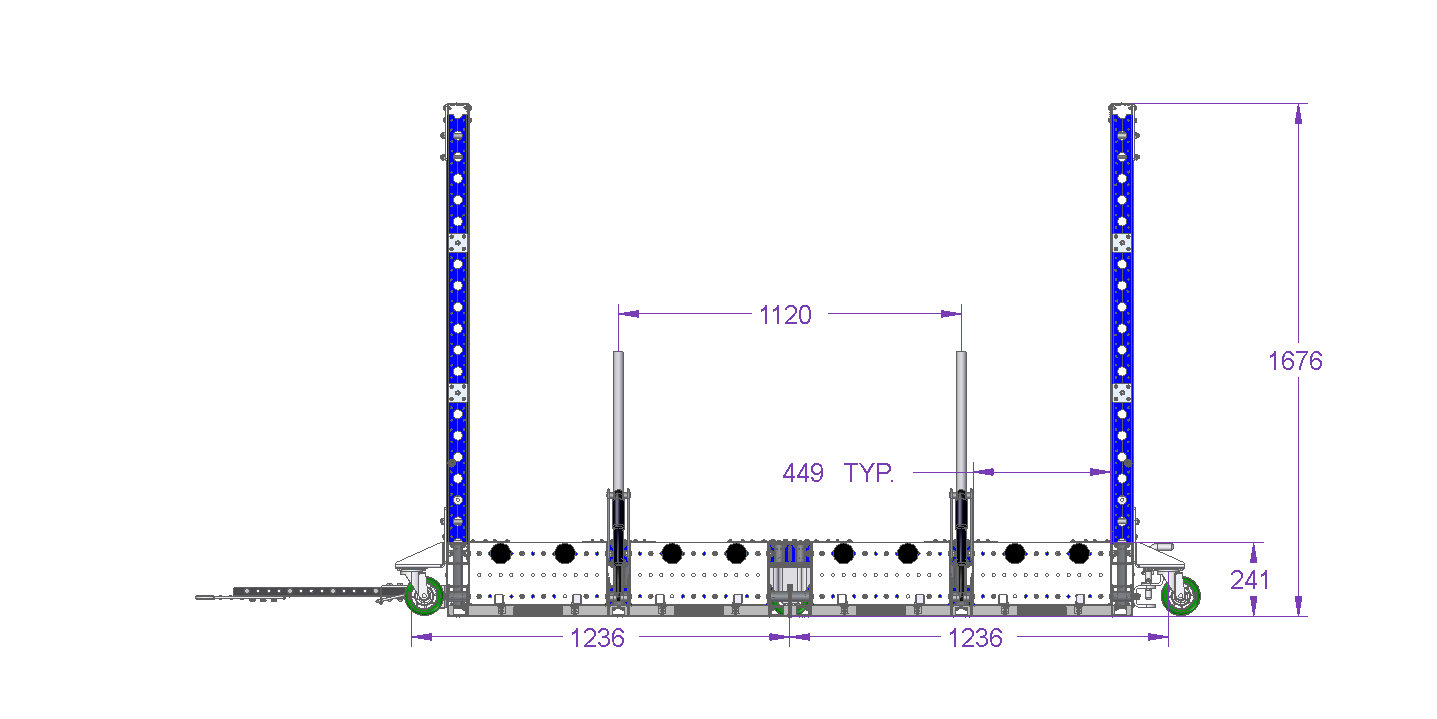

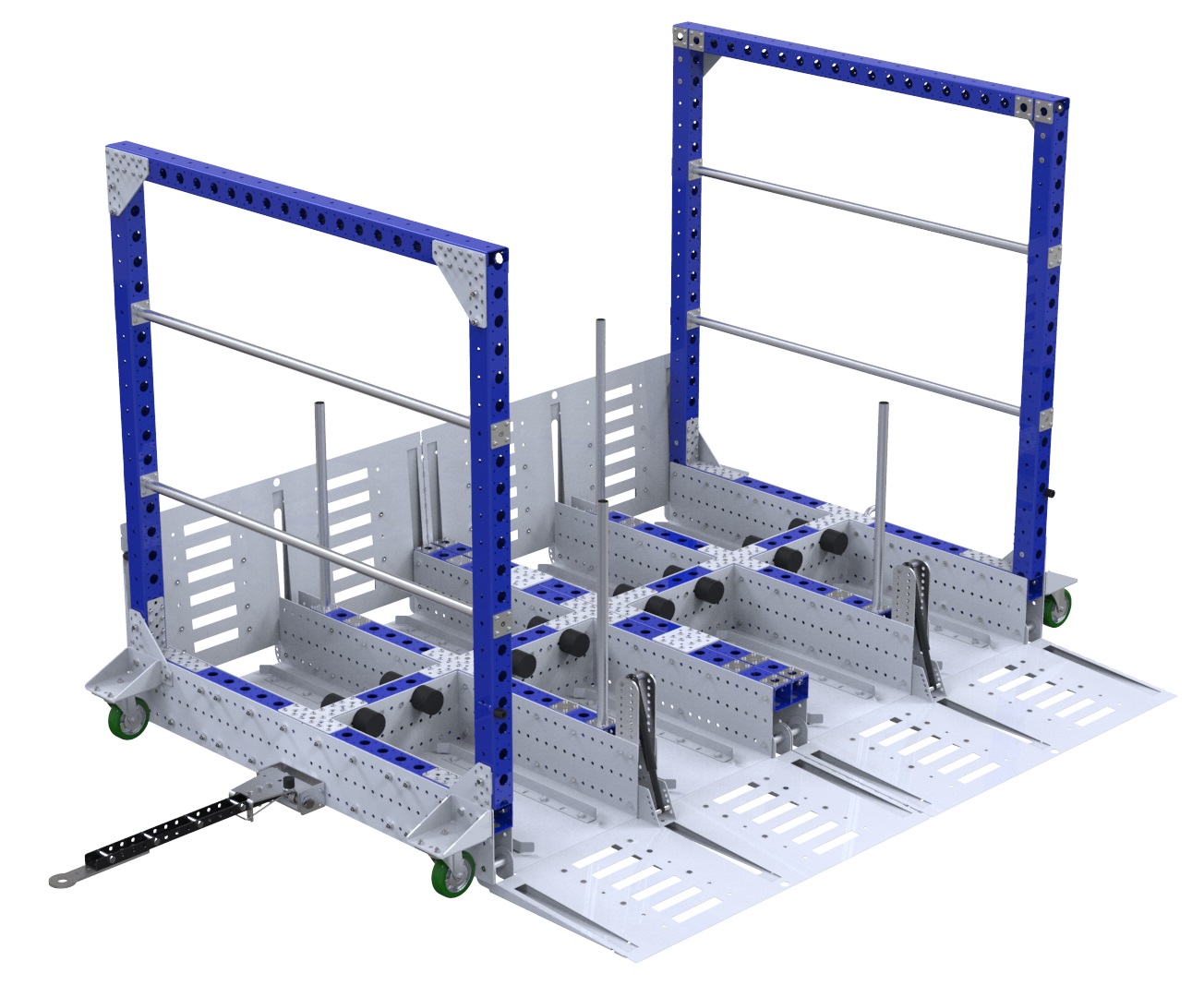

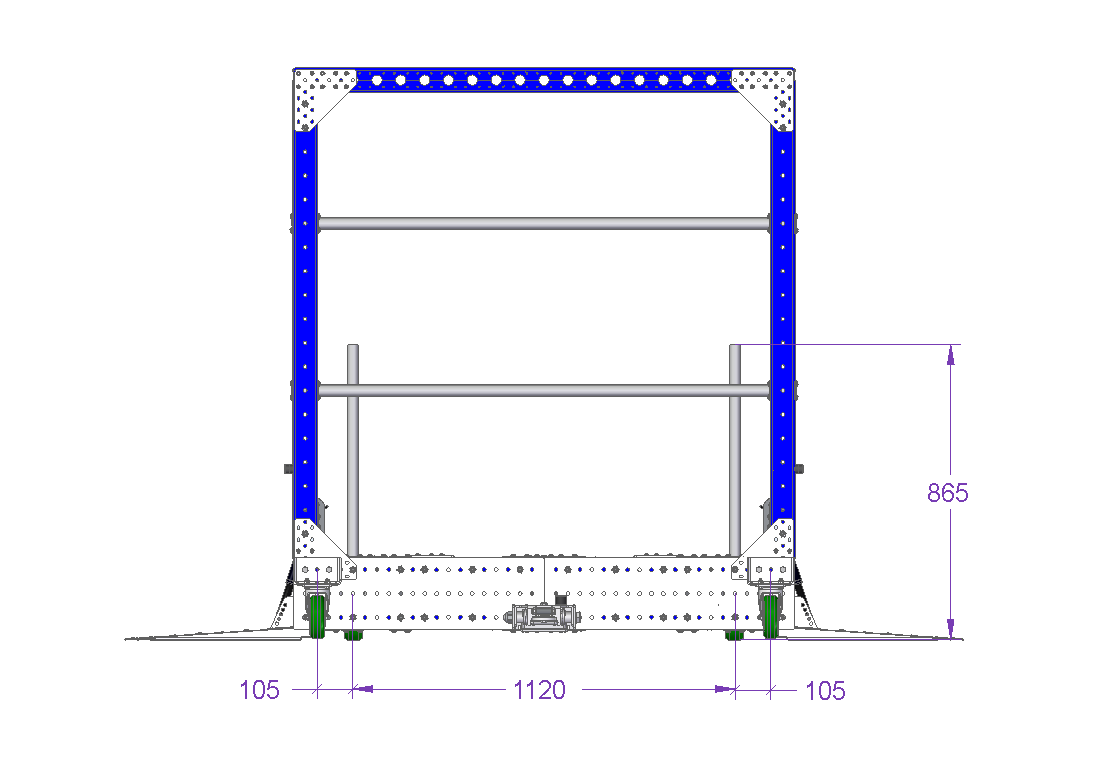

Mother Daughter System for Dollies – 2240 x 1470 mm

Q-100-0986

Mother Daughter System for Dollies – 2240 x 1470 mm

Large mother-daughter system for transporting eight small dollies.

Technical specifications

Type of tow bar: Tongue and Hitch

Industry: Appliances & Electronics, Distribution, Medical Equipment

Width: 1470 mm

Length: 2240 mm

Load capacity: 800 kg

Caster size: 125 mm

Transportation method: Mother-Daughter Cart, Tugger

More info

This 8 in 1 Mother Daughter cart system is a very large solution designed to take 8 fully loaded dollies within one frame. The 8 dollies can all be removed at different work and assembly stations, improving efficiency flow within the facility. This mother frame is equipped with a drop pin and hitch tow bar, therefore this solution is designed to be towed behind a tugger train (learn more about transitioning from forklifts to tugger trains here).

Parts included

FlexBeam™ – 1400 mm 8 Q-001-1297

FlexBeam™ 700 mm FE 8 Q-001-1407

FlexBeam™ 560 mm FE 16 Q-001-1409

FlexBeam™ 1330 mm FE 6 Q-001-1501

FlexBeam™ 1470 mm FE 6 Q-001-1503

FlexBeam 2100 mm STS FE 4 Q-001-1512

FlexPlate™ 16 Q-002-1001

Flexplate™ M10 34 Q-002-1162

Flexplate™ 30.5 mm hole 12 Q-002-1320

Caster Polyurethane – 125 mm Fixed 2 Q-004-1107

Caster Polyurethane 125 mm 80 x 60 Swivel 4 Q-004-1220

Cross Joint – 240 x 240 mm 4 Q-005-0021

L Bracket Joint 4 Q-005-0031

T-Joint 6 Q-005-0065

M10 – Collet 43 mm 4 Q-005-0104

27 mm collet – 15 x 2 mm 3 Q-005-0341

Rubber damper – Ø70 x 55 mm 16 Q-005-0356

Rubber Bush – M6 x 12 mm 8 Q-005-0369

Spring Threaded Tube Connectors 76 Q-005-0469

Triangle Joint 8 Q-005-0483

Countersunk Wheel Attachment – 105 x 77.5 mm 2 Q-005-0647

M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648

Hinge assembly – Welded 4 Q-005-0653

Extended caster attachment – 80 x 60 (Welded) 4 Q-005-0671

Side Panel – 735 x 210 mm 4 Q-005-0680

Guide plate – 560 mm 16 Q-005-0709

Circlip for M10 Rod 16 Q-005-0737

Attach. Plate for Cylinder Axis 8 Q-005-0738

Lower Axis – Ø10 x 66 mm 4 Q-005-0739

Upper axis – Ø10 x 76 mm 4 Q-005-0740

Ramp support plate 16 Q-005-0742

64 mm FlexBeam™ Collet 28 Q-005-1426

M10 Collet – 15 mm 8 Q-006-0027

M6 x 20 K6S 10.9 Round Head (black) 4 Q-006-1018

M8 x 20 mm Hex Head Fully Threaded 16 Q-006-1019

Washer 10.5 x 30 x 2.5 1 Q-006-1030

M10 x 25 mm Hex Head 7 Q-006-1041

Locking Nut M10 360 Q-006-1042

Washer M10 8 Q-006-1043

Countersunk - M10 x 25 mm 8 Q-006-1082

M10 x 30 mm Hex Head 8 Q-006-1161

Locking Nut M8 17 Q-006-1181

M10 x 16 Hex Head Fully Threaded 16 Q-006-1245

M10 x 50 mm Hex Head Fully Threaded 3 Q-006-1343

M10 x 90 mm Extra Low Head 50 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 584 Q-006-1384

M10 x 16 mm Low Allen Head 128 Q-006-1409

M10 x 25 mm Extra Low Head Allen 228 Q-006-1410

M10 x 60 mm Hex Head Fully Threaded 4 Q-006-1502

10 mm Collet 8 Q-015-1047

Collet – 11.5 mm 8 Q-015-1048

Daughter Cart Carrier – 690 x 455 mm 8 Q-016-0493

Modular tow lip – 28 mm 1 Q-017-0005

Modular Tow bar 605 mm 1 Q-017-0038

Tow Hinge Module 1 Q-017-0059

Spring Loaded Tow Hinge 1 Q-017-0067

Outer Tube (No Plate) – 70 mm 12 Q-025-0070

Outer tube (no plate) – 140 mm 6 Q-025-0140

Outer Tube (No Plate) – 694 mm 4 Q-025-0694
