Assembly Cart with Pegboard - 770 x 2170 mm
Assembly cart with pegboard – 770 x 2170 mm
Assembly cart with pegboard – 770 x 2170 mm
Assembly cart with pegboard – 770 x 2170 mm
Assembly cart with pegboard – 770 x 2170 mm
Assembly cart with pegboard – 770 x 2170 mm
Q-100-0526

Assembly cart with pegboard – 770 x 2170 mm

Custom designed assembly table with pegboard.

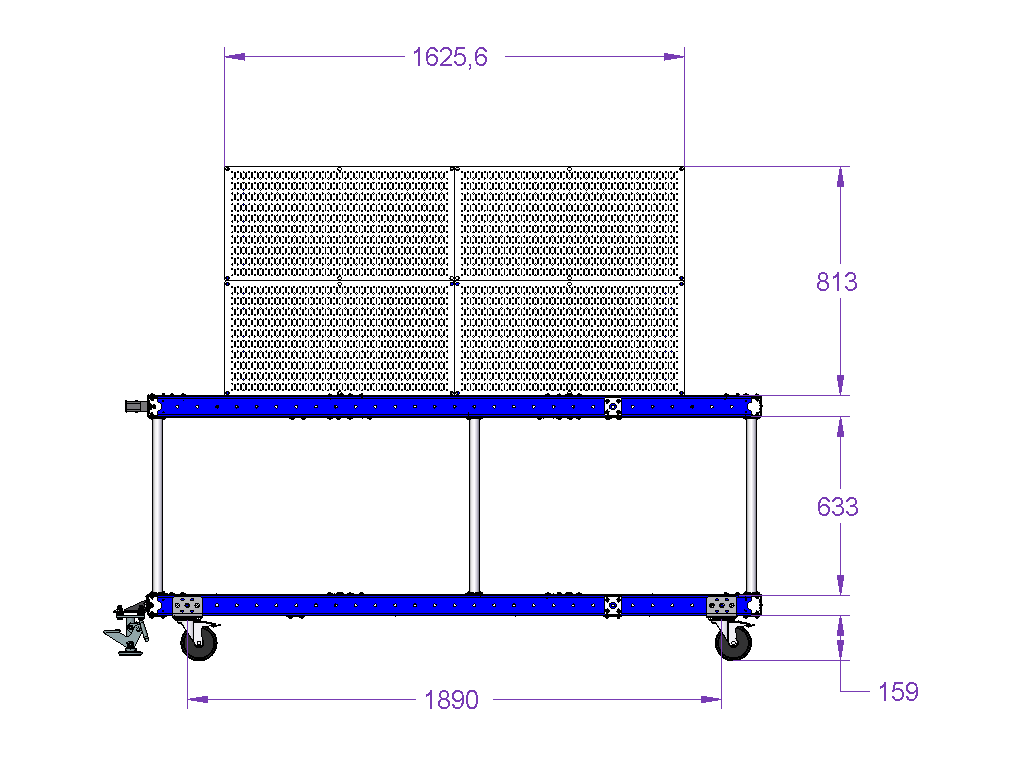

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 770 mm

Length: 2170 mm

Load capacity: 317 kg

Transportation method: Manual

Caster size: 125 mm

Caster Type: Gray

Type of Load: Bins, Boxes, Misc parts, Totes

More info

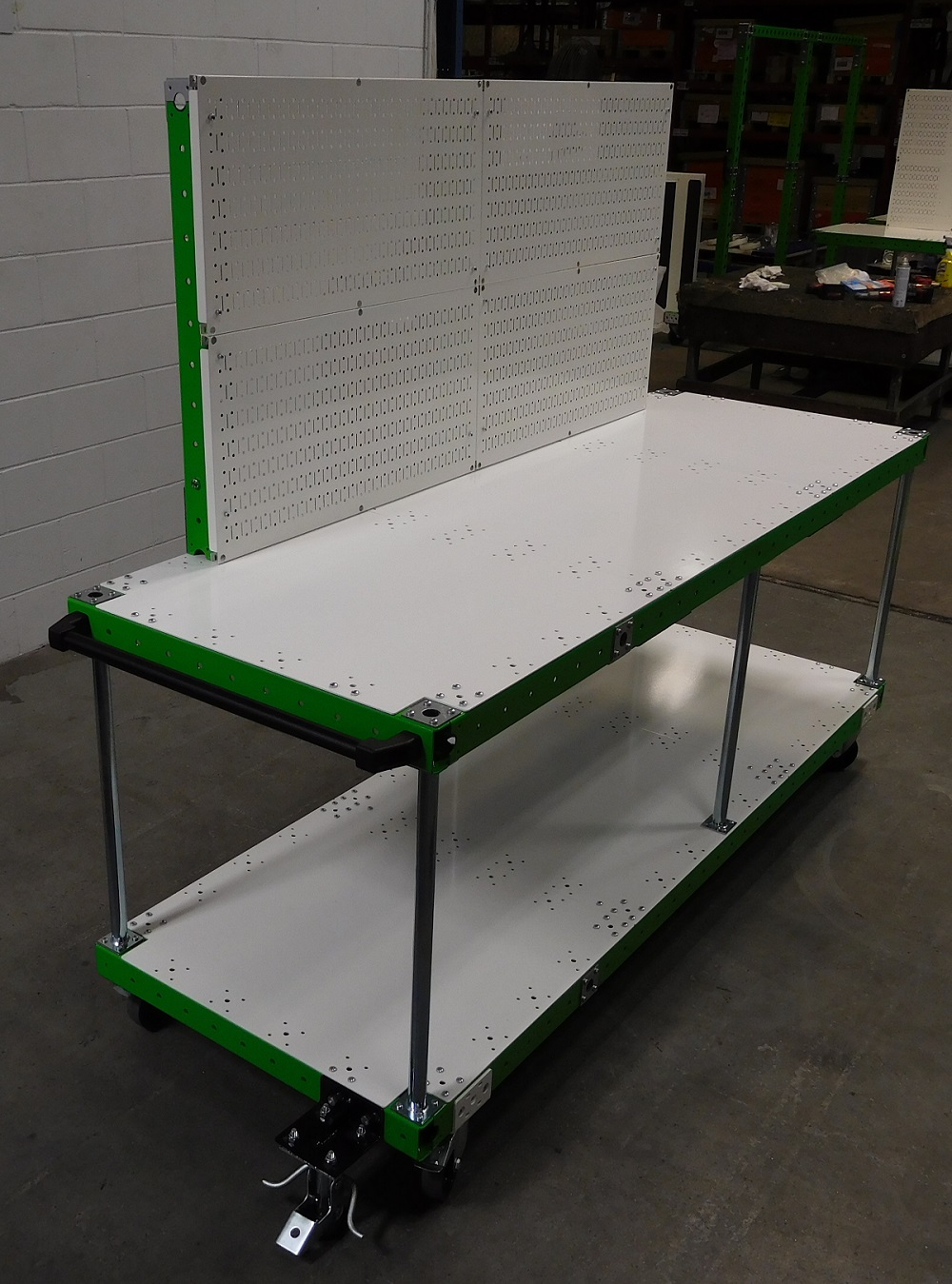

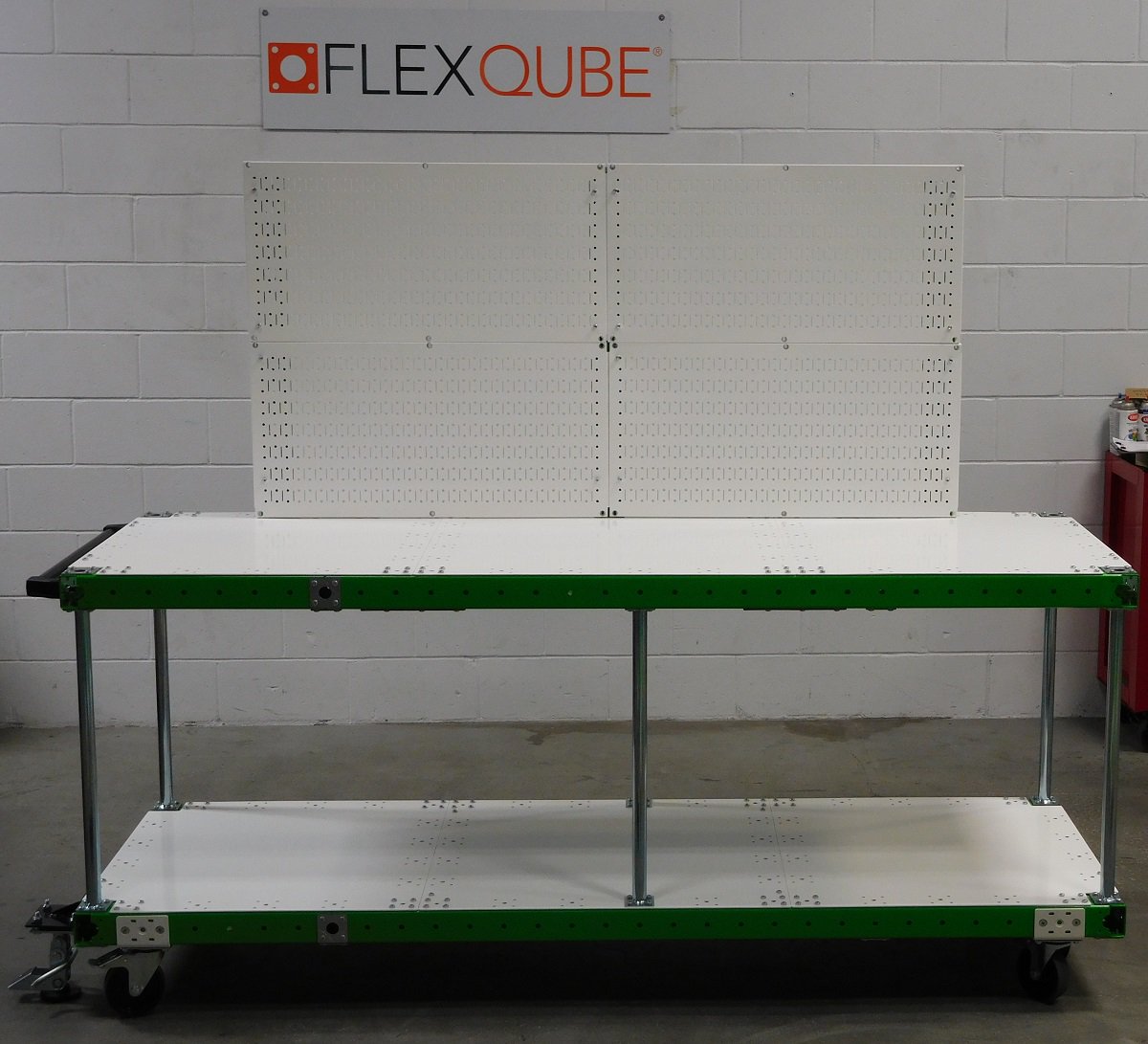

This assembly cart was designed with two levels. The top level is used by the operators to assemble the materials and is equipped with rubber protection. The lower level can carry and store totes, bins and boxes. On the top level there is a board where pegs can be added to hang different tools and parts. It comes equipped with a floor lock brake to keep it secure when not in use.

Parts included
Outer tube (No plate) – 657 mm 1 Q-000-0065
FlexTube™ 630 mm 6 Q-000-1312
FlexQube® 3 Q-001-1078
FlexBeam™ – 1610 mm 8 Q-001-1294
FlexBeam™ 770 mm 6 Q-001-1306
FlexBeam™ 630 mm 2 Q-001-1308
FlexBeam™ 490 mm 8 Q-001-1310
FlexBeam™ 770 mm FE 4 Q-001-1406
FlexBeam™ 630 mm FE 4 Q-001-1408
FlexPlate™ 31 Q-002-1001
125 mm Swivel Caster with Brake 4 Q-004-1364
Floor Lock COLSON 4'' x 4-1/2'' 1 Q-004-1369
T-Joint 7 Q-005-0065
Caster to Beam Attachment – 80 x 60 mm 4 Q-005-0265
Handle for 30 mm Tube 2 Q-005-1240
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 8 Q-005-1426
Rubber Carpet – 770 X 2170 mm 1 Q-005-3300
M10 x 25 mm Hex Head 2 Q-006-1041
Locking Nut M10 25 Q-006-1042
Washer M10 20 Q-006-1043
Locking Nut M8 16 Q-006-1181
Hex Head – M10 x 40 4 Q-006-1208
M8 x 16 mm Countersunk 16 Q-006-1214
Extra low head [1.5 mm] M10 x 40 mm 2 Q-006-1361
M10 x 90 mm Extra Low Head 17 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 342 Q-006-1384
Pegboard – 32 x 16 inches 4 Q-016-0236
