Base Cart for Racks – 2660 x 2310 mm
Base Cart for Racks – 2660 x 2310 mm
Base Cart for Racks – 2660 x 2310 mm
Q-100-0263

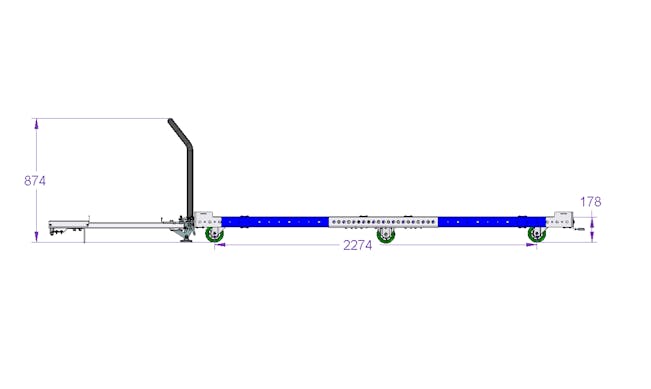

Base Cart for Racks – 2660 x 2310 mm

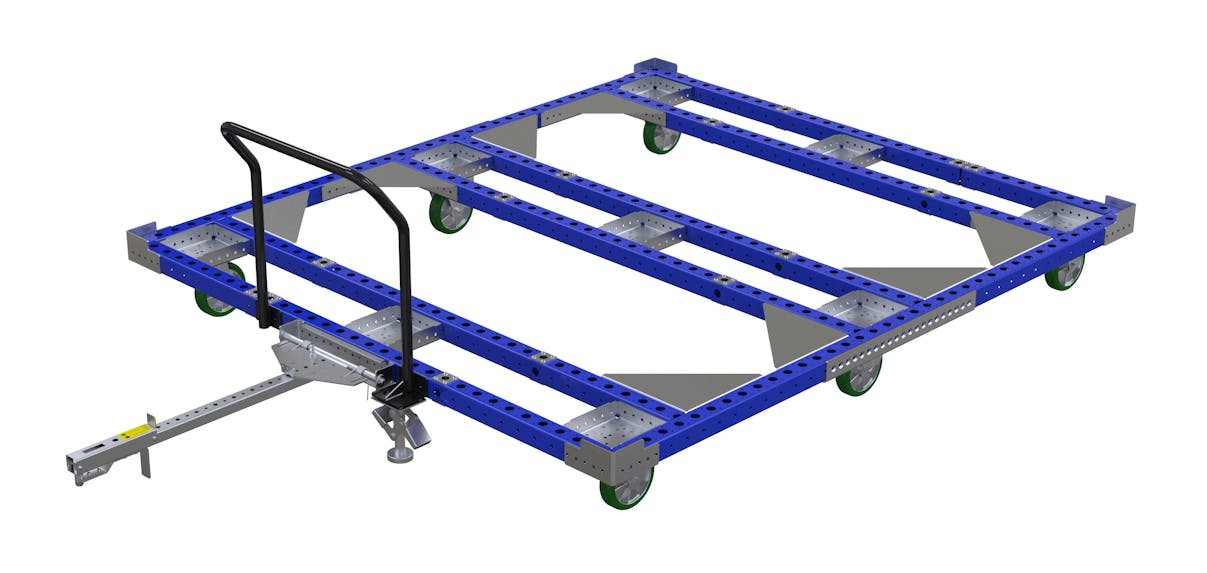

Large flatbed push cart equipped with a handlebar, floor brake and six polyurethane casters.

Technical specifications

Category: Standard

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Type of tow bar: Foot release

Length: 2660 mm

Load capacity: 500 kg

Width: 2310 mm

Transportation method: Manual

Caster size: 125 mm

Caster Type: Polyurethane

More info

This flatbed pallet cart is great for transportation of larger pallets and containers. The cart is equipped with a foot release tow bar, handlebar, floor brake and six high quality polyurethane casters which give the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexBeam™ – 1610 mm 8 Q-001-1294
FlexBeam™ – 1540 mm 2 Q-001-1295
FlexBeam™ – 1470 mm 2 Q-001-1296
FlexBeam™ 1120 mm 2 Q-001-1301
FlexBeam™ 700 mm 2 Q-001-1307
FlexBeam™ 560 mm 8 Q-001-1309
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexBeam™ 1540 mm FE 4 Q-001-1504
FlexPlate™ 45 Q-002-1001
Flexplate™ M10 18 Q-002-1162
Wheel Attachment – 105 x 77.5 mm 4 Q-004-1065
Caster Polyurethane – 125 mm 4 Q-004-1106
Caster Polyurethane – 125 mm Fixed 2 Q-004-1107
Floor Lock COLSON 4'' x 4-1/2'' 1 Q-004-1369
Wheel Attachment Box – 5 mm 9 Q-005-0046
Spring Cover Plate 1 Q-005-1025
Reinforcement Plate – 770 mm 2 Q-005-1112
Triangle Corner Plate 8 Q-005-1145
Caster Distance Collet – 18 mm 4 Q-005-1396
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 81 Q-005-1426
Pallet Guide Heavy 5 mm 4 Q-005-1645
Sticker Green/Red 1 Q-005-1659
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 3 Q-006-1039
M10 x 25 mm Hex Head 4 Q-006-1041
Locking Nut M10 115 Q-006-1042
Washer M10 50 Q-006-1043
M10 x 95 mm Hex Head 35 Q-006-1088
M10 x 90 mm Hex Head 36 Q-006-1132
M10 x 90 mm Countersunk MF6S 4 Q-006-1135
M10 x 100 mm Countersunk 4 Q-006-1136
M10 x 100 mm Hex Head 2 Q-006-1302
M10 x 50 mm Hex Head Fully Threaded 4 Q-006-1343
Self Tapping Screw M6 Torx H60 x 16 234 Q-006-1384
M10 x 25 mm Extra Low Head Allen 24 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 2 Q-006-1502
Spring 1.5 x 15yd x 70 1 Q-012-1141
Low Rider Floor Brake Plate 1 Q-015-0019
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR – 950 mm 1 Q-017-0002
Foot Release Locking Lip 1 Q-017-0024
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm – Symmetrical 1 Q-017-1066
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
