Q-100-0331

Cart for Hanging Hoses

Hanging push cart with three hangers split into five sections each. Equipped with four nylon swivel casters.

Technical specifications

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

Category: Hanging Carts

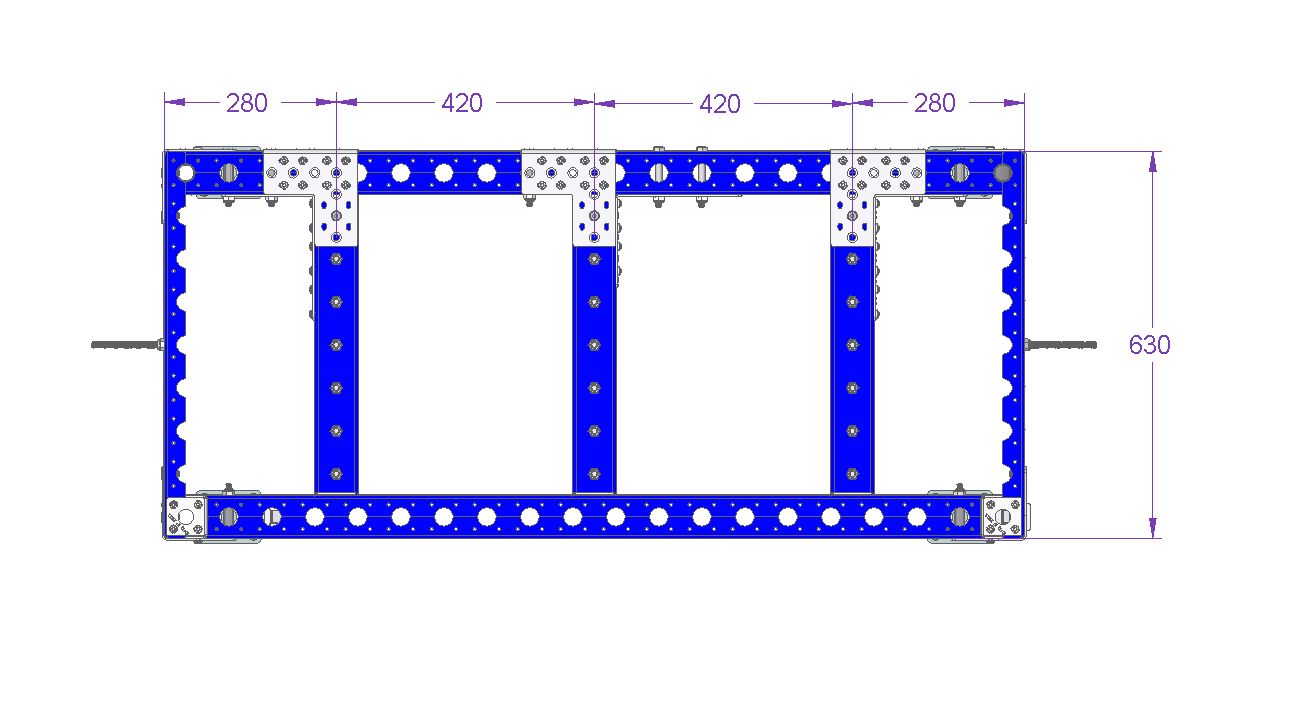

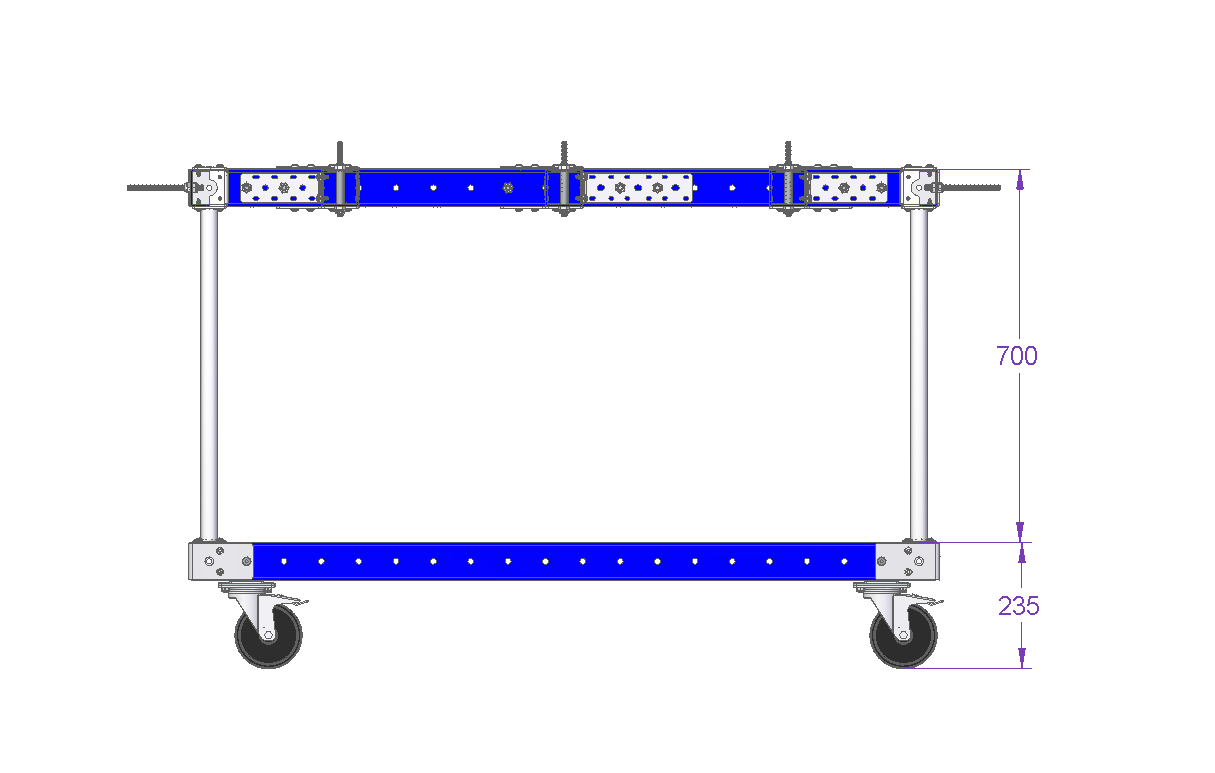

Length: 1400 mm

Width: 630 mm

Load capacity: 91 kg

Caster size: 125 mm

Caster Type: Nylon

More info

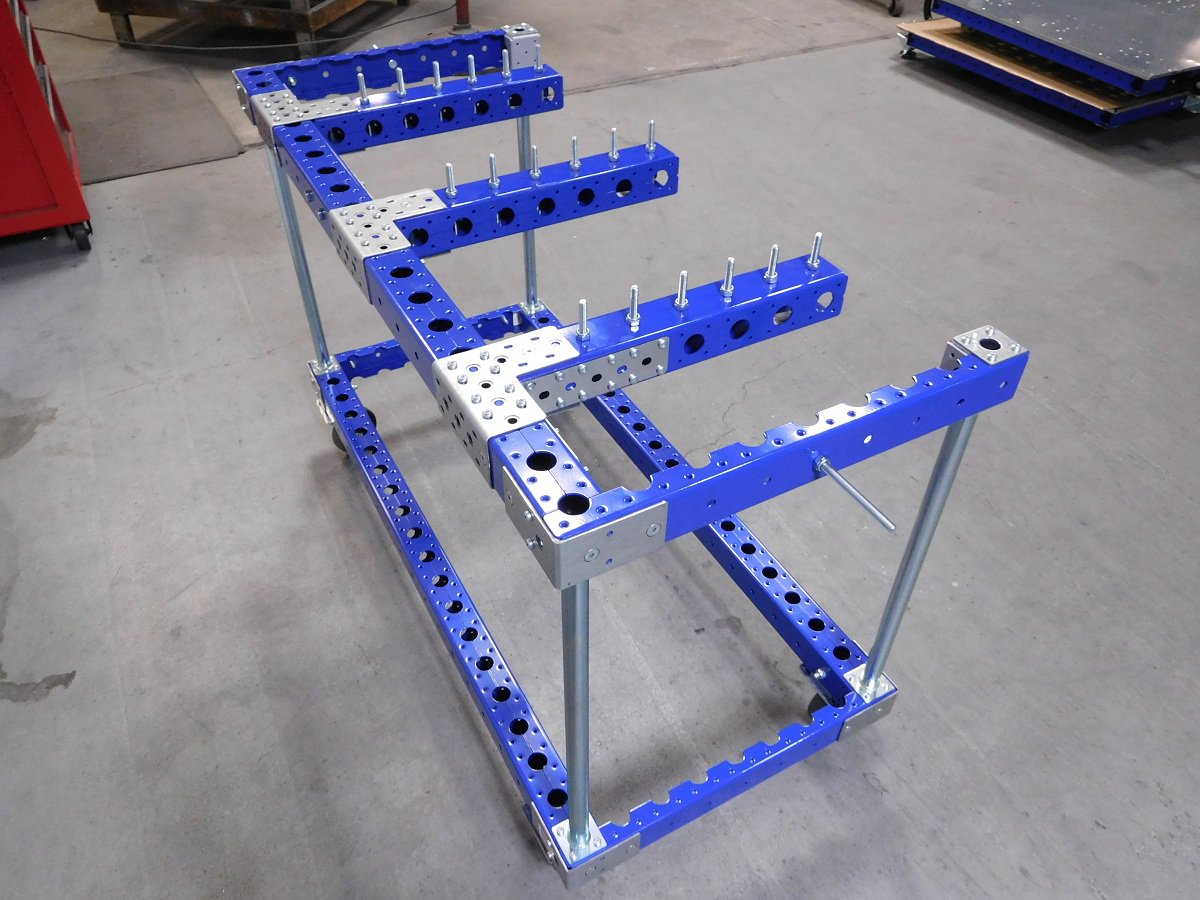

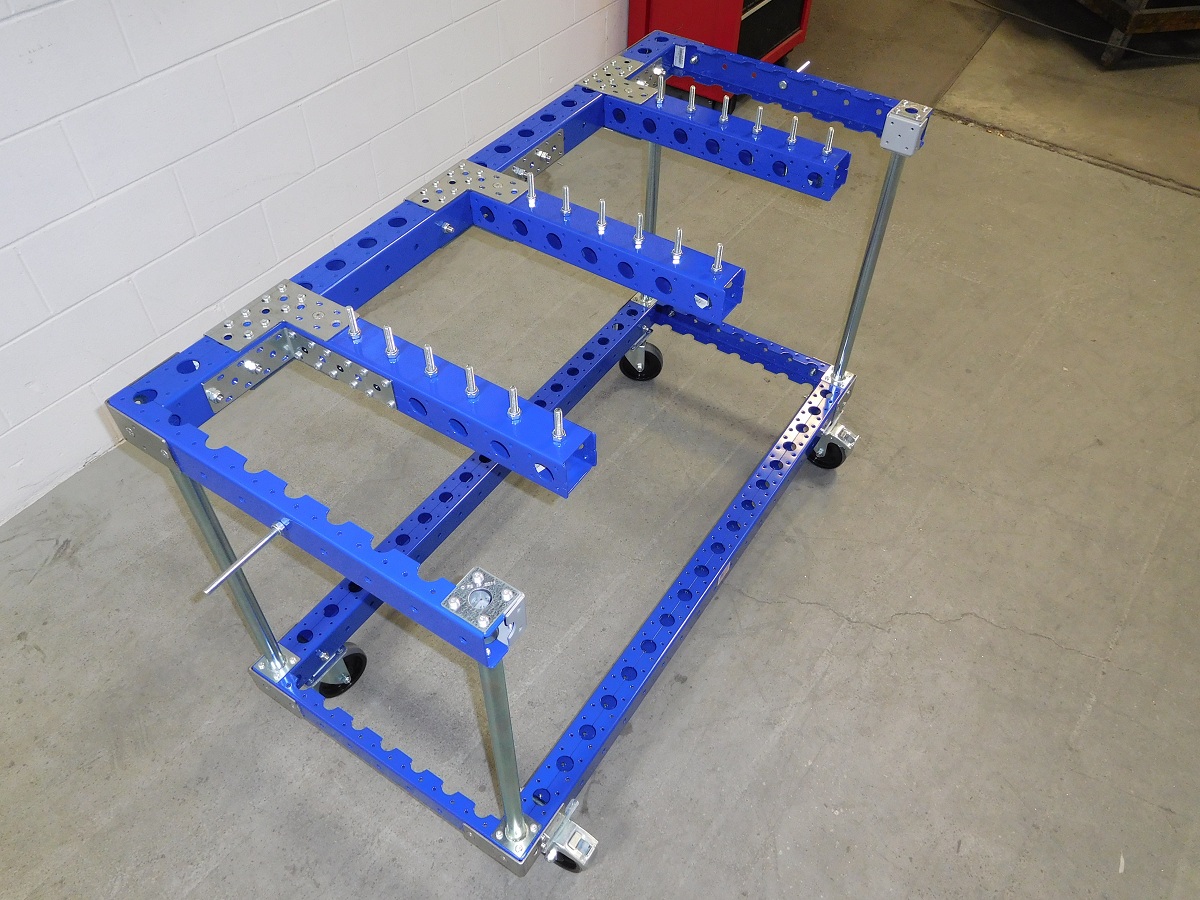

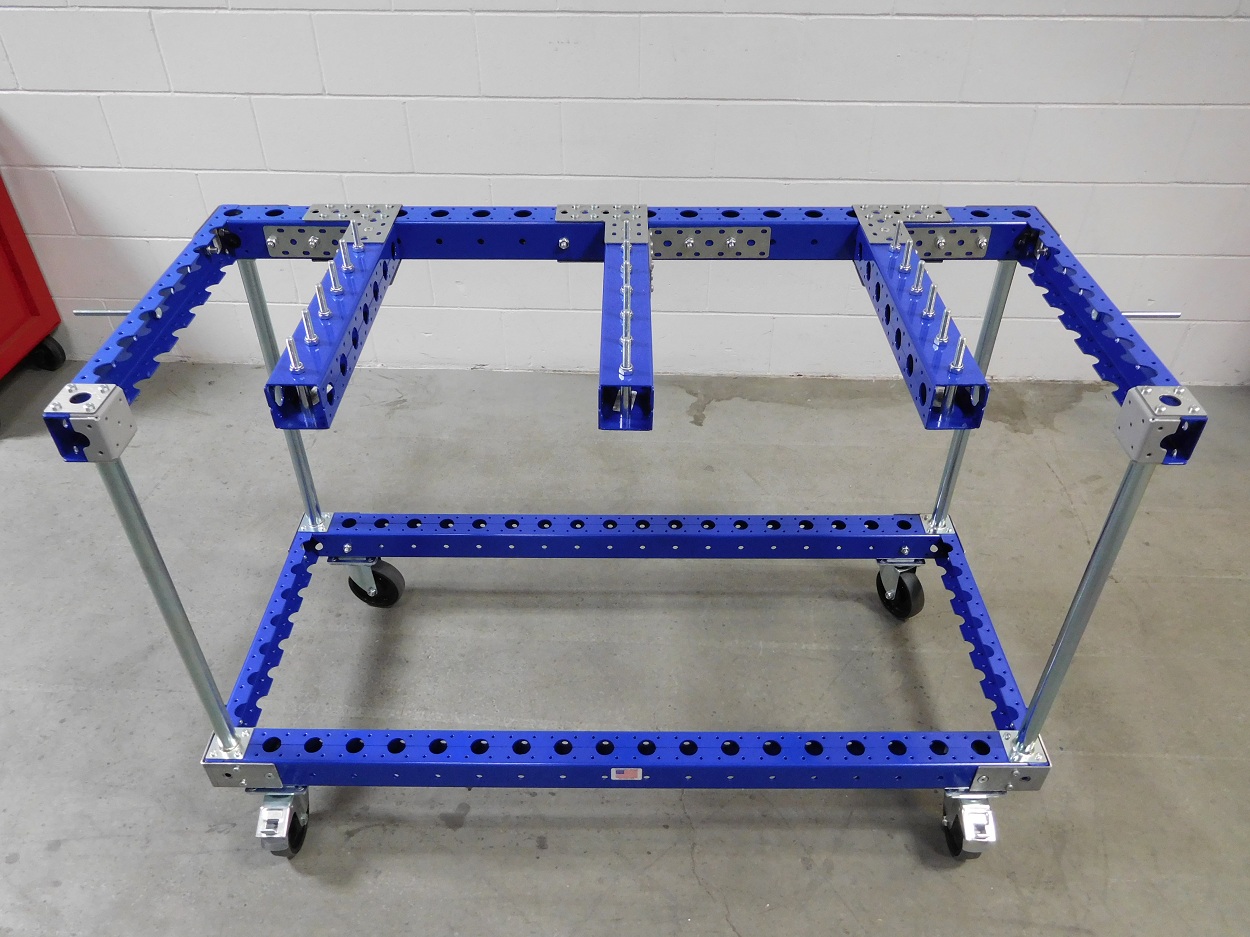

This cart was designed to store and transport hoses and similar parts. The hoses hang from the three FlexBeams which have been split into five sections each. The cart is equipped with four nylon swivel casters, two with brakes making it easy to manoeuvre in tight areas.

Parts included
FlexTube™ 630 mm 4 Q-000-1312
FlexQube® 2 Q-001-1078
FlexBeam™ – 1330 mm 6 Q-001-1298
FlexBeam™ 630 mm FE 4 Q-001-1408
FlexBeam™ 490 mm FE 6 Q-001-1410
FlexPlate™ 10 Q-002-1001
Stiffener – Outside 6 Q-002-1050
125 mm Swivel Caster 2 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
L Bracket Joint 3 Q-005-0031
64 mm FlexBeam™ Collet 7 Q-005-1426
Heavy Duty Joint M10 3 Q-005-1580
Wheel Attachment – 80 x 60 mm 4 Q-005-1722
M10 x 120 mm Fully Threaded 20 Q-006-1037
Locking Nut M10 46 Q-006-1042
M10 x 90 mm Hex Head 2 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
M10 x 90 mm Extra Low Head 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 132 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 16 Q-006-1385
M10 x 25 mm Extra Low Head Allen 12 Q-006-1410
