Daughter cart – 640 x 770 mm
Daughter cart – 640 x 770 mm
Daughter cart – 640 x 770 mm
Daughter cart – 640 x 770 mm
Daughter cart – 640 x 770 mm
Q-100-0231

Daughter cart – 640 x 770 mm

Standard daughter cart with two flat shelves.

Technical specifications

Transportation method: Manual, Mother-Daughter Cart

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Category: Daughter Cart, Flat Shelf

Length: 770 mm

Width: 640 mm

Load capacity: 136 kg

Caster size: 125 mm

Caster Type: Nylon, Polyurethane

More info

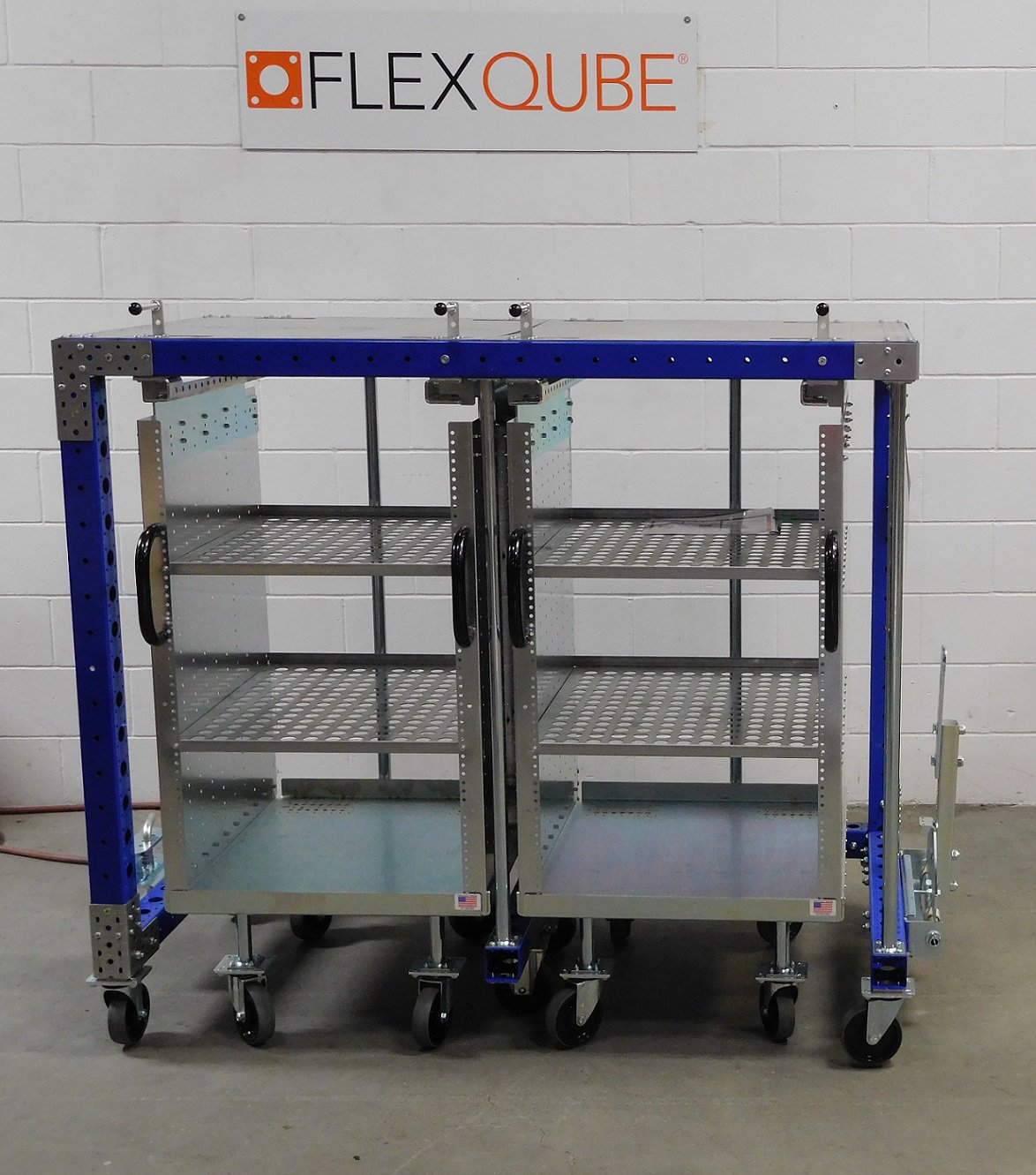

This daughter cart was designed to carry bins, totes and boxes within a 2 in 1 mother frame. The daughter carts can be locked into the mother frame for transportation and then unlocked and left at work stations.

Parts included
FlexTube™ 140 mm – Locking Nut 4 Q-000-1102
125 mm Swivel Caster 4 Q-004-1363
Daughter Cart Bottom 1 Q-005-0158
Daughter Cart Side 2 Q-005-0159
L Shape Daughter Cart Guide 2 Q-005-0160
Wheel Attachment – 80 x 60 mm 4 Q-005-1722
Locking Nut M6 36 Q-006-1050
M6 x 12 mm Round Head 24 Q-006-1051
Old Part: M6 x 12 mm Allen Head 20 Q-006-1080
M8 x 16 mm Hex Head 4 Q-006-1120
Locking Nut M8 16 Q-006-1181
M6 x 16 mm Countersunk Allen Head 16 Q-006-1197
M8 x 16 mm Countersunk 16 Q-006-1214
M6 x 8 mm Allen Head 42 Q-006-1336
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
Handlebar 210 mm M8 2 Q-015-1037
Daughter Cart Shelf – 825 x 632 mm 2 Q-016-0095
