Daughter Cart – 1540 x 490 mm
Daughter Cart – 1540 x 490 mm
Daughter Cart – 1540 x 490 mm
Daughter Cart – 1540 x 490 mm
Daughter Cart – 1540 x 490 mm
Daughter Cart – 1540 x 490 mm
Q-100-0702

Daughter Cart – 1540 x 490 mm

Daughter cart designed to lock into a mother frame creating a mother-daughter solution.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 490 mm

Length: 1540 mm

Levels: 3

Load capacity: 300 kg

Load Capacity per Level: 100 kg

Transportation method: Manual, Mother-Daughter Cart

Caster size: 125 mm

Caster Type: Gray

Type of Load: Bins, Boxes, Totes

More info

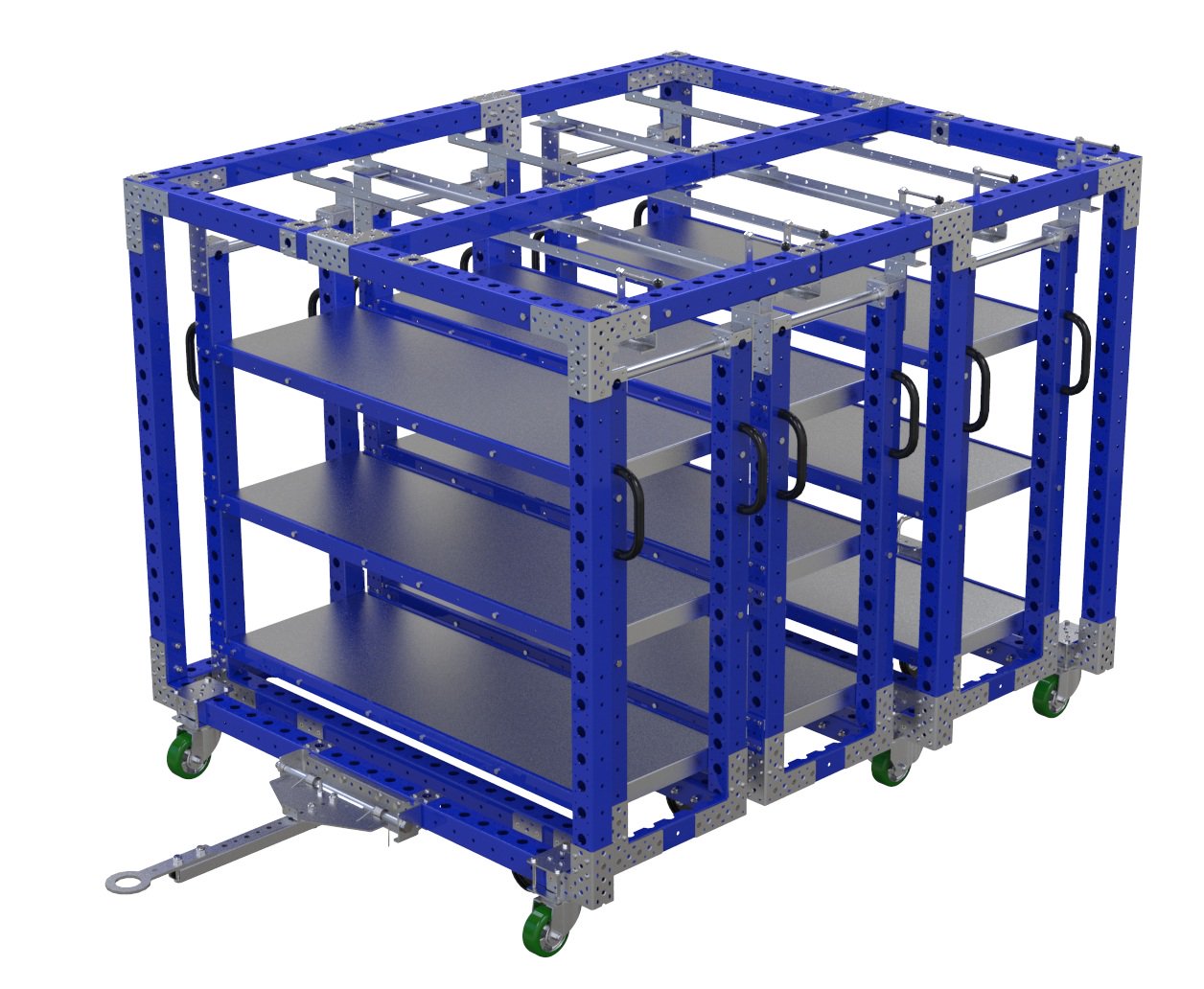

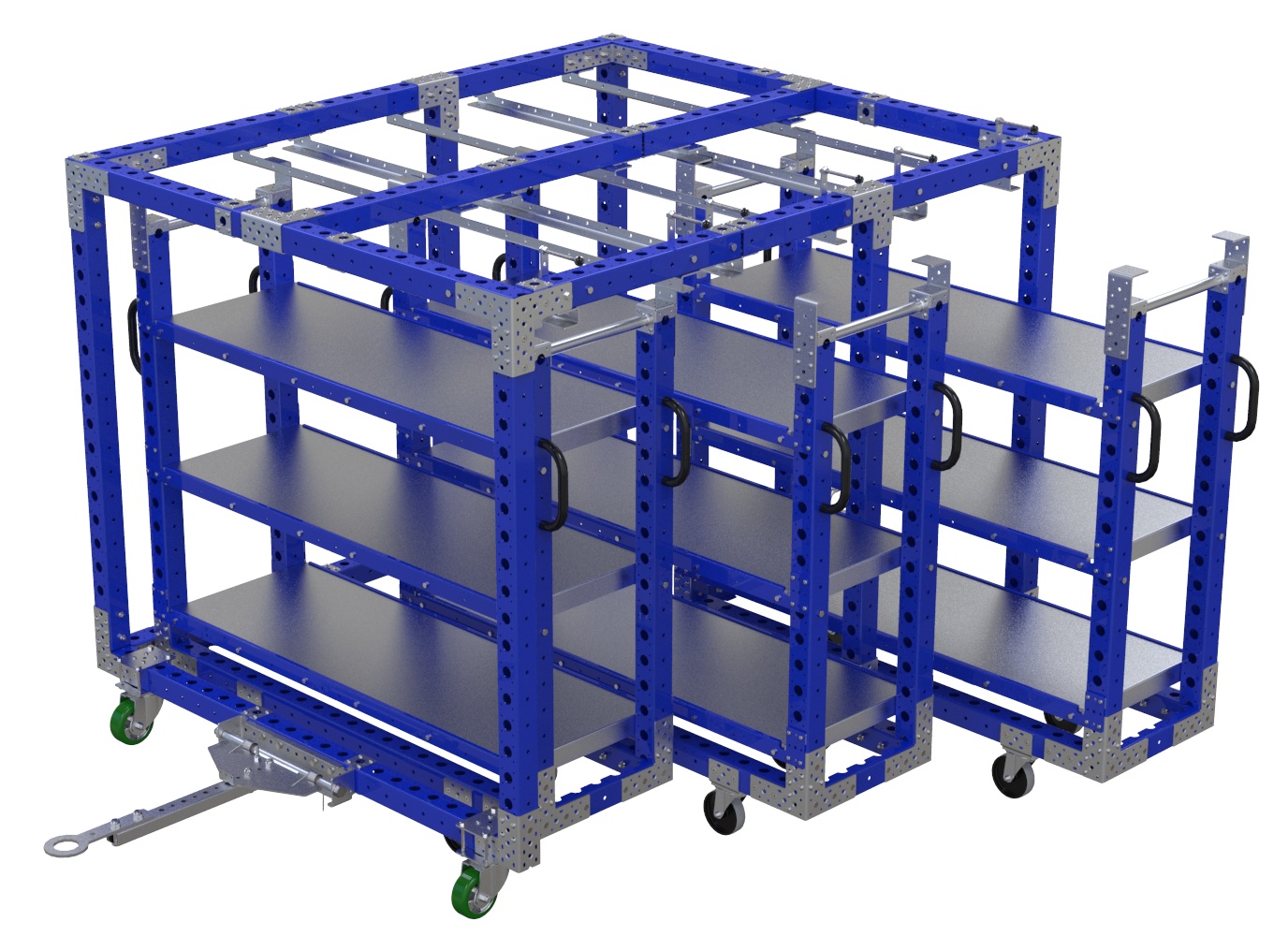

This daughter cart is designed to lock into a mother frame creating a mother-daughter solution. This daughter cart is equipped with 3 flat shelves and is ideal for transporting bins and totes. The daughter carts are designed to be unlocked from the mother frame and left at assembly and workstations.

Parts included
FlexTube™ 350 mm 2 Q-000-1055
FlexQube® 4 Q-001-1078
FlexBeam™ – 1470 mm 4 Q-001-1296
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 490 mm FE 2 Q-001-1410
FlexPlate™ 4 Q-002-1001
FlexPlate™ half 4 Q-002-1369
125 mm Swivel Caster 4 Q-004-1363
L-shape Daughter cart guide 4 Q-005-0258
Caster to Beam Attachment – 80 x 60 mm 4 Q-005-0265
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 24 Q-005-1426
Wheel Attachment – 80 x 60 mm 4 Q-005-1722
M8 x 20 mm Hex Head Fully Threaded 36 Q-006-1019
Locking Nut M10 40 Q-006-1042
M8 x 16 mm Hex Head 8 Q-006-1120
M10 x 90 mm Hex Head 8 Q-006-1132
Locking Nut M8 52 Q-006-1181
M8 Washer 32 Q-006-1183
M8 x 25 mm Countersunk 16 Q-006-1250
M10 x 90 mm Extra Low Head 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 142 Q-006-1384
M10 x 25 mm Extra Low Head Allen 12 Q-006-1410
Handlebar 210 mm M8 4 Q-015-1037
Angled plate – 1528 mm 6 Q-016-0109
Flat Shelf – 1400 x 490 mm 3 Q-016-0330
