Daughter Cart – 490 x 700 mm
Daughter Cart - 490 x 700 mm
Daughter Cart – 490 x 700 mm
Daughter Cart – 490 x 700 mm
Daughter Cart - 490 x 700 mm
Daughter Cart – 490 x 700 mm
Daughter Cart - 490 x 700 mm
Q-100-1515

Daughter Cart – 490 x 700 mm

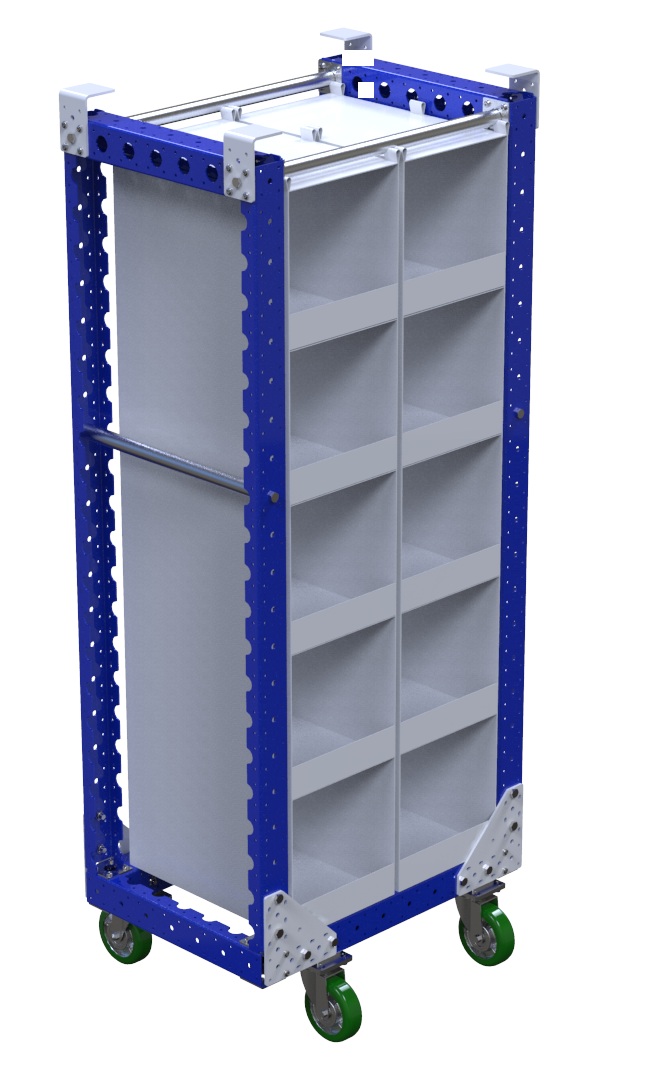

Daughter cart for hanging compartment fabric. To be used with mother Q-100-1002.

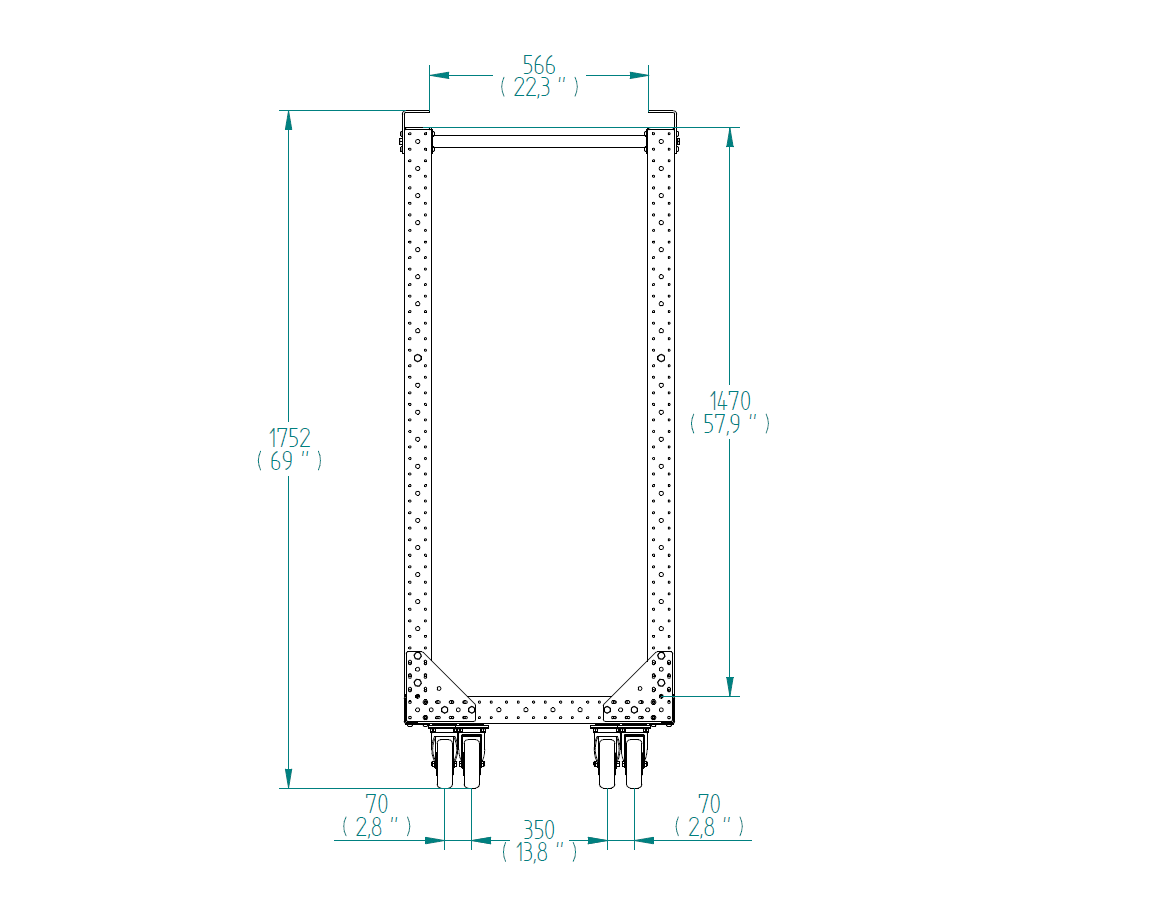

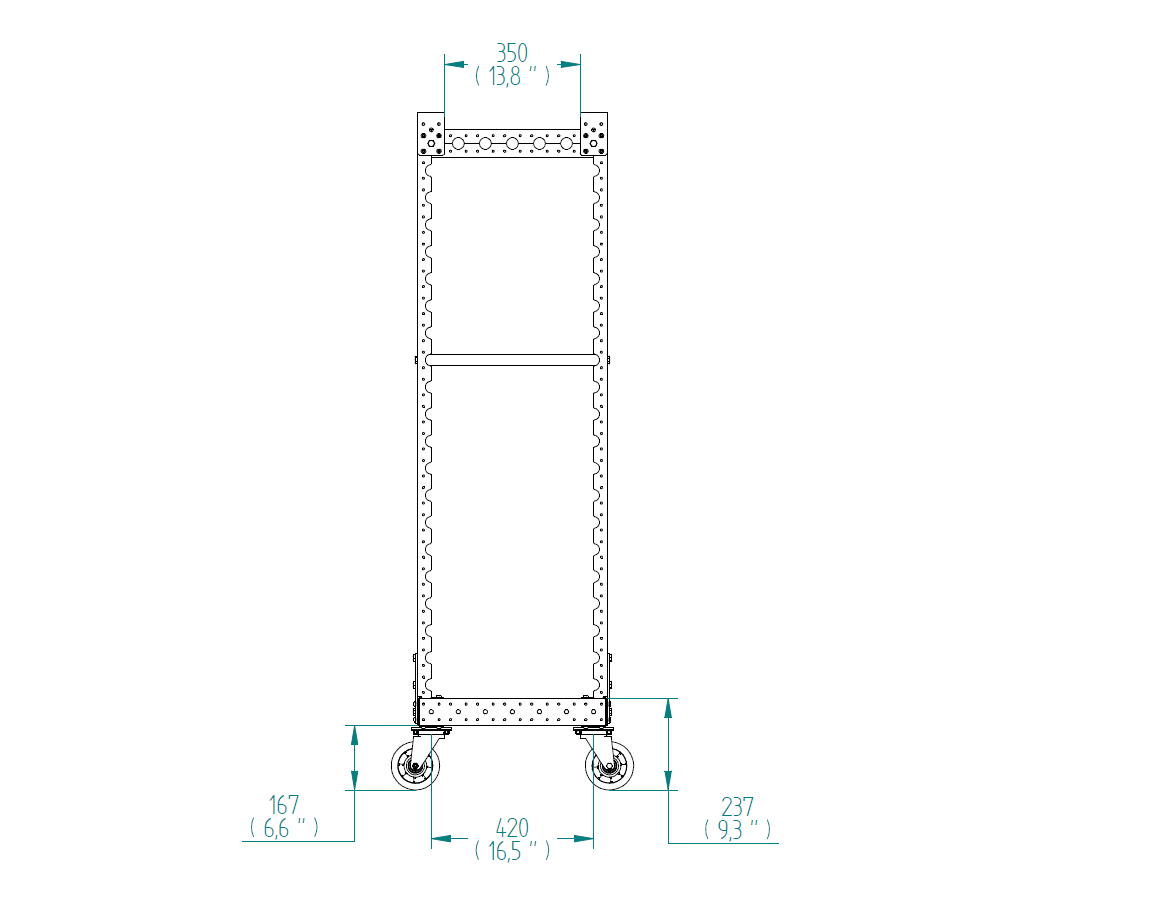

Technical specifications

Category: Daughter Cart

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

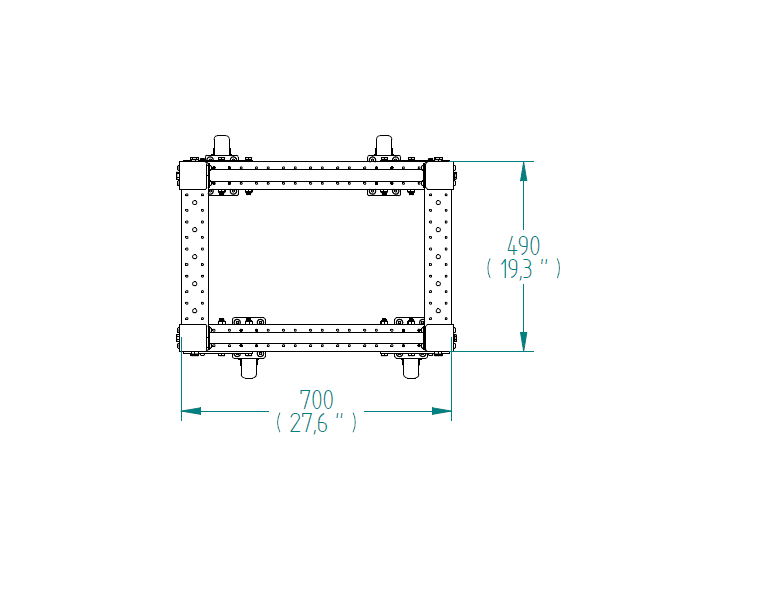

Length: 700 mm

Width: 490 mm

Load capacity: 200 kg

Transportation method: Mother-Daughter Cart

Caster size: 125 mm

Caster Type: Polyurethane

Type of Load: Misc parts

More info

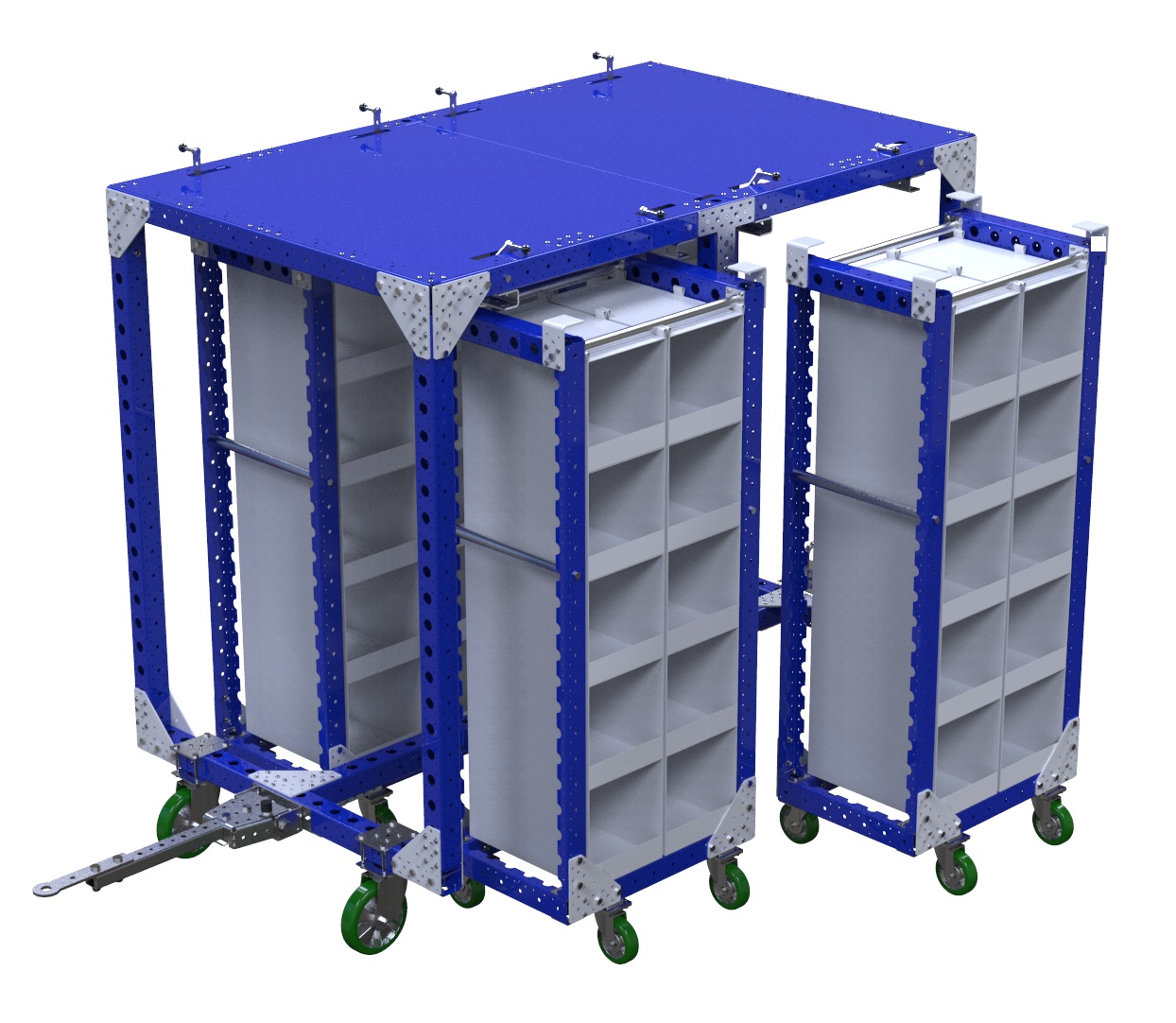

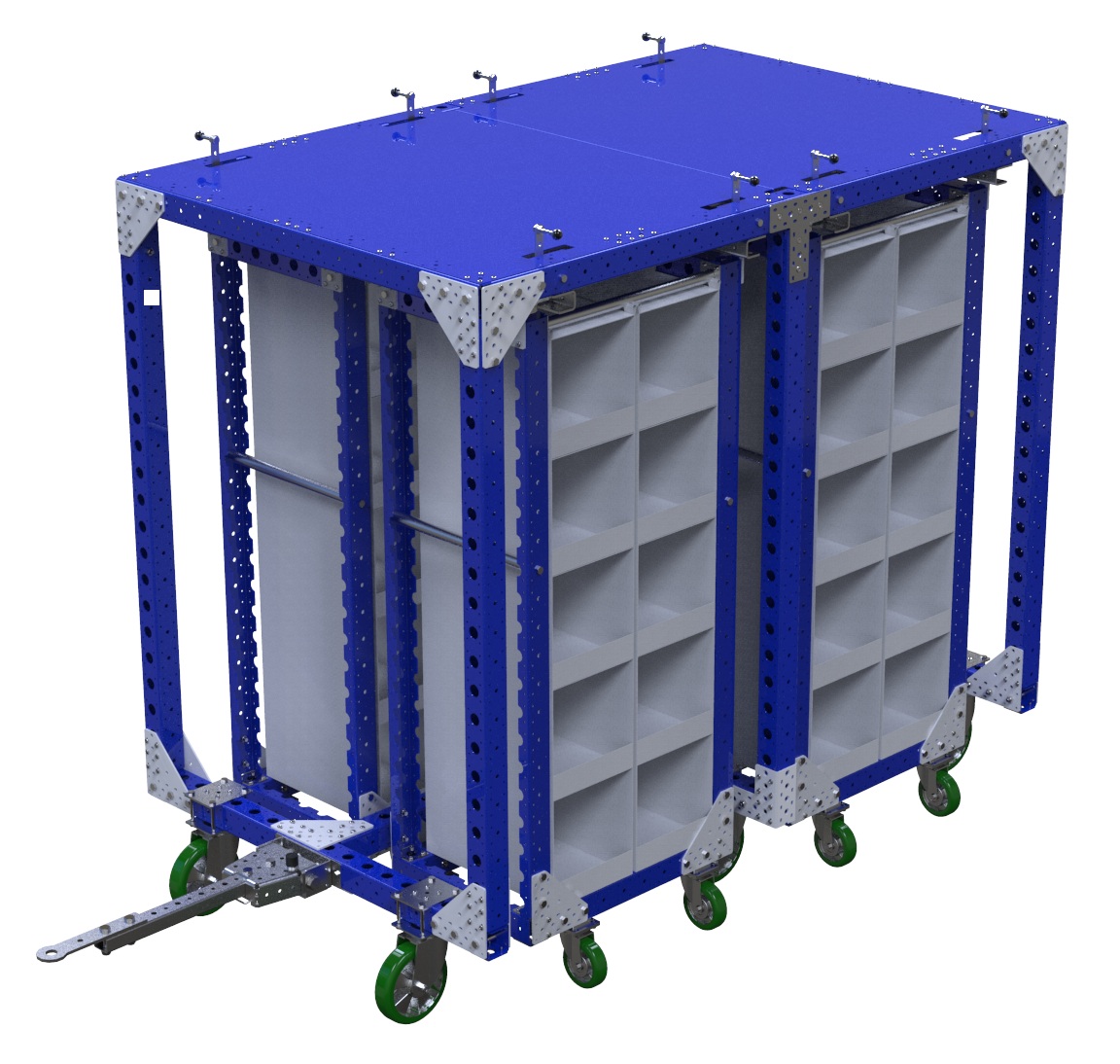

This cart is designed to be used in a mother daughter system in combination with Q-100-1002. The cart is equipped with tubes at the top that are used to insert fabric compartments, and can also be used for hanging parts. The cart has 125 mm diameter Polyurethane casters.

Parts included
FlexPlate™ 16 Q-002-1001
Flexplate™ 30.5 mm hole 4 Q-002-1320
Caster Polyurethane 125 mm 80 x 60 Swivel 4 Q-004-1220
Spring Threaded Tube Connectors 12 Q-005-0469
Triangle Joint 4 Q-005-0483
64 mm FlexBeam™ Collet 8 Q-005-1426
Wheel Attachment – 80 x 60 mm 4 Q-005-1722
M10 x 25 mm Hex Head 8 Q-006-1041
Locking Nut M10 16 Q-006-1042
M10 x 90 mm Hex Head 8 Q-006-1132
M10 x 30 mm Hex Head 4 Q-006-1161
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
M10 x 50 mm Hex Head Fully Threaded 4 Q-006-1343
Self Tapping Screw M6 Torx H60 x 16 72 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 16 Q-006-1385
FlexBeam™ – 630 mm 4 Q-020-0630
Outer Tube (No Plate) – 484 mm 2 Q-025-0484
Outer Tube (No Plate) – 700 mm 2 Q-025-0700
