Daughter Cart – 560 x 1540 mm
Daughter Cart – 560 x 1540 mm
Daughter Cart – 560 x 1540 mm
Daughter Cart – 560 x 1540 mm
Daughter Cart – 560 x 1540 mm
Q-100-1335

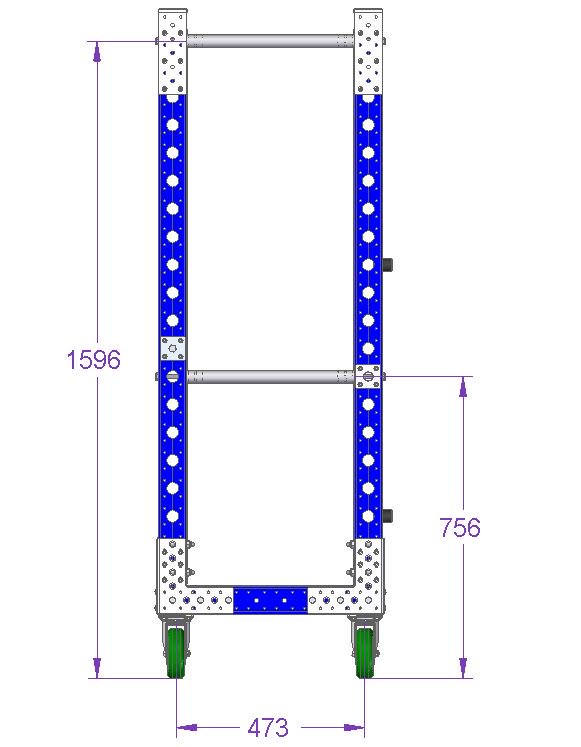

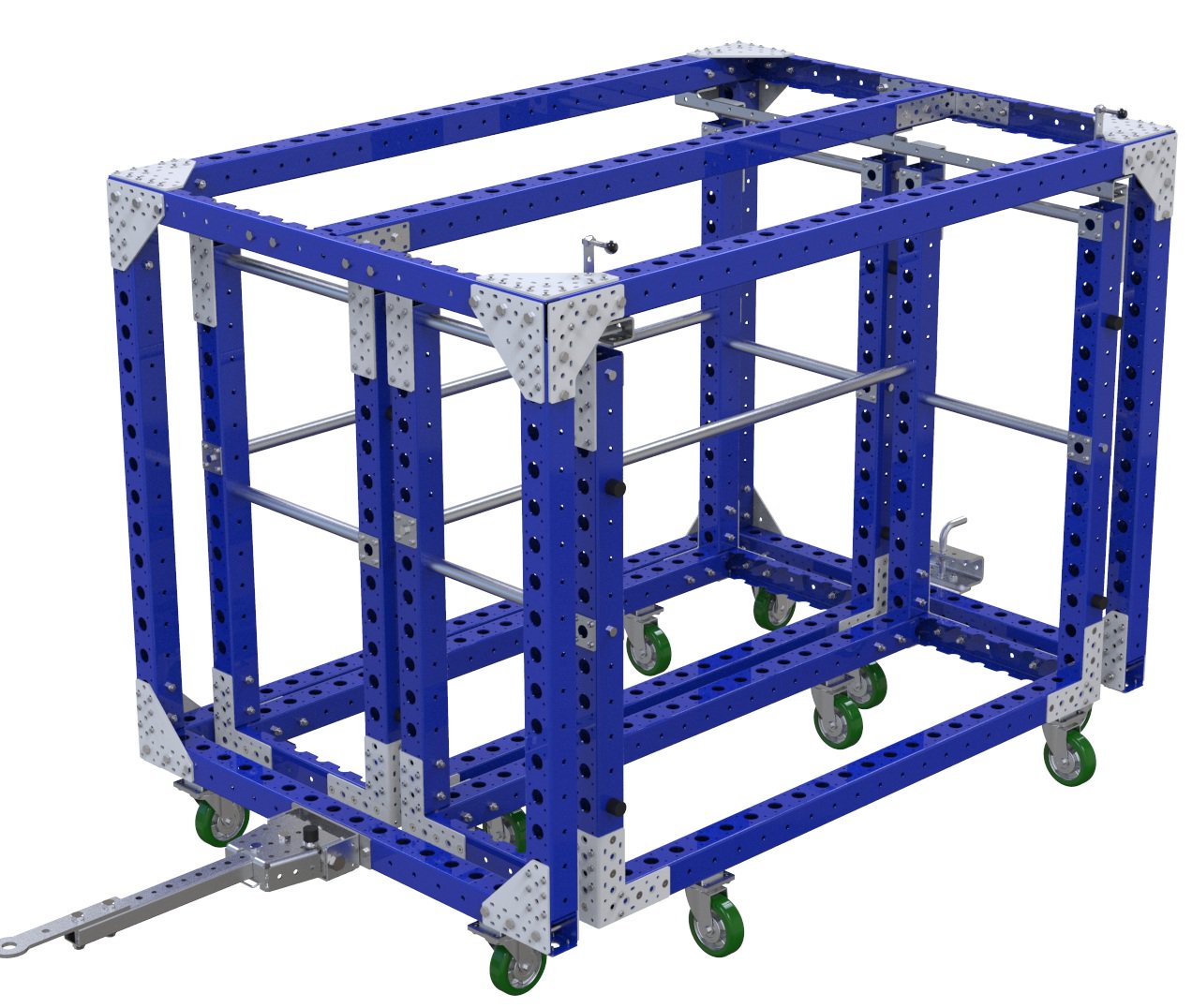

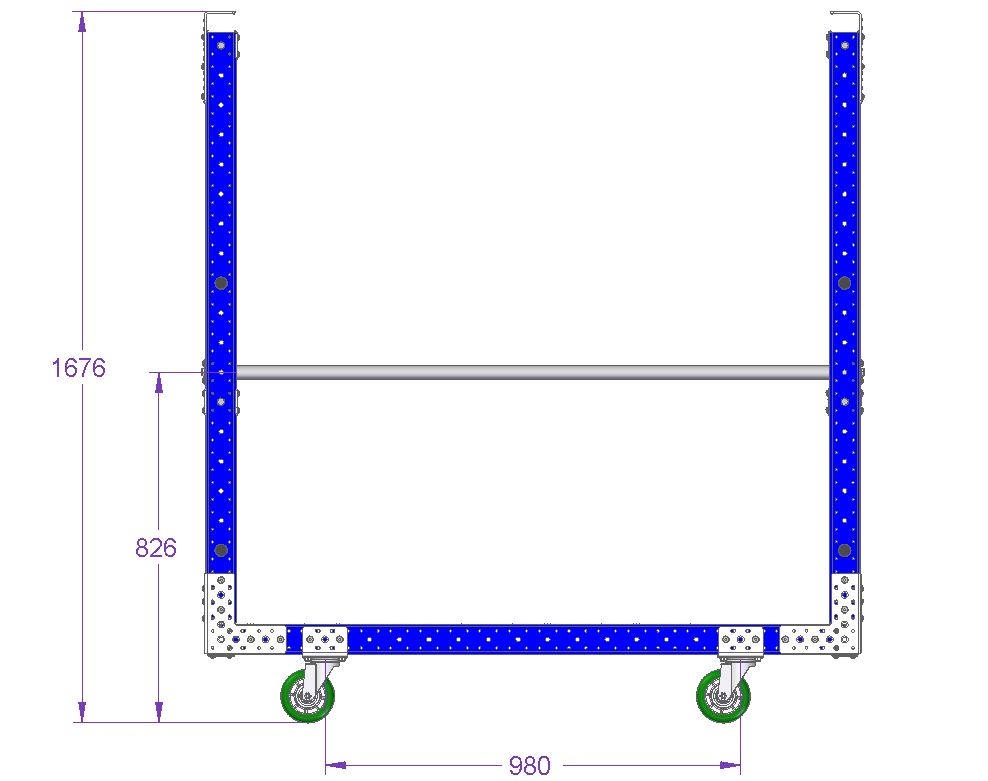

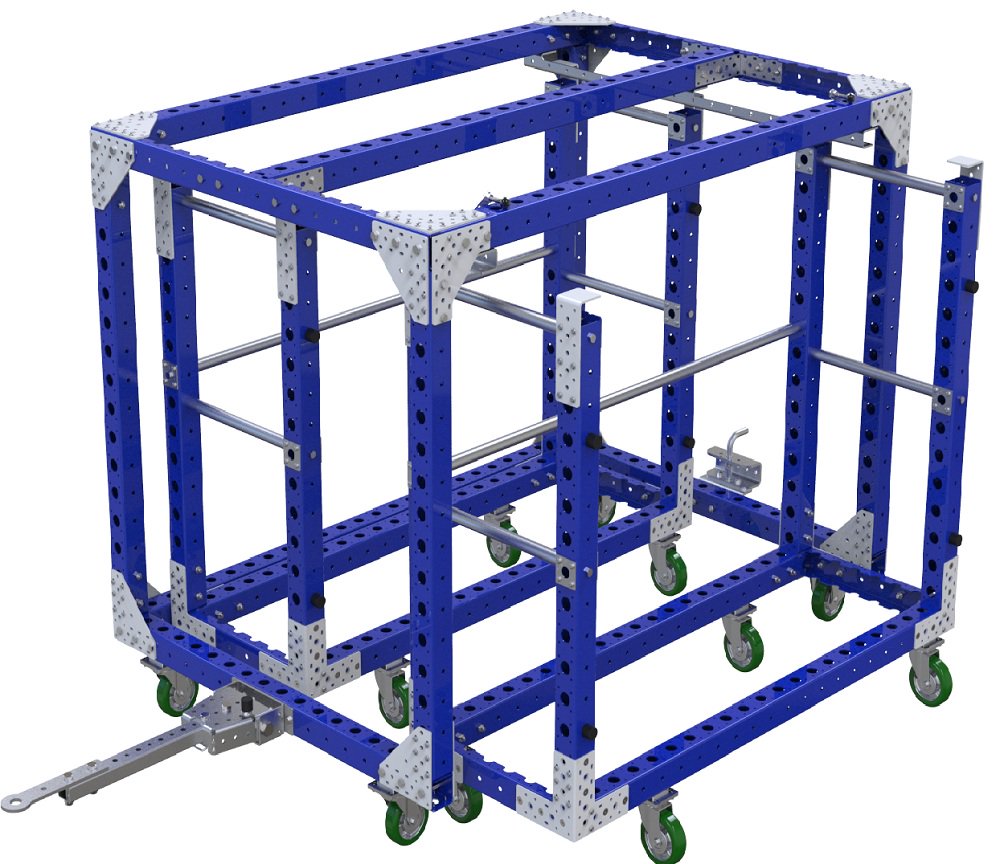

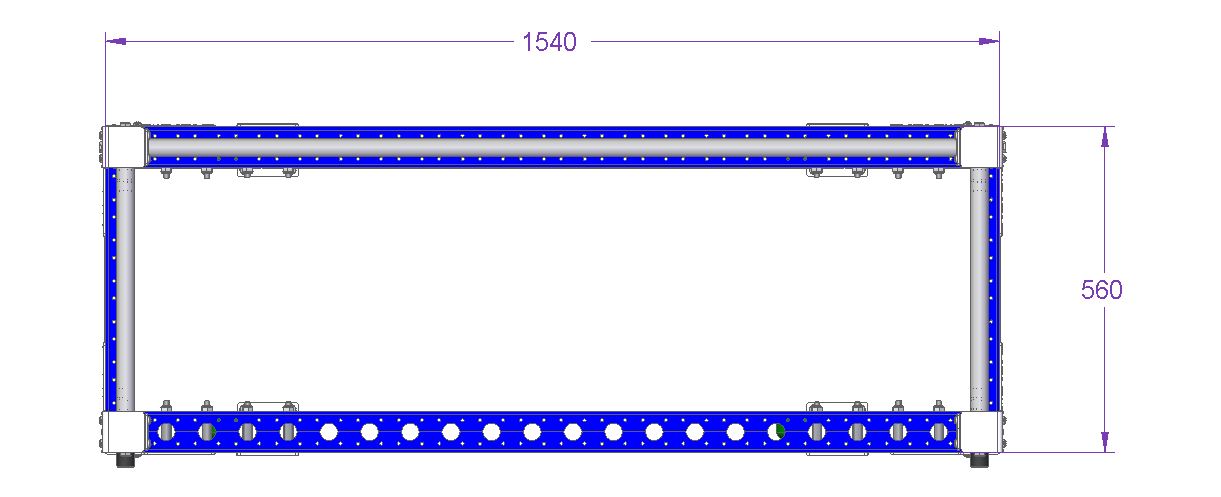

Daughter Cart – 560 x 1540 mm

Hanging cart designed to be used in a mother daughter system in combination with Q-100-1336.

Technical specifications

Category: Daughter Cart

Transportation method: Mother-Daughter Cart

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 560 mm

Length: 1540 mm

Load capacity: 300 kg

Caster size: 125 mm

Caster Type: Polyurethane

More info

Designed to be used in a mother daughter system in combination with Q-100-1336. The cart has tubes from which various components can be hanged for storage.

Parts included
FlexPlate™ 12 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Caster Polyurethane 125 mm 80 x 60 Swivel 4 Q-004-1220
L-shape Daughter cart guide 4 Q-005-0258
Caster to Beam Attachment – 80 x 60 mm 4 Q-005-0265
Spring Threaded Tube Connectors 18 Q-005-0469
M8 Damper – GN352-30-25-M8-S-55 4 Q-005-0648
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 24 Q-005-1426
M10 x 120 mm Fully Threaded 8 Q-006-1037
M10 x 25 mm Hex Head 2 Q-006-1041
Locking Nut M10 36 Q-006-1042
Locking Nut M8 20 Q-006-1181
M8 Washer 4 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
M10 x 90 mm Extra Low Head 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 112 Q-006-1384
M10 x 25 mm Extra Low Head Allen 12 Q-006-1410
FlexBeam™ – 1470 mm 4 Q-020-1470
FlexBeam™ FE – 560 mm 2 Q-021-0560
Outer Tube (No Plate) – 420 mm 4 Q-025-0420
Outer Tube (No Plate) – 1540 mm 1 Q-025-1540
