Kit Cart – 630 x 420 mm
Kit Cart – 630 x 420 mm
Kit Cart – 630 x 420 mm
Kit Cart – 630 x 420 mm
Kit Cart – 630 x 420 mm
Kit Cart – 630 x 420 mm
Q-100-0835

Kit Cart – 630 x 420 mm

Daughter Cart that holds small materials at different assembly stations.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 420 mm

Length: 630 mm

Load capacity: 136 kg

Transportation method: Mother-Daughter Cart

Caster size: 125 mm

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

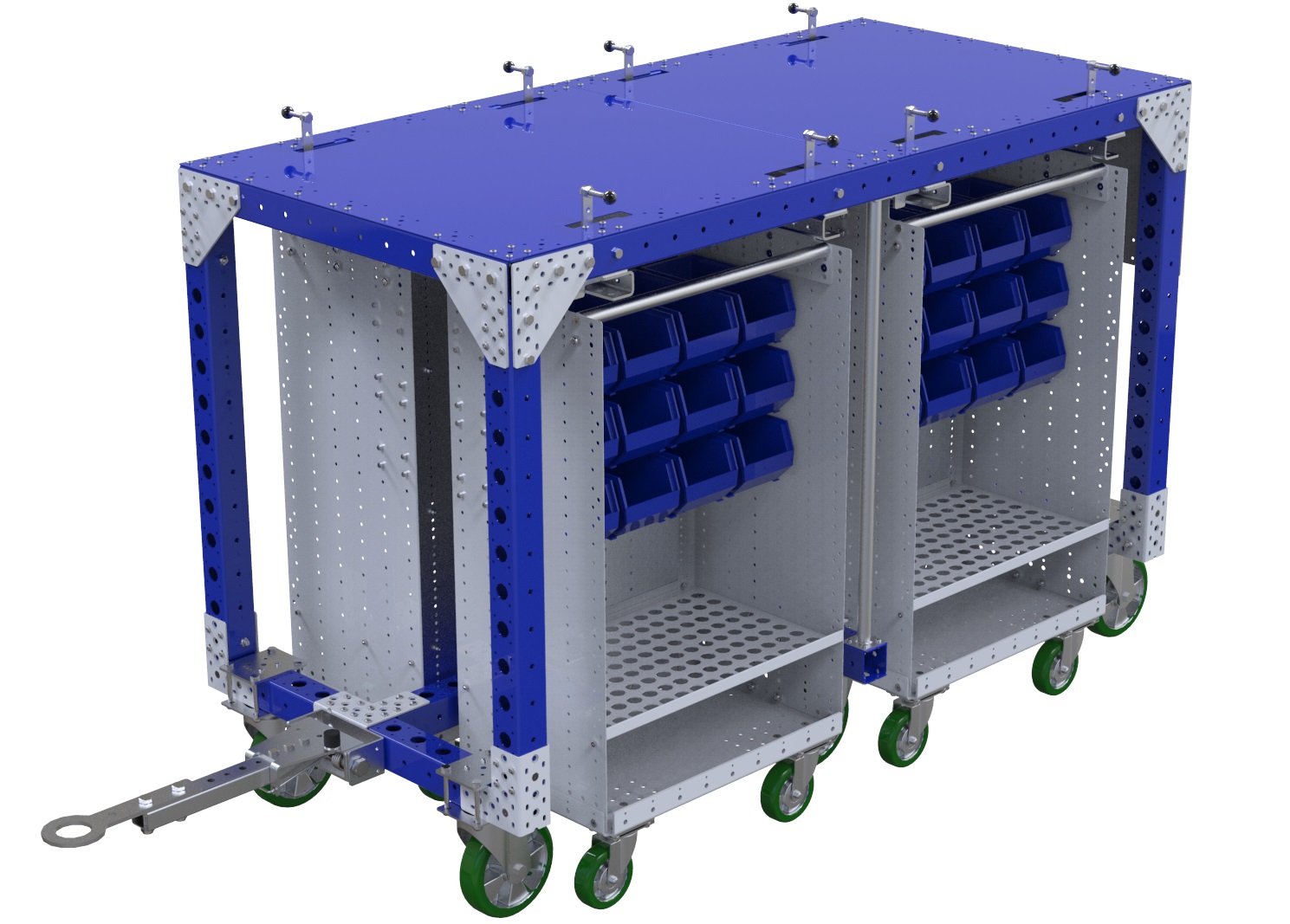

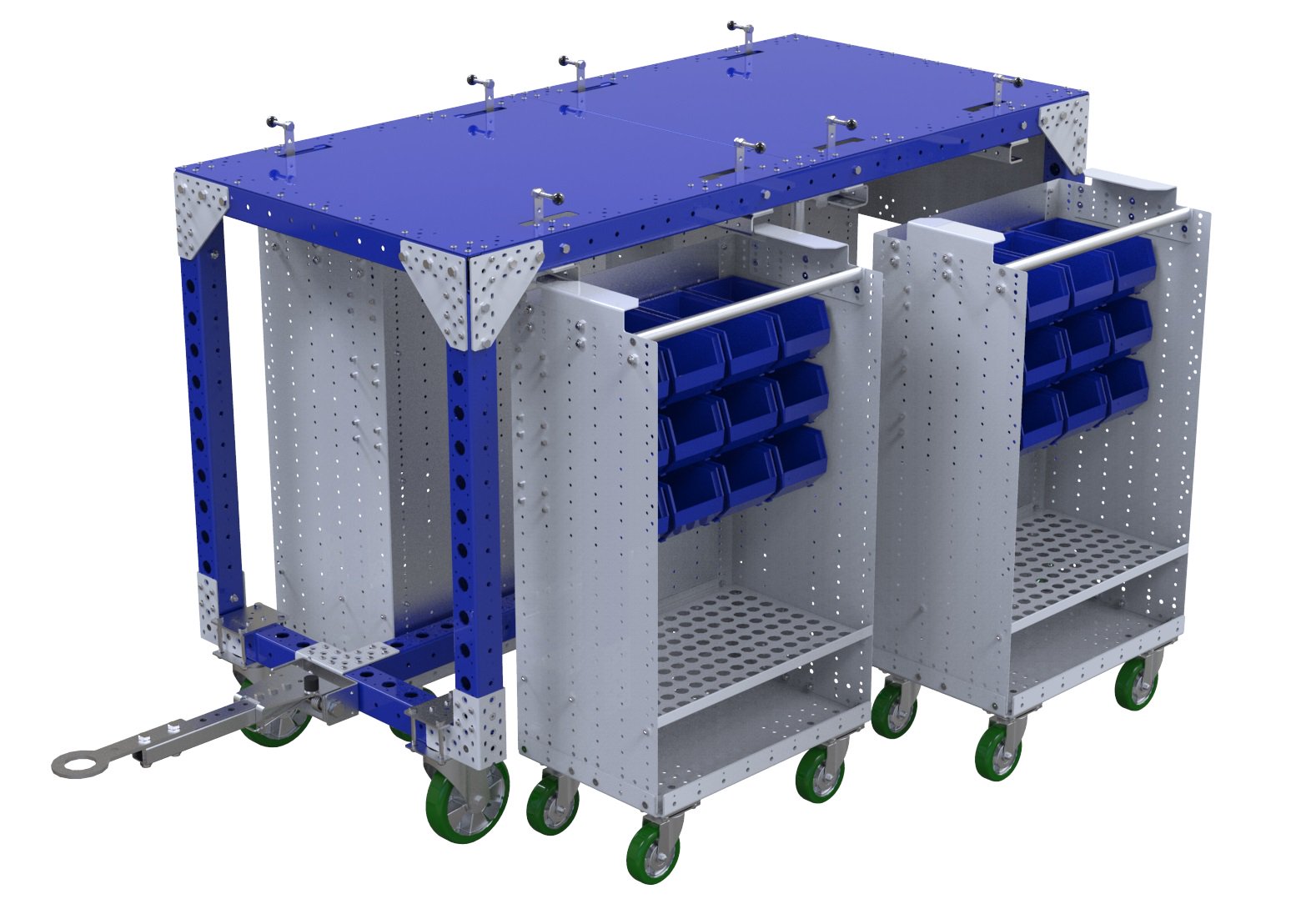

This daughter cart is designed to fit into Q-100-0851, 4 in 1 mother cart. These daughter carts are equipped with one flat shelf along the bottom and small bins can be hung from the rear of the daughter cart.

Parts included
Caster Polyurethane 125 mm 80 x 60 Swivel 4 Q-004-1220
Daughter cart rear cover – 930 x 630 mm 1 Q-005-0374
Spring Threaded Tube Connectors 2 Q-005-0469
C-attachment plate – 633 mm 3 Q-005-0575
Daughter Cart Bottom Plate – 645 x 420 mm 1 Q-005-0584
Daughter Cart Side 2 Q-005-1721
Wheel Attachment – 80 x 60 mm 4 Q-005-1722
L-Shape Daughter Cart Guide 2 Q-005-1723
M6 x 16 mm Allen Head 8 Q-006-1011
Locking Nut M10 18 Q-006-1042
Locking Nut M6 40 Q-006-1050
M6 x 12 mm Round Head 24 Q-006-1051
Old Part: M6 x 12 mm Allen Head 8 Q-006-1080
Locking Nut M8 16 Q-006-1181
M8 Washer 32 Q-006-1183
M8 x 25 mm Countersunk 16 Q-006-1250
M10 x 16 mm Low Allen Head 18 Q-006-1409
M10 x 25 mm Extra Low Head Allen 2 Q-006-1410
632 x 405 mm Daughter Cart Shelf 1 Q-016-1049
Outer Tube (No Plate) – 627 mm 1 Q-025-0627
