E-Frame Compatible Shelf Cart for Totes and Bins
E-Frame Compatible Shelf Cart for Totes and Bins
E-Frame Compatible Shelf Cart for Totes and Bins
Q-100-0240

E-Frame Compatible Shelf Cart for Totes and Bins

Shelf cart designed to fit the STILL LiftRunner Tugger Train System.

Technical specifications

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

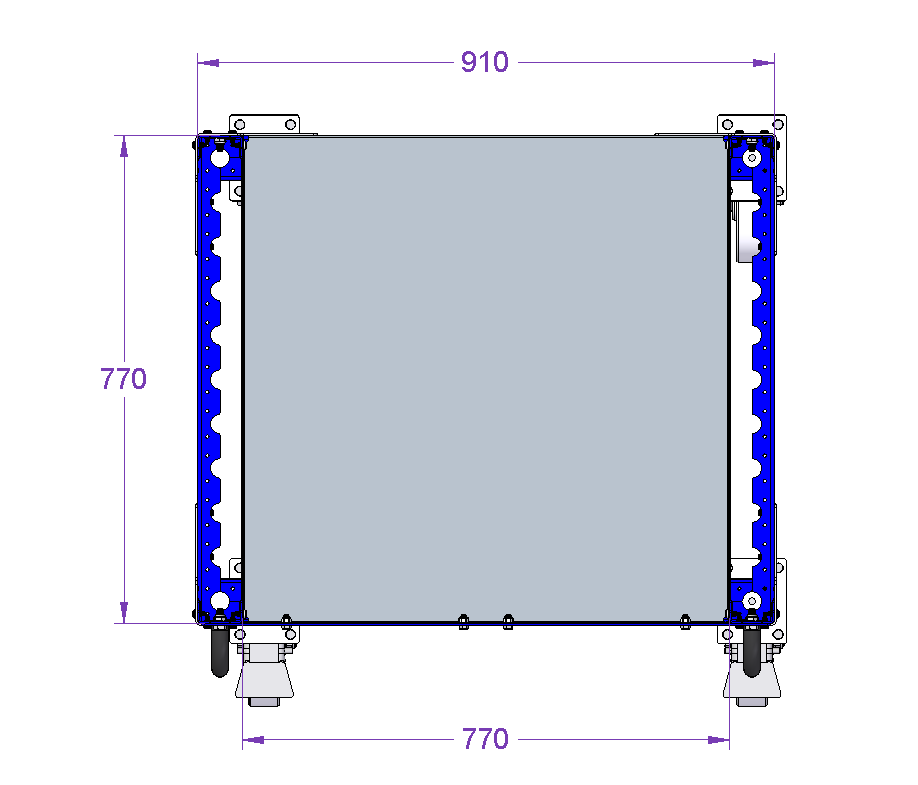

Width: 770 mm

Length: 910 mm

Levels: 5

Load capacity: 227 kg

Load Capacity per Level: 45 kg

Transportation method: LiftRunner Frames, Manual

Caster size: 200 mm

Caster Type: Nylon

More info

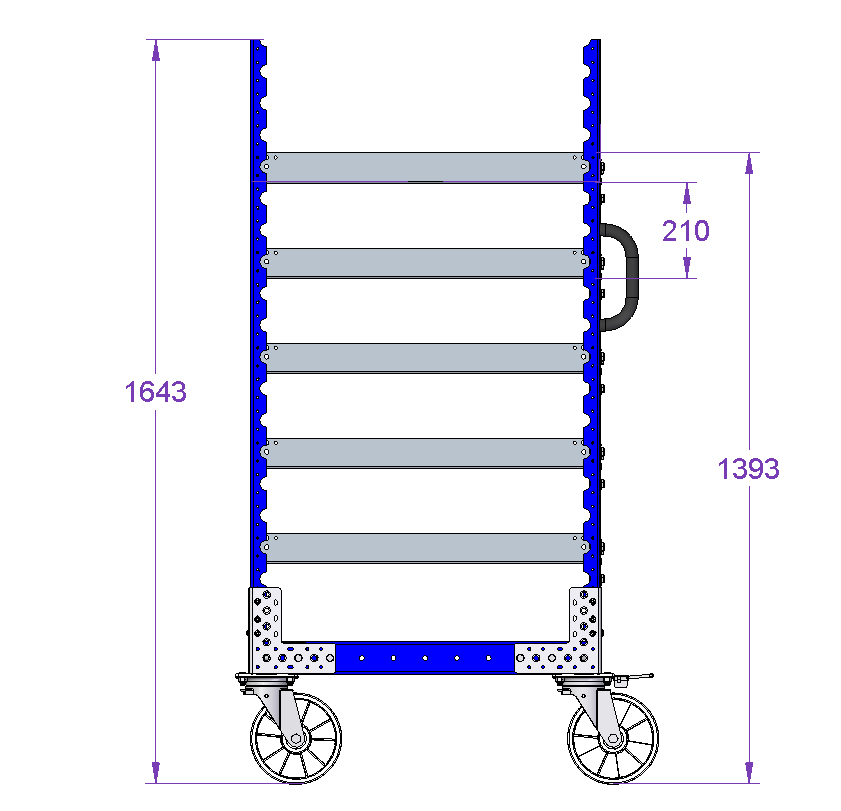

This cart is STILL E-frame compatible. It is designed to carry totes and bins. All shelves are at an ergonomic height for the operator. The shelves are 770 x 700 mm (30.3 x 30.3 inches) and can each handle a load of 50 kg (110 lbs). The shelves are open at the rear to allow for easier loading.

The cart is equipped with four swivel casters of which two are equipped with brakes in a fixed direction. The handlebars on the cart help move the cart the short distance from the tugger train to its position.

Parts included
FlexBeam™ – 1330 mm 4 Q-001-1298
FlexBeam™ 840 mm 4 Q-001-1305
FlexBeam™ 770 mm FE 2 Q-001-1406
Wheel Attachment – 105 x 77.5 mm 4 Q-004-1065
Caster Nylon Fix Brake – 200 mm 2 Q-004-1112
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 8 Q-005-1426
M10 x 25 mm Hex Head 20 Q-006-1041
Locking Nut M10 56 Q-006-1042
M8 x 16 mm Hex Head 24 Q-006-1120
Locking Nut M8 20 Q-006-1181
M8 Washer 4 Q-006-1183
M10 x 90 mm Extra Low Head 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 66 Q-006-1384
M10 x 25 mm Extra Low Head Allen 28 Q-006-1410
Handlebar 210 mm M8 2 Q-015-1037
Flat Shelf – 770 x 770 mm 5 Q-016-0102
Angled Plate – 898 mm 5 Q-016-0105
