E–Frame Pallet Cart – 1260 x 1260 mm
E–Frame Pallet Cart – 1260 x 1260 mm
E–Frame Pallet Cart – 1260 x 1260 mm
E–Frame Pallet Cart – 1260 x 1260 mm
Q-100-1339

E–Frame Pallet Cart – 1260 x 1260 mm

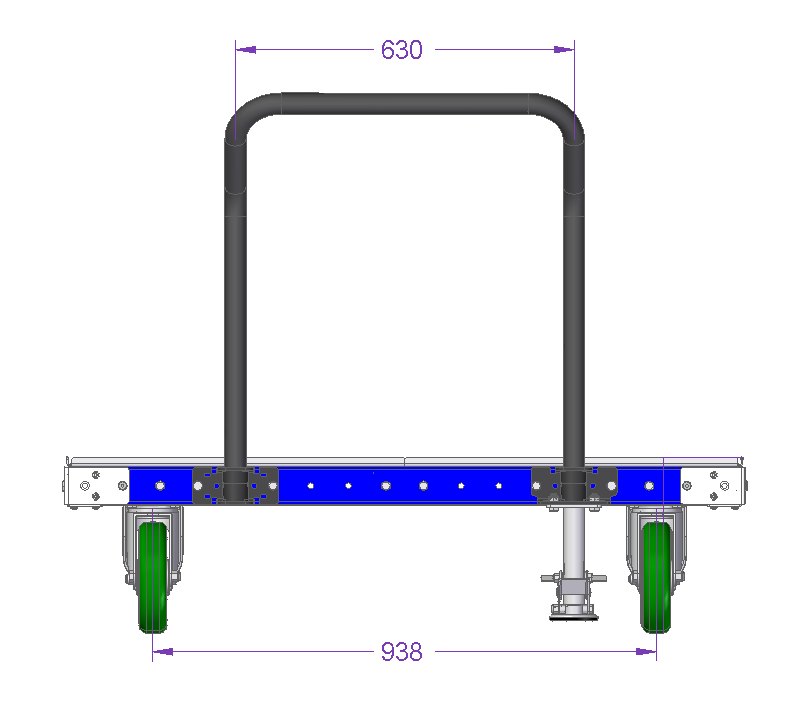

Pallet/Container cart designed to be used in an E-Frame and manually. The cart is equipped with a handlebar, floor brake and six polyurethane casters.

Technical specifications

Category: Flat Deck

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

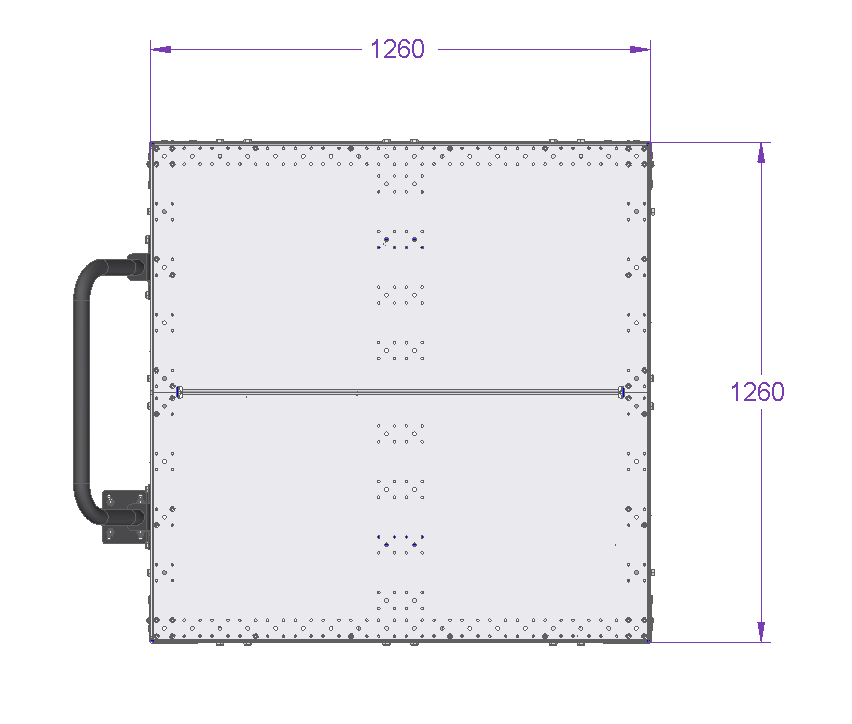

Width: 1260 mm

Length: 1260 mm

Load capacity: 1000 kg

Transportation method: LiftRunner Frames, Manual

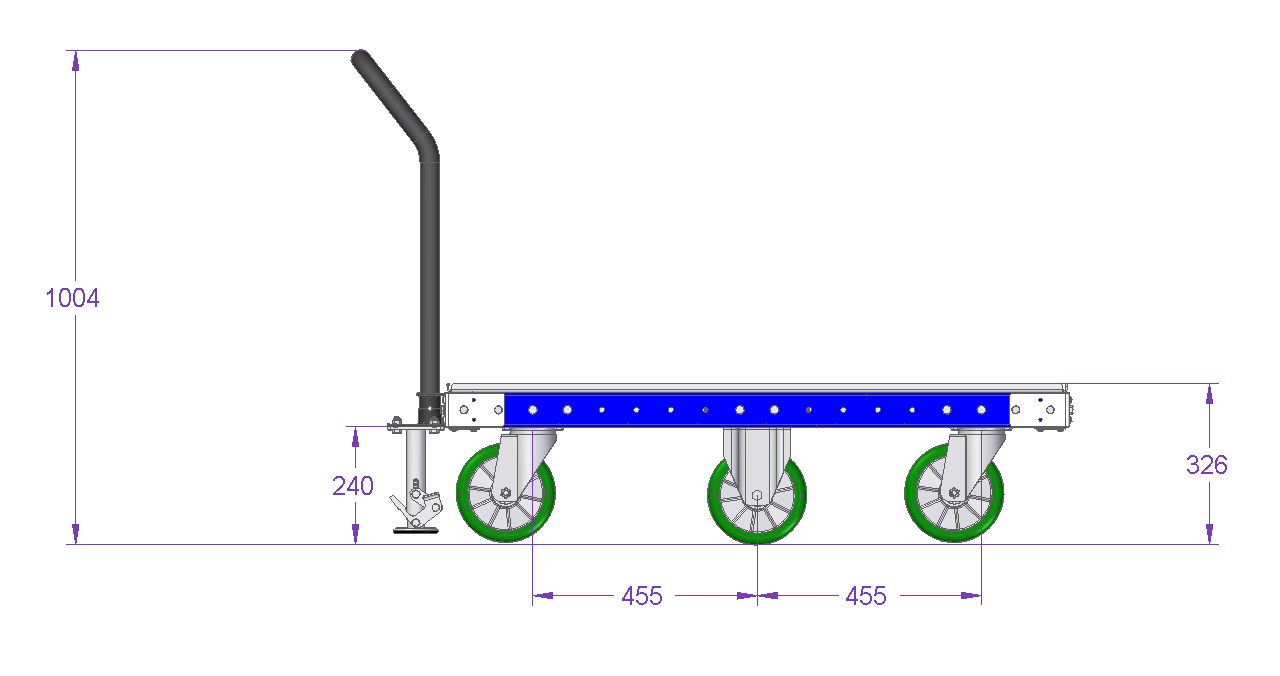

Caster size: 200 mm

Caster Type: Polyurethane

More info

This cart is great for transporting pallets and containers and since it has a flat deck it can handle various different sizes. The cart can be transported manually and in an E-Frame and is equipped with a handlebar, floor brake and six polyurethane casters.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 4 Q-002-1001
Stiffener – Outside 4 Q-002-1050
Wheel Attachment – 105 x 77.5 mm 2 Q-004-1065
Caster Polyurethane – 200 mm Swivel 4 Q-004-1211
Caster Polyurethane 200 mm Fixed IP2 2 Q-004-1212
US Floor Brake – 200 mm 1 Q-004-1613
Wheel Attachment Box 6 Q-005-1079
64 mm FlexBeam™ Collet 12 Q-005-1426
M10 x 25 mm Hex Head 58 Q-006-1041
Locking Nut M10 80 Q-006-1042
M10 x 90 mm Hex Head 10 Q-006-1132
M10 x 90 mm Extra Low Head 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 64 Q-006-1384
M10 x 25 mm Extra Low Head Allen 8 Q-006-1410
Handlebar/Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
49 x 24.5 Inch Plate 2 Q-016-1110
