Extendable shelf cart – 1400 x 840 mm
Extendable shelf cart – 1400 x 840 mm
Extendable shelf cart – 1400 x 840 mm
Extendable shelf cart – 1400 x 840 mm
Extendable shelf cart – 1400 x 840 mm
Extendable shelf cart – 1400 x 840 mm
Q-100-0508

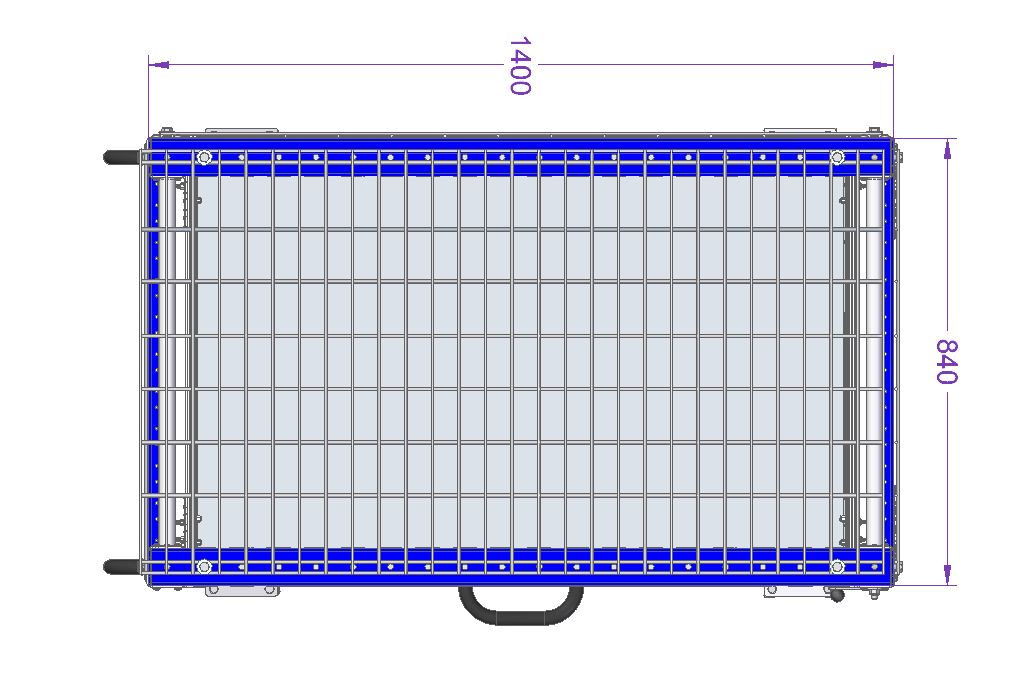

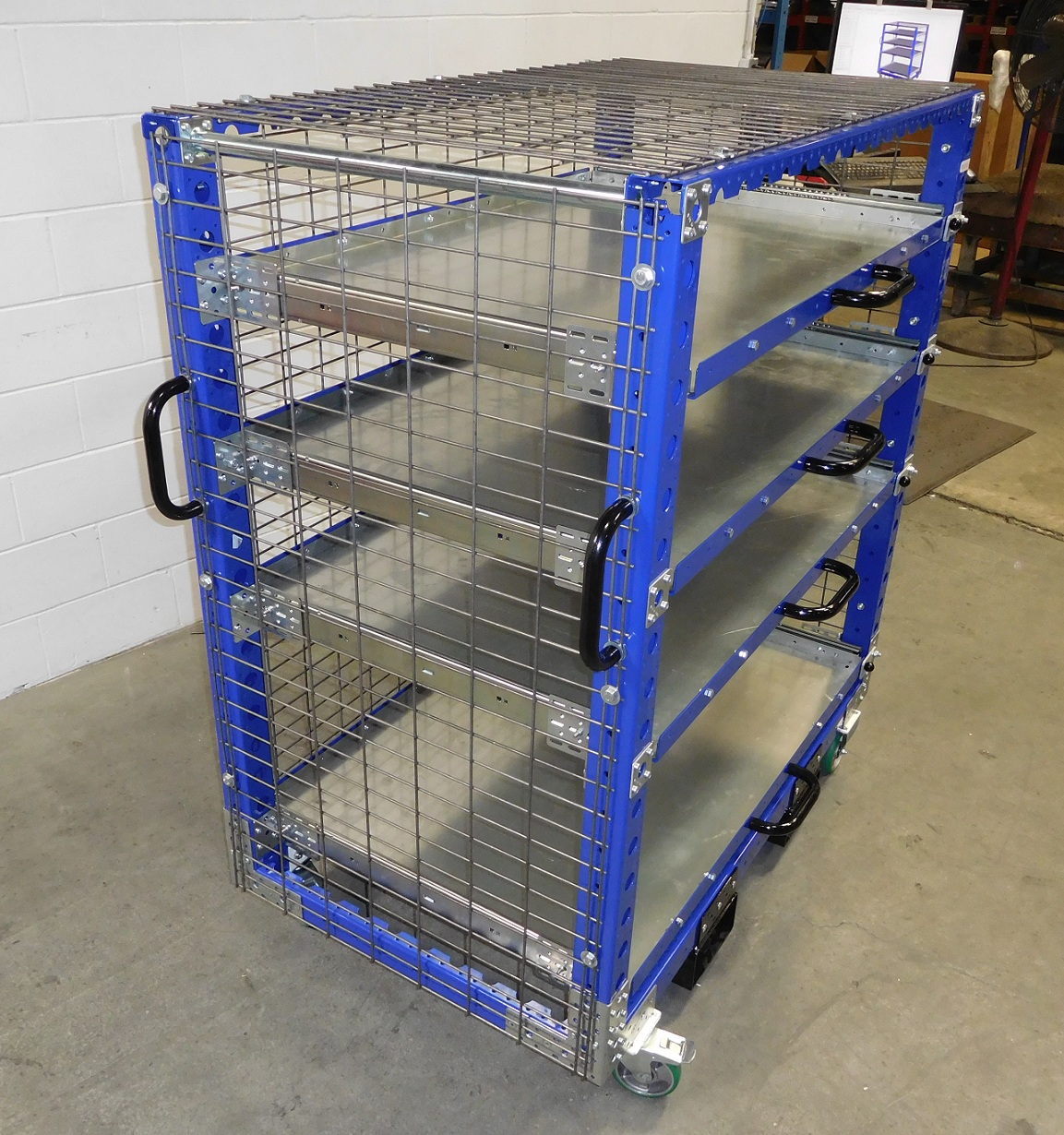

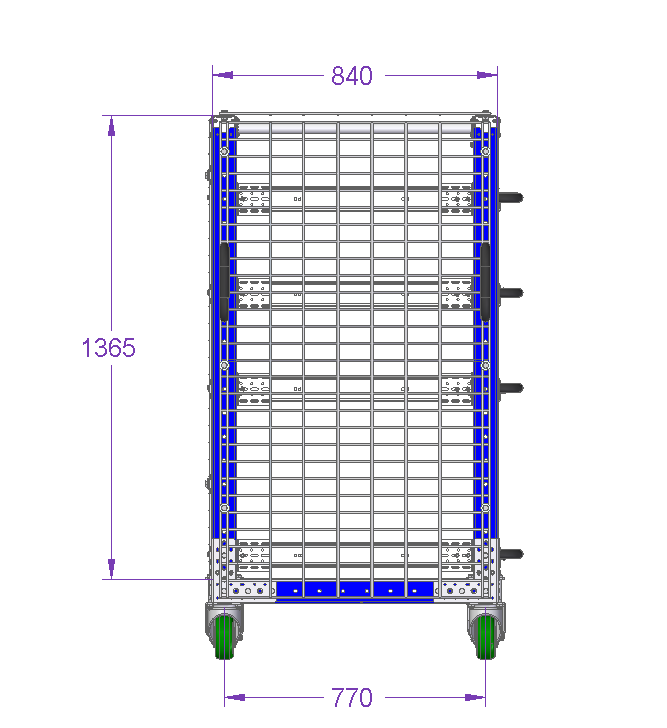

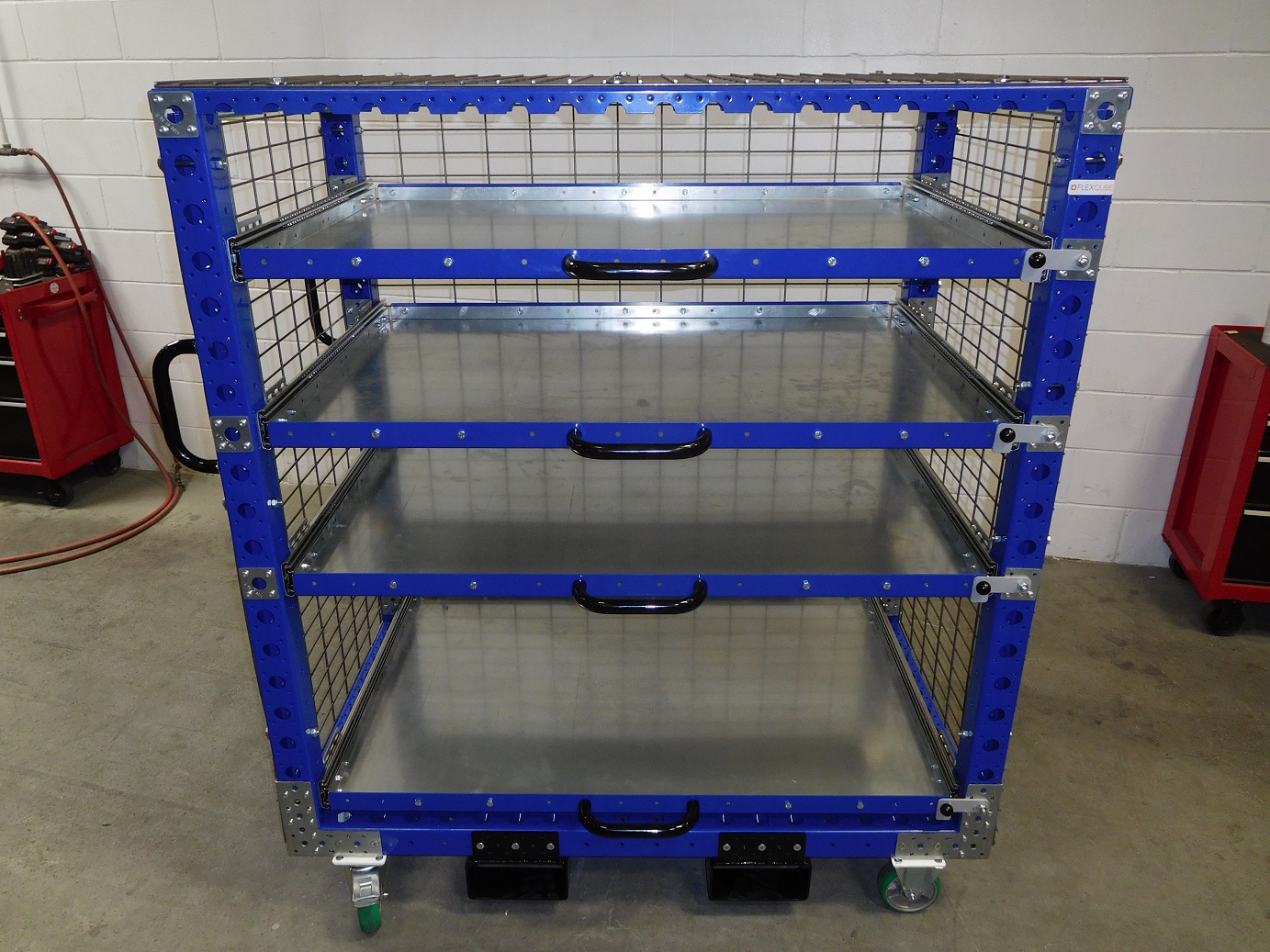

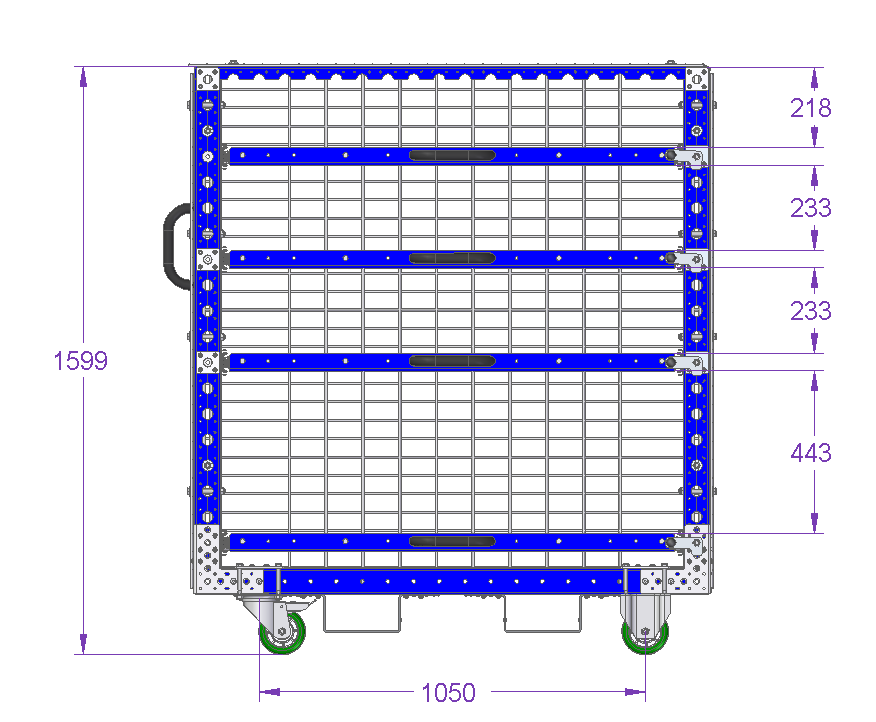

Extendable shelf cart – 1400 x 840 mm

Extendable shelf cart equipped with four shelves.

Technical specifications

Category: Extendable Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 1400 mm

Width: 840 mm

Levels: 4

Load capacity: 400 kg

Load Capacity per Level: 100 kg

Transportation method: Manual

Caster size: 125 mm

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This extendable shelf cart is equipped with four flat extendable shelves for storage and transportation. Using extendable shelves instead of flat shelves, the parts are much easier to reach for the operators. This cart also has wire mesh attached around the outside to help keep the materials in place. This industrial shelf cart can be adjusted to suit your needs, developed by FlexQube®.

Parts included
FlexTube™ 700 mm 2 Q-000-1002
FlexBeam™ – 1330 mm 12 Q-001-1298
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 1400 mm FE 2 Q-001-1502
FlexPlate™ 10 Q-002-1001
Flexplate™ M10 8 Q-002-1162
Wheel Attachment – 105 x 77.5 mm 4 Q-004-1065
Caster Polyurethane 125 mm w. Brake 2 Q-004-1105
Caster Polyurethane – 125 mm Fixed 2 Q-004-1107
Modular attachment plate for telescopic slides 16 Q-005-0149
Wire Mesh – 1400 x 800 mm 3 Q-005-0335
Spherical Knob 6 Q-005-1146
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 10 Q-005-1426
Locking Handle Plate 6 Q-005-1880
Fork Guide 210 x 100 mm – 5 mm Thick 4 Q-005-1923
M6 x 20 K6S 10.9 Round Head (black) 24 Q-006-1018
Washer 10.5 x 30 x 2.5 24 Q-006-1030
M10 x 25 mm Hex Head 8 Q-006-1041
Locking Nut M10 72 Q-006-1042
Locking Nut M6 56 Q-006-1050
M6 x 12 mm Round Head 32 Q-006-1051
M10 x 95 mm Hex Head 16 Q-006-1088
M8 x 16 mm Hex Head 52 Q-006-1120
M10 x 90 mm Hex Head 16 Q-006-1132
Locking Nut M8 40 Q-006-1181
M8 Washer 4 Q-006-1183
M10 x 90 mm Extra Low Head 10 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 234 Q-006-1384
M10 x 16 mm Low Allen Head 6 Q-006-1409
M10 x 25 mm Extra Low Head Allen 22 Q-006-1410
Handlebar 210 mm M8 6 Q-015-1037
Telescopic Shelf – 1221 x 830 mm 4 Q-016-0070
Angled plate for telescopic – 1210 mm 8 Q-016-0072
