Extendable shelf cart – 770 x 1260 mm
Extendable shelf cart – 770 x 1260 mm
Extendable shelf cart – 770 x 1260 mm
Extendable shelf cart – 770 x 1260 mm
Extendable shelf cart – 770 x 1260 mm
Q-100-1670

Extendable shelf cart – 770 x 1260 mm

This shelf cart is designed with two extendable shelves and a top metal deck for transporting totes, bins and boxes.

Technical specifications

Category: Extendable Shelf

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Transportation method: Manual

Width: 770 mm

Length: 1260 mm

Load capacity: 317 kg

Caster size: 200 mm

Caster Type: Nylon

More info

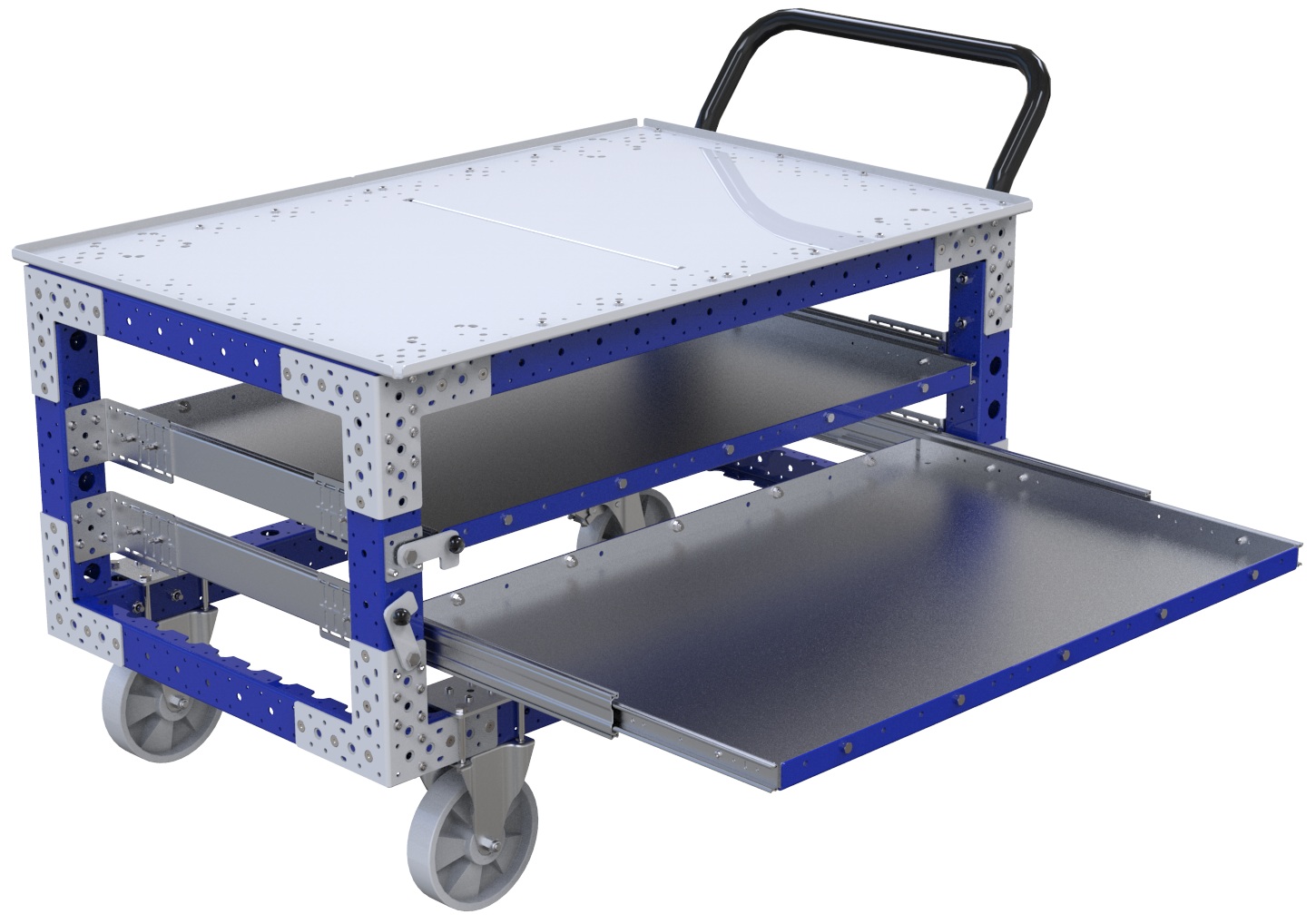

This cart has three levels to place different components, boxes or loose parts. The two bottom levels are extendable shelves which use telescopic slides, and the top level is a fixed flat steel deck to be used as a working table or to transport components. The cart is equipped with a top bent handlebar and four nylon casters perfect for heavy duty applications but yet easy to operate manually.

Parts included
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 1 Q-002-1162
Wheel Attachment – 105 x 77.5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm Fixed 2 Q-004-1354
Modular Attachment Plate for Telescopic Slides 8 Q-005-0041
Spherical Knob 2 Q-005-1146
Beam to Beam Corner Plate 8 Q-005-1356
64 mm FlexBeam™ Collet 28 Q-005-1426
Telescopic Slide 3080-600 4 Q-005-1519
Shelf Half Plate – Combined 2 Q-005-1725
Locking Handle Plate 2 Q-005-1880
M6 x 16 mm Allen Head 4 Q-006-1011
M6 x 20 K6S 10.9 Round Head (black) 16 Q-006-1018
M10 x 25 mm Hex Head 10 Q-006-1041
Locking Nut M10 78 Q-006-1042
Washer M10 4 Q-006-1043
Locking Nut M6 28 Q-006-1050
M6 x 12 mm Round Head 12 Q-006-1051
M10 x 90 mm Hex Head 16 Q-006-1132
Locking Nut M8 20 Q-006-1181
M8 Washer 20 Q-006-1183
M10 x 90 mm Extra Low Head 28 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 144 Q-006-1384
M10 x 25 mm Extra Low Head Allen 26 Q-006-1410
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Angled Plate for Telescopic Shelf – 1059 mm 4 Q-016-0121
Telescopic Shelf – 1069 x 700 mm 2 Q-016-1077
FlexBeam™ – 1190 mm 8 Q-020-1190
FlexBeam™ FE – 420 mm 8 Q-021-0420
