Flow Rack – 1400 x 1190 mm
Flow Rack – 1400 x 1190 mm
Flow Rack – 1400 x 1190 mm
Flow Rack - 1400 x 1190 mm
Flow Rack – 1400 x 1190 mm
Q-100-0845

Flow Rack – 1400 x 1190 mm

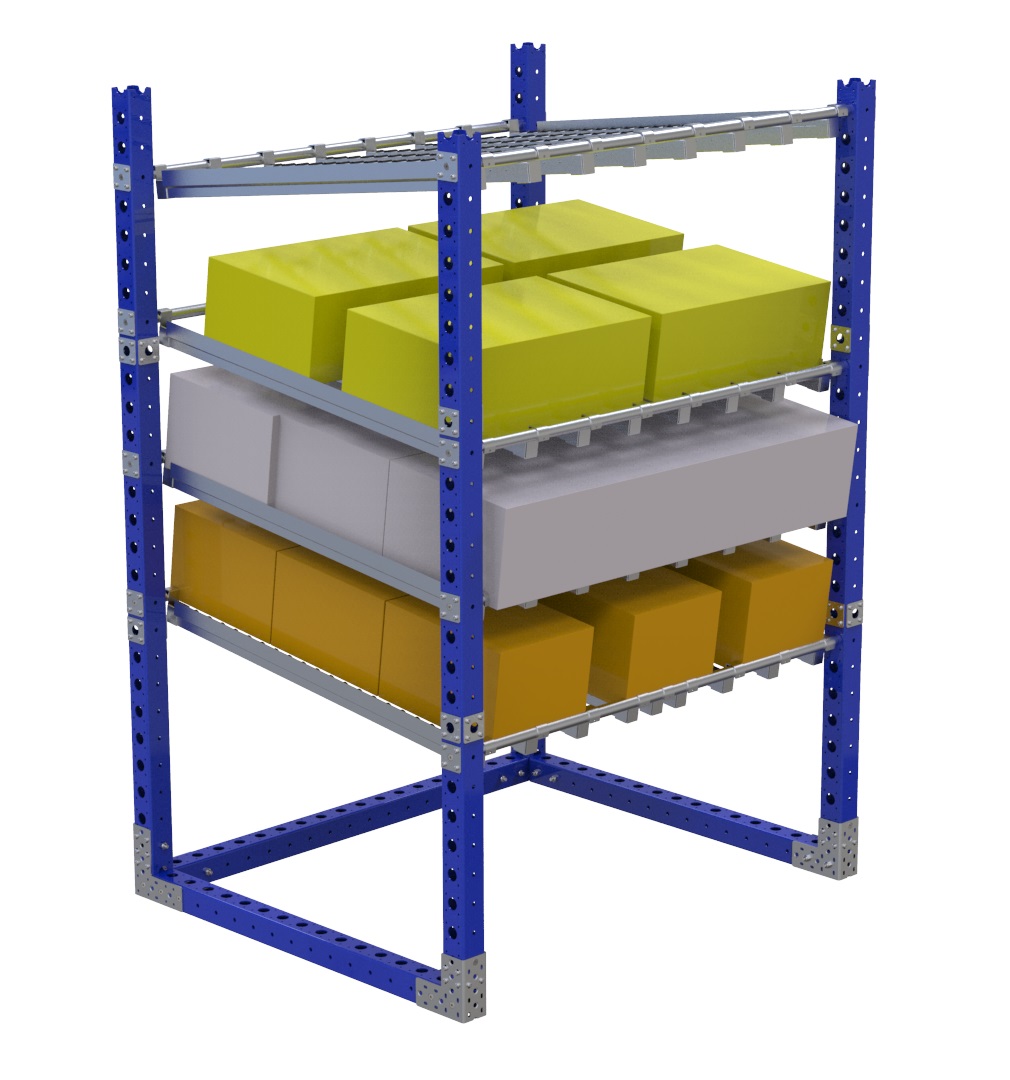

Standard flow rack equipped with four roller shelves.

Technical specifications

Category: Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

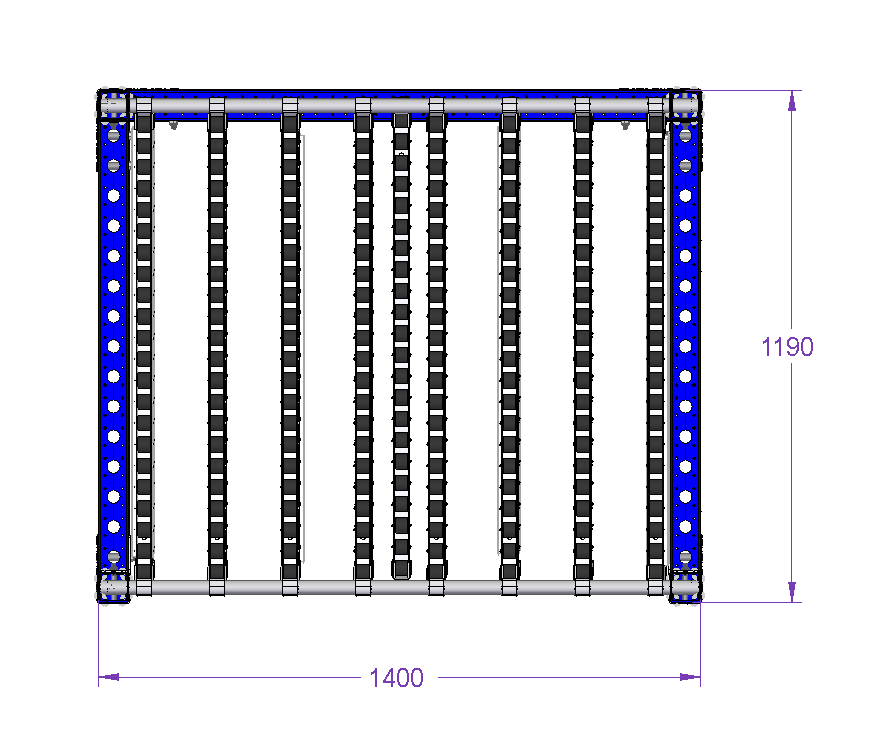

Length: 1400 mm

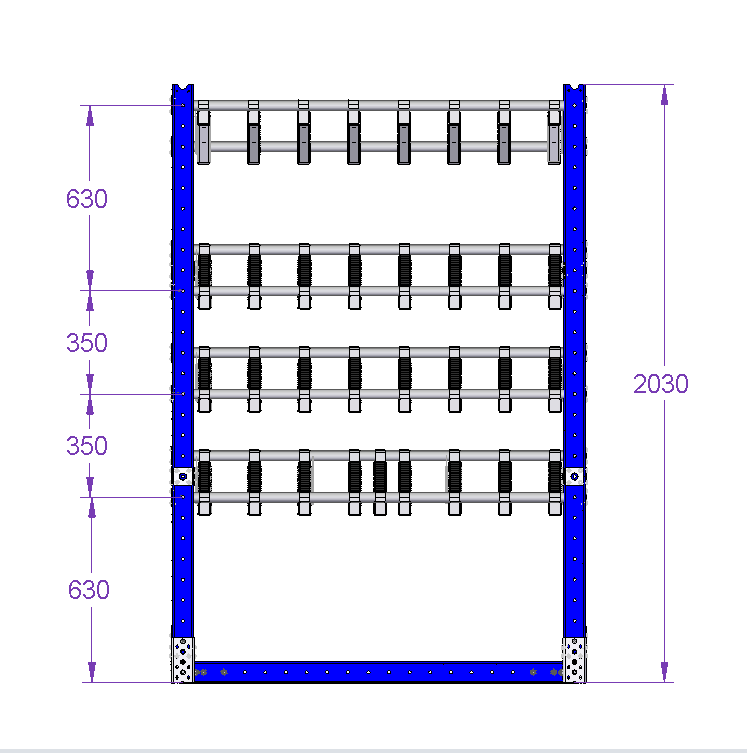

Levels: 4

Load capacity: 250 kg

Load Capacity per Level: 83 kg

Transportation method: Manual

Type of Load: Bins, Boxes, Misc parts, Totes

More info

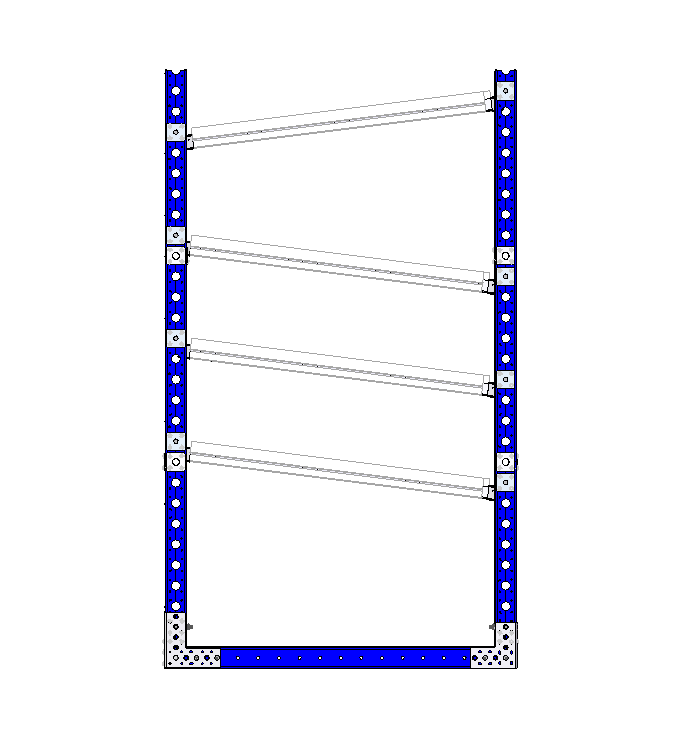

This flow rack is ideally designed for bins, totes, and boxes. It uses rollers and gravity to help with the automated presentation of materials. It comes equipped with four shelves. The bottom three shelves are used for presenting materials and the top shelf is used for returning.

Parts included
FlexBeam™ – 1330 mm 10 Q-001-1298
FlexBeam™ 630 mm 8 Q-001-1308
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexPlate™ 24 Q-002-1001
Flexplate™ M10 16 Q-002-1162
Roller Rail – 1090 mm 33 Q-003-0061
RR Guide 10 mm offset – 1000 mm 10 Q-003-0062
Rail Support Drop 30 mm Stop 66 Q-003-1022
Spring Threaded Tube Connectors 16 Q-005-0469
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Locking Nut M10 18 Q-006-1042
Extra low head [1.5 mm] M10 x 40 mm 16 Q-006-1361
M10 x 90 mm Extra Low Head 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 200 Q-006-1384
M10 x 25 mm Extra Low Head Allen 2 Q-006-1410
Outer tube – 1400 mm (No plate) 8 Q-025-1400
