Flow Rack - 1400 x 1400 mm
Flow Rack – 1400 x 1400 mm
Flow Rack – 1400 x 1400 mm
Flow Rack – 1400 x 1400 mm
Q-100-0688

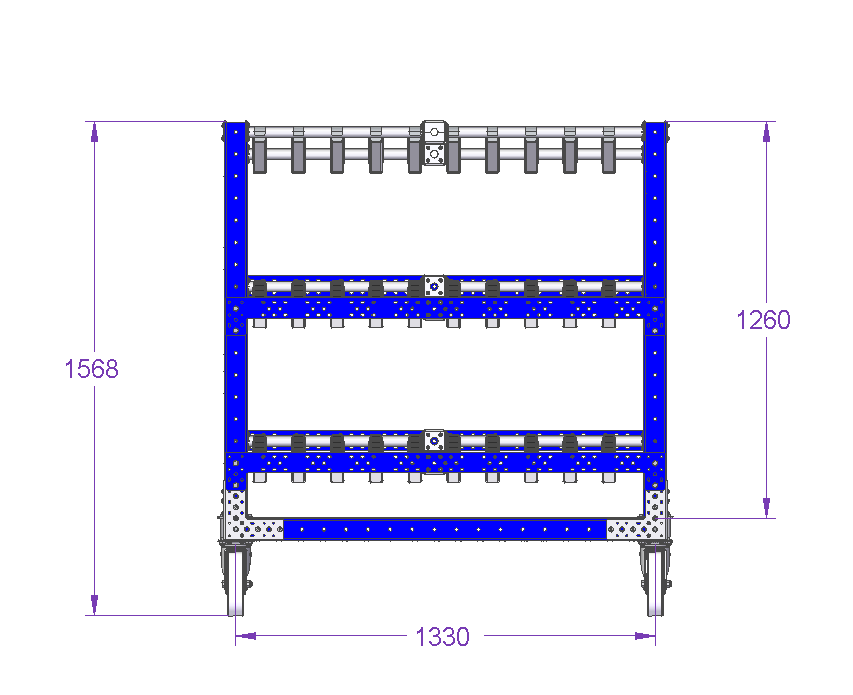

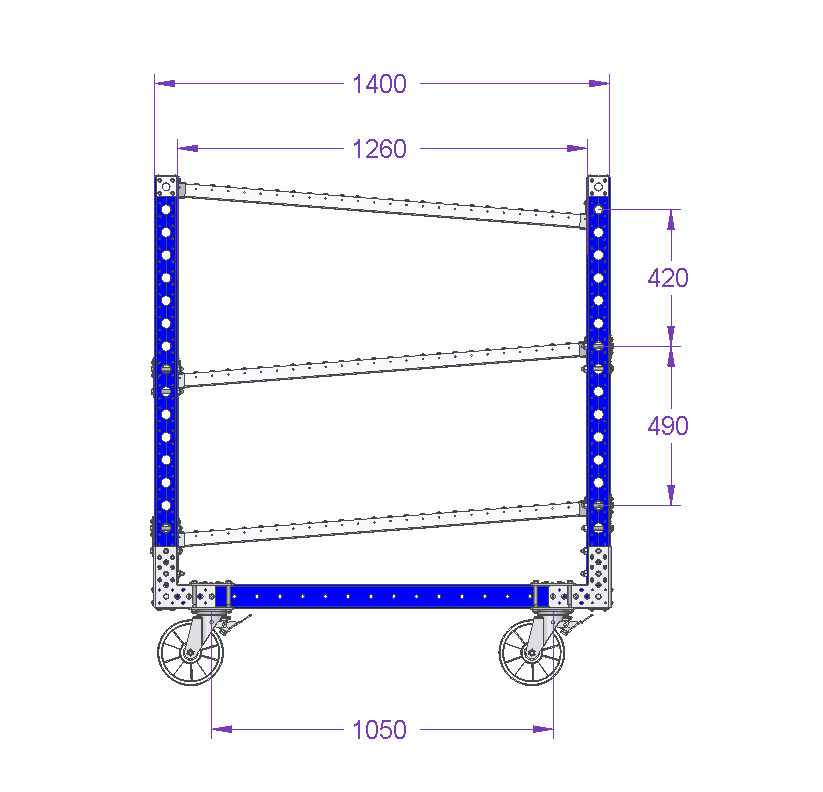

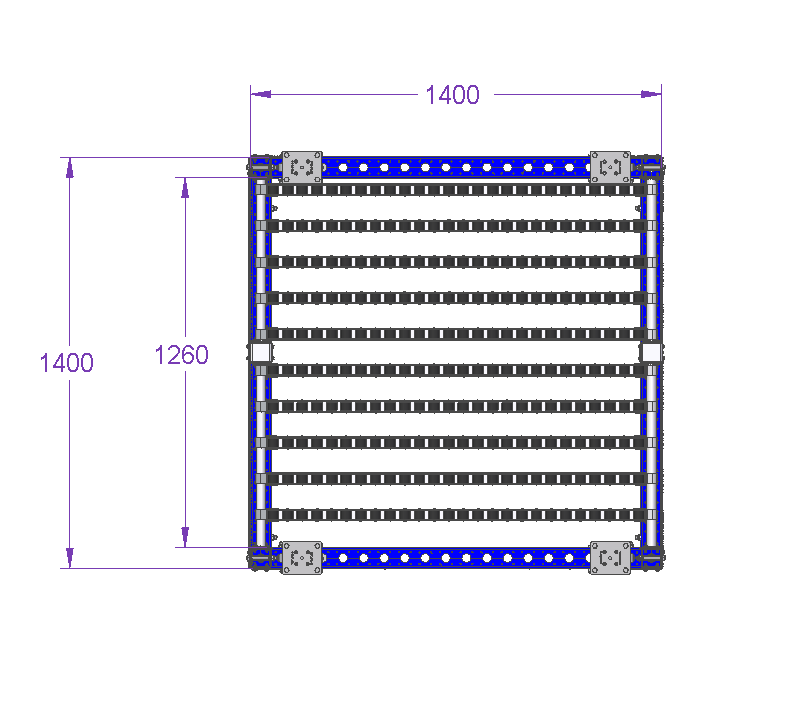

Flow Rack – 1400 x 1400 mm

Custom flow rack designed with three roller shelves.

Technical specifications

Category: Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 1400 mm

Load capacity: 680 kg

Levels: 3

Load Capacity per Level: 340 kg

Width: 1400 mm

Transportation method: Manual

Caster size: 200 mm

Caster Type: Nylon

More info

This robust roller rack is perfect for line side material handling of heavy products. The bottom and middle shelf can be used for incoming material and the top as a return flow. This solution can be equipped with more/fewer shelves as well as other modules, such as handlebars and fork tunnels, etc.

Parts included
FlexTube™ 560 mm 6 Q-000-1182
FlexTube™ 630 mm 6 Q-000-1312
FlexQube® 12 Q-001-1078
FlexBeam™ – 1330 mm 4 Q-001-1298
FlexBeam™ 1260 mm FE 10 Q-001-1500
FlexBeam™ 1400 mm FE 2 Q-001-1502
FlexPlate™ 14 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Roller rail – 1290 mm 30 Q-003-0032
Rail Support No Stop 30 Q-003-1021
Rail Support Drop 30 mm Stop 30 Q-003-1022
Wheel Attachment – 105 x 77.5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 4 Q-004-1351
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 16 Q-005-1426
Locking Nut M10 58 Q-006-1042
M6 Washer 8 Q-006-1076
M10 x 90 mm Hex Head 32 Q-006-1132
M10 x 90 mm Extra Low Head 22 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 228 Q-006-1384
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
Angled Plate – 1396 mm 4 Q-016-0319
