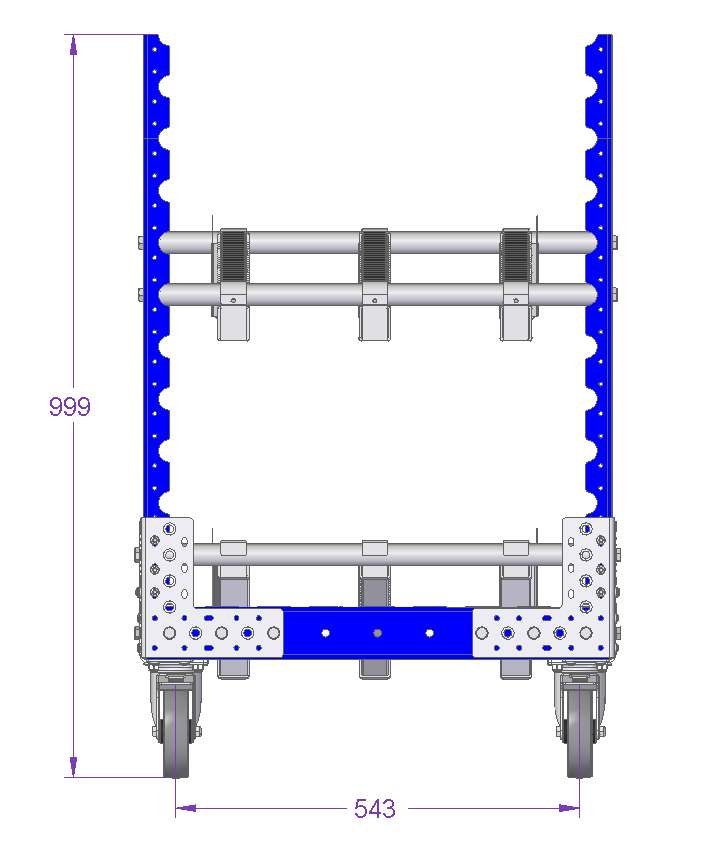

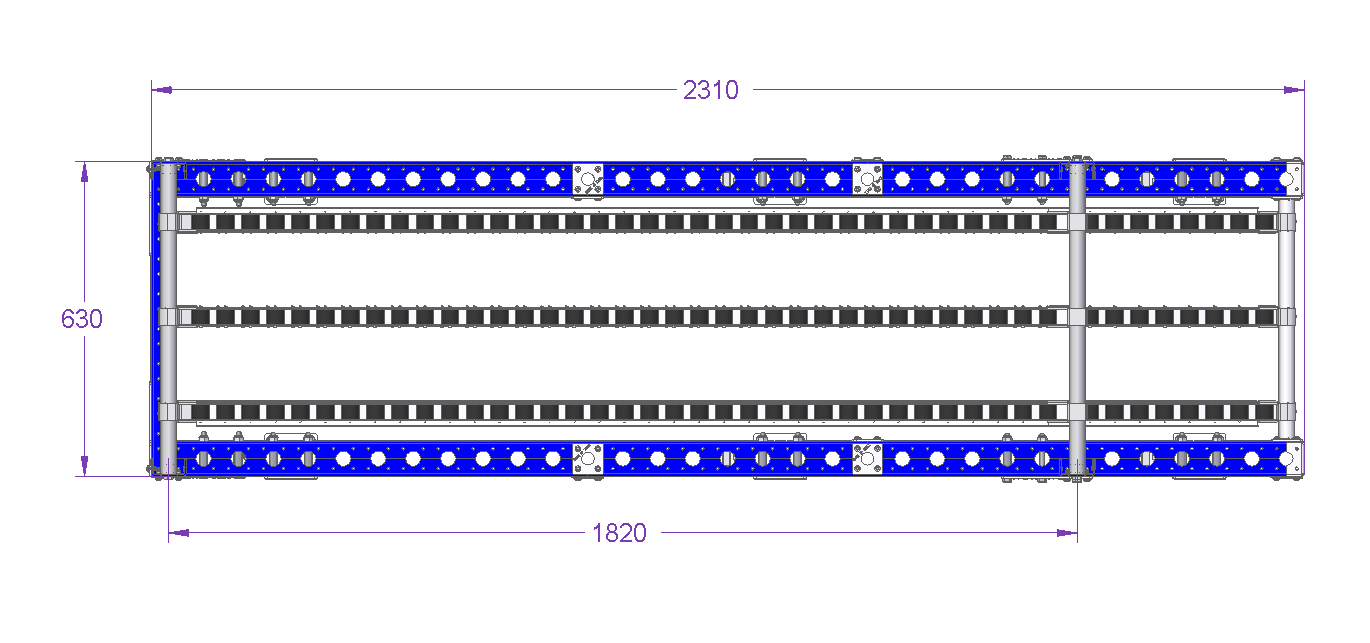

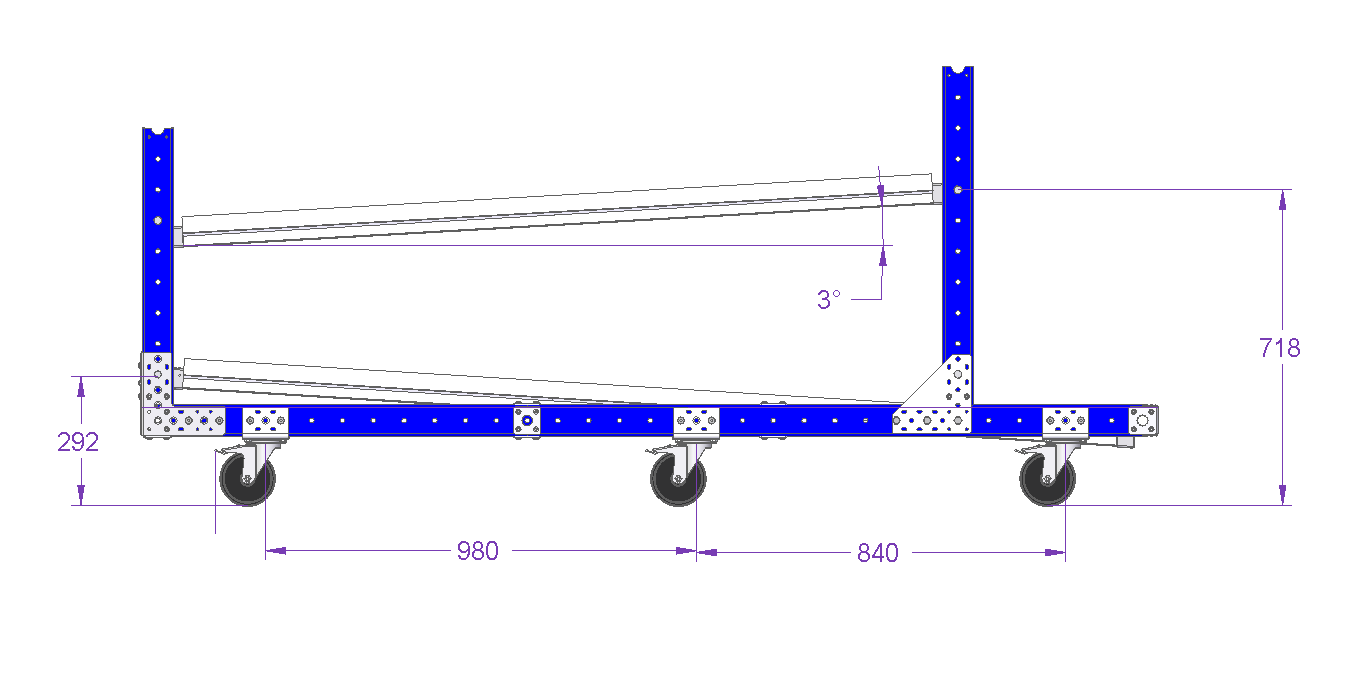

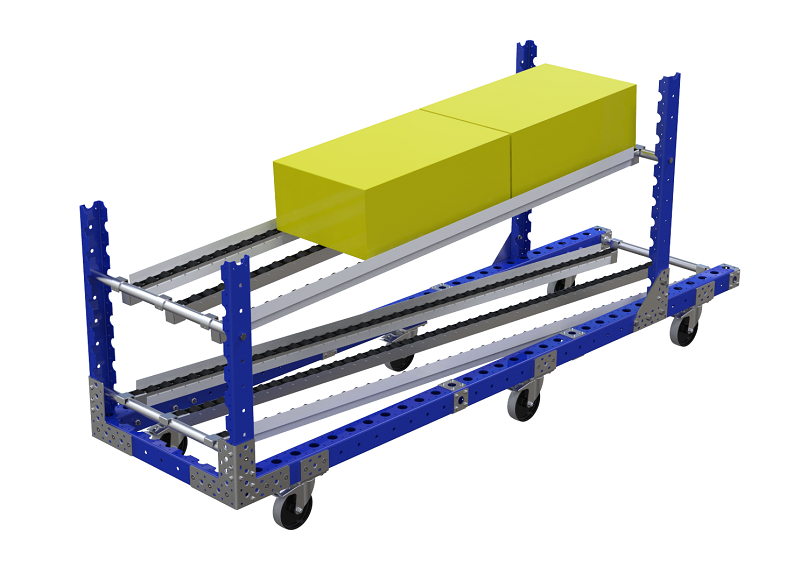

Flow rack – 2310 x 630 mm

Specialised long flow rack for totes, bins and boxes.

Technical specifications

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 2310 mm

Width: 630 mm

Caster size: 125 mm

More info

This Flow rack was designed in helping with the presentation of materials and using gravity and rollers to efficiently move your bins, totes or boxes. The rack can be made longer or shorter depending on your needs.

Parts included
FlexTube™ 490 mm 1 Q-000-1247
FlexQube® 2 Q-001-1078
FlexBeam™ – 1400 mm 4 Q-001-1297
FlexBeam™ 840 mm 4 Q-001-1305
FlexBeam™ 770 mm 2 Q-001-1306
FlexBeam™ 630 mm 2 Q-001-1308
FlexBeam™ 630 mm FE 1 Q-001-1408
FlexPlate™ 16 Q-002-1001
RR Guide 10 mm offset – 2128 mm 2 Q-003-0071
RR Guide 10 mm offset – 1708 mm 2 Q-003-0073
Roller Rail – 2200 mm 3 Q-003-0076
Roller Rail – 1780 mm 3 Q-003-0077
Delivery Connector Without Endstop 6 Q-003-1012
Rail Support Drop 30 mm Stop 6 Q-003-1022
125 mm Swivel Caster with Brake 6 Q-004-1364
Caster to Beam Attachment – 80 x 60 mm 6 Q-005-0265
Spring Threaded Tube Connectors 6 Q-005-0469
Triangle Joint 2 Q-005-0483
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 20 Q-005-1426
M10 x 25 mm Hex Head 6 Q-006-1041
Locking Nut M10 30 Q-006-1042
M10 x 90 mm Hex Head 6 Q-006-1132
Locking Nut M8 24 Q-006-1181
M8 x 16 mm Countersunk 24 Q-006-1214
M10 x 90 mm Extra Low Head 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 90 Q-006-1384
M10 x 25 mm Extra Low Head Allen 8 Q-006-1410
Outer Tube (No Plate) – 624 mm 3 Q-025-0624
