Q-100-0773

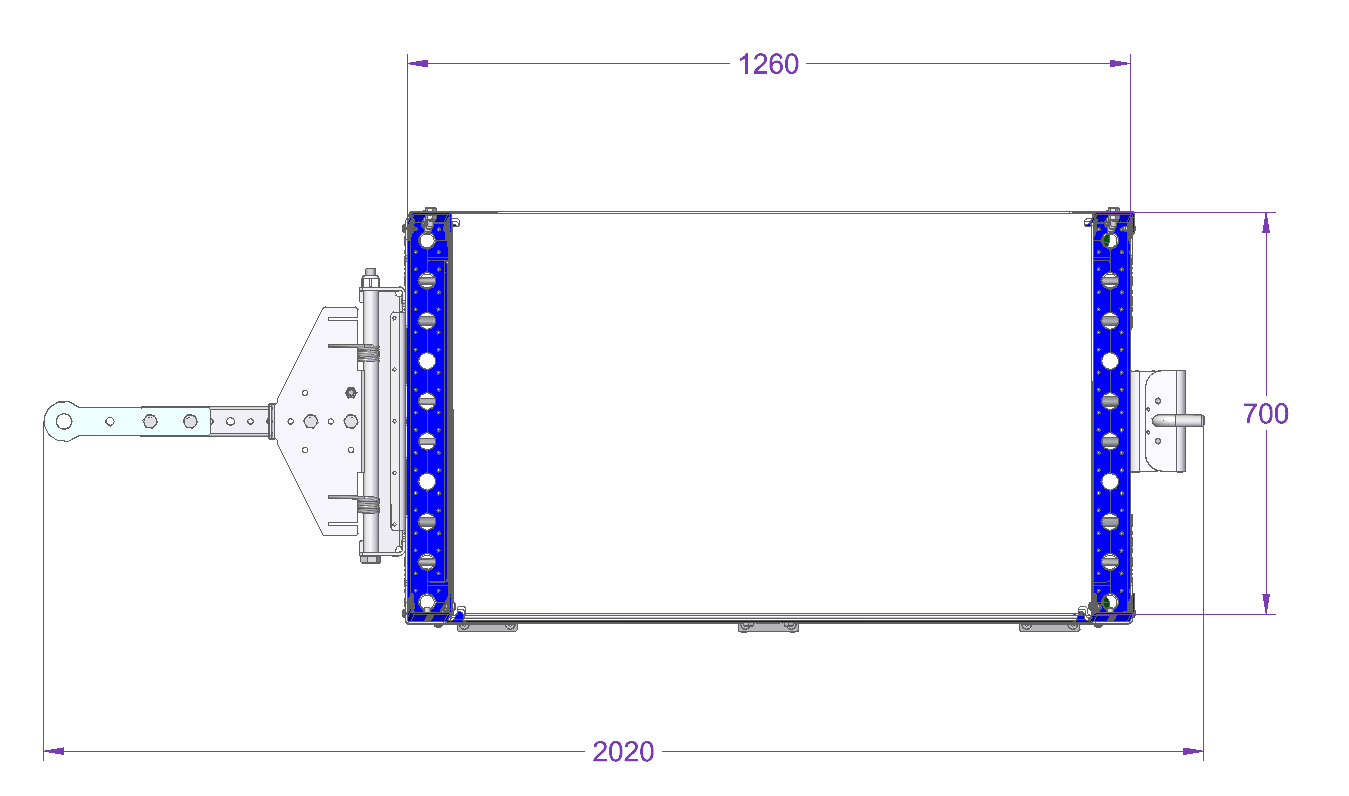

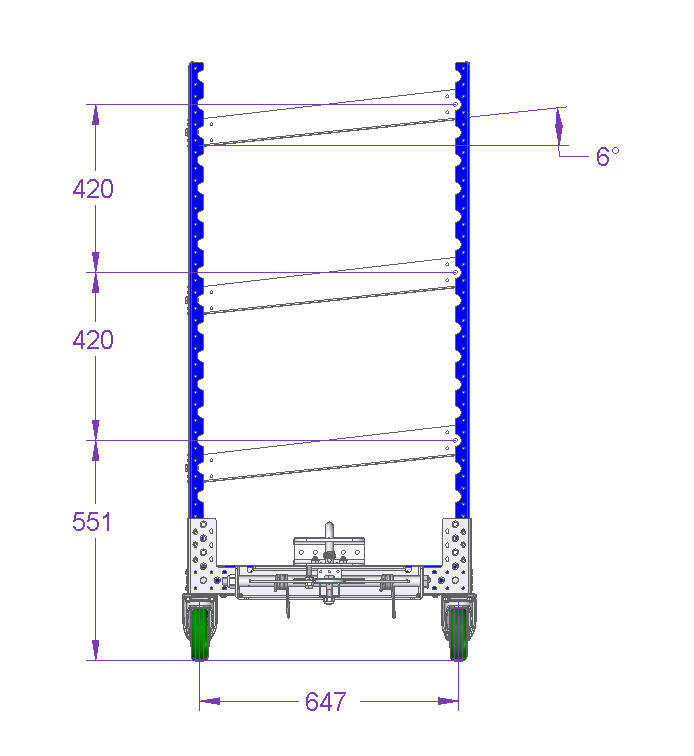

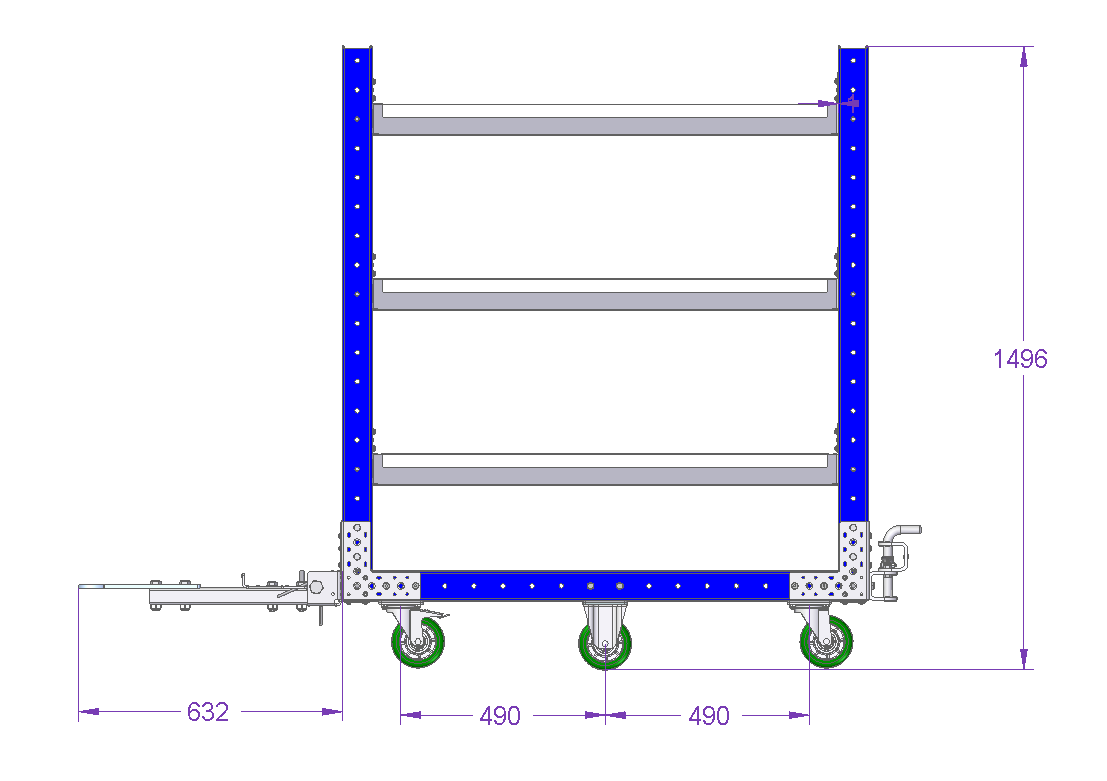

Flow Shelf Cart – 1260 x 7000 mm

Standard flow shelf cart for transporting bins, totes and boxes.

Technical specifications

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Load capacity: 340 kg

Caster size: 200 mm

Type of tow bar: Tongue and Hitch

More info

This flow shelf cart is equipped with three flow shelves which can hold smaller bins, totes and boxes. The height of these shelves can be easily adjusted up or down depending on the height of your materials.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Caster Polyurethane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm, 80 x 60, Fixed 2 Q-004-1221
Caster to Beam Attachment – 80 x 60 mm 6 Q-005-0265
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 18 Q-005-1426
Wheel Attachment – 80 x 60 mm 2 Q-005-1722
M6 x 30 mm Allen Head 1 Q-006-1012
M20 x 500 mm Hex Head 1 Q-006-1016
M14 x 60 mm Hex Head 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
M10 x 25 mm Hex Head 6 Q-006-1041
Locking Nut M10 45 Q-006-1042
Locking Nut M6 1 Q-006-1050
M10 x 90 mm Hex Head 10 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
Locking Nut M8 24 Q-006-1181
Nut M10 1 Q-006-1195
M8 x 20 Countersunk 24 Q-006-1282
M10 x 50 mm Hex Head Fully Threaded 1 Q-006-1343
M10 x 90 mm Extra Low Head 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 64 Q-006-1384
M20 Locking Nut 1 Q-006-1405
M10 x 25 mm Extra Low Head Allen 12 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Flow Shelf – 1260 x 703 mm 3 Q-016-0366
US Modular Tow Bar VKR 380 mm – Lip 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Towing Lip – 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
