Flow Shelf Cart – 840 x 1400 mm
Flow Shelf Cart – 840 x 1400 mm
Flow Shelf Cart – 840 x 1400 mm
Q-100-1702

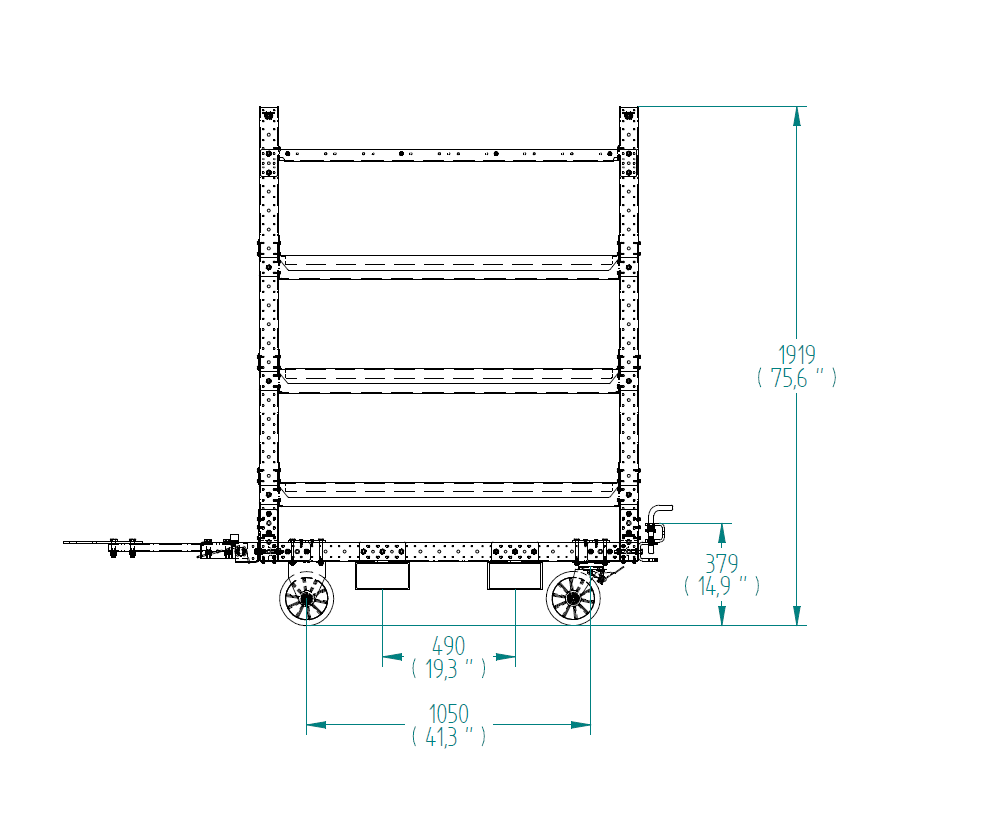

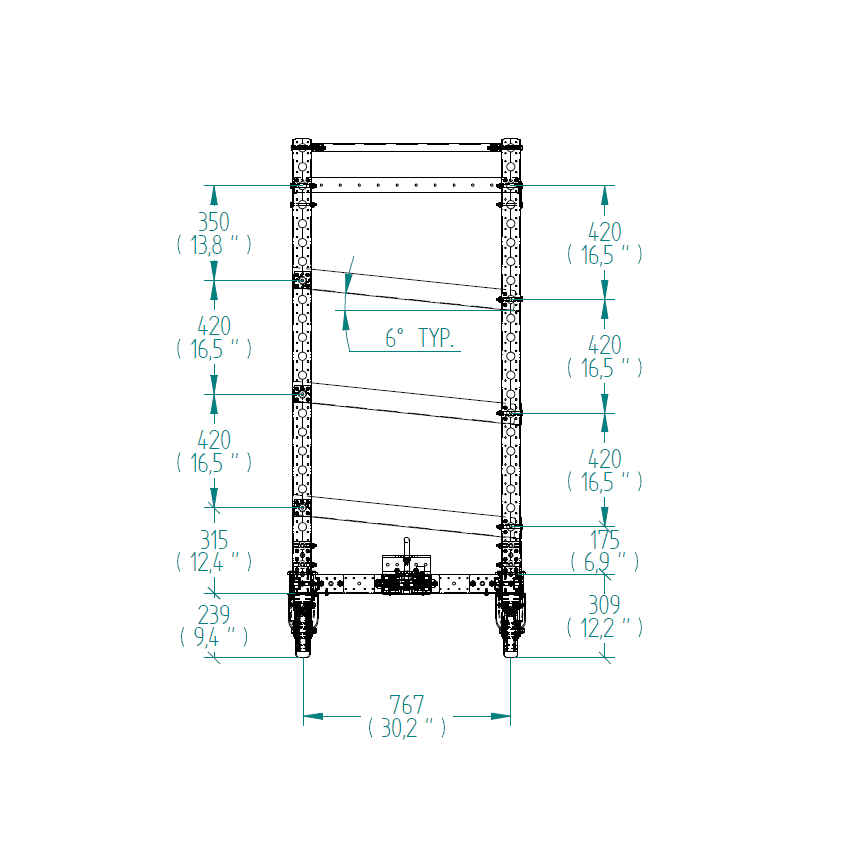

Flow Shelf Cart – 840 x 1400 mm

Four level shelf cart: one flat shelf and three flow shelves.

Technical specifications

Category: Flow Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 840 mm

Length: 1400 mm

Levels: 4

Load capacity: 500 kg

Load Capacity per Level: 125 kg

Transportation method: Manual

Caster size: 200 mm

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

Four level shelf cart: the top one is a flat shelf, and the bottom ones are flow shelves. These can be used to transport different parts, totes or boxes. The flow shelves are useful for the first in-first out concept in production. The cart is equipped with fork pockets, drop pin tow bar and 200 mm polyurethane casters.

Parts included
FlexPlate™ 14 Q-002-1001
Wheel Attachment – 105 x 77.5 mm 4 Q-004-1065
Polyurethane 200 mm with Brake IP2 2 Q-004-1210
Caster Polyurethane 200 mm Fixed IP2 2 Q-004-1212
Towing VKR – 460 mm 1 Q-005-0102
Fork Tunnel EU – 80 mm 4 Q-005-0396
Spring Threaded Tube Connectors 8 Q-005-0469
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 50 Q-005-1426
M14 x 60 mm Hex Head 4 Q-006-1036
M10 x 120 mm Fully Threaded 4 Q-006-1037
Locking Nut M14 4 Q-006-1039
Locking Nut M10 78 Q-006-1042
M8 x 16 mm Hex Head 8 Q-006-1120
M10 x 90 mm Hex Head 48 Q-006-1132
Locking Nut M8 8 Q-006-1181
M10 x 90 mm Extra Low Head 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 148 Q-006-1384
M10 x 16 mm Low Allen Head 2 Q-006-1409
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
Angled plate – 1388 mm 2 Q-016-0140
Flat Shelf – 840 x 1260 mm 1 Q-016-0382
Flow shelf – 840 x 1260 mm 3 Q-016-0915
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge – Narrow 1 Q-017-0087
Towing Lip – 28 mm 1 Q-017-1010
FlexBeam™ 1330 mm STS 4 Q-020-1330
FlexBeam™ FE – 1610 mm 8 Q-021-1610
Outer Tube (No Plate) – 700 mm 2 Q-025-0700
