Hanging Cart – 1050 x 2240 mm
Hanging Cart – 1050 x 2240 mm
Hanging Cart – 1050 x 2240 mm
Hanging Cart – 1050 x 2240 mm
Q-100-0817

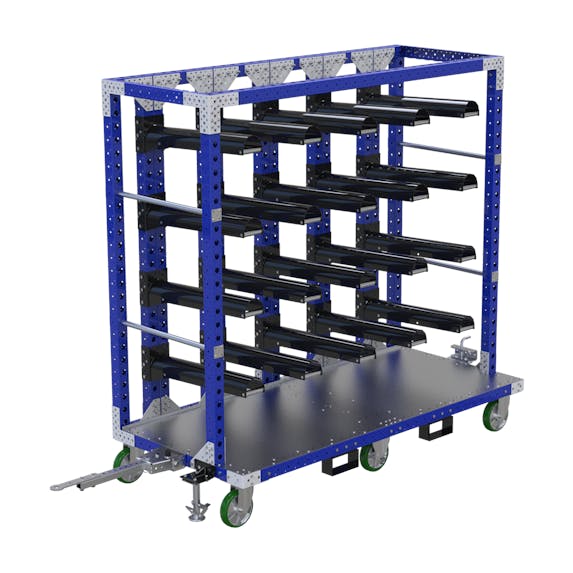

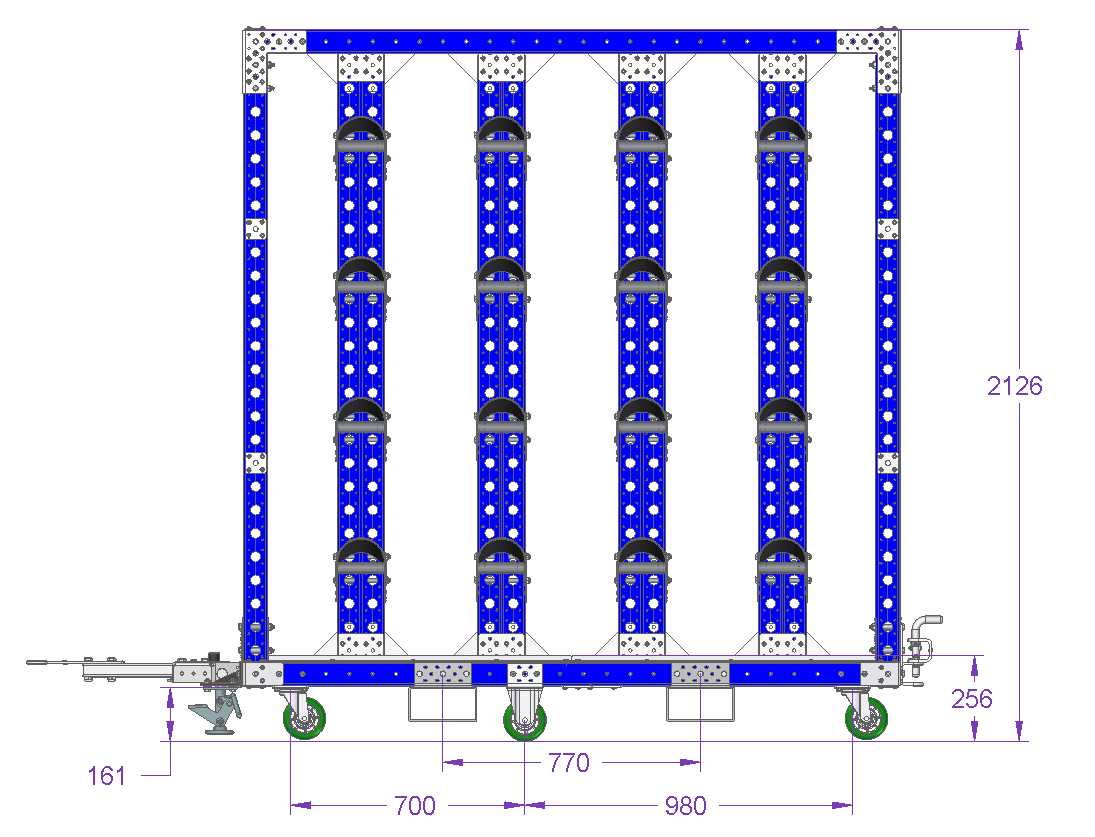

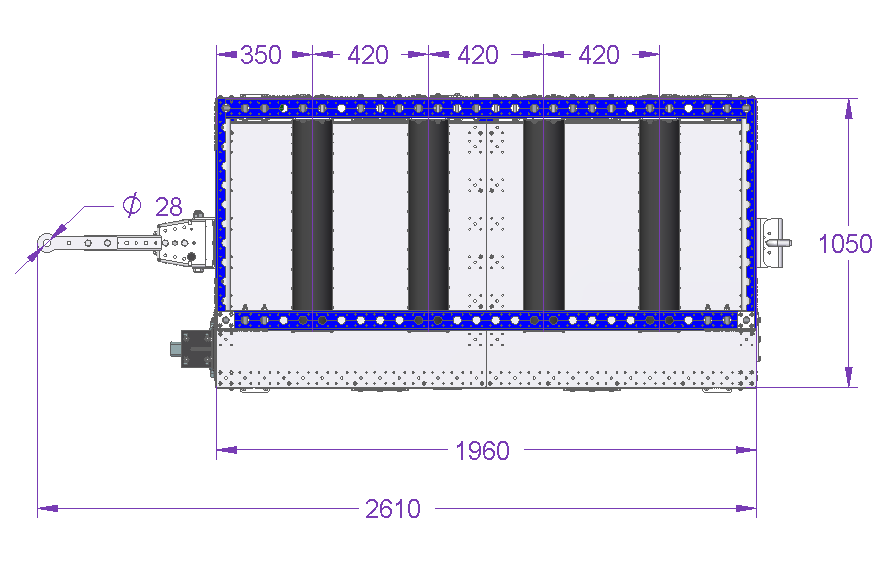

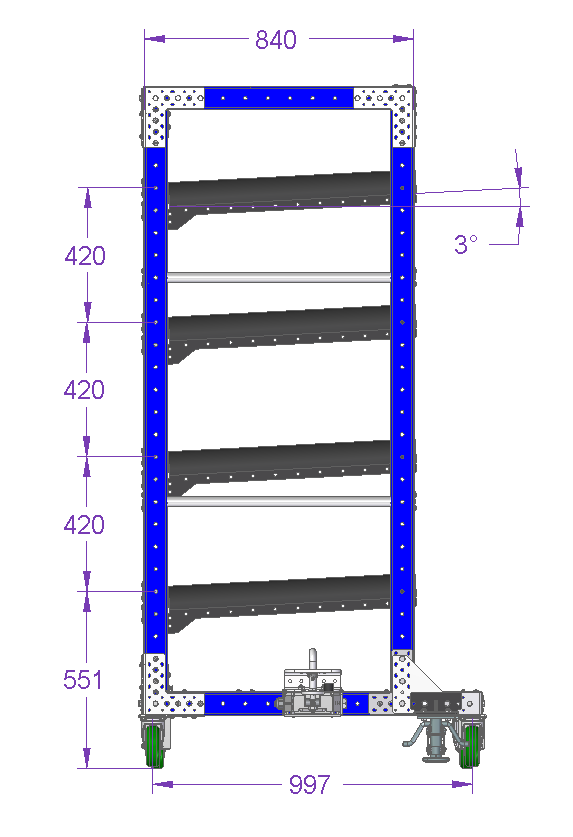

Hanging Cart – 1050 x 2240 mm

Custom designed hanging cart for hanging very heavy materials.

Technical specifications

Transportation method: Tugger

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 2240 mm

Width: 1050 mm

Load capacity: 1451 kg

Caster size: 200 mm

Type of tow bar: Tongue and Hitch

Caster Type: Polyurethane

More info

This cart is optimal for transporting components that need to be hung, for example hoses, tubes or wires. Each of the hangers is reinforced so it is ideal for heavier materials. This cart comes equipped with a drop pin and hitch tow bar for transportation in a tugger train system. This cart also has forklift pockets for transportation via forklift.

Parts included
FlexBeam STS – 1890 mm 8 Q-001-1290
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 910 mm FE 4 Q-001-1404
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam 1820 mm STS FE 24 Q-001-1508
FlexPlate™ 42 Q-002-1001
Stiffener – Outside 2 Q-002-1050
Flexplate™ M10 12 Q-002-1162
FlexPlate™ half 8 Q-002-1369
Caster Polyurethane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm, 80 x 60, Fixed 2 Q-004-1221
Floor Lock COLSON 4'' x 4-1/2'' 1 Q-004-1369
T-Joint 4 Q-005-0065
Caster to Beam Attachment – 80 x 60 mm 6 Q-005-0265
Fork Tunnel US – 80 mm 4 Q-005-0431
Spring Threaded Tube Connectors 40 Q-005-0469
Triangle Joint 20 Q-005-0483
Rounded Hanger (150 mm) – 770 mm Long 16 Q-005-0656
Beam to Beam Corner Plate 6 Q-005-1356
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 65 Q-005-1426
Wheel Attachment – 80 x 60 mm 2 Q-005-1722
M14 x 60 mm Hex Head 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Locking Nut M10 141 Q-006-1042
Washer M10 12 Q-006-1043
M10 x 160 mm 32 Q-006-1055
M10 x 95 mm Hex Head 43 Q-006-1088
M10 x 90 mm Hex Head 12 Q-006-1132
M10 x 30 mm Hex Head 4 Q-006-1161
Locking Nut M8 24 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
M8 x 20 Countersunk 8 Q-006-1282
M10 x 100 mm Hex Head 1 Q-006-1302
M10 x 90 mm Extra Low Head 32 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 370 Q-006-1384
M10 x 25 mm Extra Low Head Allen 56 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 1 Q-006-1502
Top Plate – 1085 x 967 mm 1 Q-016-0422
Top Plate – 980 x 964 mm 1 Q-016-0479
US Modular Tow Bar VKR 380 mm – Lip 1 Q-017-0015
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge – Narrow 1 Q-017-0087
Towing Lip – 28 mm 1 Q-017-1010
Outer tube (no plate) – 140 mm 16 Q-025-0140
Outer Tube (No Plate) – 840 mm 4 Q-025-0840
