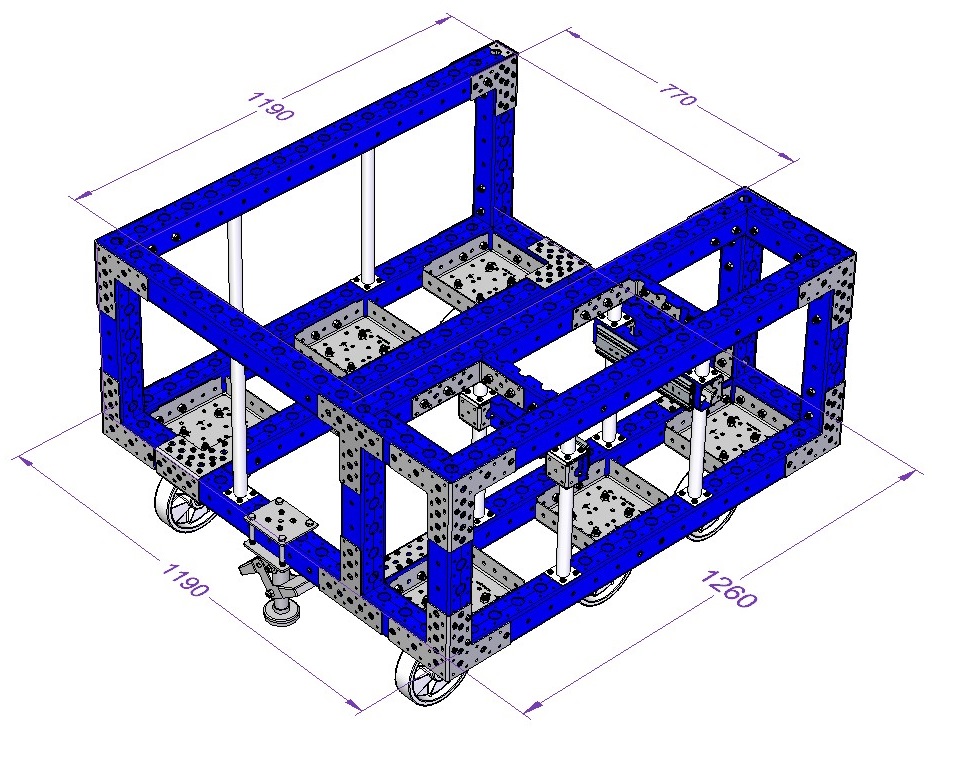

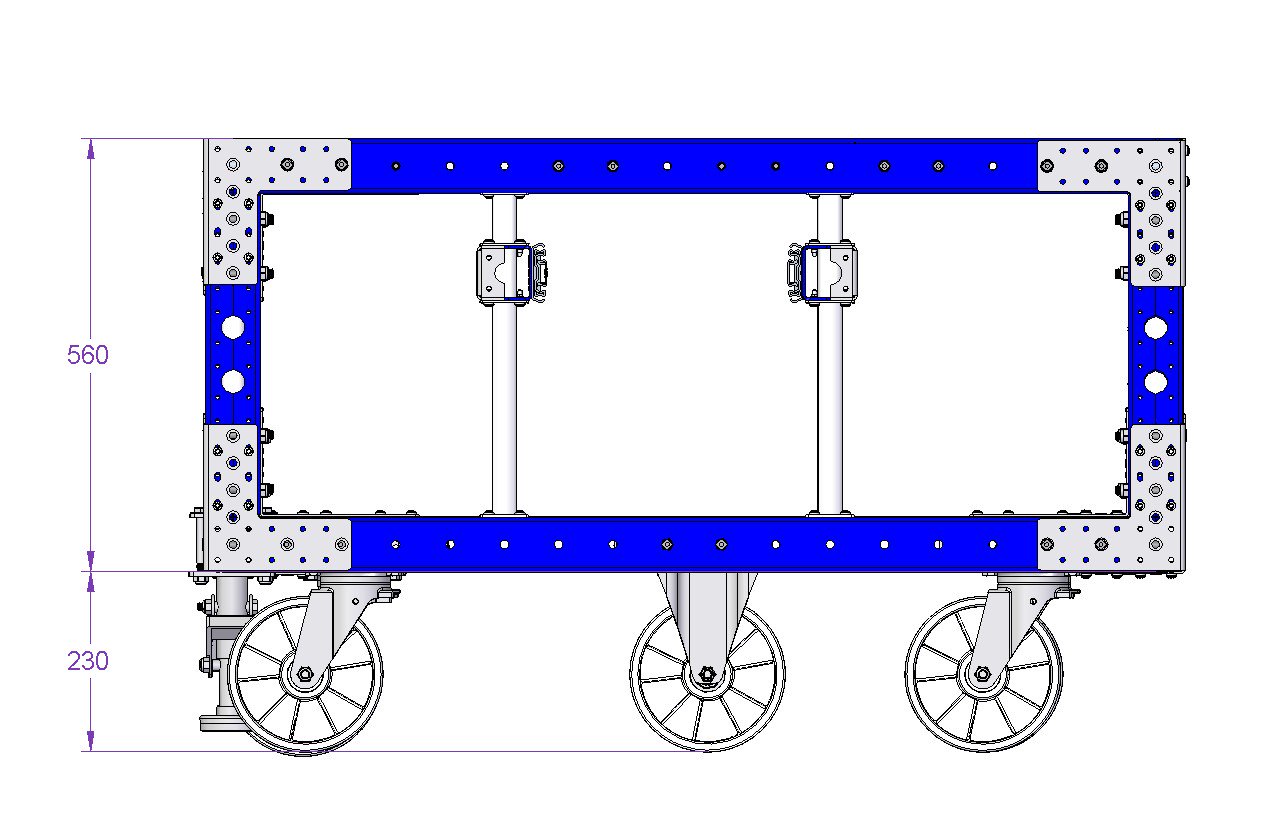

Heavy Duty Assembly Cart
Heavy Duty Assembly Cart
Heavy Duty Assembly Cart
Q-007-3032

Heavy Duty Assembly Cart

Custom designed assembly cart for improving the assembly process.

Technical specifications

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Transportation method: Manual

More info

This cart was designed to be used as an assembly fixture for very heavy parts and materials. The opening on the right was used to add on a pull out drawer. It comes with six high quality polyamide casters.

Parts included
64 mm FlexBeam™ Collet 32 Q-005-1426
Locking Nut M10 117 Q-006-1042
M10 x 25 mm Hex Head 30 Q-006-1041
M10 x 90 mm Extra Low Head 83 Q-006-1381
Washer M10 6 Q-006-1043
Beam to Beam Corner Plate 7 Q-005-1356
Polyamide Caster 200 mm Fixed 2 Q-004-1354
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 1190 mm 10 Q-001-1300
FlexBeam™ 1190 mm FE 3 Q-001-1400
FlexBeam™ 210 mm FE 4 Q-001-1414
FlexBeam™ 350 mm FE 3 Q-001-1412
FlexBeam™ 420 mm FE 12 Q-001-1411
FlexBeam™ 770 mm FE 1 Q-001-1406
FlexQube® 5 Q-001-1078
FlexTube™ 280 mm 4 Q-000-1262
FlexTube™ 420 mm 3 Q-000-1270
FlexTube™ 70 mm 4 Q-000-1050
Floor Brake LTL 200 1 Q-004-1359
Heavy Duty Joint M10 3 Q-005-1580
Telescopic Slide 3080-300 2 Q-005-2012
L Bracket Joint 10 Q-005-0031
M10 x 90 mm Hex Head 4 Q-006-1132
Self Tapping Screw M6 Torx H60 x 16 196 Q-006-1384
Polyamide Caster 200 mm without Brake 4 Q-004-1352
Wheel Attachment – 105 x 77.5 mm 1 Q-004-1065
Wheel Attachment Box 6 Q-005-1079
Beam to Beam – Cut Corner plate 1 Q-005-0064
T-Joint 3 Q-005-0065
