Low Rider Pallet Cart – 65 x 48 inches
Low Rider Pallet Cart – 65 x 48 inches
Low Rider Pallet Cart – 65 x 48 inches
Low Rider Pallet Cart – 65 x 48 inches
Q-100-0597

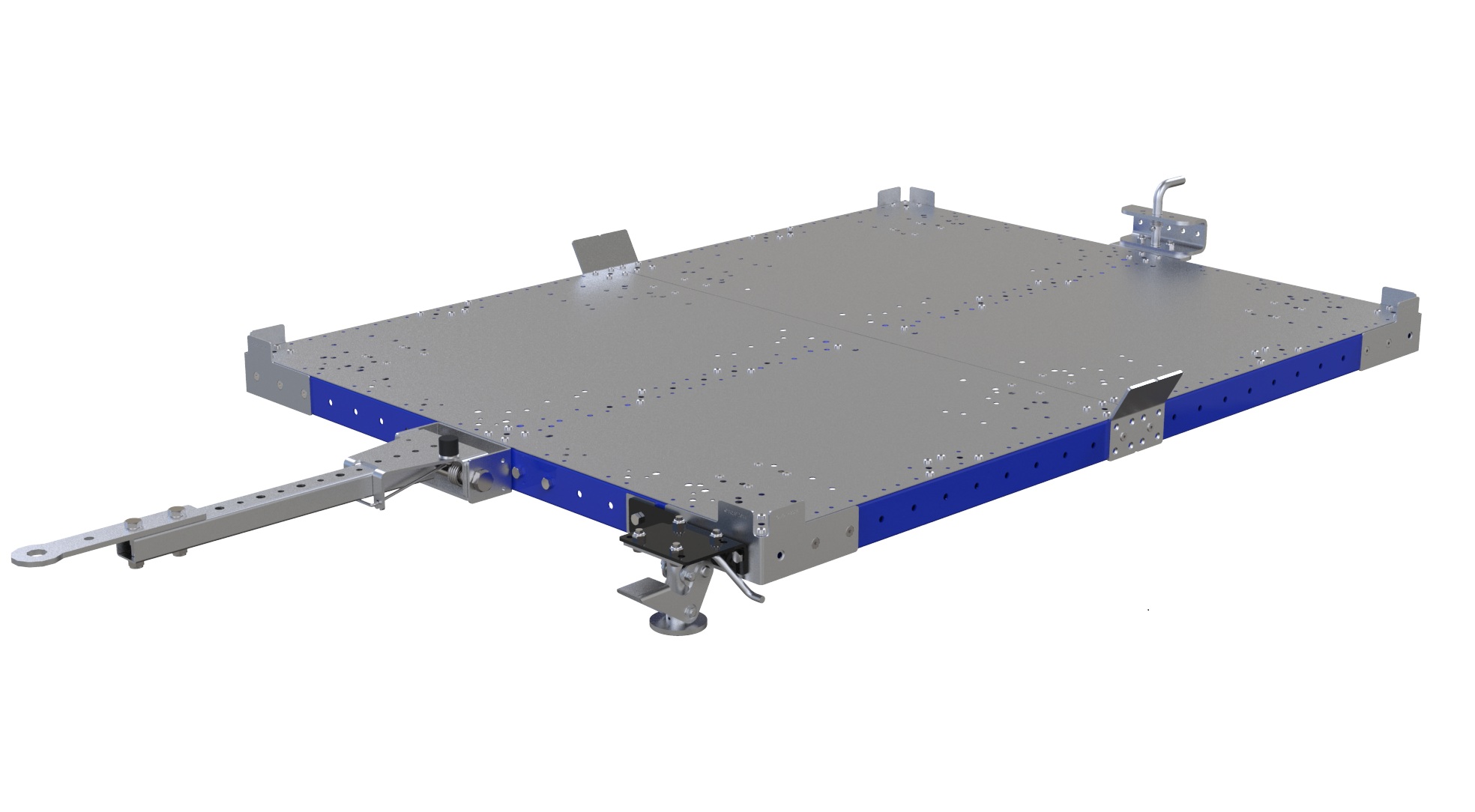

Low Rider Pallet Cart – 65 x 48 inches

Standard low rider tugger cart with steel flat deck.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

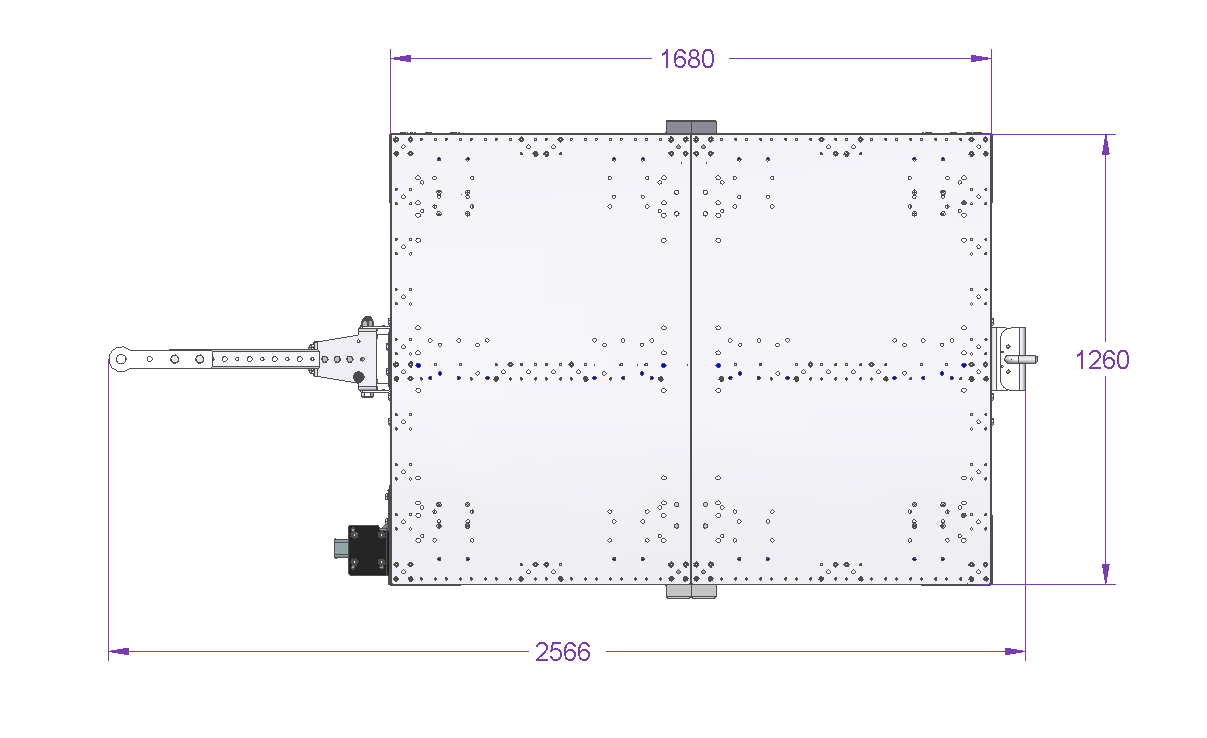

Width: 1260 mm

Length: 1680 mm

Load capacity: 227 kg

Transportation method: Manual, Tugger

Caster size: 125 mm

Caster Type: Polyurethane

More info

This low rider tugger cart was designed to transport pallets and containers. It has raised pallet guides to help secure the pallets and carts on the flat deck. It comes with a drop pin and hitch tow bar for use in a tugger train system. This cart also has six high quality polyurethane casters, two of which are fixed for improved tracking when in a tugger train.

Parts included
FlexBeam™ – 1610 mm 6 Q-001-1294
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 1 Q-002-1162
Floor lock COLSON – 4" x 4–1/2" – 125 – 150 mm 1 Q-004-0031
125 mm Swivel Caster 4 Q-004-1363
125 mm Fixed Caster 2 Q-004-1365
L Bracket Joint 4 Q-005-0031
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 16 Q-005-1426
Corner Pallet Guide 4 Q-005-1684
M6 x 30 mm Allen Head 1 Q-006-1012
Washer 10.5 x 30 x 2.5 1 Q-006-1030
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
M10 x 25 mm Hex Head 13 Q-006-1041
Locking Nut M10 47 Q-006-1042
Washer M10 2 Q-006-1043
M8 x 20 mm MELC6S 10.9 Allen Head 8 Q-006-1044
Locking Nut M6 1 Q-006-1050
M10 x 90 mm Hex Head 4 Q-006-1132
M10 x 30 mm Hex Head 6 Q-006-1161
Locking Nut M8 25 Q-006-1181
M8 Washer 64 Q-006-1183
M10 x 90 mm Extra Low Head 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 98 Q-006-1384
M10 x 25 mm Extra Low Head Allen 9 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Low Rider Floor Brake Plate 1 Q-015-0019
1259 x 839 mm Bottom Plate 2 Q-016-1160
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip – 28 mm 1 Q-017-1010
