Low Rider Tugger Cart – 1120 x 770 mm
Low Rider Tugger Cart – 1120 x 770 mm
Low Rider Tugger Cart – 1120 x 770 mm
Q-100-0464

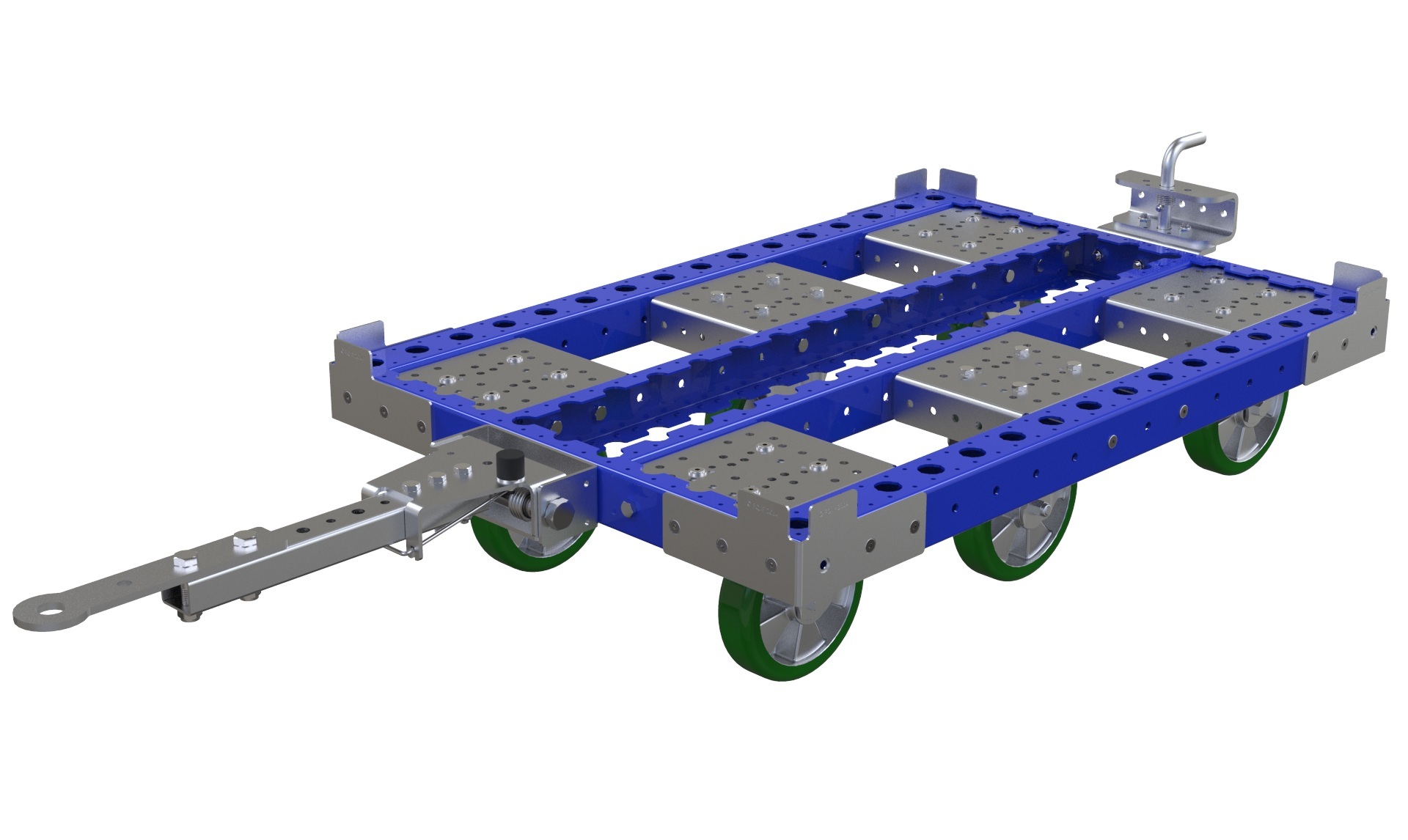

Low Rider Tugger Cart – 1120 x 770 mm

Tuggable pallet/container cart equipped with six polyurethane casters, two fixed and four swivel ones.

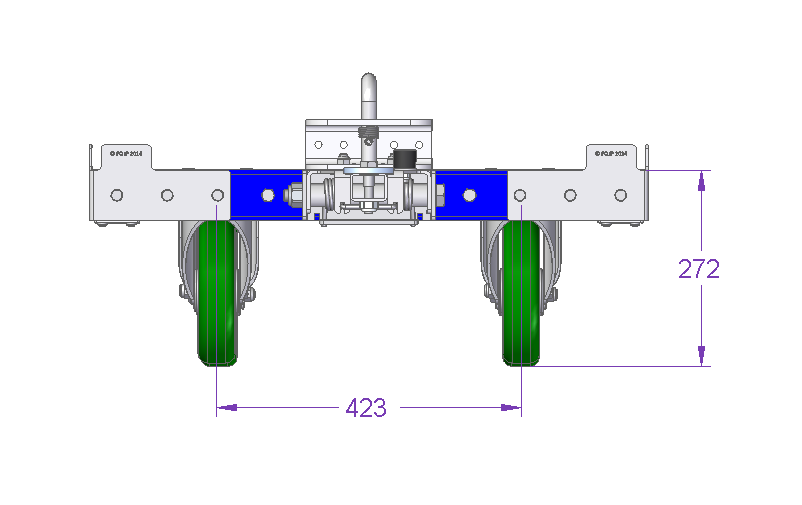

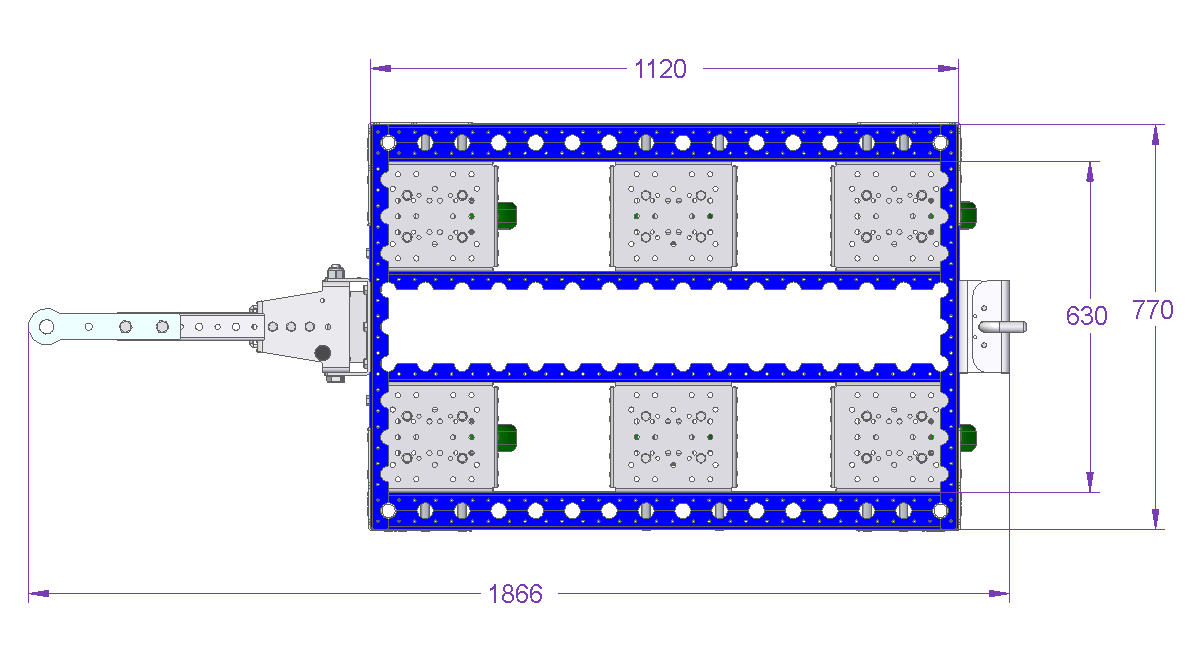

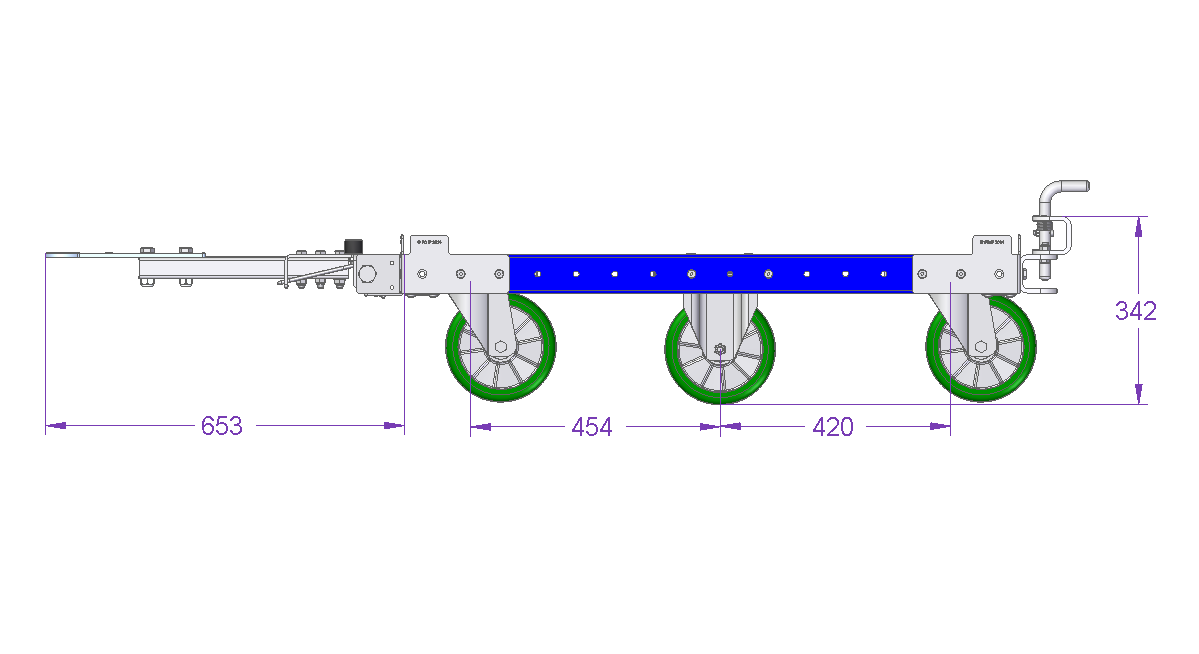

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 770 mm

Length: 1120 mm

Load capacity: 500 kg

Transportation method: Manual, Tugger

Caster size: 200 mm

Caster Type: Polyurethane

More info

Tuggable pallet/container specifically used for one pallet size. The cart comes equipped with six polyurethane casters, two fixed casters and four swivel casters giving the cart excellent tracking properties and silent movement in a train.

Parts included
FlexBeam™ 1050 mm 6 Q-001-1302
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexPlate™ 4 Q-002-1001
Caster distance plate – 5 mm 52 Q-004-0038
Caster Polyurethane – 200 mm 4 Q-004-1100
Caster Polyurethane – 200 mm Fixed 2 Q-004-1101
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 12 Q-005-1426
M6 x 30 mm Allen Head 1 Q-006-1012
Washer 10.5 x 30 x 2.5 1 Q-006-1030
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
M10 x 25 mm Hex Head 20 Q-006-1041
Locking Nut M10 73 Q-006-1042
Washer M10 18 Q-006-1043
Locking Nut M6 1 Q-006-1050
M10 x 30 mm Hex Head 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
M10 x 50 mm Hex Head Fully Threaded 8 Q-006-1343
Extra low head [1.5 mm] M10 x 40 mm 16 Q-006-1361
M10 x 90 mm Extra Low Head 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
M10 x 25 mm Extra Low Head Allen 12 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
US Modular Tow Bar VKR 380 mm – Lip 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip – 28 mm 1 Q-017-1010
