Tugger Cart – 1260 x 1190 mm
Tugger Cart – 1260 x 1190 mm
Tugger Cart – 1260 x 1190 mm
Tugger Cart – 1260 x 1190 mm
Q-100-0705

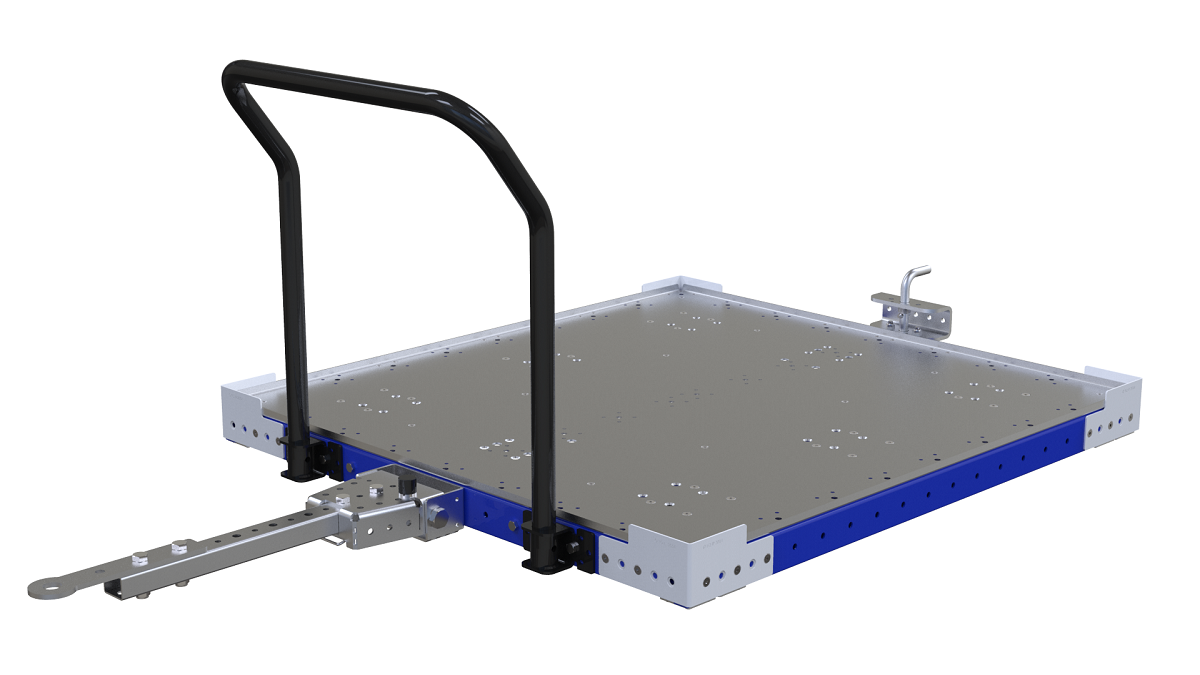

Tugger Cart – 1260 x 1190 mm

Simply designed low rider tugger cart for pallet carts.

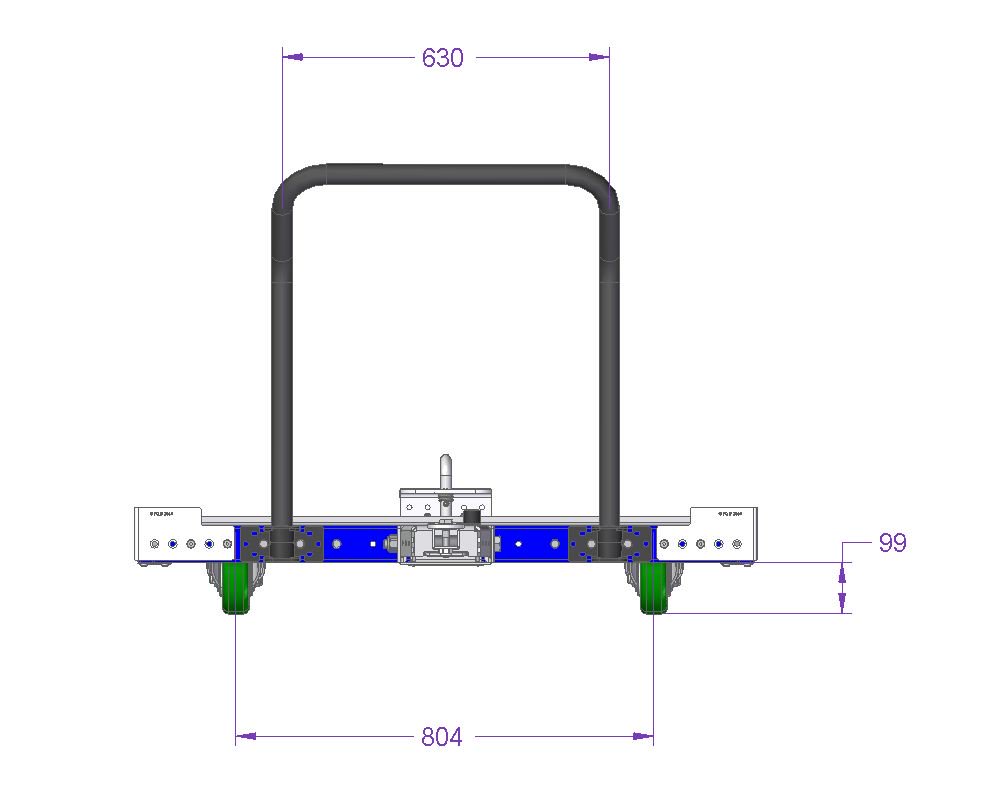

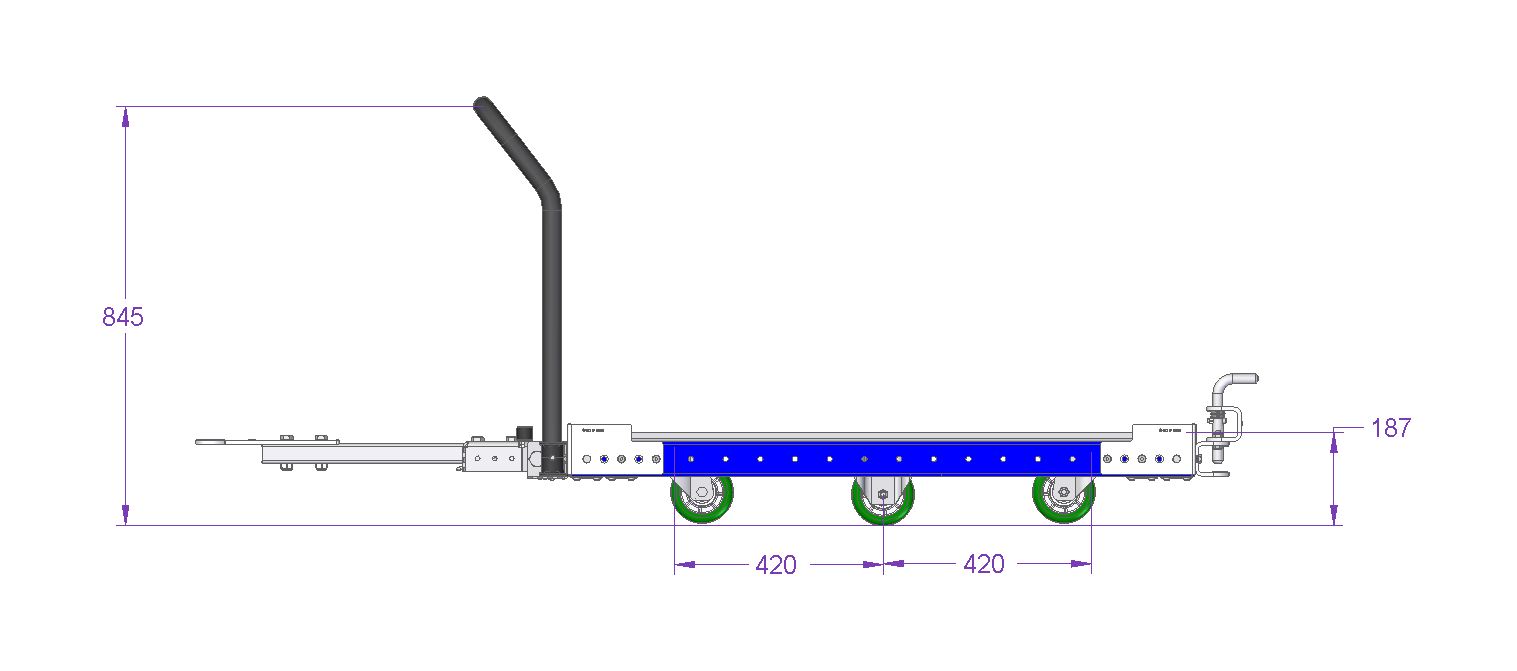

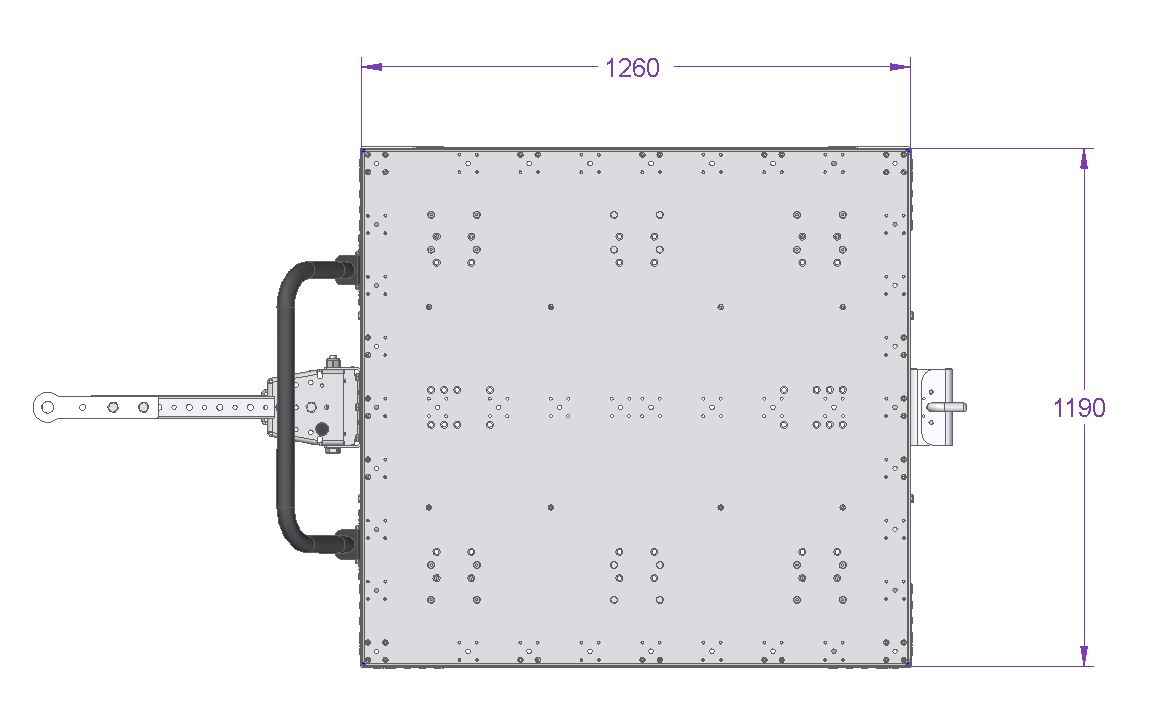

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 1190 mm

Length: 1260 mm

Load capacity: 680 kg

Transportation method: Manual, Tugger

Caster size: 125 mm

Caster Type: Polyurethane

More info

Low rider tugger cart for transportation of pallets/totes/bins and boxes. The cart is equipped with a removable handlebar, tongue and hitch tow bar as well as six high quality polyurethane casters, two fixed casters and four swivel casters, for excellent tracking properties as well as silent transportation.

Parts included
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 8 Q-002-1001
Wheel Attachment – 105 x 77.5 mm 2 Q-004-1065
Caster Polyurethane – 125 mm 4 Q-004-1106
Caster Polyurethane – 125 mm Fixed 2 Q-004-1107
L Bracket Joint 4 Q-005-0031
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 23 Q-005-1426
M6 x 30 mm Allen Head 1 Q-006-1012
Washer 10.5 x 30 x 2.5 1 Q-006-1030
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
M10 x 25 mm Hex Head 8 Q-006-1041
Locking Nut M10 46 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
M10 x 95 mm Hex Head 3 Q-006-1088
M10 x 90 mm Hex Head 10 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
Locking Nut M8 25 Q-006-1181
M8 Washer 24 Q-006-1183
M8 x 25 mm Countersunk 8 Q-006-1250
M8 x 20 Countersunk 16 Q-006-1282
M10 x 90 mm Extra Low Head 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 44 Q-006-1385
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top plate with edge – 1190 x 1260 mm 1 Q-016-0216
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip – 28 mm 1 Q-017-1010
