Mother Cart – 1400 x 1960 mm
Mother Cart – 1400 x 1960 mm
Mother Cart – 1400 x 1960 mm
Q-100-0275

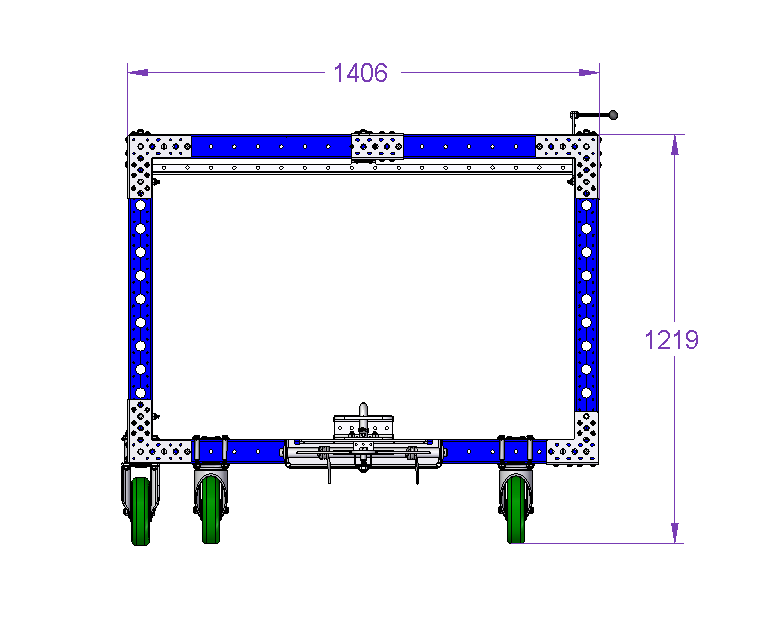

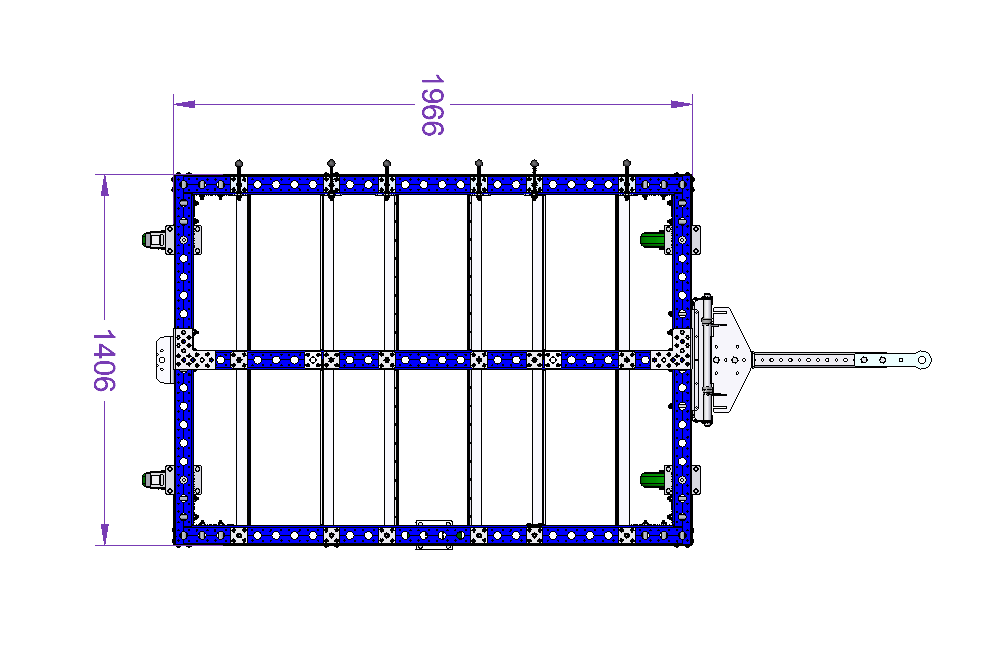

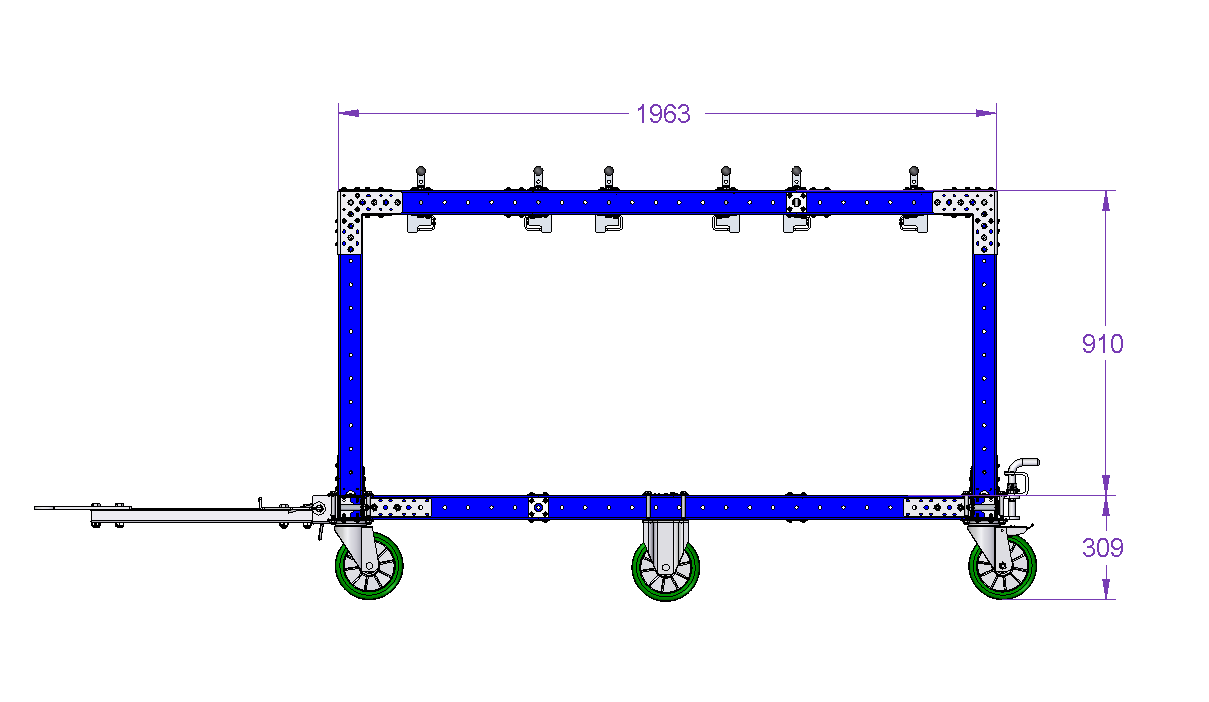

Mother Cart – 1400 x 1960 mm

Mother frame designed to house 3 daughter carts.

Technical specifications

Transportation method: Mother-Daughter Cart, Tugger

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 1960 mm

Width: 1400 mm

Caster size: 200 mm

Type of tow bar: Tongue and Hitch

More info

3 in 1 Mother-Daughter Solution. Small carts can be removed from large carts and placed at work-stations. The mother cart is equipped with a drop pin and hitch tow bar for transportation in a tugger train system.

Parts included
FlexBeam™ – 1330 mm 6 Q-001-1298
FlexBeam™ 840 mm 8 Q-001-1305
FlexBeam™ 560 mm 6 Q-001-1309
FlexBeam™ 490 mm FE 2 Q-001-1410
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexBeam™ 1330 mm FE 4 Q-001-1501
FlexBeam™ 1400 mm FE 4 Q-001-1502
FlexPlate™ 33 Q-002-1001
Flexplate™ M10 18 Q-002-1162
Wheel Attachment – 105 x 77.5 mm 6 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Caster Polyurethane – 200 mm 2 Q-004-1100
Caster Polyurethane – 200 mm Fixed 1 Q-004-1101
L Bracket Joint 8 Q-005-0031
M10 – Collet 6 mm 6 Q-005-0105
Daughter Cart Catcher in Zinc 6 Q-005-0210
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Spherical Knob 6 Q-005-1146
Beam to Beam Corner Plate 6 Q-005-1356
64 mm FlexBeam™ Collet 38 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Daughter Cart Locking Plate 6 Q-005-1730
Washer M20 2 Q-006-0016
M6 x 30 mm Allen Head 1 Q-006-1012
M14 x 60 mm Hex Head 4 Q-006-1036
M10 x 120 mm Fully Threaded 6 Q-006-1037
Locking Nut M14 4 Q-006-1039
M10 x 25 mm Hex Head 6 Q-006-1041
Locking Nut M10 122 Q-006-1042
Locking Nut M6 1 Q-006-1050
M10 x 95 mm Hex Head 4 Q-006-1088
M10 x 90 mm Hex Head 22 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
M10 x 90 mm Extra Low Head 54 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 360 Q-006-1384
M10 x 25 mm Extra Low Head Allen 12 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
US Modular Tow Bar VKR 660 mm – Lip 1 Q-017-0009
Handle for Tow Hole 1 Q-017-0022
Cotter Pin – 3.2 x 32 mm 2 Q-017-0023
Towing Lip – 28 mm 1 Q-017-1010
Tow Bar Lock Tube – 498 mm 1 Q-017-1061
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
