Q-100-0213

Mother cart, 2 in 1 – 1260 x 1820 mm

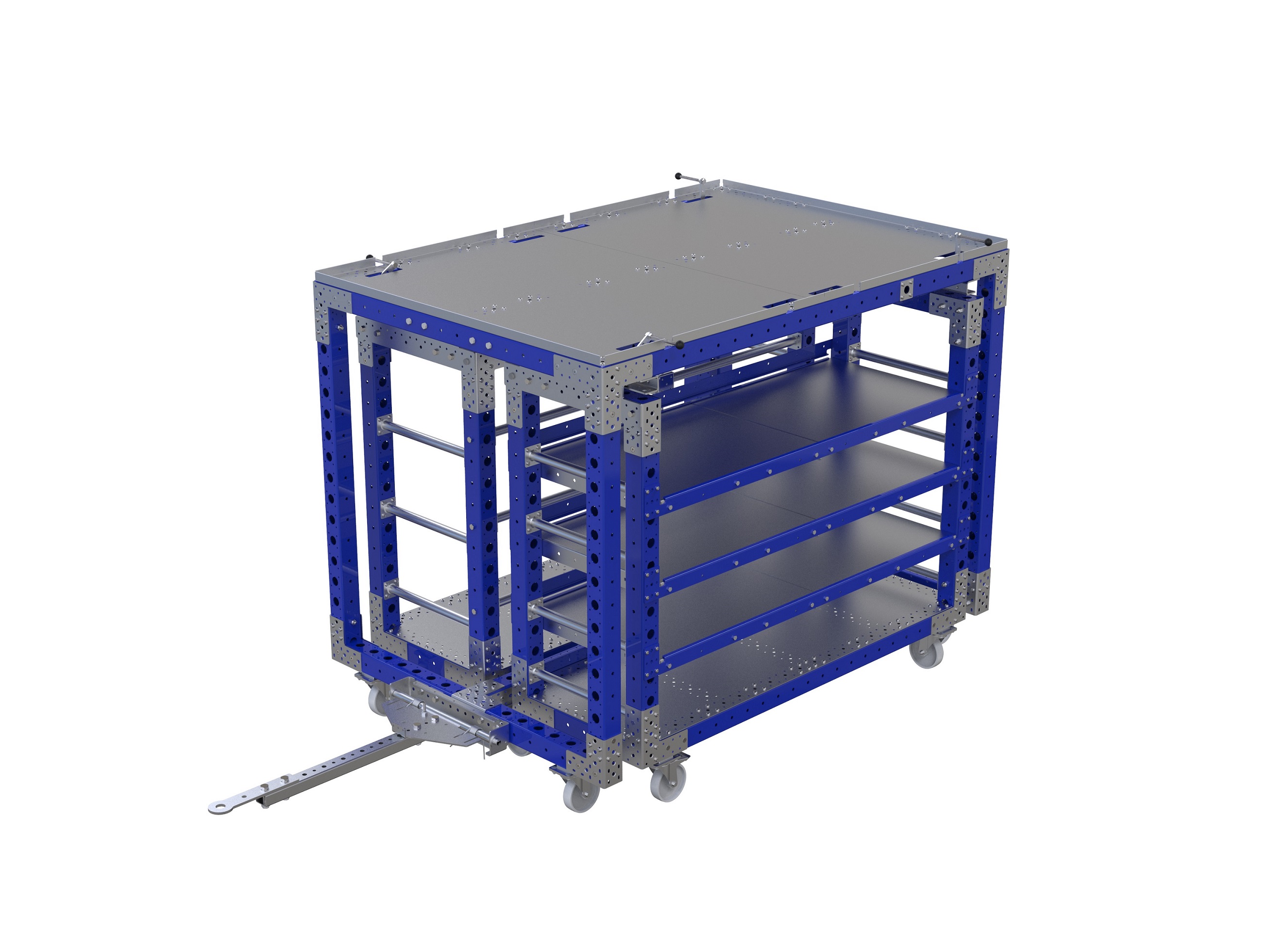

Tuggable mother cart designed to transport two daughter carts (Q-100-0238)

Technical specifications

Transportation method: Mother-Daughter Cart, Tugger

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Category: Mother Carts

Length: 1820 mm

Width: 1260 mm

Load capacity: 91 kg

Type of tow bar: Tongue and Hitch

Caster size: 125 mm

Caster Type: Gray

More info

Tuggable mother cart designed to transport two daughter carts (Q-100-0238). The mother daughter concept is most commonly used in a “milk run system” meaning you use the mother cart to transport daughter carts filled with material from warehouse to assembly line and pick up empty daughter carts on the way back.

Parts included
FlexBeam™ – 1260 mm 4 Q-001-1299
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1120 mm 8 Q-001-1301
FlexBeam™ 560 mm 2 Q-001-1309
FlexBeam™ 490 mm 6 Q-001-1310
FlexBeam™ 1260 mm FE 6 Q-001-1500
FlexPlate™ 22 Q-002-1001
Flexplate™ M10 3 Q-002-1162
125 mm Swivel Caster 2 Q-004-1363
125 mm Fixed Caster 2 Q-004-1365
L Bracket Joint 8 Q-005-0031
M10 – Collet 6 mm 4 Q-005-0105
Daughter cart catcher – 1260 mm 2 Q-005-0165
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Spherical Knob 4 Q-005-1146
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 31 Q-005-1426
Heavy Duty Joint M10 6 Q-005-1580
Wheel Attachment – 80 x 60 mm 4 Q-005-1722
Daughter Cart Locking Plate 4 Q-005-1730
Washer M20 2 Q-006-0016
M6 x 30 mm Allen Head 1 Q-006-1012
M14 x 60 mm Hex Head 4 Q-006-1036
M10 x 120 mm Fully Threaded 4 Q-006-1037
Locking Nut M14 4 Q-006-1039
M10 x 25 mm Hex Head 10 Q-006-1041
Locking Nut M10 61 Q-006-1042
Locking Nut M6 1 Q-006-1050
M10 x 90 mm Hex Head 8 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
Locking Nut M8 16 Q-006-1181
Nut M10 5 Q-006-1195
M8 x 20 Countersunk 16 Q-006-1282
M10 x 100 mm Hex Head 4 Q-006-1302
M10 x 50 mm Hex Head Fully Threaded 1 Q-006-1343
M10 x 90 mm Extra Low Head 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 324 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 16 Q-006-1385
M10 x 25 mm Extra Low Head Allen 12 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Top Shelf for Mother Cart 2 Q-016-0097
US Modular Tow Bar VKR – 950 mm 1 Q-017-0002
US Modular Tow Bar VKR 660 mm – Lip 1 Q-017-0009
Handle for Tow Hole 1 Q-017-0022
Cotter Pin – 3.2 x 32 mm 2 Q-017-0023
Towing Lip – 28 mm 1 Q-017-1010
Tow Bar Lock Tube – 498 mm 1 Q-017-1061
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
