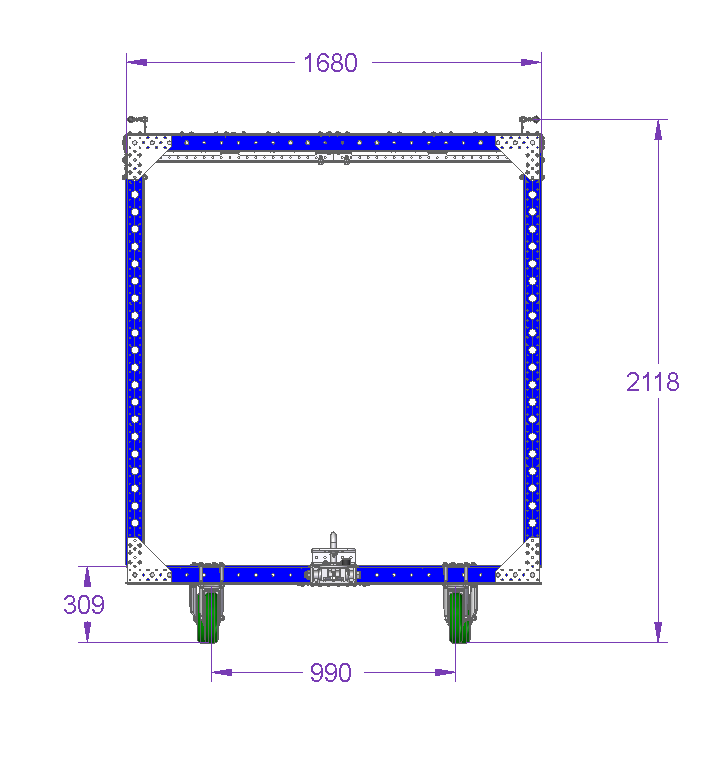

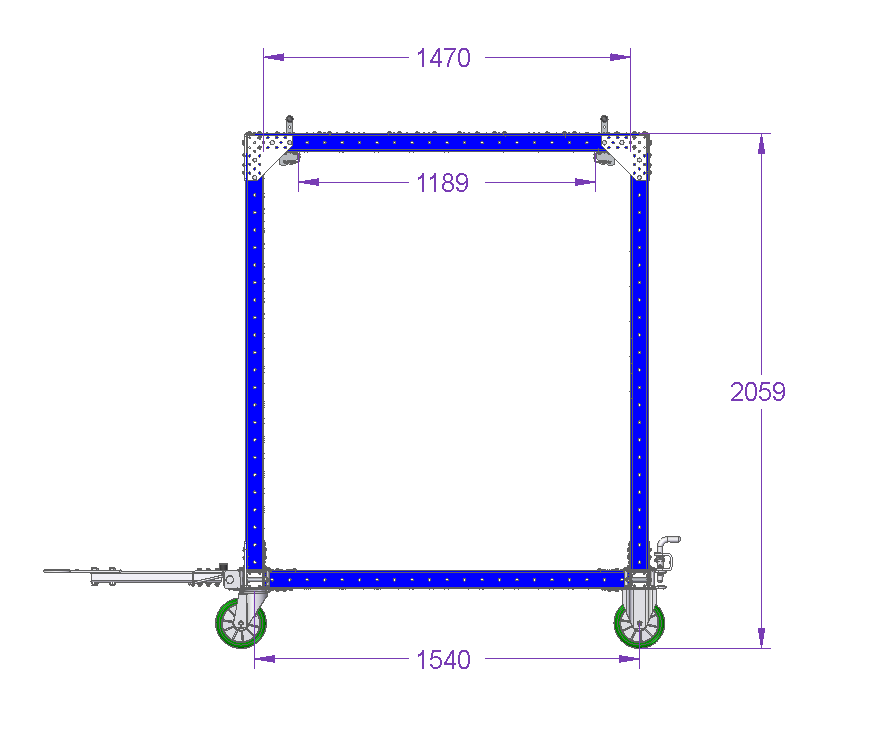

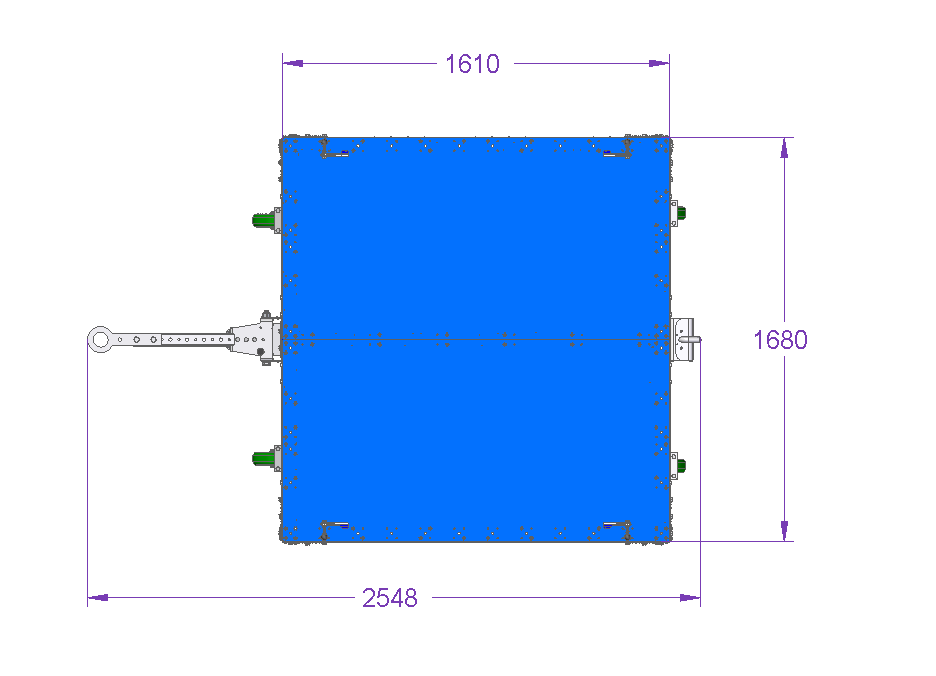

Mother cart 2 in 1 – 1680 x 1610 mm

Standard two in one mother frame to improve facility efficiency.

Technical specifications

Category: Mother Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Type of tow bar: Tongue and Hitch

Width: 1610 mm

Length: 1680 mm

Load capacity: 400 kg

Transportation method: Mother-Daughter Cart, Tugger

Caster size: 200 mm

Caster Type: Polyurethane

Type of Load: Daughter Cart

More info

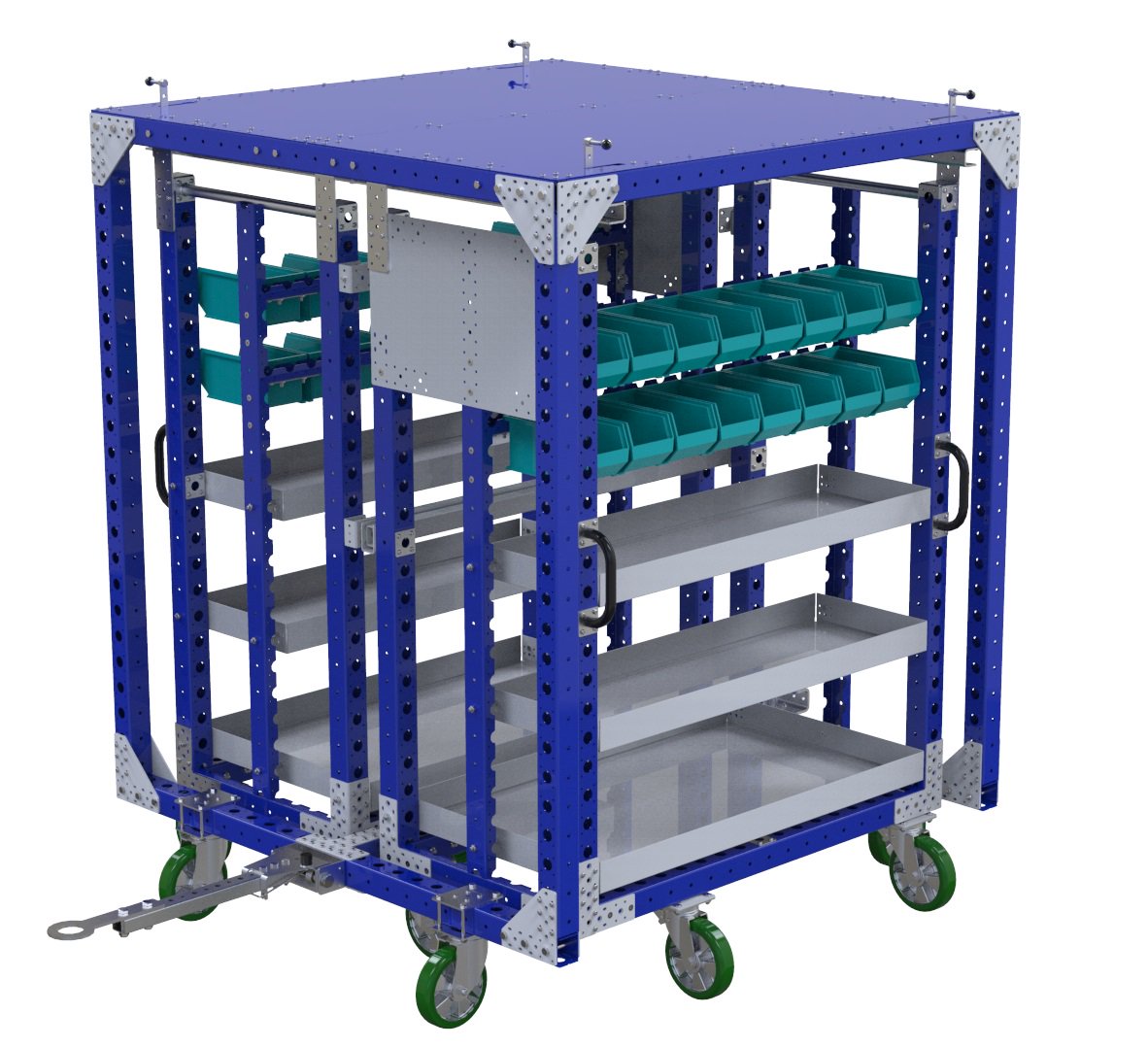

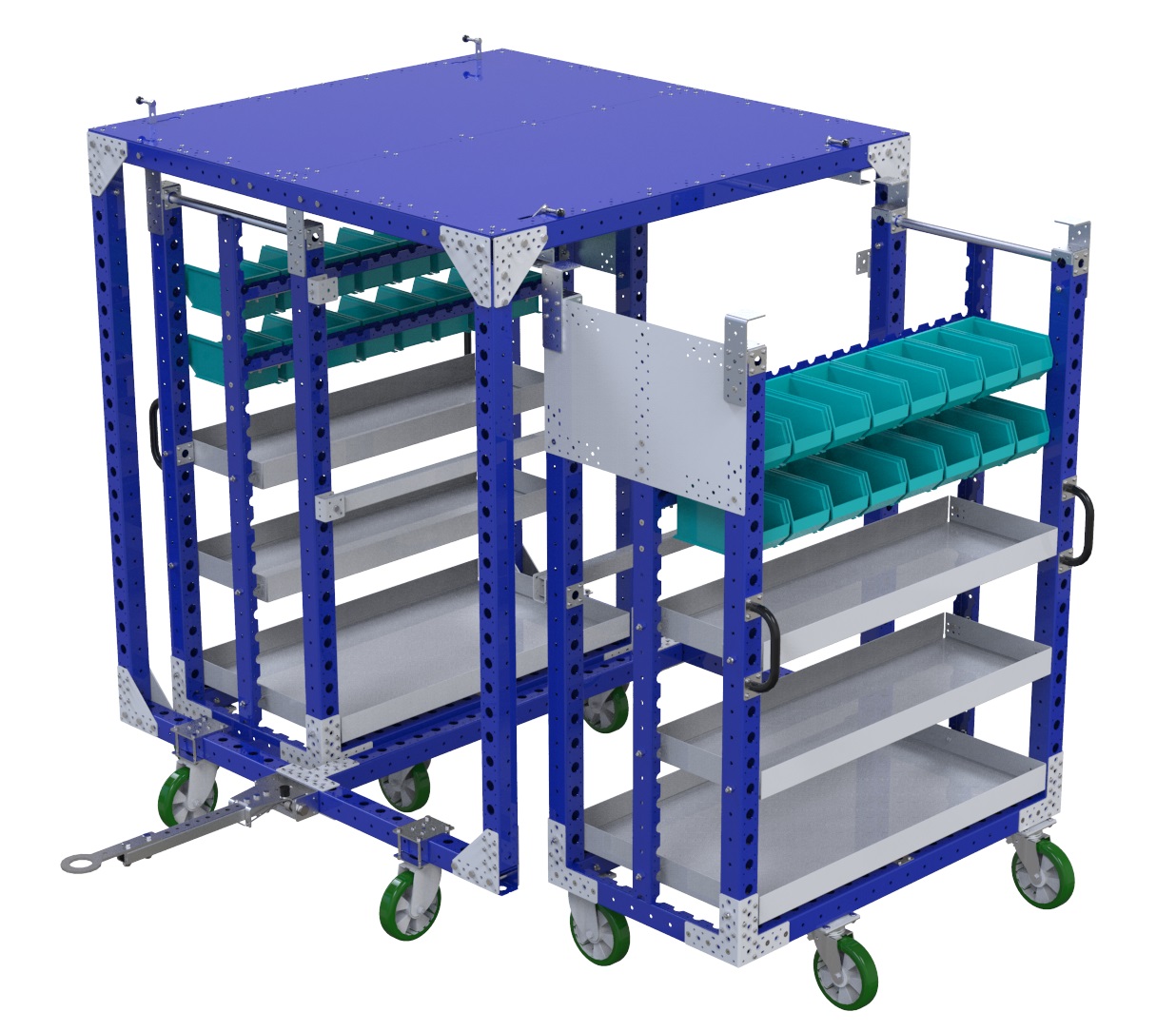

This 2 in 1 Mother cart is designed to house two kit carts inside. The kit carts can then be unlocked from this frame and stored at different work and assembly stations, to improve the efficiency of the work flow within the facility (learn more about mother-daughter solutions). This mother frame is equipped with a drop pin and hitch tow bar to be towed using a tugger train system (learn more about transitioning from forklifts to tugger trains here). The kit carts that fit into this mother frame are Q-100-1042.

Parts included
FlexBeam™ – 1540 mm 4 Q-001-1295
FlexBeam™ 1470 mm FE 4 Q-001-1503
FlexBeam™ 1540 mm FE 2 Q-001-1504
FlexBeam 1680 mm STS FE 14 Q-001-1506
Wheel Attachment – 105 x 77.5 mm 4 Q-004-1065
Caster Polyurethane – 200 mm Swivel 2 Q-004-1211
Caster Polyurethane 200 mm Fixed IP2 2 Q-004-1212
L Bracket Joint 8 Q-005-0031
T-Joint 2 Q-005-0065
Daughter Cart Catcher – 840 mm 4 Q-005-0077
M10 – Collet 6 mm 4 Q-005-0105
Triangle Joint 18 Q-005-0483
M8 Damper – GN352-30-25-M8-S-55 2 Q-005-0648
Towing Hole 2 Q-005-1056
Spherical Knob 4 Q-005-1146
64 mm FlexBeam™ Collet 36 Q-005-1426
Daughter Cart Locking Plate 4 Q-005-1730
M6 x 30 mm Allen Head 1 Q-006-1012
Washer 10.5 x 30 x 2.5 2 Q-006-1030
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
M10 x 25 mm Hex Head 16 Q-006-1041
Locking Nut M10 87 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
M10 x 95 mm Hex Head 16 Q-006-1088
M10 x 90 mm Hex Head 50 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
Locking Nut M8 2 Q-006-1181
Nut M10 4 Q-006-1195
Self Tapping Screw M6 Torx H60 x 16 264 Q-006-1384
M10 x 60 mm Hex Head Fully Threaded 7 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Top Plate for Mother – 1610 x 840 mm 2 Q-016-0532
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip 2.5 Inch 1 Q-017-1012
