Q-100-1336

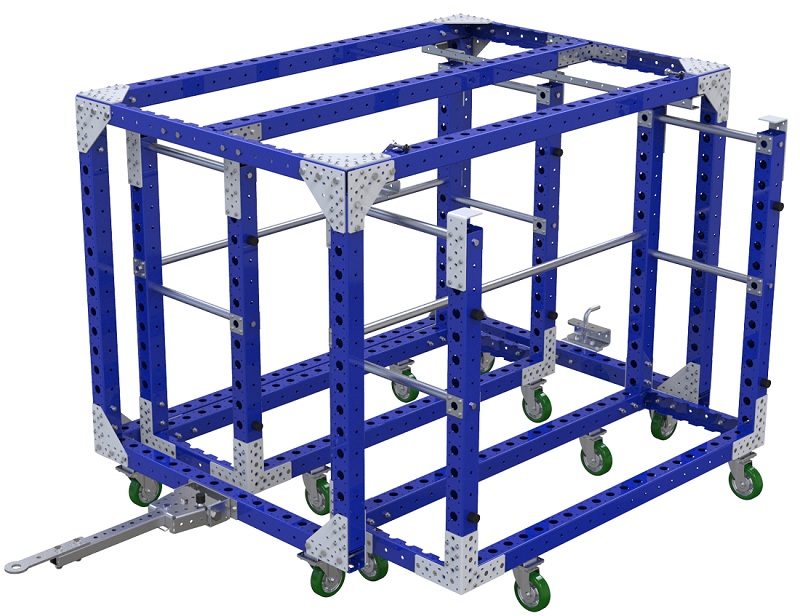

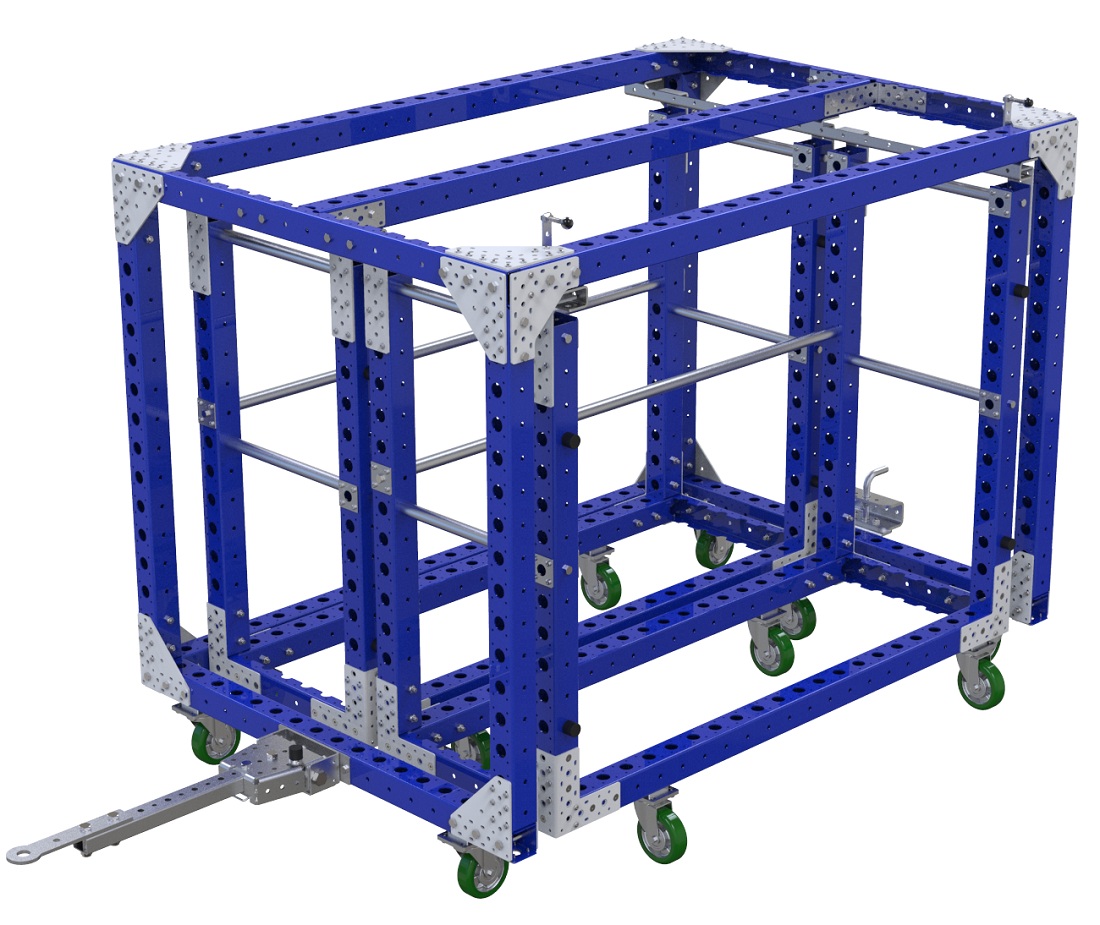

Mother cart – 2 in 1 – 1330 x 1820 mm

Tuggable mother cart designed to transport two daughter carts (Q-100-1335)

Technical specifications

Transportation method: Mother-Daughter Cart, Tugger

Type of tow bar: Tongue and Hitch

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

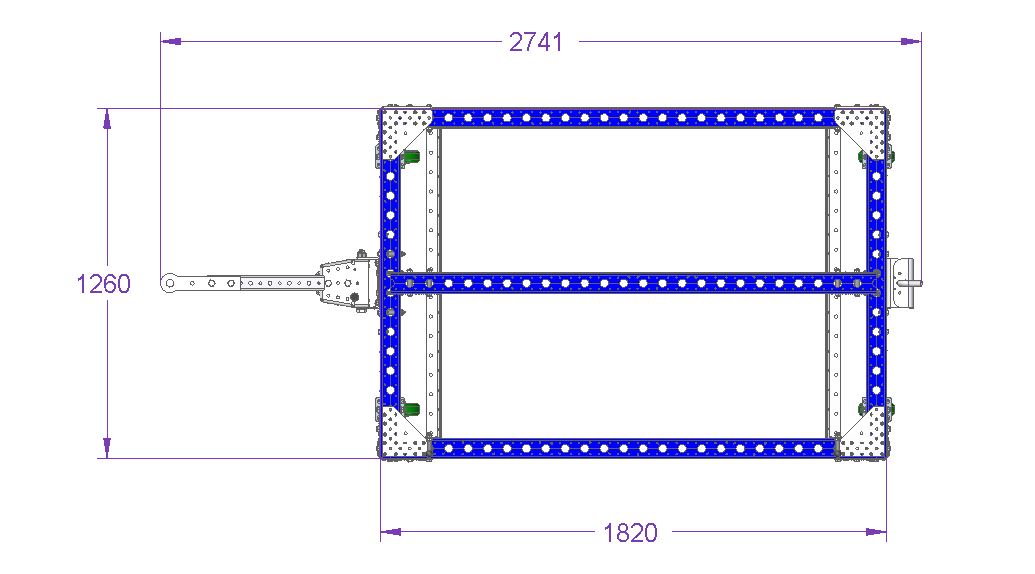

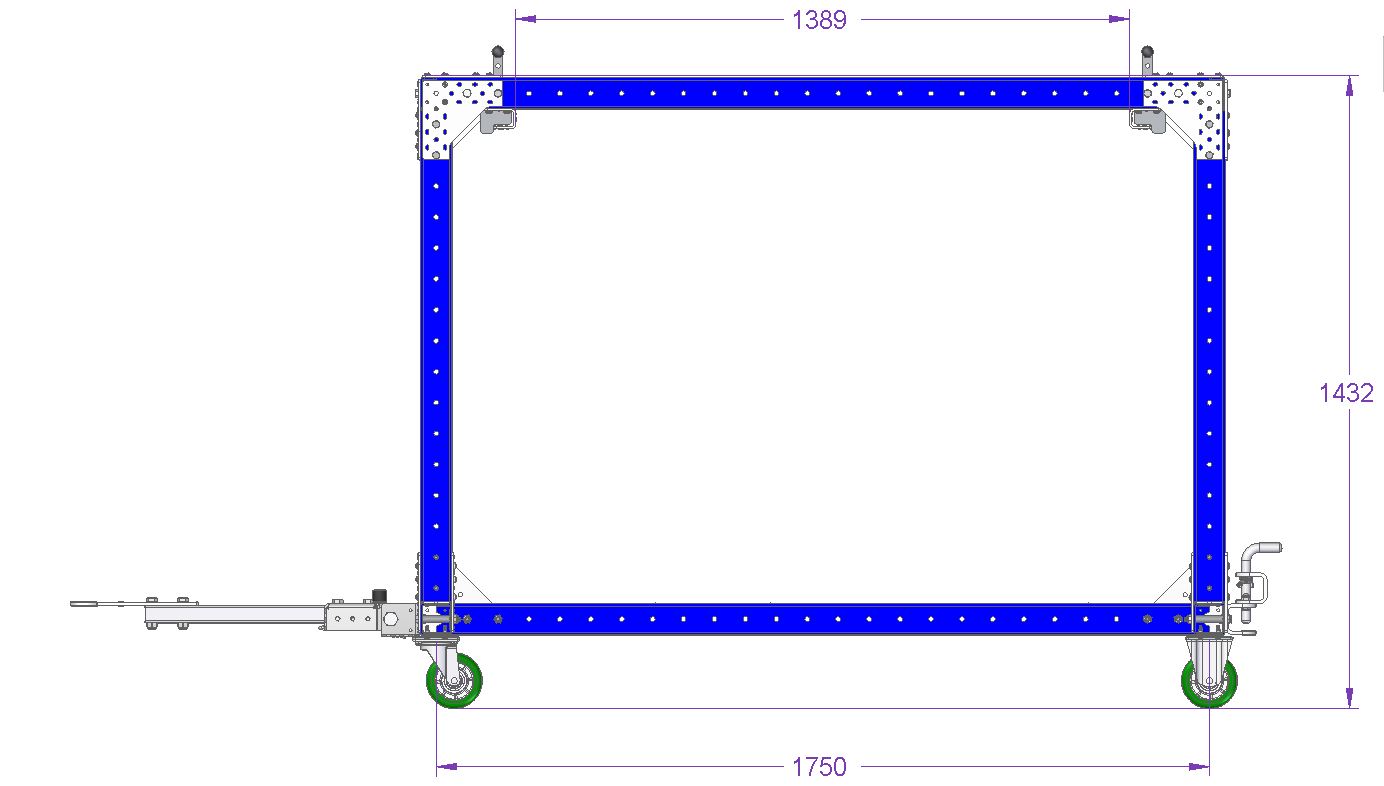

Length: 1820 mm

Load capacity: 600 kg

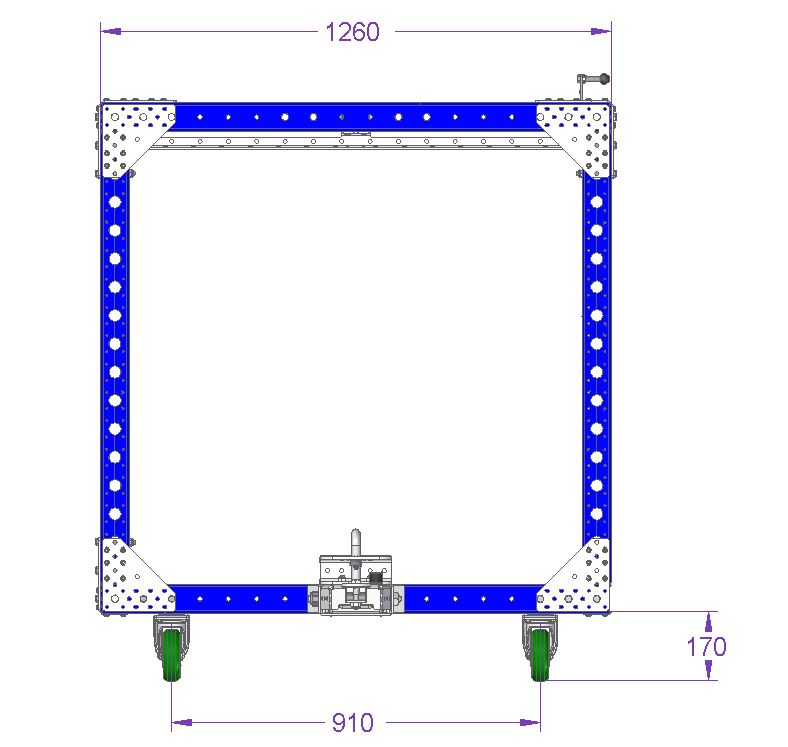

Width: 1330 mm

Caster size: 125 mm

Caster Type: Polyurethane

More info

Tuggable mother cart designed to transport two daughter carts (Q-100-1335). The mother daughter concept is most commonly used in a “milk run system” meaning you use the mother cart to transport daughter carts filled with material from warehouse to assembly line and pick up empty daughter carts on the way back.

Parts included
FlexBeam 1750 mm STS 8 Q-001-1292
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ 1120 mm FE 8 Q-001-1401
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 12 Q-002-1001
Caster Polyurethane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm, 80 x 60, Fixed 2 Q-004-1221
L Bracket Joint 4 Q-005-0031
M10 – Collet 6 mm 2 Q-005-0105
Daughter cart catcher – 1260 mm 2 Q-005-0165
Triangle Joint 18 Q-005-0483
Triangle Joint With Notch 2 Q-005-0832
Spherical Knob 2 Q-005-1146
64 mm FlexBeam™ Collet 34 Q-005-1426
Wheel Attachment – 80 x 60 mm 4 Q-005-1722
Daughter Cart Locking Plate 2 Q-005-1730
M14 x 60 mm Hex Head 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
M10 x 25 mm Hex Head 24 Q-006-1041
Locking Nut M10 68 Q-006-1042
M10 x 95 mm Hex Head 8 Q-006-1088
M10 x 90 mm Hex Head 34 Q-006-1132
Locking Nut M8 16 Q-006-1181
Nut M10 2 Q-006-1195
Countersunk Allen Head – M6 x 30 mm 16 Q-006-1196
M8 x 16 mm Countersunk 16 Q-006-1214
Self Tapping Screw M6 Torx H60 x 16 156 Q-006-1384
M10 x 16 mm Low Allen Head 2 Q-006-1409
M10 x 60 mm Hex Head Fully Threaded 2 Q-006-1502
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge – Narrow 1 Q-017-0087
Towing Lip – 28 mm 1 Q-017-1010
