Mother Cart – 2030 x 1260 mm
Mother Cart – 2030 x 1260 mm
Mother Cart – 2030 x 1260 mm
Mother Cart – 2030 x 1260 mm
Mother Cart – 2030 x 1260 mm
Mother Cart – 2030 x 1260 mm
Q-100-1002

Mother Cart – 2030 x 1260 mm

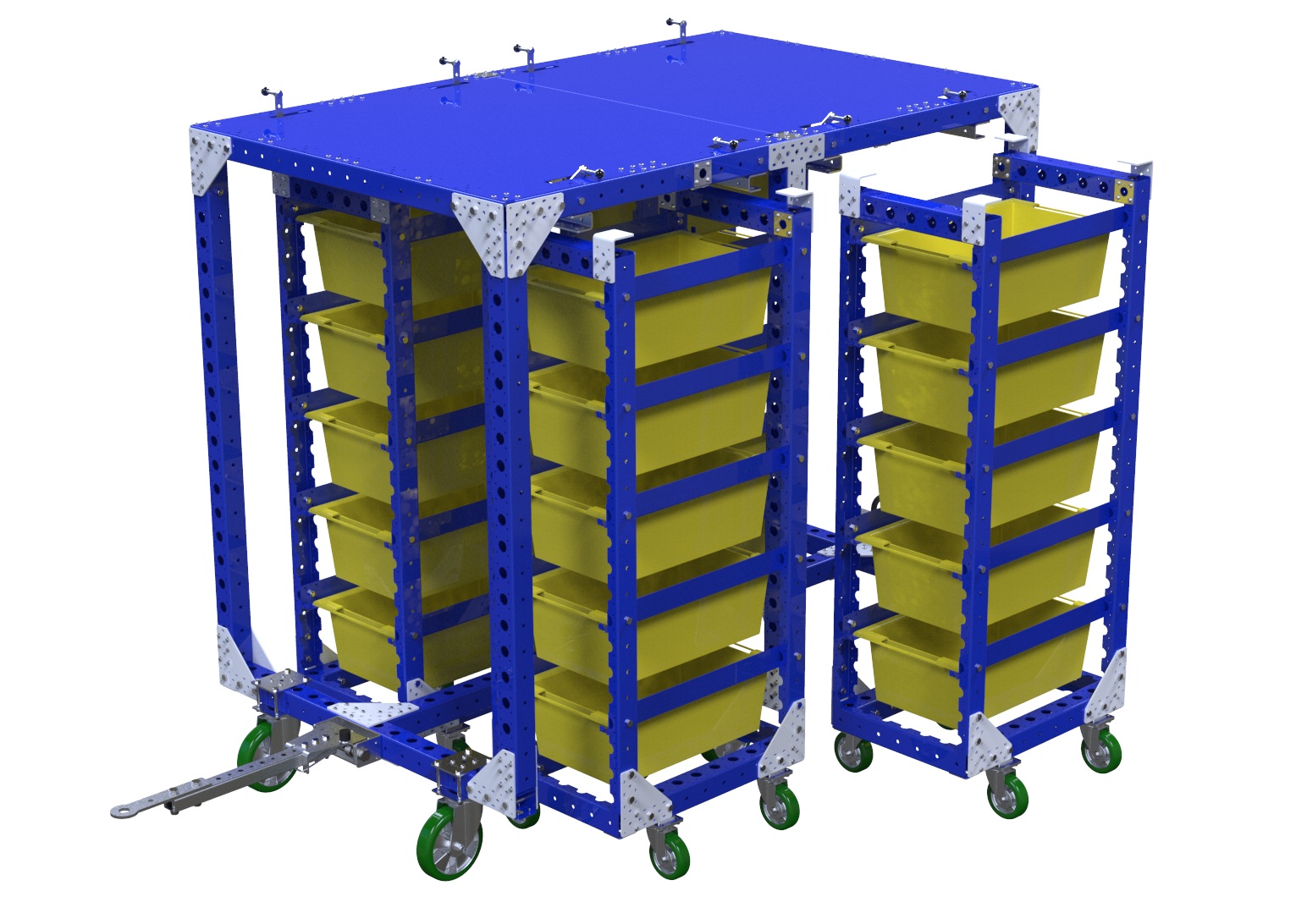

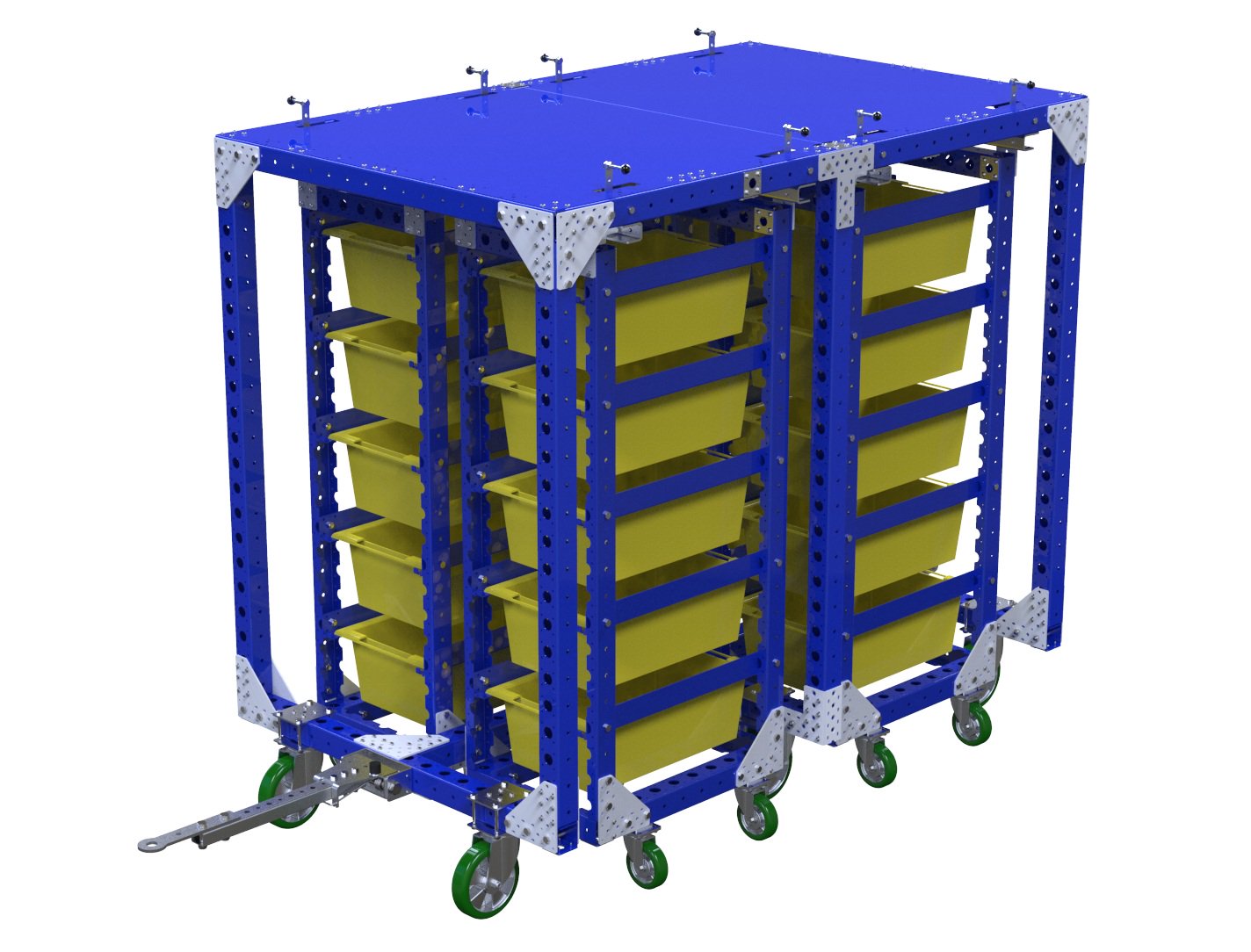

Mother frame that can hold four smaller daughter carts.

Technical specifications

Category: Mother Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 1260 mm

Length: 2030 mm

Load capacity: 1000 kg

Transportation method: Mother-Daughter Cart, Tugger

Caster size: 200 mm

Caster Type: Polyurethane

Type of Load: Daughter Cart

More info

This small mother cart can have 4 smaller daughter carts placed within this frame. This cart is designed to hold 4 small shelf carts which can be disconnected from this mother frame and left at different work and assembly stations (learn more about Mother-Daughter solutions). This cart is equipped with a drop pin and hitch tow bar and is designed to be transported using a tugger train (learn more about transitioning from forklifts to tugger trains here).

Parts included
FlexBeam™ – 1330 mm 4 Q-001-1298
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 560 mm 4 Q-001-1309
FlexBeam™ 1260 mm FE 6 Q-001-1500
FlexBeam™ 1470 mm FE 10 Q-001-1503
FlexBeam™ 1540 mm FE 2 Q-001-1504
FlexBeam STS FE – 1890 mm 2 Q-001-1509
FlexPlate™ 12 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Wheel Attachment – 105 x 77.5 mm 8 Q-004-1065
Caster Polyurethane – 200 mm Swivel 4 Q-004-1211
Caster Polyurethane 200 mm Fixed IP2 2 Q-004-1212
Cross Joint – 240 x 240 mm 2 Q-005-0021
T-Joint 2 Q-005-0065
M10 – Collet 6 mm 8 Q-005-0105
Daughter cart catcher – 1260 mm 4 Q-005-0165
Spring Threaded Tube Connectors 2 Q-005-0469
Triangle Joint 20 Q-005-0483
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Spherical Knob 8 Q-005-1146
64 mm FlexBeam™ Collet 40 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Daughter Cart Locking Plate 8 Q-005-1730
M6 x 30 mm Allen Head 1 Q-006-1012
Washer 10.5 x 30 x 2.5 1 Q-006-1030
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
M10 x 25 mm Hex Head 20 Q-006-1041
Locking Nut M10 99 Q-006-1042
Washer M10 6 Q-006-1043
Locking Nut M6 1 Q-006-1050
M10 x 95 mm Hex Head 20 Q-006-1088
M8 x 16 mm Hex Head 6 Q-006-1120
M10 x 90 mm Hex Head 36 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
Locking Nut M8 7 Q-006-1181
Nut M10 8 Q-006-1195
M10 x 20 mm Hex Head 8 Q-006-1232
M10 x 90 mm Extra Low Head 10 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 388 Q-006-1384
M10 x 25 mm Extra Low Head Allen 2 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 11 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Top shelf for mother – 1260 x 1010 mm 2 Q-016-0539
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip – 28 mm 1 Q-017-1010
