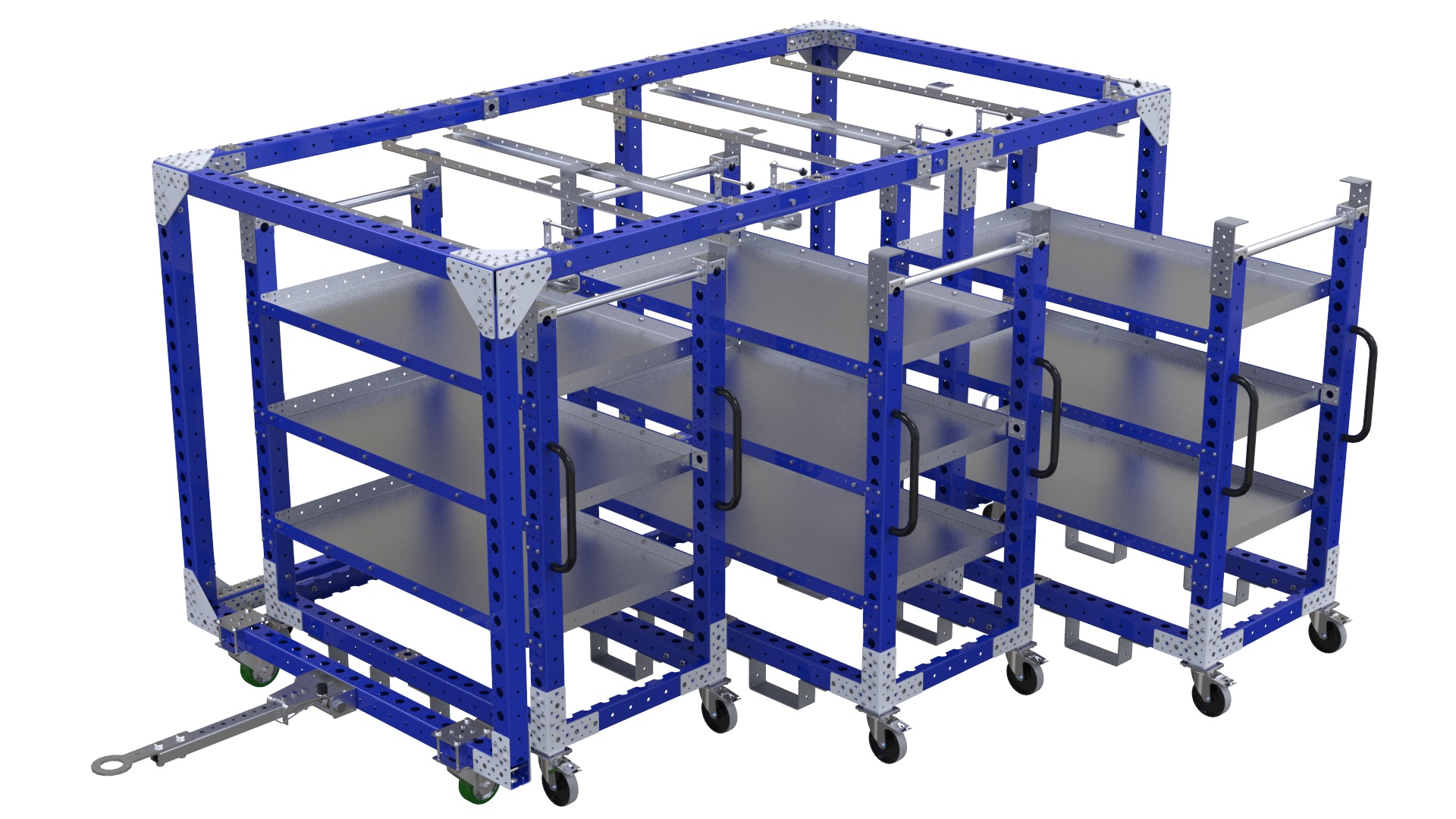

Mother Cart 3 in 1 – 1540 x 2870 mm

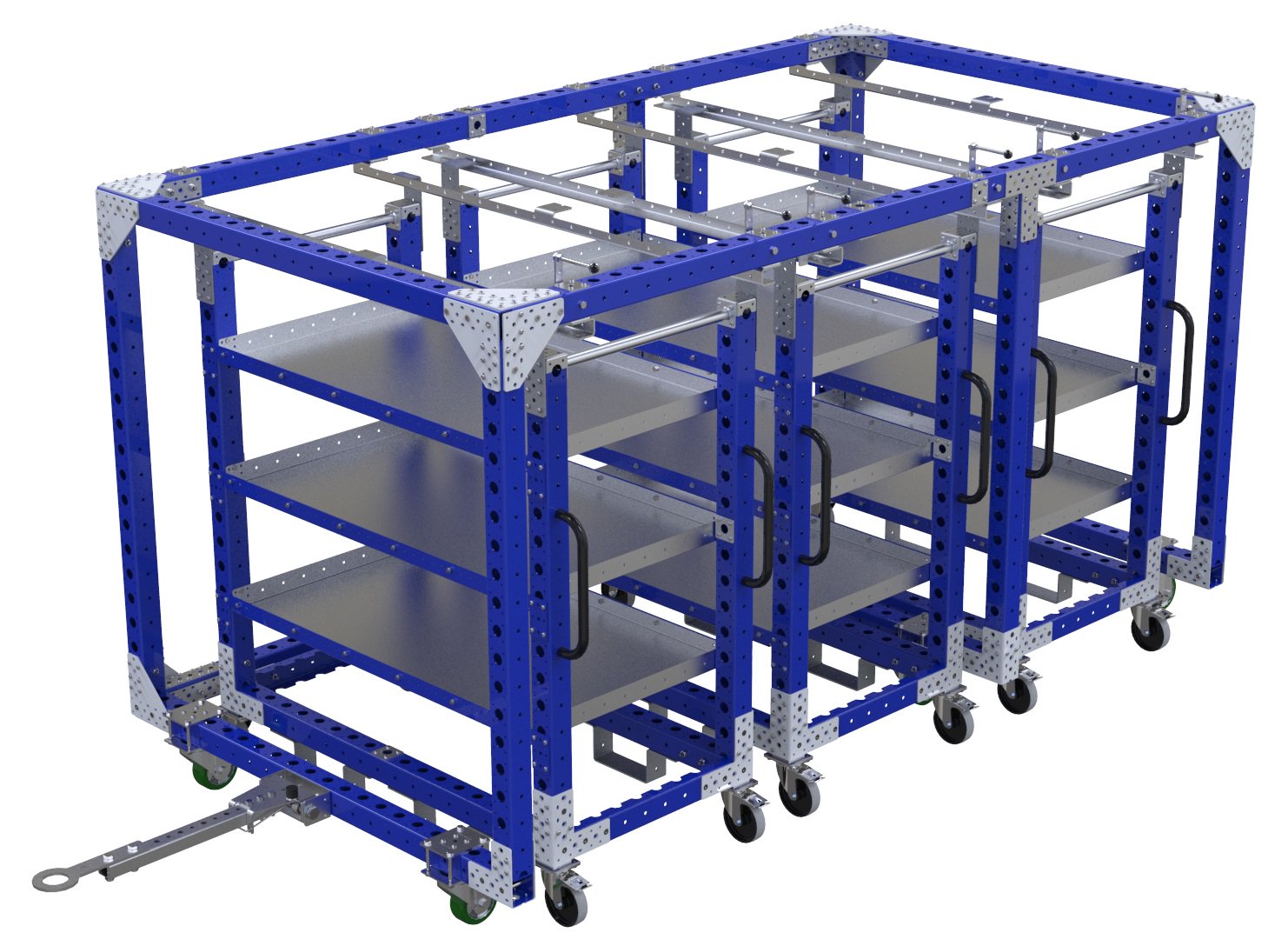

Tuggable mother cart designed to transport three daughter carts (Q-100-0380)

Technical specifications

Transportation method: Mother-Daughter Cart, Tugger

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

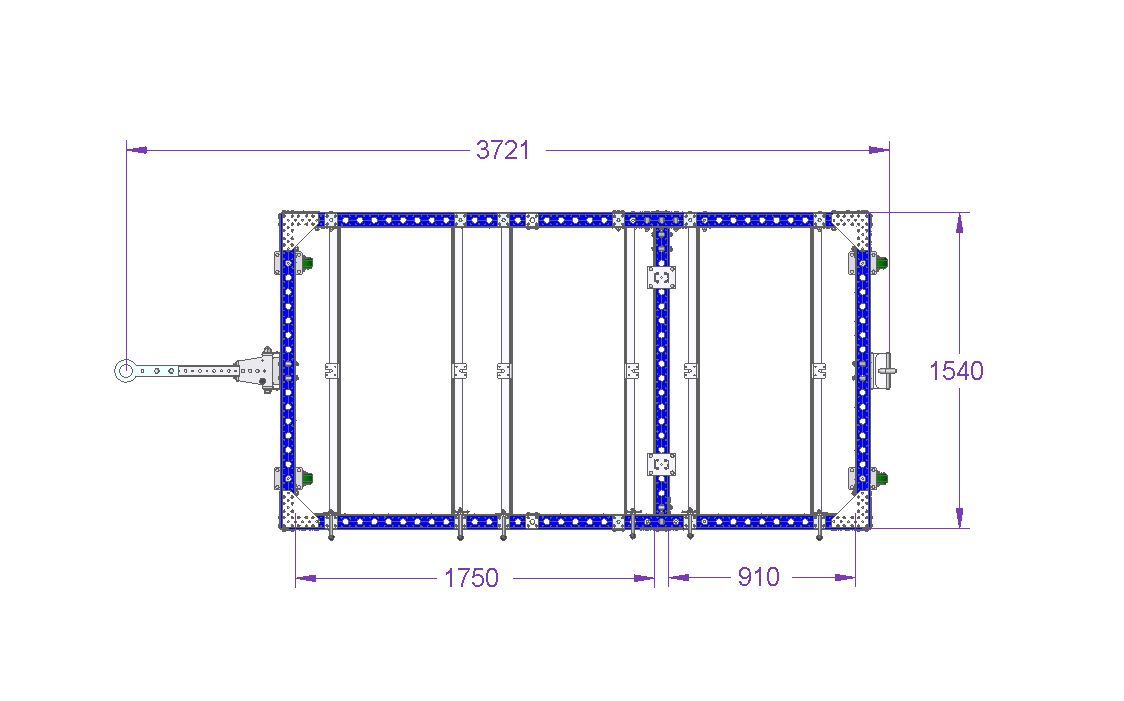

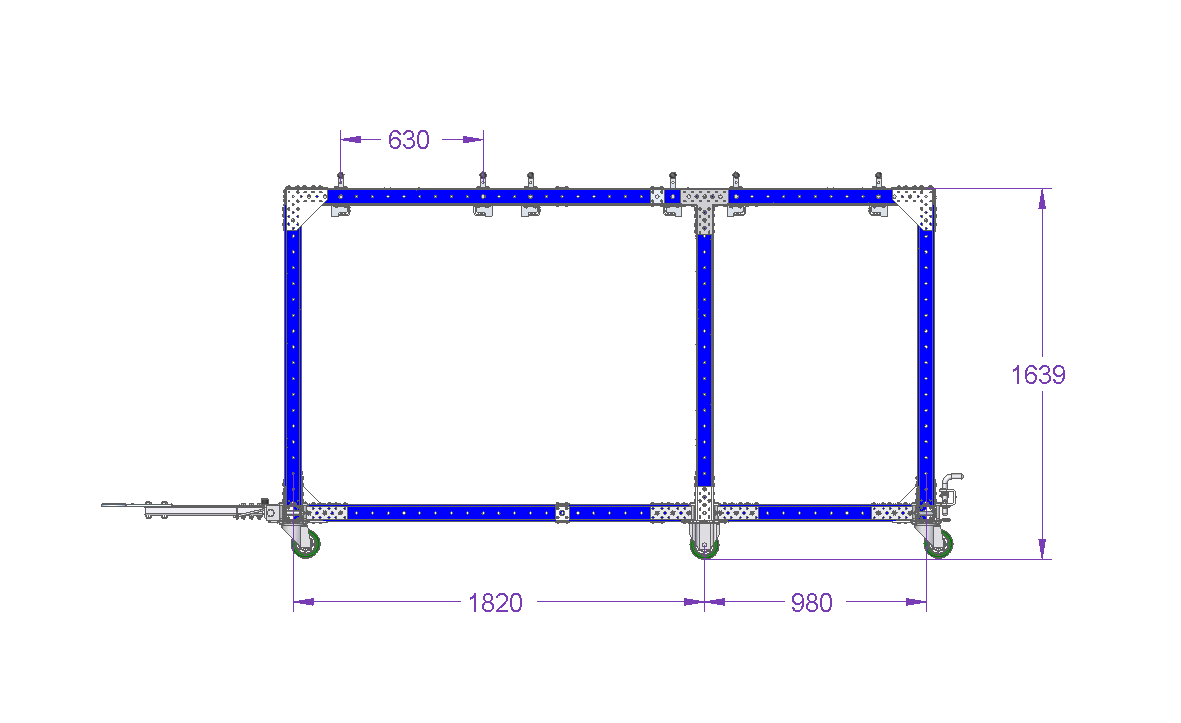

Length: 2870 mm

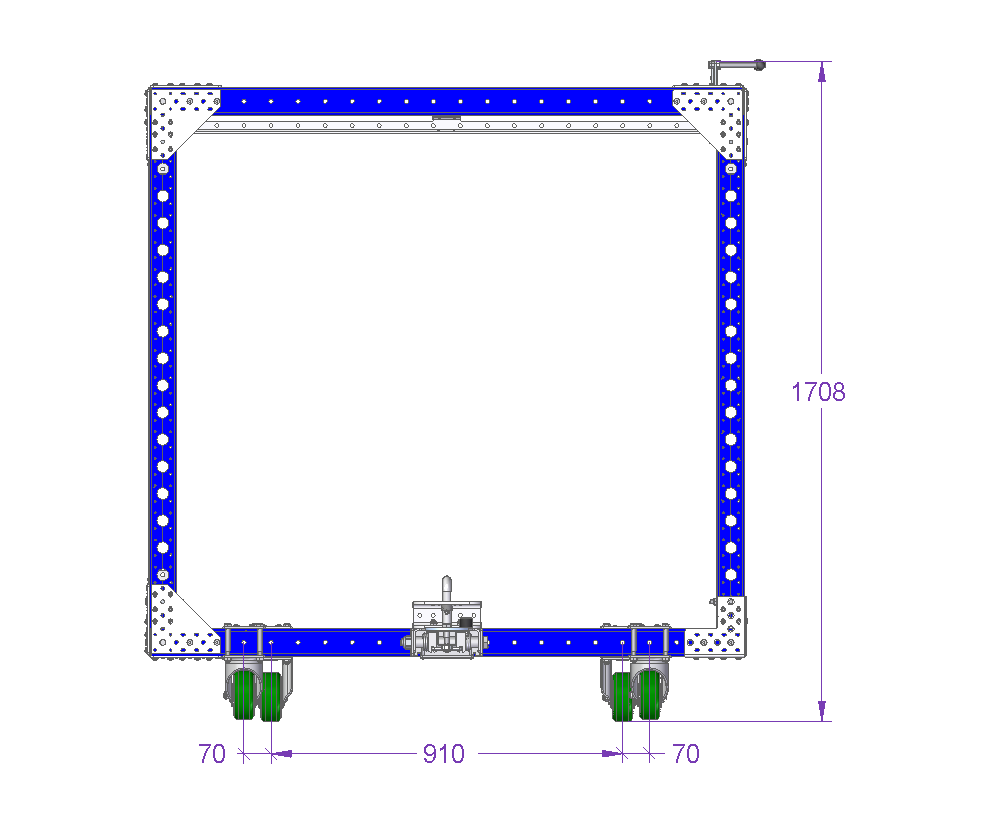

Width: 1540 mm

Caster size: 125 mm

Type of tow bar: Tongue and Hitch

More info

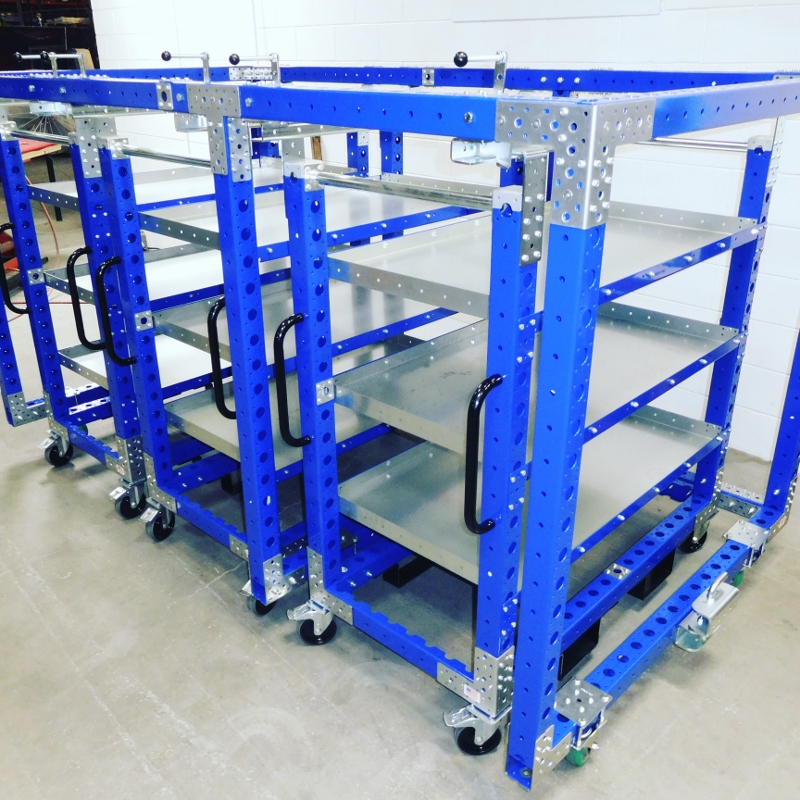

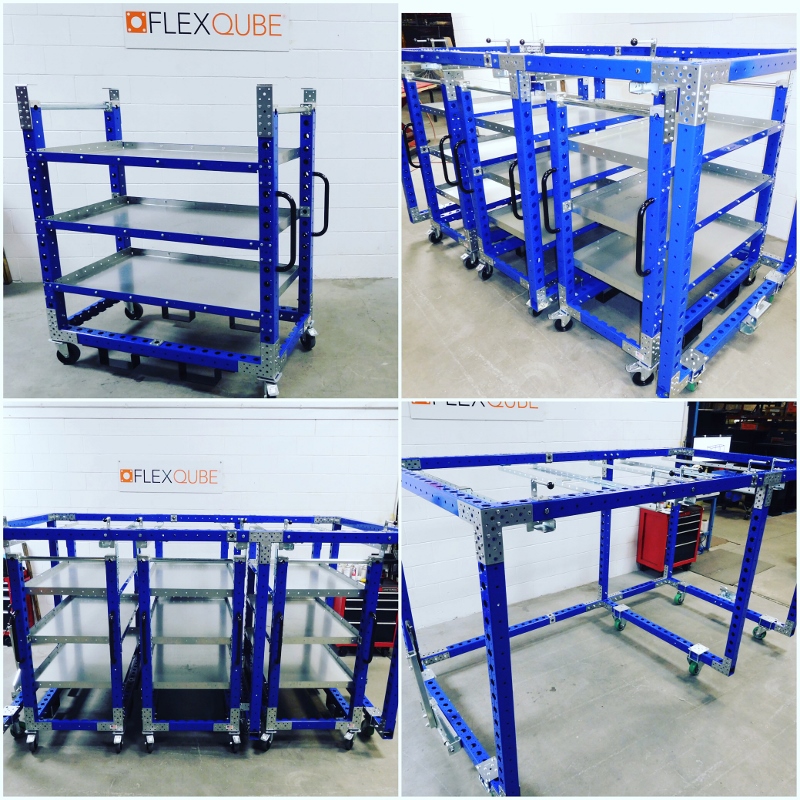

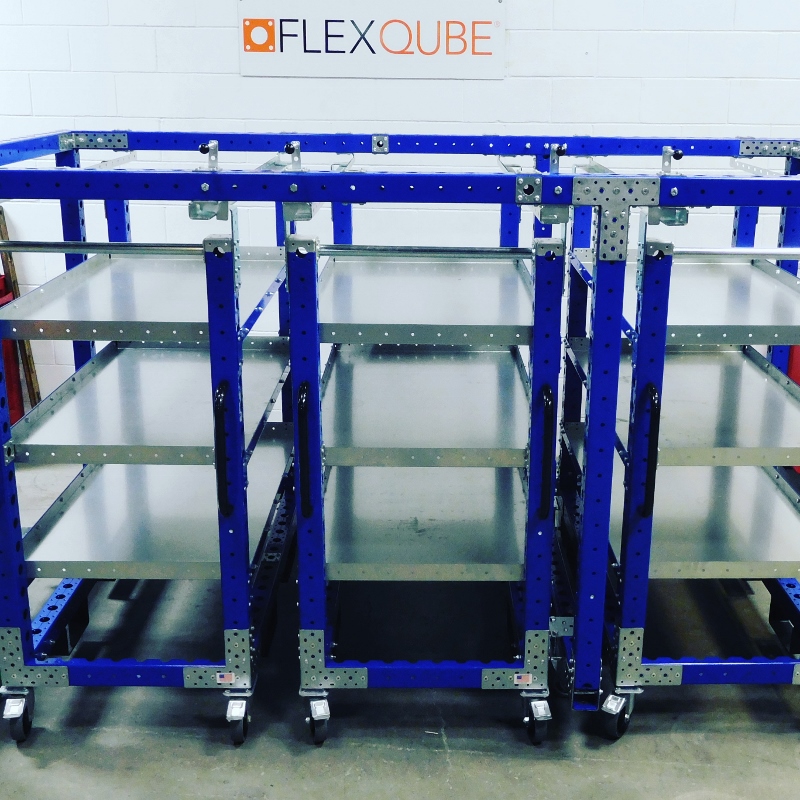

Tuggable mother cart designed to transport three daughter carts (Q-100-0380). The mother daughter concept is most commonly used in a “milk run system” meaning you use the mother cart to transport daughter carts filled with material from warehouse to assembly line and pick up empty daughter carts on the way back.

Parts included
FlexBeam™ – 1610 mm 6 Q-001-1294
FlexBeam™ – 1330 mm 12 Q-001-1298
FlexBeam™ 1190 mm 6 Q-001-1300
FlexBeam™ 1400 mm FE 2 Q-001-1502
FlexBeam™ 1470 mm FE 4 Q-001-1503
FlexBeam™ 1540 mm FE 4 Q-001-1504
FlexPlate™ 19 Q-002-1001
Flexplate™ M10 14 Q-002-1162
Wheel Attachment – 105 x 77.5 mm 8 Q-004-1065
Caster Polyurethane – 125 mm 4 Q-004-1106
Caster Polyurethane – 125 mm Fixed 2 Q-004-1107
L Bracket Joint 16 Q-005-0031
T-Joint 4 Q-005-0065
M10 – Collet 6 mm 6 Q-005-0105
Daughter cart catcher – 1470 mm 6 Q-005-0259
Triangle Joint 18 Q-005-0483
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Spherical Knob 6 Q-005-1146
64 mm FlexBeam™ Collet 55 Q-005-1426
Heavy Duty Joint M10 3 Q-005-1580
Daughter Cart Locking Plate 6 Q-005-1730
M6 x 30 mm Allen Head 1 Q-006-1012
Washer 10.5 x 30 x 2.5 1 Q-006-1030
M14 x 60 mm Hex Head 2 Q-006-1036
M10 x 120 mm Fully Threaded 6 Q-006-1037
Locking Nut M14 2 Q-006-1039
Locking Nut M10 103 Q-006-1042
Washer M10 17 Q-006-1043
Locking Nut M6 1 Q-006-1050
M10 x 95 mm Hex Head 8 Q-006-1088
M10 x 90 mm Hex Head 33 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
Nut M10 6 Q-006-1195
M10 x 100 mm Hex Head 3 Q-006-1302
M10 x 90 mm Extra Low Head 45 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 540 Q-006-1384
M10 x 25 mm Extra Low Head Allen 10 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip 2.5 Inch 1 Q-017-1012
