Mother Daughter Cart System 4 in 1 High Dollies with Shelves

Mother Daughter Cart System 4 in 1 High Dollies with Shelves

Q-100-0089

Mother Daughter Cart System 4 in 1 High Dollies with Shelves

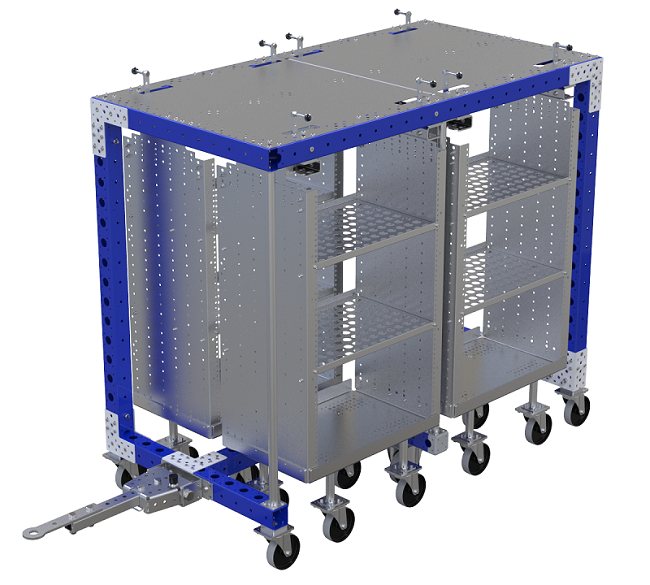

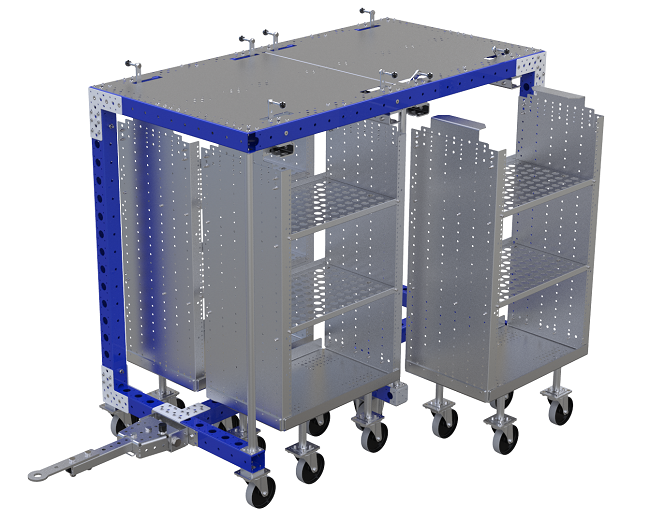

Mother frame designed to house 4 daughter carts.

Technical specifications

Category: Mother Carts

Type of tow bar: Tongue and Hitch

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

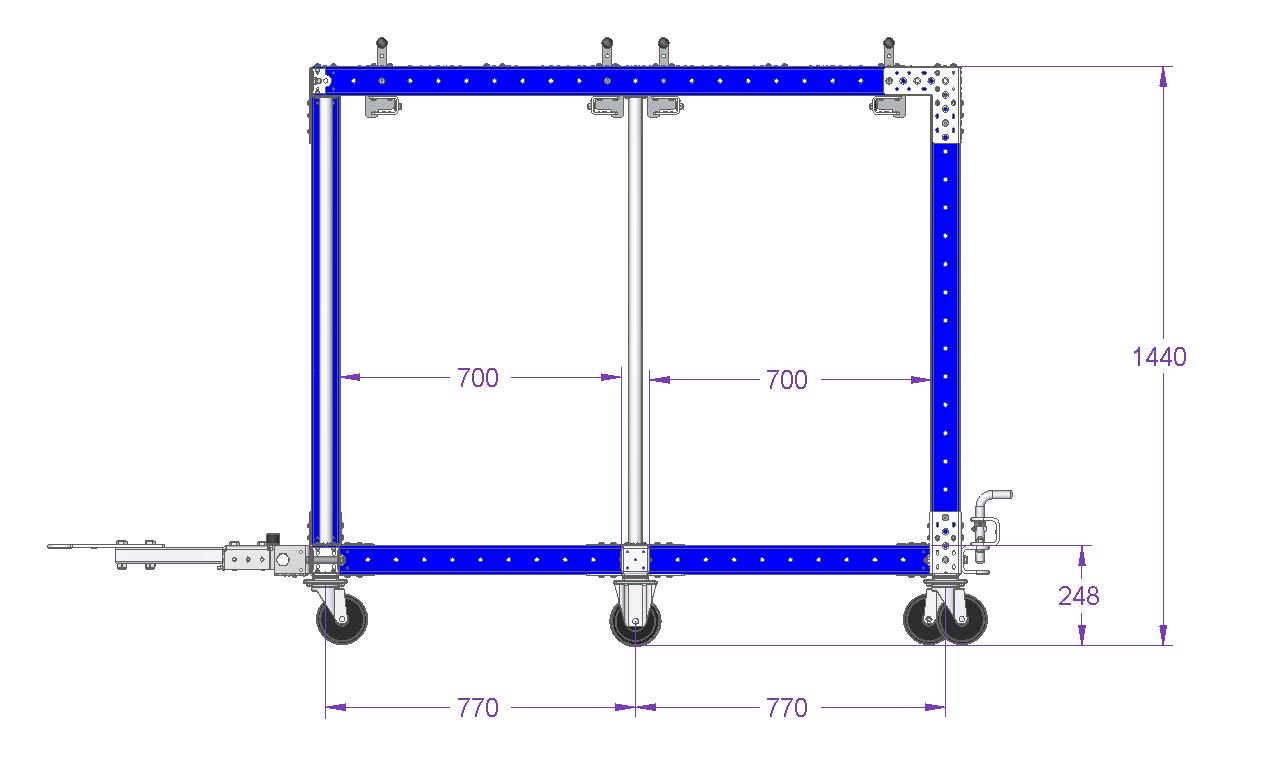

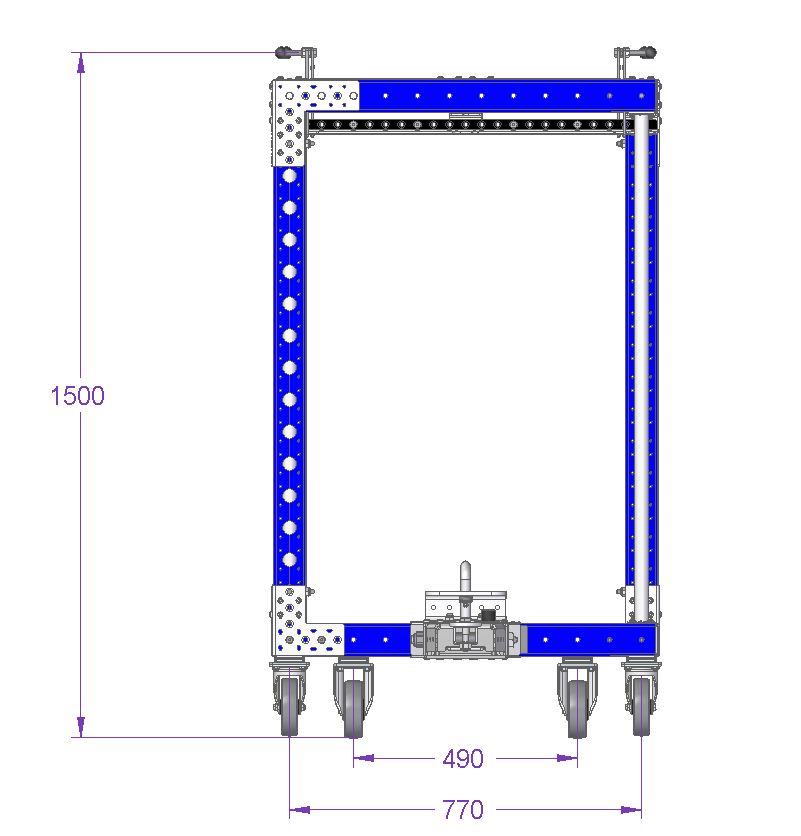

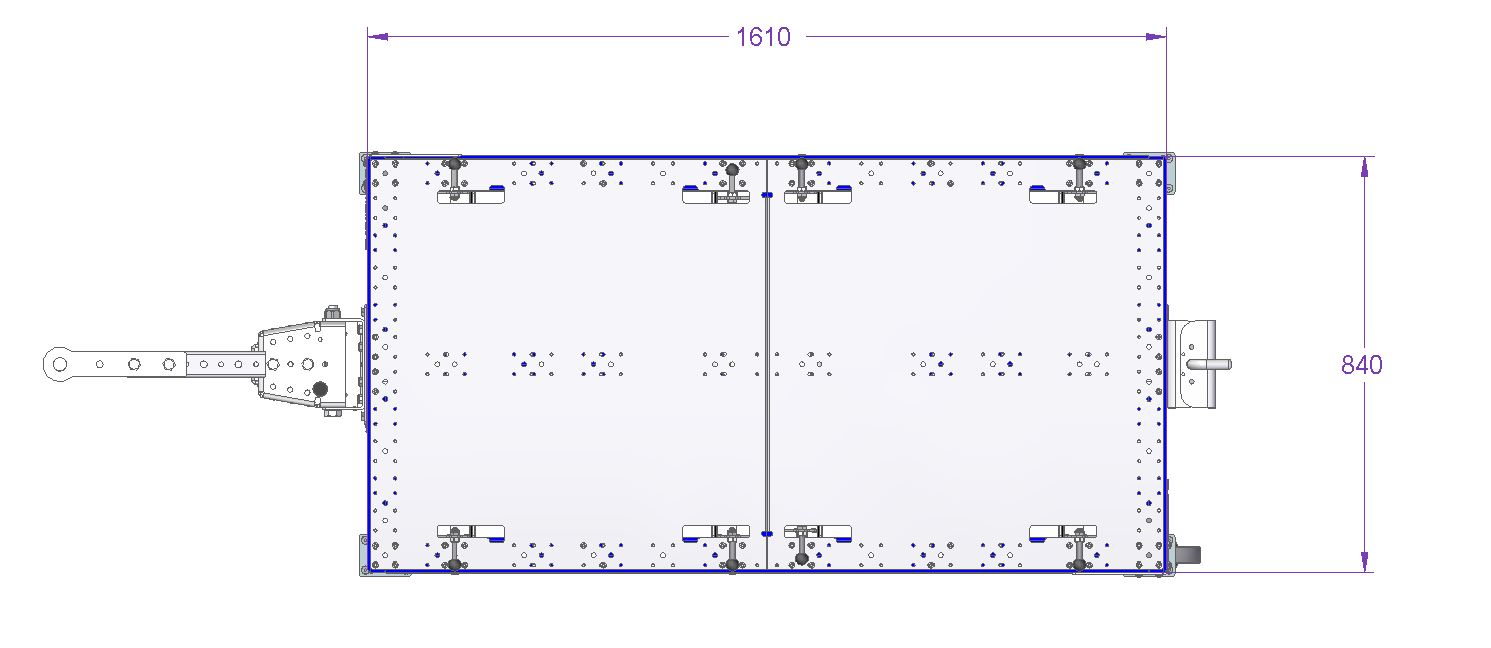

Length: 1610 mm

Load capacity: 50 kg

Transportation method: Mother-Daughter Cart, Tugger

Caster size: 125 mm

Caster Type: Polyurethane

More info

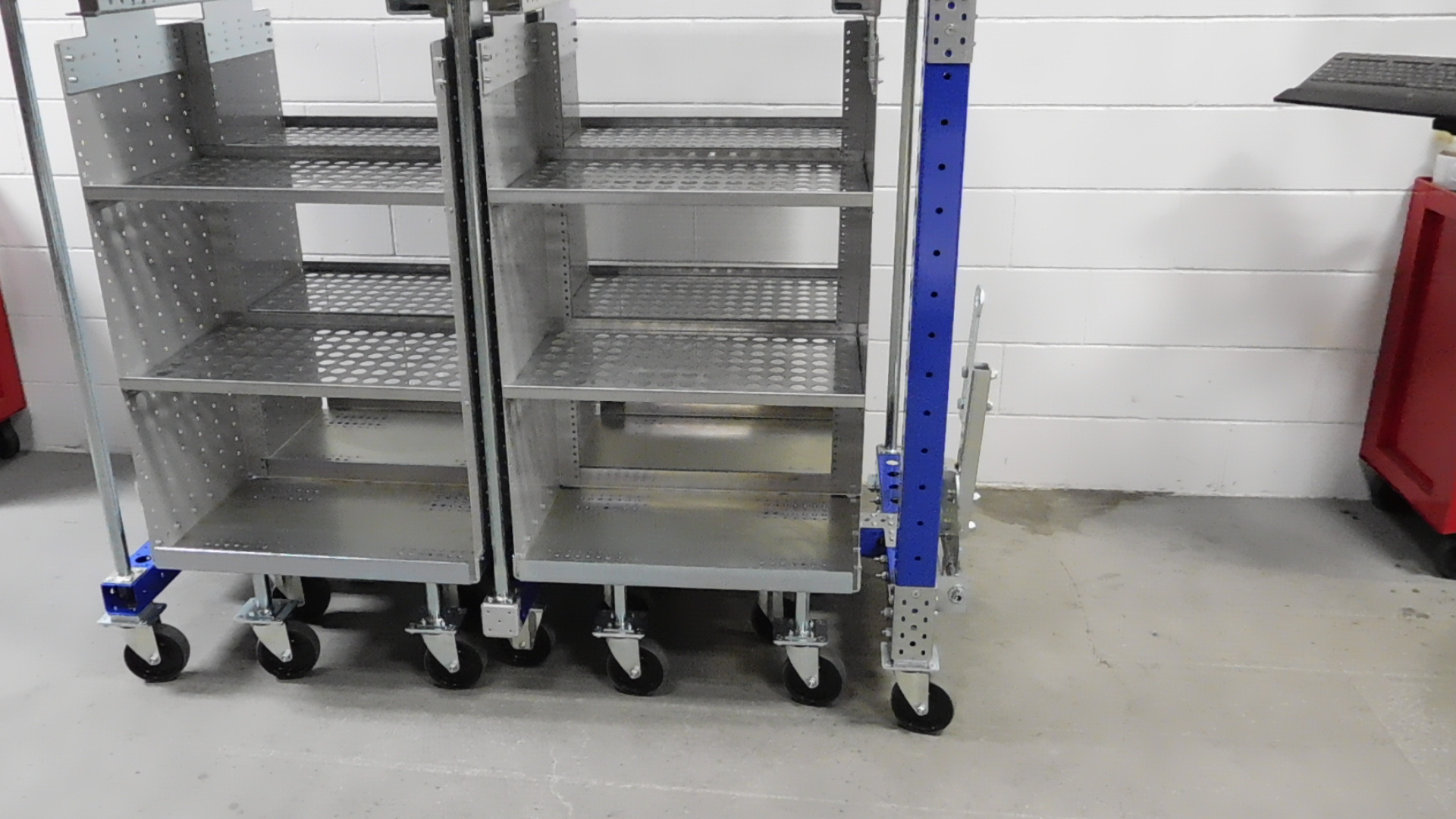

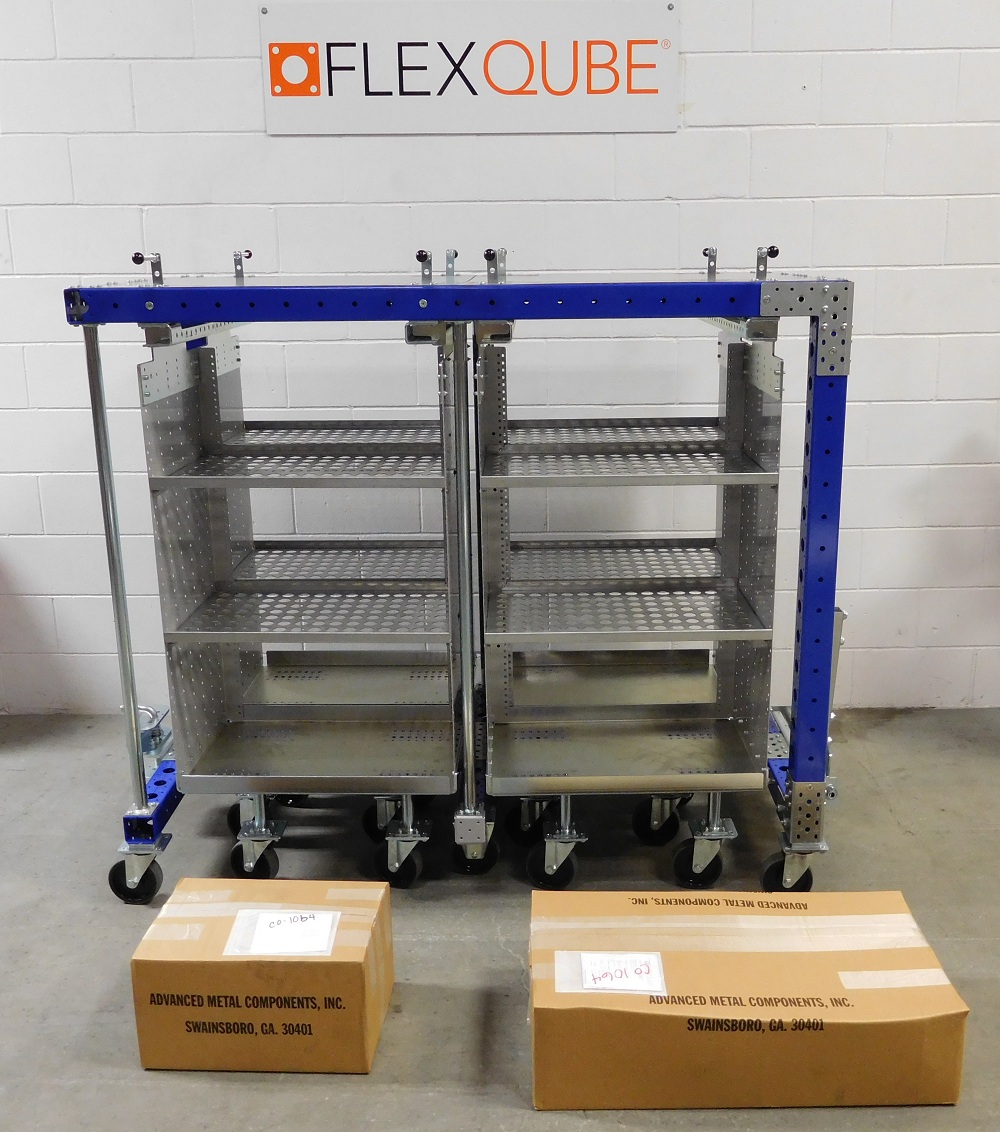

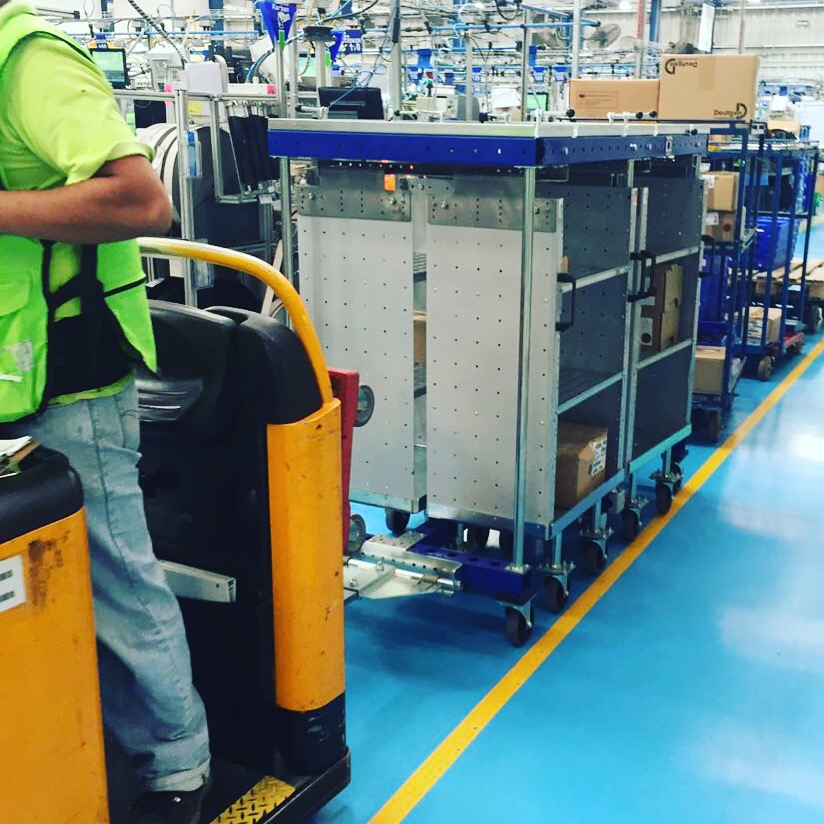

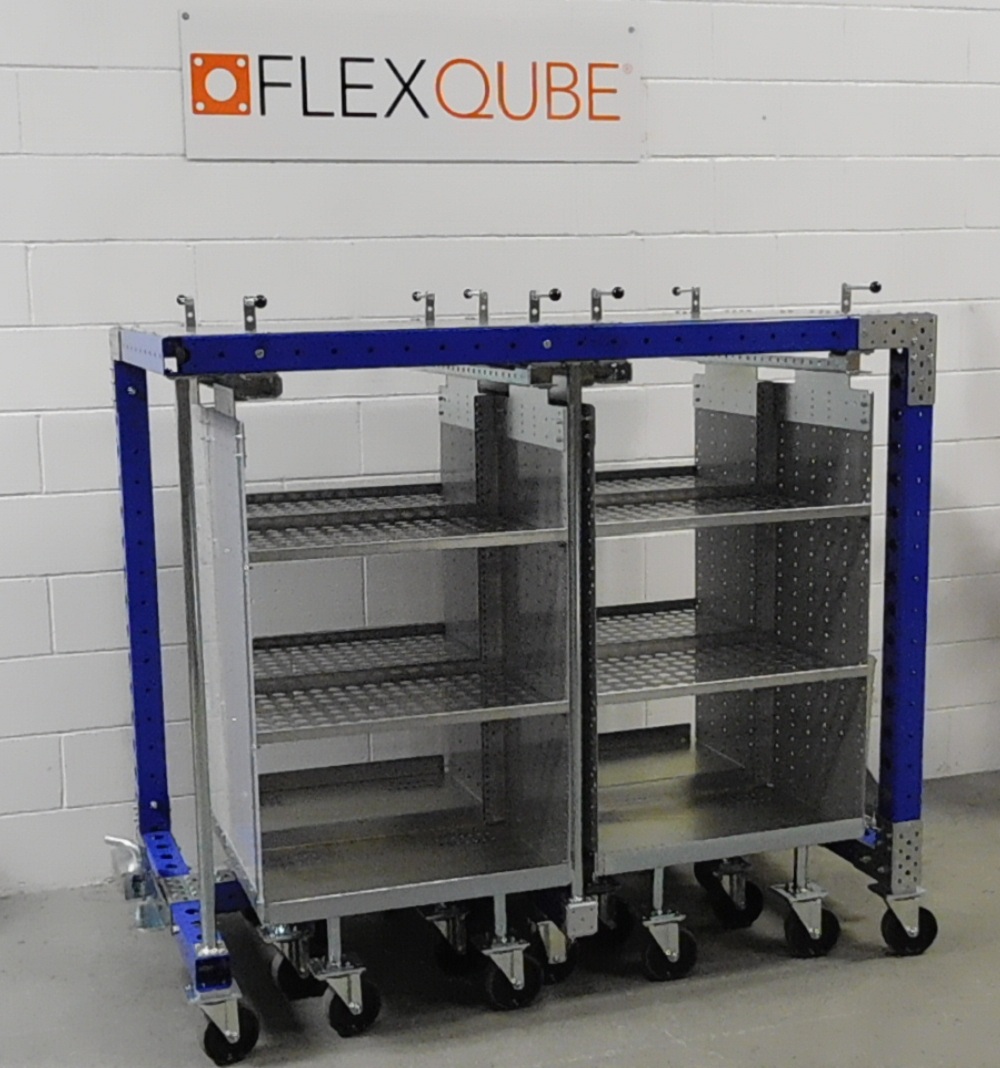

This 4 in 1 Mother-Daughter frame is used to transport four tall daughter carts. These carts are tuggable and connected in tugger trains. The daughter carts are used for kit parts from the warehouse and the cart is then placed between each product on the assembly line and hooked up to the assembly and follows the product from assembly start until it leaves the assembly line. The daughter cart for this Mother Frame is Q-100-0132.

Parts included

FlexTube™ 1120 mm 4 Q-000-1258

FlexQube® 2 Q-001-1078

FlexBeam™ – 1540 mm 4 Q-001-1295

FlexBeam™ – 1470 mm 2 Q-001-1296

FlexBeam™ 1120 mm 4 Q-001-1301

FlexBeam™ 350 mm 4 Q-001-1312

FlexBeam™ 840 mm FE 6 Q-001-1405

FlexPlate™ 42 Q-002-1001

Flexplate™ M10 1 Q-002-1162

125 mm Swivel Caster 4 Q-004-1363

125 mm Fixed Caster 2 Q-004-1365

Cross Joint – 240 x 240 mm 2 Q-005-0021

Daughter Cart Catcher – 840 mm 4 Q-005-0077

M10 – Collet 6 mm 8 Q-005-0105

Plastic list – 840 x 22 mm 4 Q-005-0371

Spherical Knob 8 Q-005-1146

Beam to Beam Corner Plate 2 Q-005-1356

64 mm FlexBeam™ Collet 12 Q-005-1426

Heavy Duty Joint M10 4 Q-005-1580

Wheel Attachment – 80 x 60 mm 6 Q-005-1722

Daughter Cart Locking Plate 8 Q-005-1730

M14 x 60 mm Hex Head 4 Q-006-1036

Locking Nut M14 4 Q-006-1039

M10 x 25 mm Hex Head 2 Q-006-1041

Locking Nut M10 32 Q-006-1042

Washer M10 12 Q-006-1043

M8 x 16 mm Hex Head 3 Q-006-1120

M10 x 90 mm Hex Head 2 Q-006-1132

M10 x 30 mm Hex Head 2 Q-006-1161

Locking Nut M8 51 Q-006-1181

Nut M10 8 Q-006-1195

Countersunk Allen Head – M6 x 30 mm 24 Q-006-1196

M8 x 16 mm Countersunk 48 Q-006-1214

Extra low head [1.5 mm] M10 x 40 mm 2 Q-006-1361

M10 x 90 mm Extra Low Head 15 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 264 Q-006-1384

M10 x 16 mm Low Allen Head 2 Q-006-1409

M10 x 25 mm Extra Low Head Allen 6 Q-006-1410

M10 x 60 mm Hex Head Fully Threaded 8 Q-006-1502

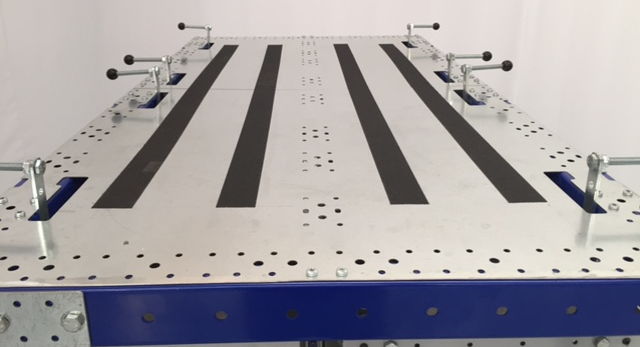

Top Shelf for Mother Cart – 840 x 805 mm 2 Q-016-0048

US Modular Tow Bar VKR 380 mm – Lip 1 Q-017-0015

Spring Loaded Tow Hinge 1 Q-017-0067

Heavy Duty Tow Hinge – Narrow 1 Q-017-0087

Towing Lip – 28 mm 1 Q-017-1010
