Pallet cart – 1260 x 1050 mm
Pallet cart – 1260 x 1050 mm
Pallet cart – 1260 x 1050 mm
Pallet cart – 1260 x 1050 mm
Q-100-1132

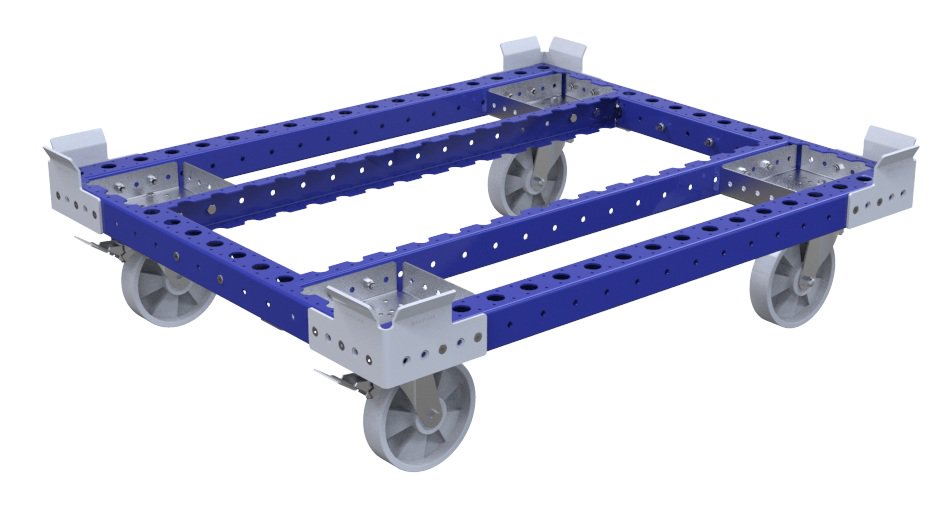

Standard Pallet cart – 1260 x 1050 mm

Pallet cart used for a specific pallet or container size. Equipped with four nylon casters and angled pallet guides.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

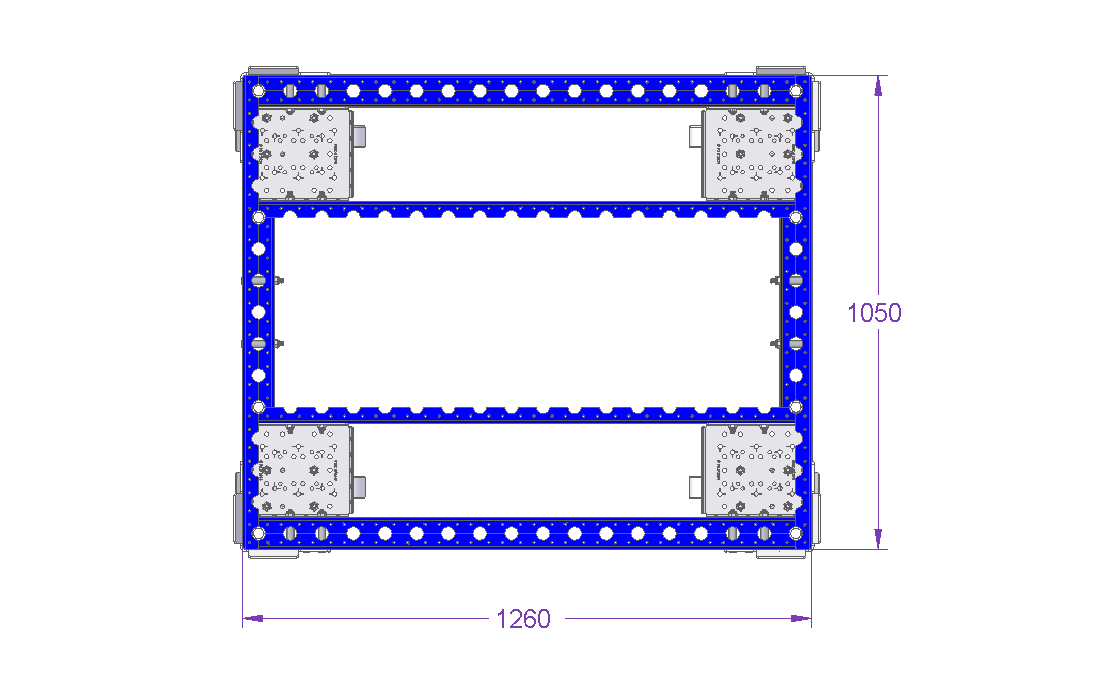

Width: 1050 mm

Length: 1260 mm

Load capacity: 907 kg

Transportation method: LiftRunner Frames, Manual

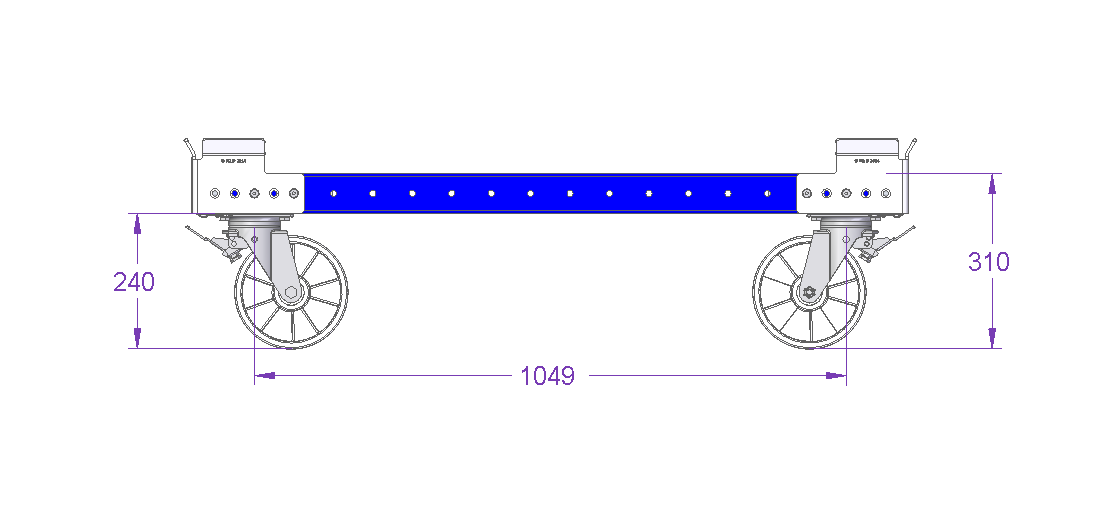

Caster size: 200 mm

Caster Type: Nylon

Type of Load: Pallets and Containers

More info

This frame is used for the transportation of pallets or containers. Since it doesn’t have a flat deck it only works for a certain container size. The cart is equipped with four nylon casters, two fixed casters and two swivel casters making it easy to manoeuvre in tight areas as well as angled pallet guides to facilitate the loading process.

Parts included
FlexBeam™ 1190 mm 6 Q-001-1300
FlexBeam™ 420 mm 2 Q-001-1311
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexPlate™ 8 Q-002-1001
Polyamide Caster 200 mm with Brake 4 Q-004-1351
Angle corner plate – 5 mm 4 Q-005-0227
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 12 Q-005-1426
M10 x 25 mm Hex Head 24 Q-006-1041
Locking Nut M10 48 Q-006-1042
Washer M10 64 Q-006-1043
M10 x 90 mm Extra Low Head 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
M10 x 25 mm Extra Low Head Allen 13 Q-006-1410
