Pallet Cart – 1680 x 1260 mm
Pallet Cart – 1680 x 1260 mm
Pallet Cart – 1680 x 1260 mm
Pallet Cart – 1680 x 1260 mm
Q-100-1014

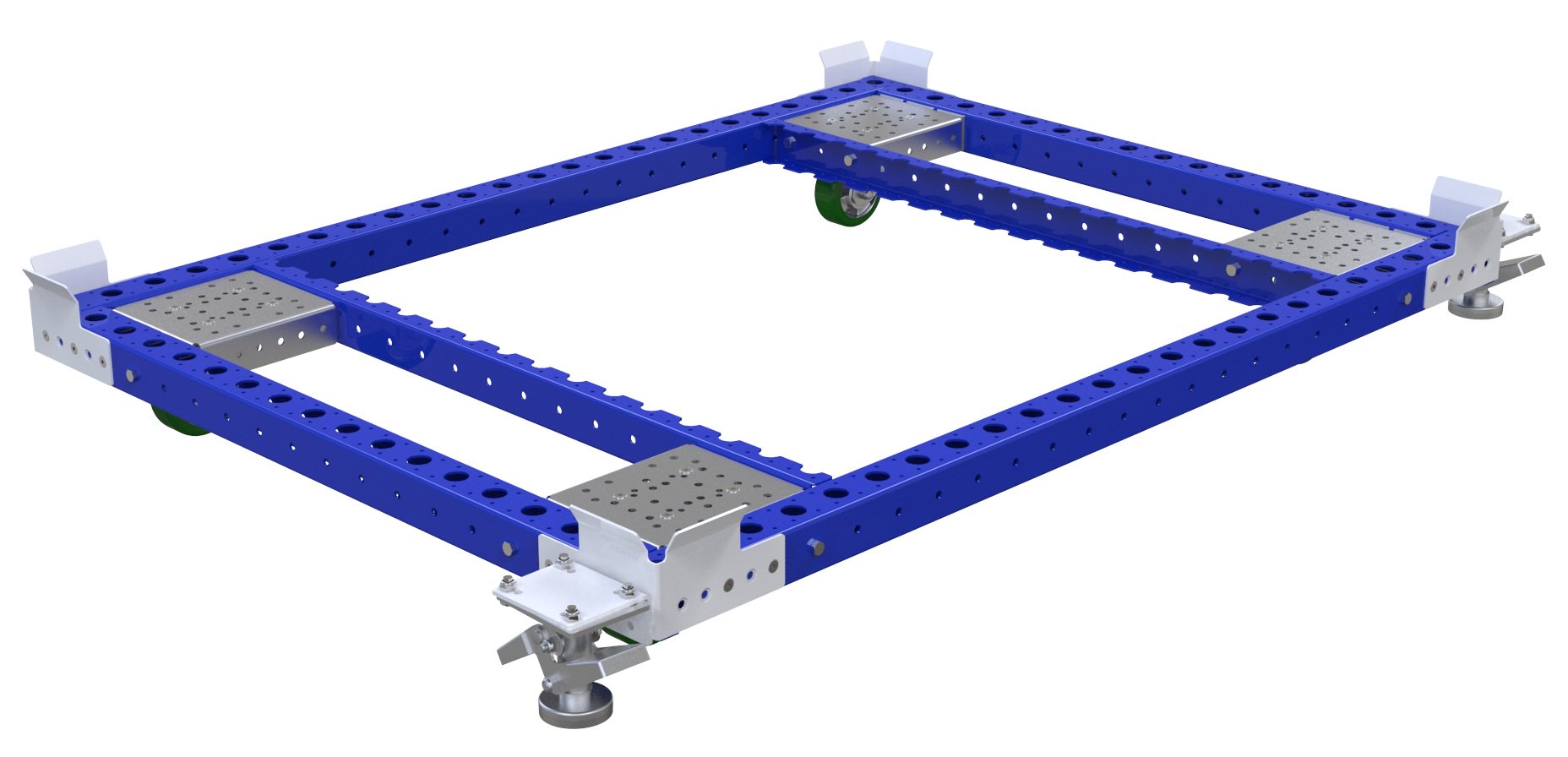

Pallet Cart – 1680 x 1260 mm

Pallet cart used for a specific pallet or container size. Equipped with a floor brake and four polyurethane casters and angled pallet guides.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

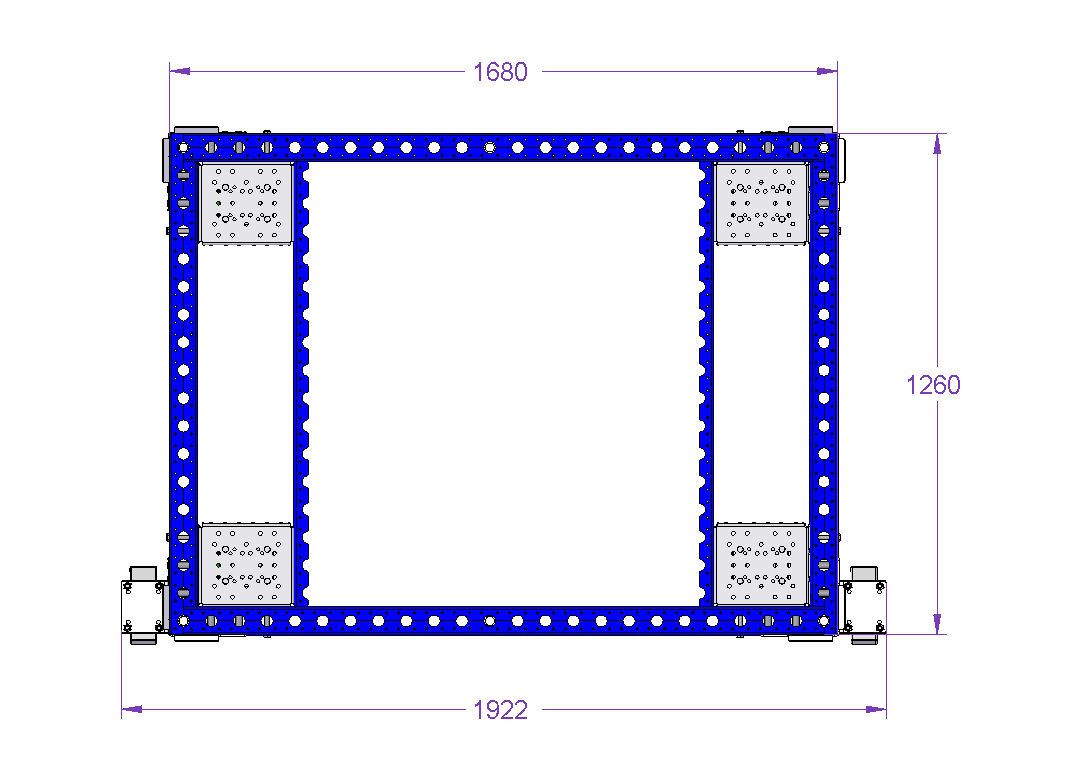

Width: 1260 mm

Length: 1680 mm

Load capacity: 500 kg

Transportation method: LiftRunner Frames, Manual

Caster size: 125 mm

Caster Type: Polyurethane

More info

This frame is used for the transportation of pallets or containers. Since it doesn’t have a flat deck it only works for a certain container size. The cart is equipped with a floor brake and four polyurethane swivel casters, two with brakes making it easy to manoeuvre in tight areas as well as angled pallet guides to facilitate the loading process.

Parts included
FlexBeam™ – 1610 mm 4 Q-001-1294
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 10 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Caster Polyurethane – 125 mm 4 Q-004-1106
Floor Brake LTL 125 2 Q-004-1360
Floor brake plate 2 Q-005-0275
Wheel Attachment Box 4 Q-005-1079
Angled Corner Plate 4 Q-005-1098
64 mm FlexBeam™ Collet 16 Q-005-1426
M10 x 25 mm Hex Head 18 Q-006-1041
Locking Nut M10 60 Q-006-1042
Washer M10 32 Q-006-1043
M10 x 95 mm Hex Head 2 Q-006-1088
M10 x 90 mm Hex Head 8 Q-006-1132
M10 x 90 mm Extra Low Head 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 40 Q-006-1384
M10 x 25 mm Extra Low Head Allen 18 Q-006-1410
