Pallet cart – 1820 x 1260 mm
Pallet cart – 1820 x 1260 mm
Pallet cart – 1820 x 1260 mm
Pallet cart – 1820 x 1260 mm
Q-100-0519

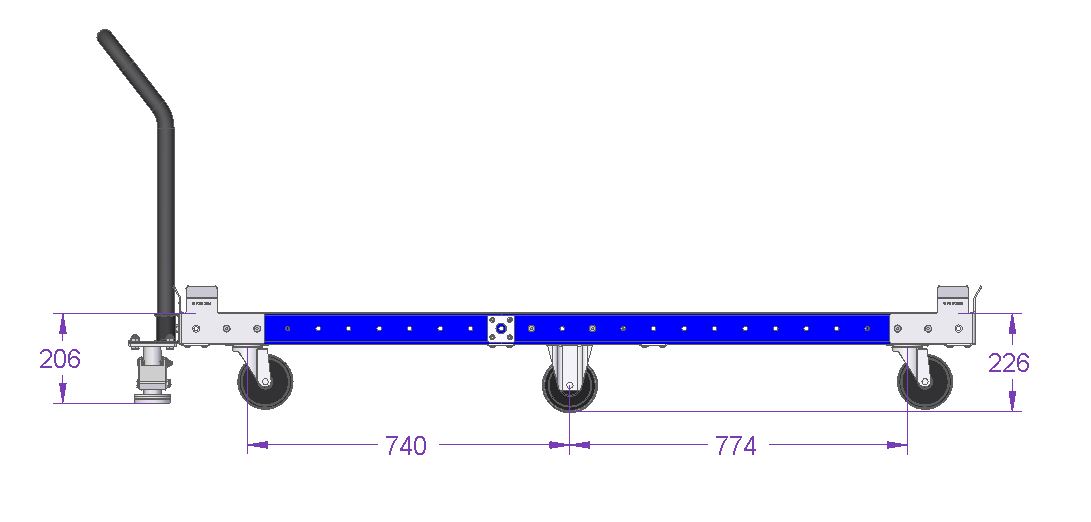

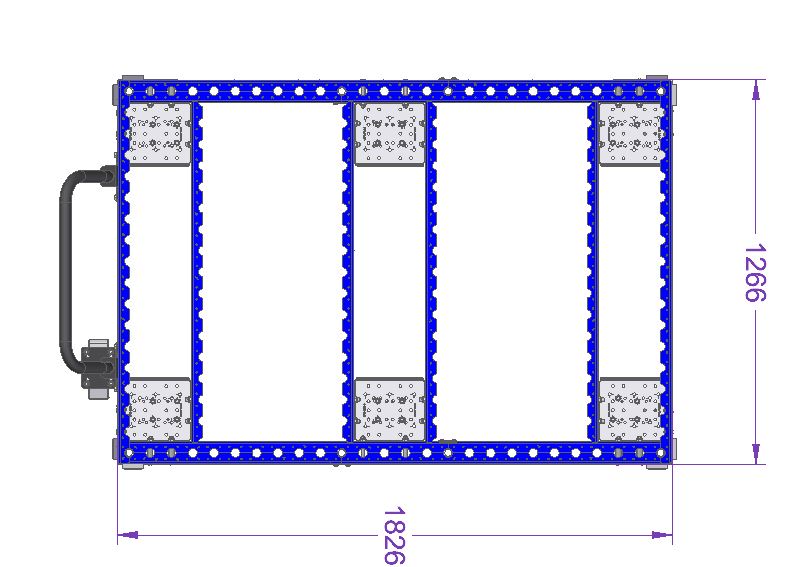

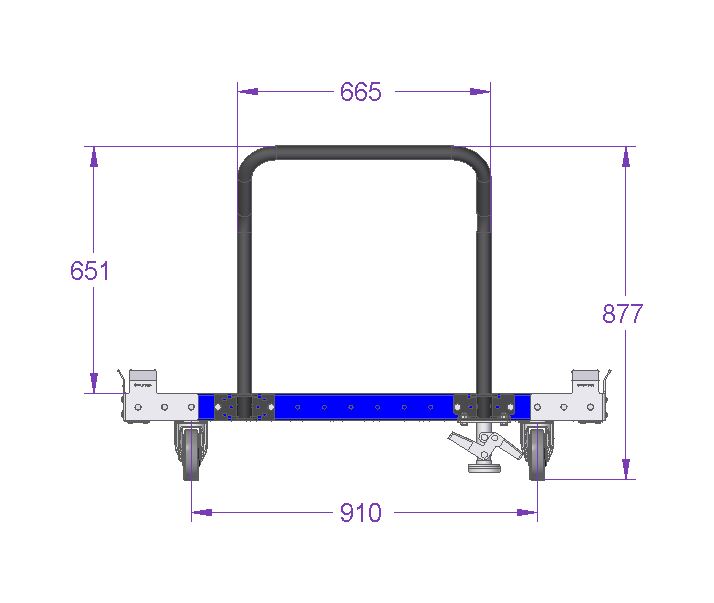

Pallet cart – 1820 x 1260 mm

Standard push cart without steel flat deck

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 1260 mm

Length: 1820 mm

Load capacity: 500 kg

Transportation method: Manual

Caster size: 125 mm

Caster Type: Gray

Type of Load: Pallets and Containers

More info

This pallet cart is equipped with an ergonomic handlebar for easier manual transportation. It is designed to transport pallets and containers. It comes with a floor lock brake to keep the cart secure when not in use. A tow bar can be added to this cart for transportation in a tugger train.

Parts included
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 700 mm 4 Q-001-1307
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 12 Q-002-1001
Floor Brake LTL 125 1 Q-004-1360
125 mm Swivel Caster 4 Q-004-1363
125 mm Fixed Caster 2 Q-004-1365
Wheel Attachment Box 6 Q-005-1079
Angled Corner Plate 4 Q-005-1098
64 mm FlexBeam™ Collet 8 Q-005-1426
M10 x 25 mm Hex Head 48 Q-006-1041
Locking Nut M10 72 Q-006-1042
Washer M10 24 Q-006-1043
M10 x 90 mm Extra Low Head 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 48 Q-006-1384
M10 x 25 mm Extra Low Head Allen 12 Q-006-1410
Handlebar Attachment EUR 1 Q-015-0026
Handlebar/Floor brake attachment EUR 1 Q-015-0027
Tube for Handlebar EUR 1 Q-015-0033
