Pallet Cart – 2240 x 1960 mm
Pallet Cart – 2240 x 1960 mm
Pallet Cart – 2240 x 1960 mm
Pallet Cart – 2240 x 1960 mm
Q-100-1116

Pallet Cart – 2240 x 1960 mm

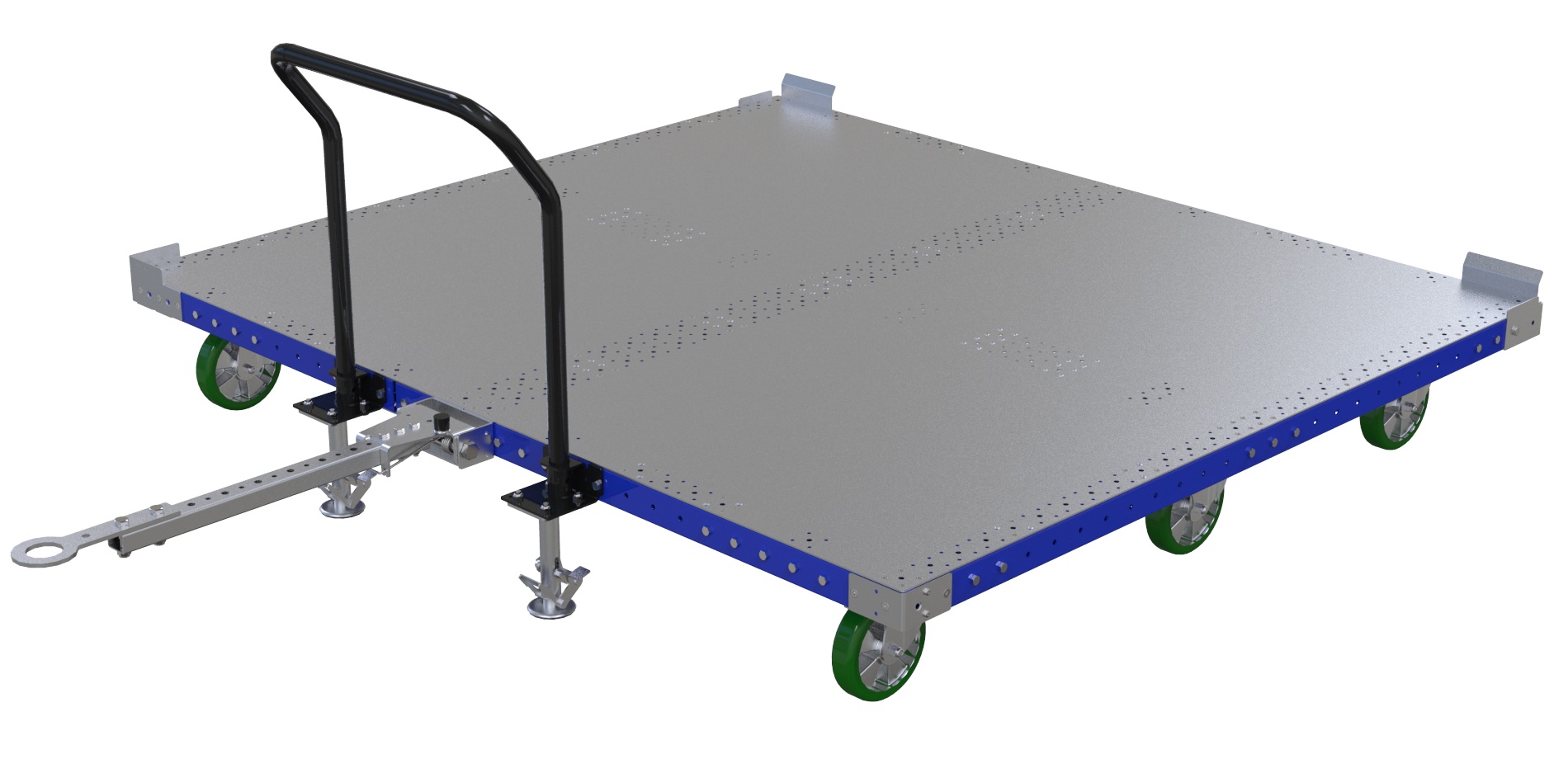

Tuggable flatbed pallet cart equipped with a handlebar, floor brakes and six polyurethane casters.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 1960 mm

Length: 2240 mm

Load capacity: 1000 kg

Transportation method: LiftRunner Frames, Manual

Caster size: 200 mm

Caster Type: Polyurethane

More info

This flatbed pallet cart is great for transportation of larger pallets and containers or several smaller ones. The cart is equipped with a tow bar, handlebar, floor brakes as well as six high quality polyurethane casters which give the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexBeam STS – 1890 mm 4 Q-001-1290
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexBeam™ 1330 mm FE 2 Q-001-1501
FlexBeam 1820 mm STS FE 4 Q-001-1508
FlexBeam 2100 mm STS FE 2 Q-001-1512
FlexPlate™ 12 Q-002-1001
Stiffener – Outside 1 Q-002-1050
Flexplate™ M10 12 Q-002-1162
Wheel Attachment – 105 x 77.5 mm 2 Q-004-1065
Caster Polyurethane – 200 mm Swivel 4 Q-004-1211
Caster Polyurethane 200 mm Fixed IP2 2 Q-004-1212
US Floor Brake – 200 mm 2 Q-004-1613
L Bracket Joint 8 Q-005-0031
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 1 Q-005-1096
Left Angle Corner Plate 1 Q-005-1097
Right Angle Corner Plate 1 Q-005-1099
64 mm FlexBeam™ Collet 38 Q-005-1426
Washer 10.5 x 30 x 2.5 1 Q-006-1030
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
M10 x 25 mm Hex Head 58 Q-006-1041
Locking Nut M10 117 Q-006-1042
Washer M10 2 Q-006-1043
M10 x 90 mm Hex Head 42 Q-006-1132
Locking Nut M8 1 Q-006-1181
M10 x 90 mm Extra Low Head 10 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 50 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 88 Q-006-1385
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 3 Q-006-1502
Handlebar/Floor Brake Attachment US 2 Q-015-0029
Tube for Handlebar US 1 Q-015-0032
Top Plate – 1120 x 980 mm 4 Q-016-0287
US Modular Tow Bar VKR 660 mm – Lip 1 Q-017-0009
Tow Hinge Module 1 Q-017-0059
Towing Lip 2.5 Inch 1 Q-017-1012
