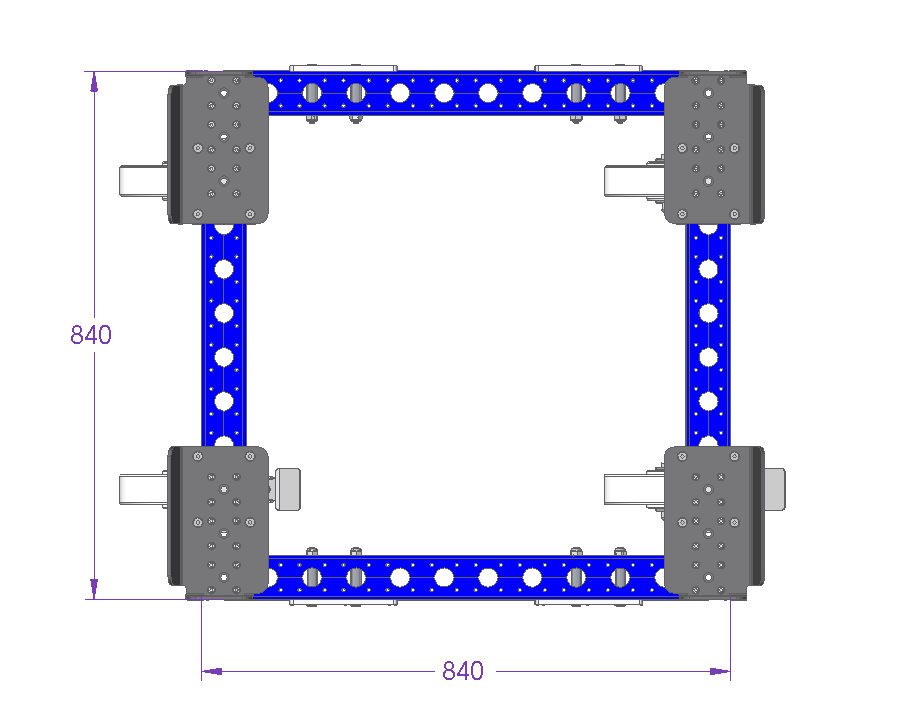

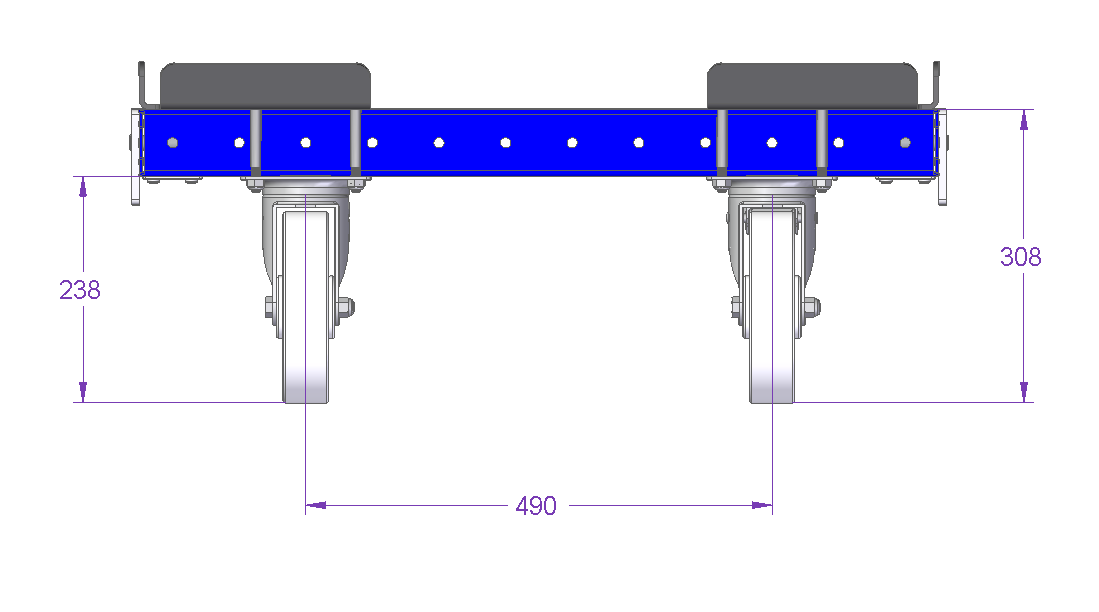

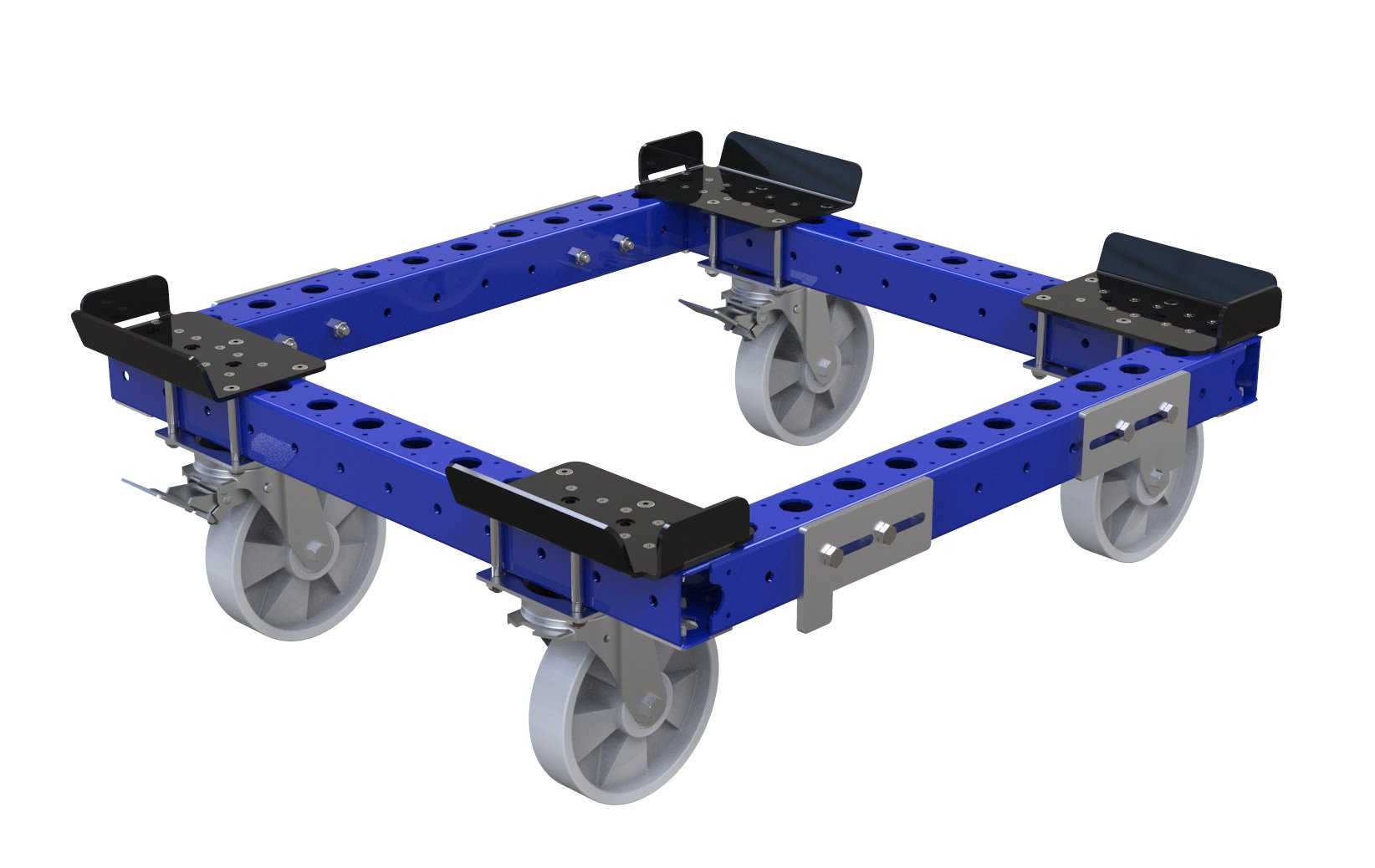

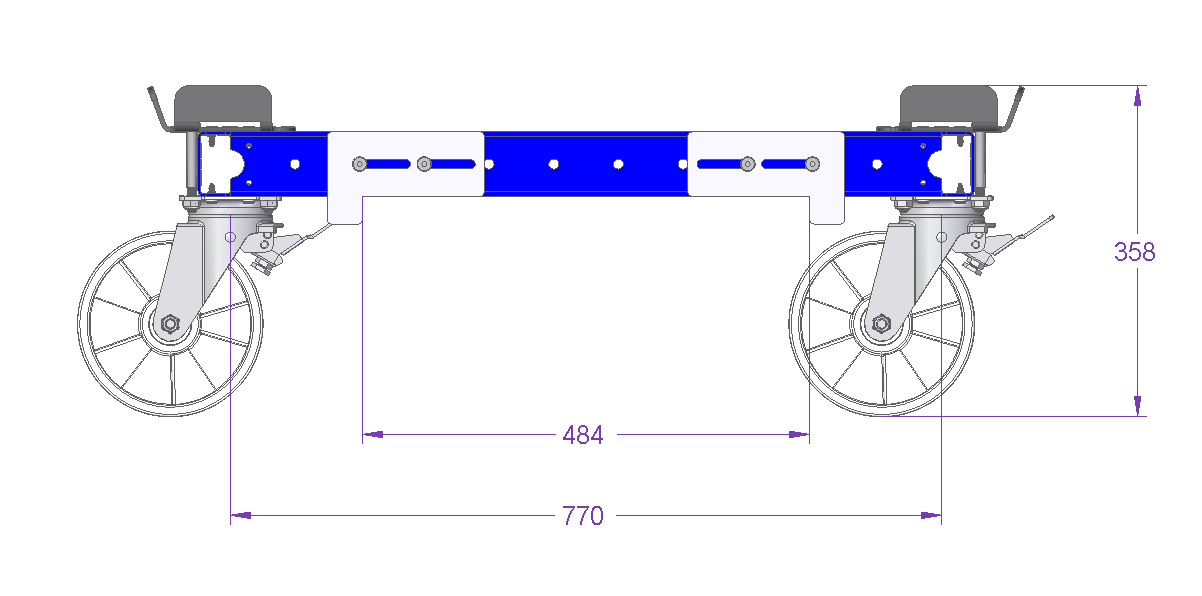

Pallet Cart – 33 x 33 Inches

Pallet Cart – 33 x 33 Inches

Q-100-0717

Pallet Cart – 33 x 33 Inches

Standard box and container dolly.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 840 mm

Load capacity: 680 kg

Width: 840 mm

Transportation method: LiftRunner Frames, Manual

Caster size: 200 mm

Caster Type: Nylon

More info

This standard dolly is used for transporting bins, boxes, totes and containers. This cart comes with four high quality polyamide casters, two come with brakes and two without. This cart can have a tow bar and handlebar attached to improve transportation.

Parts included

FlexBeam™ 770 mm 4 Q-001-1306

FlexBeam™ 840 mm FE 2 Q-001-1405

FlexBeam™ 700 mm FE 2 Q-001-1407

FlexPlate™ 4 Q-002-1001

Polyamide Caster 200 mm with Brake 2 Q-004-1351

Polyamide Caster 200 mm without Brake 2 Q-004-1352

Pallet Guide Wheel Attachment Right 2 Q-005-0062

Pallet Guide Wheel Attachment Left 2 Q-005-0063

Fork Protection 4 Q-005-1075

64 mm FlexBeam™ Collet 8 Q-005-1426

Locking Nut M10 24 Q-006-1042

M10 x 90 mm Extra Low Head 24 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384

M6 x 20 Countersunk Self Tapping Screw 48 Q-006-1385
