Pallet Cart High 40 x 48 inch

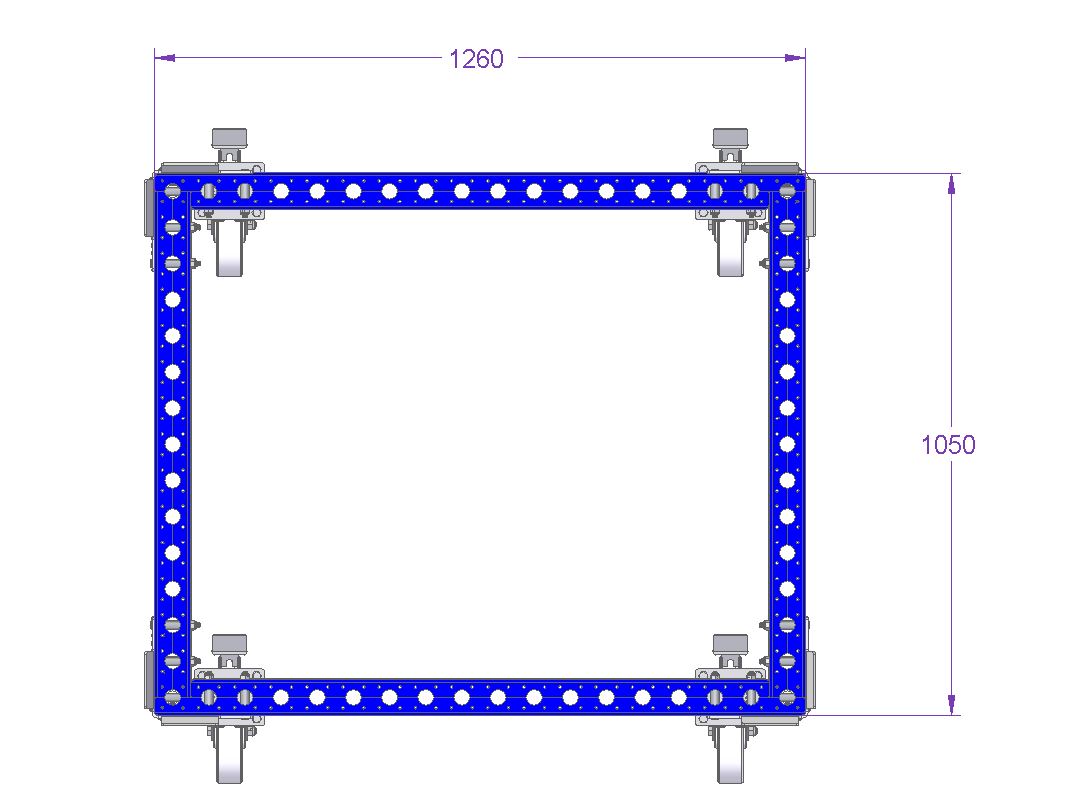

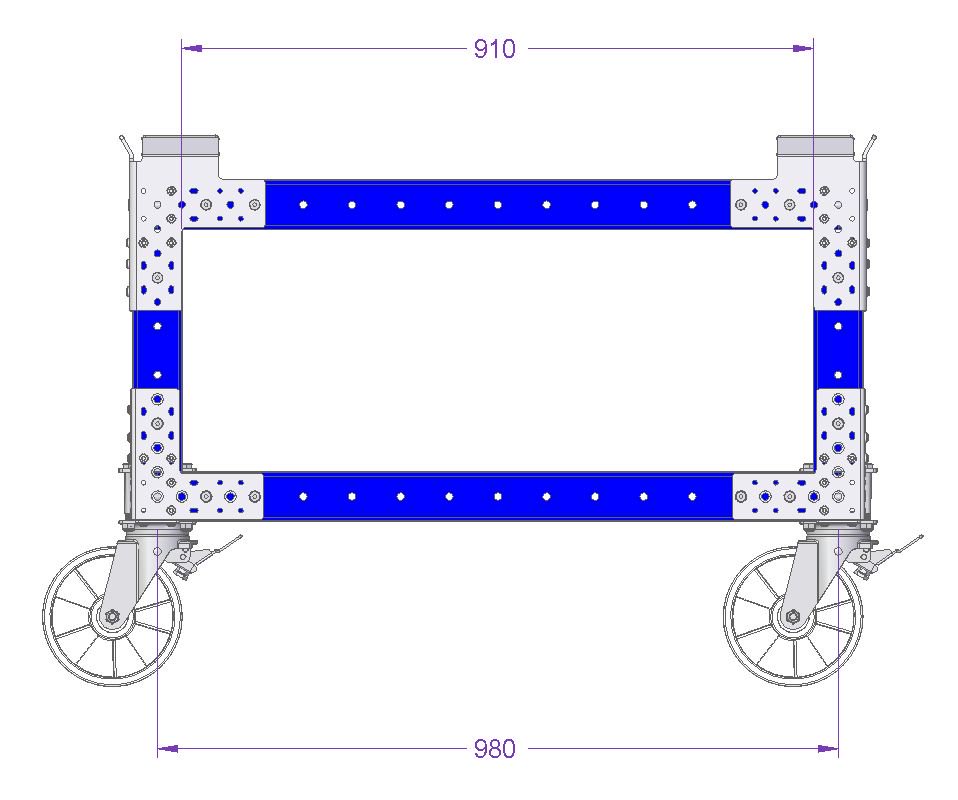

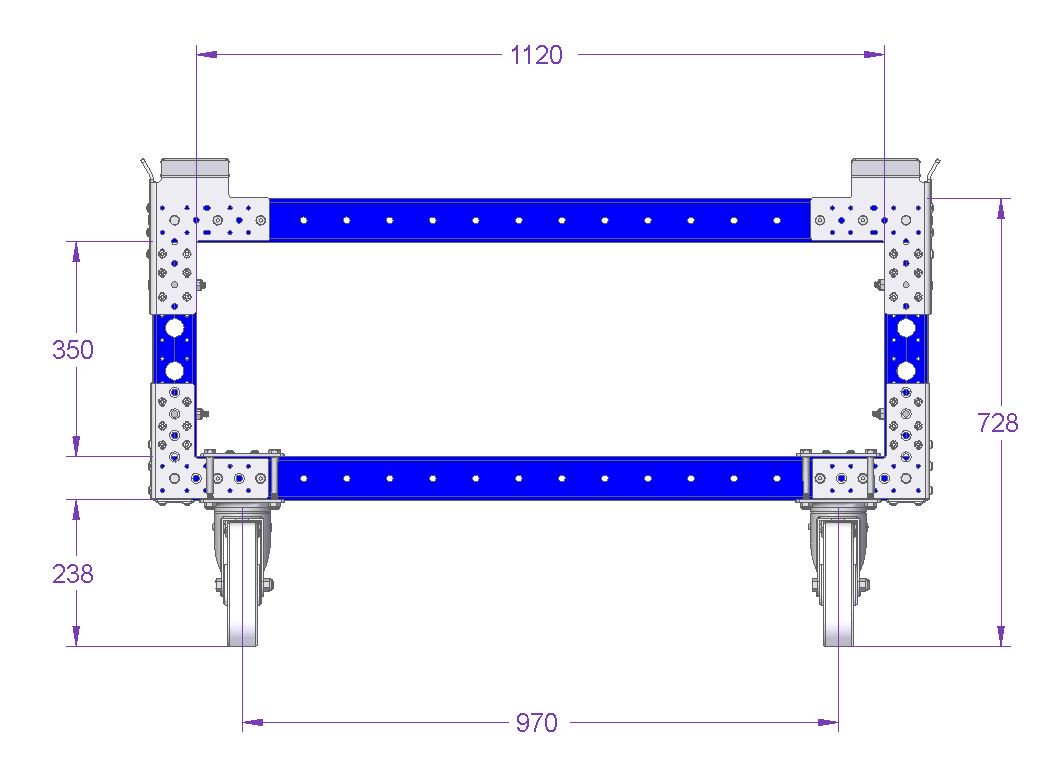

Pallet Cart With Sub-frame – 1050 x 1260 mm

Q-100-0570

Pallet Cart High 40 x 48 inch

Pallet cart designed with added top structure.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 1050 mm

Length: 1260 mm

Load capacity: 1361 kg

Transportation method: Manual

Caster size: 200 mm

Caster Type: Polyurethane

More info

This pallet cart was designed to transport pallets. The purpose of the added top structure is to improve the access to the materials. It presents the pallets at a better ergonomic height for the operators. This cart can be equipped with a handlebar and tow bar for easier transportation. It also has four high quality polyamide casters.

Parts included

FlexBeam™ 980 mm 8 Q-001-1303

FlexBeam™ 350 mm 8 Q-001-1312

FlexBeam™ 1120 mm FE 4 Q-001-1401

FlexBeam™ 1260 mm FE 4 Q-001-1500

FlexPlate™ 4 Q-002-1001

Wheel Attachment – 105 x 77.5 mm 4 Q-004-1065

Polyamide Caster 200 mm with Brake 4 Q-004-1351

Beam Pallet Guide 4 Q-005-0384

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 40 Q-005-1426

Locking Nut M10 64 Q-006-1042

M10 x 90 mm Hex Head 16 Q-006-1132

M10 x 90 mm Extra Low Head 40 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 112 Q-006-1384

M10 x 25 mm Extra Low Head Allen 8 Q-006-1410
