Push Cart with Top Plate – 40 x 48 Inch
Push Cart with Top Plate – 40 x 48 Inch
Push Cart with Top Plate – 40 x 48 Inch
Push Cart with Top Plate – 40 x 48 Inch
Q-100-0790

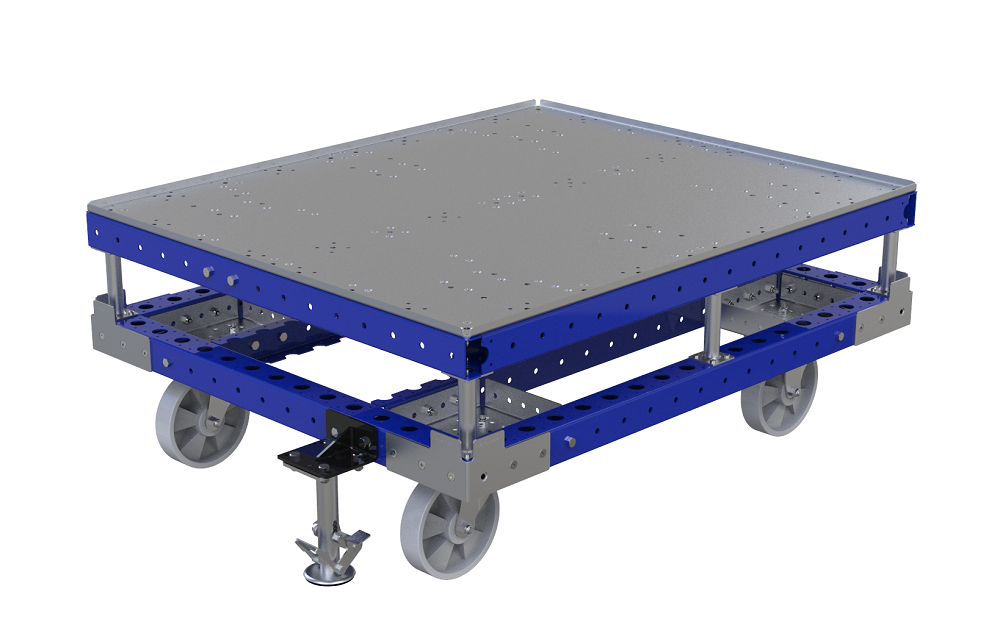

Push Cart with Top Plate – 40 x 48 Inch

Custom designed push cart with added top structure.

Technical specifications

Category: Flat Deck, Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 1220 mm

Load capacity: 680 kg

Width: 1050 mm

Transportation method: LiftRunner Frames, Manual

Caster size: 200 mm

Caster Type: Nylon

More info

This push cart was designed for transporting pallets and containers. It was designed with an added top structure which makes it easier to access the materials. It comes equipped with a floor lock brake to keep the cart secure when not in use.

Parts included
FlexTube™ 140 mm – Locking Nut 6 Q-000-1102
FlexBeam™ 1190 mm 9 Q-001-1300
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1050 mm FE 4 Q-001-1402
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
US Floor Brake – 200 mm 1 Q-004-1613
L Bracket Joint 2 Q-005-0031
Wheel Attachment Box 4 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 15 Q-005-1426
M10 x 25 mm Hex Head 40 Q-006-1041
Locking Nut M10 69 Q-006-1042
Washer M10 4 Q-006-1043
M10 x 95 mm Hex Head 1 Q-006-1088
M10 x 90 mm Hex Head 8 Q-006-1132
M10 x 90 mm Extra Low Head 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 80 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 50 Q-006-1385
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
Top plate – 1050 x 1260 mm 1 Q-016-0331
