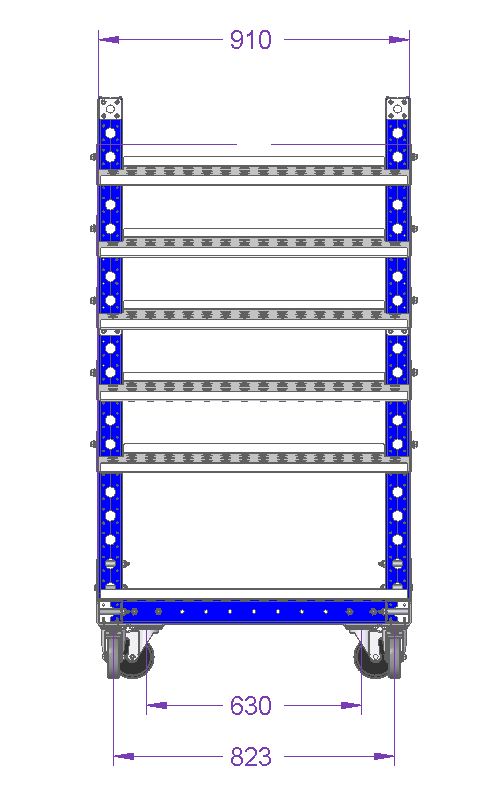

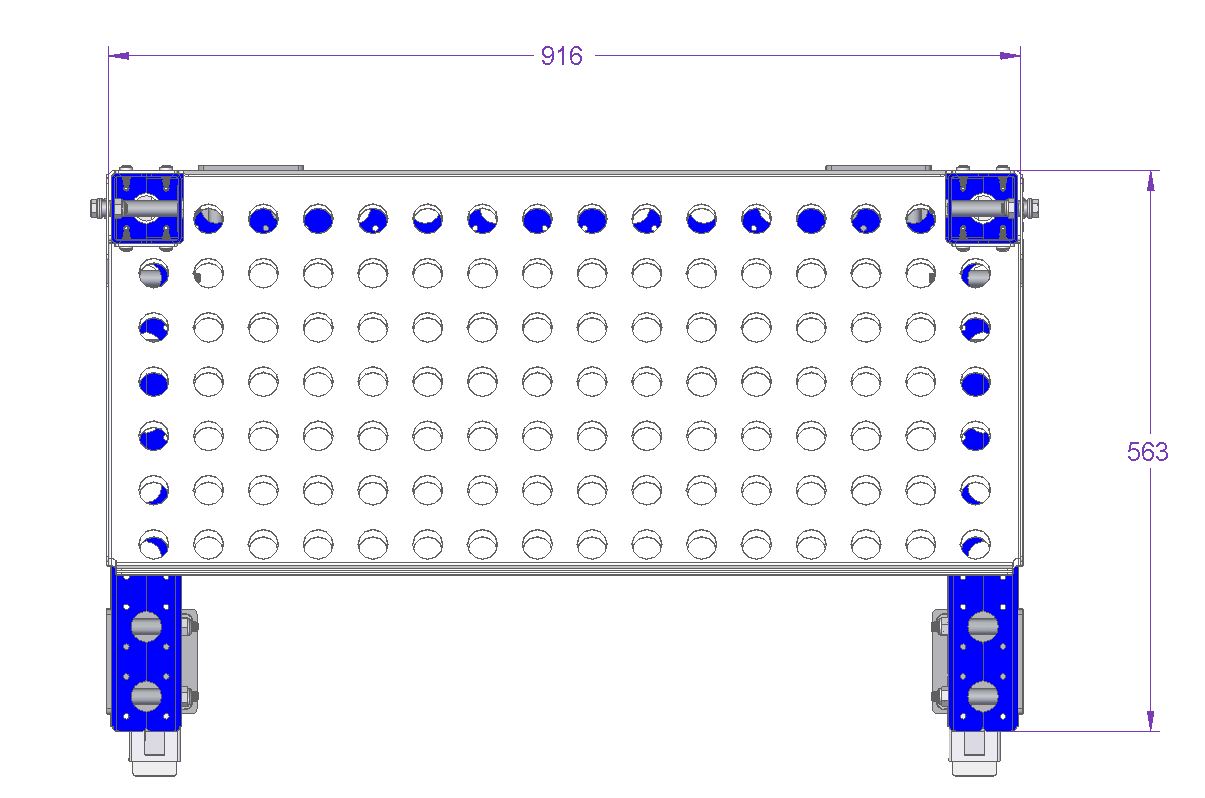

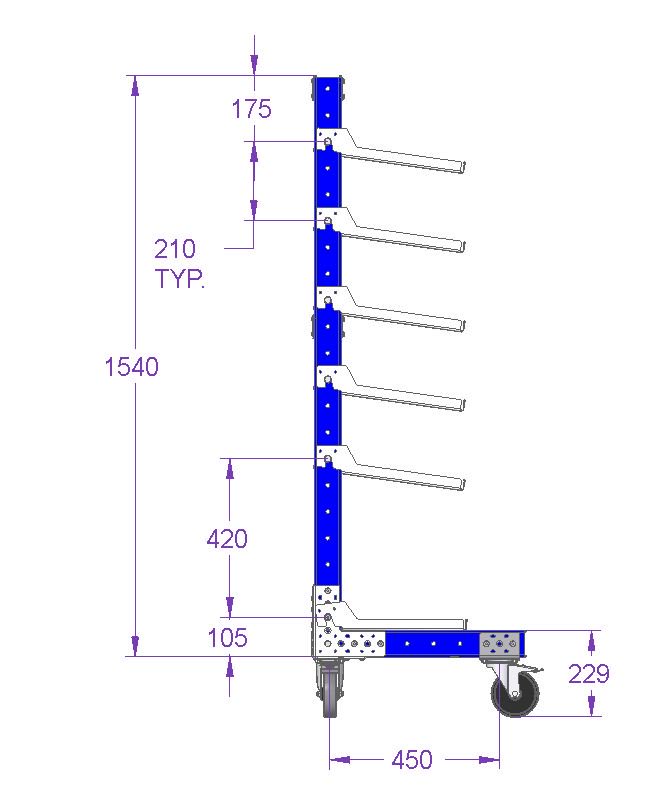

Removable Flow Shelf Cart – 910 x 560 mm
Removable Flow Shelf Cart – 910 x 560 mm
Removable Flow Shelf Cart – 910 x 560 mm
Removable Flow Shelf Cart – 910 x 560 mm
Q-100-0547

Removable Flow Shelf Cart – 910 x 560 mm

Custom designed flow shelf cart for along the assembly line.

Technical specifications

Category: Flow Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 560 mm

Length: 910 mm

Load capacity: 180 kg

Transportation method: Manual

Caster size: 125 mm

Caster Type: Gray

More info

This custom designed flow shelf cart is equipped with five removable flow shelves. It is designed to transport totes, bins and boxes. The flow shelves are perforated to make them lighter when being removed by the operators. The shelves can be easily adjusted up or down depending on your materials.

Parts included
FlexBeam™ 840 mm 2 Q-001-1305
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexBeam™ 490 mm FE 2 Q-001-1410
FlexBeam™ 1470 mm FE 4 Q-001-1503
FlexPlate™ 14 Q-002-1001
125 mm Swivel Caster with Brake 4 Q-004-1364
Caster to Beam Attachment – 80 x 60 mm 4 Q-005-0265
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 16 Q-005-1426
Locking Nut M10 28 Q-006-1042
Washer M10 22 Q-006-1043
M10 x 30 mm Hex Head 10 Q-006-1161
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
M10 x 90 mm Extra Low Head 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 72 Q-006-1384
M10 x 25 mm Extra Low Head Allen 2 Q-006-1410
10 mm Collet 10 Q-015-1047
Removable flow shelf – 920 x 401 mm 6 Q-016-0259
