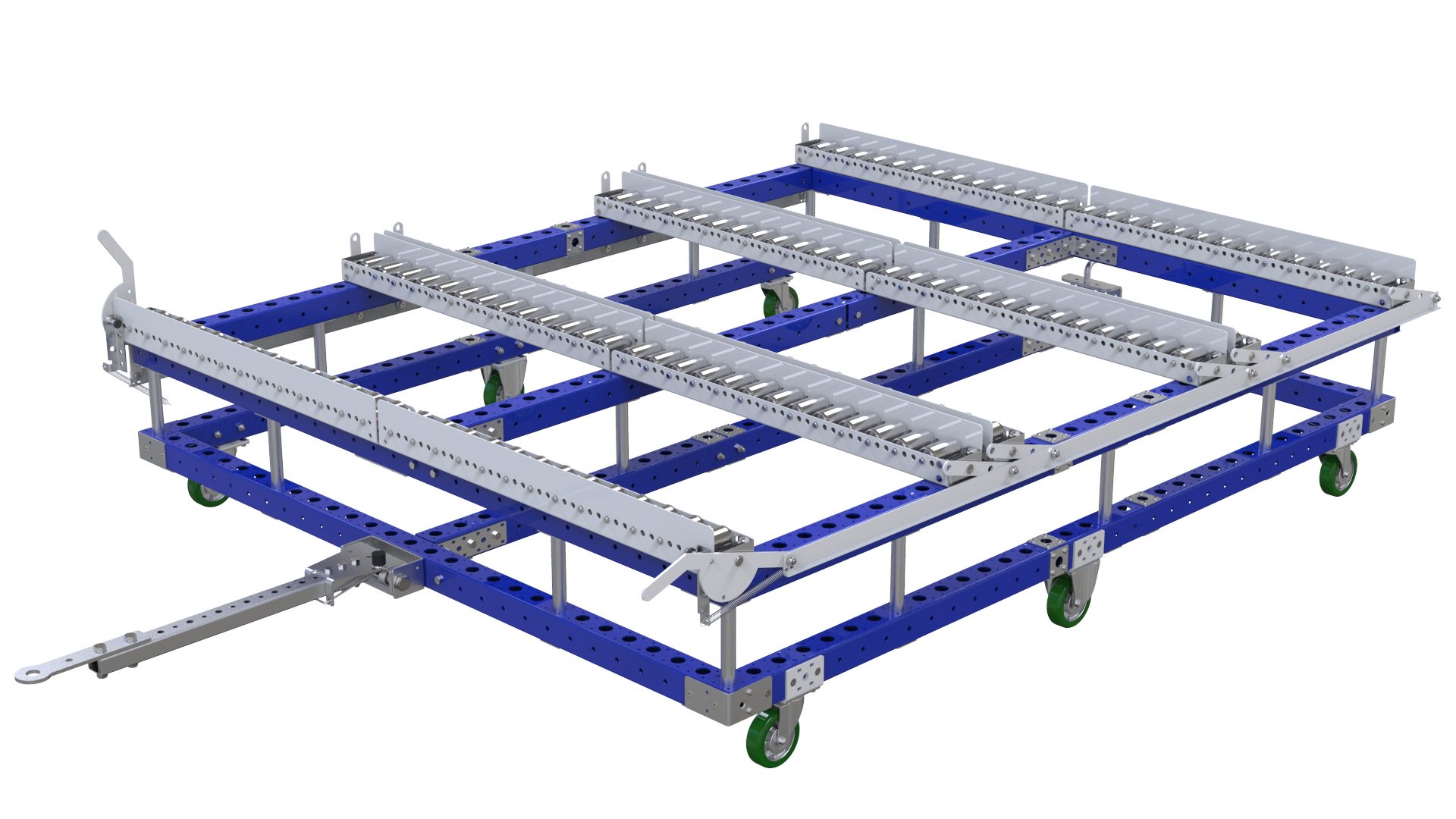

Roller Pallet Cart – 2030 x 2800 mm
Roller Pallet Cart – 2030 x 2800 mm
Roller Pallet Cart – 2030 x 2800 mm
Roller Pallet Cart – 2030 x 2800 mm
Q-100-1125

Roller Pallet Cart – 2030 x 2800 mm

Pallet conveyor cart with three slots. Equipped with a tow bar and six polyurethane casters.

Technical specifications

Category: Conveyor

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 2030 mm

Length: 2800 mm

Load capacity: 1000 kg

Transportation method: LiftRunner Frames, Manual

Caster size: 125 mm

Caster Type: Polyurethane

More info

This cart was designed to transport pallets and containers in an ergonomic fashion. The cart is split into three different sections and has locking mechanisms on both sides allowing you to load/unload material in either direction. The cart is equipped with a tow bar and six high quality polyurethane casters which give the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexBeam™ – 1330 mm 8 Q-001-1298
FlexBeam™ 980 mm 8 Q-001-1303
FlexBeam™ 910 mm FE 4 Q-001-1404
FlexBeam™ 1330 mm FE 4 Q-001-1501
FlexBeam STS FE – 1890 mm 4 Q-001-1509
FlexBeam 2030 mm STS FE 4 Q-001-1511
FlexPlate™ 44 Q-002-1001
Stiffener – Outside 4 Q-002-1050
Flexplate™ M10 32 Q-002-1162
Caster Polyurethane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm, 80 x 60, Fixed 2 Q-004-1221
L Bracket Joint 4 Q-005-0031
Caster to Beam Attachment – 80 x 60 mm 6 Q-005-0265
Spring Threaded Tube Connectors 32 Q-005-0469
Triangle Joint 4 Q-005-0483
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Indexing plunger GN 717-8-M12x1.5-B-ST 2 Q-005-0713
Plunger Lock Plate – Right 1 Q-005-0804
Plunger Lock Plate – Left 1 Q-005-0805
Plunger Locking Handle 2 Q-005-0806
Locking Plate Link – 2380 mm 2 Q-005-0807
Roller Stop – 239 mm 10 Q-005-0808
Roller Guide Lock Attachment Plate 12 Q-005-0812
64 mm FlexBeam™ Collet 30 Q-005-1426
Roller Pallet Cart – 2030 x 2800 mm 156 Q-100-1125
Wheel Attachment – 80 x 60 mm 2 Q-005-1722
M12 Nut 2 Q-006-0022
M10 Collet – 7 mm 12 Q-006-0043
Washer 10.5 x 30 x 2.5 1 Q-006-1030
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
M10 x 25 mm Hex Head 2 Q-006-1041
Locking Nut M10 121 Q-006-1042
Washer M10 34 Q-006-1043
M10 x 90 mm Hex Head 30 Q-006-1132
Locking Nut M8 25 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
M8 x 20 Countersunk 8 Q-006-1282
M10 x 90 mm Extra Low Head 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 392 Q-006-1384
M10 x 16 mm Low Allen Head 4 Q-006-1409
M10 x 25 mm Extra Low Head Allen 92 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 3 Q-006-1502
Tow Bar Pull Spring – 245 mm 2 Q-012-0008
10 mm Collet 12 Q-015-1047
US Modular Tow Bar VKR 660 mm – Lip 1 Q-017-0009
Tow Hinge Module 1 Q-017-0059
Spring Loaded Tow Hinge 1 Q-017-0067
Towing Lip – 28 mm 1 Q-017-1010
Outer Tube (No Plate) – 242 mm 16 Q-025-0242
