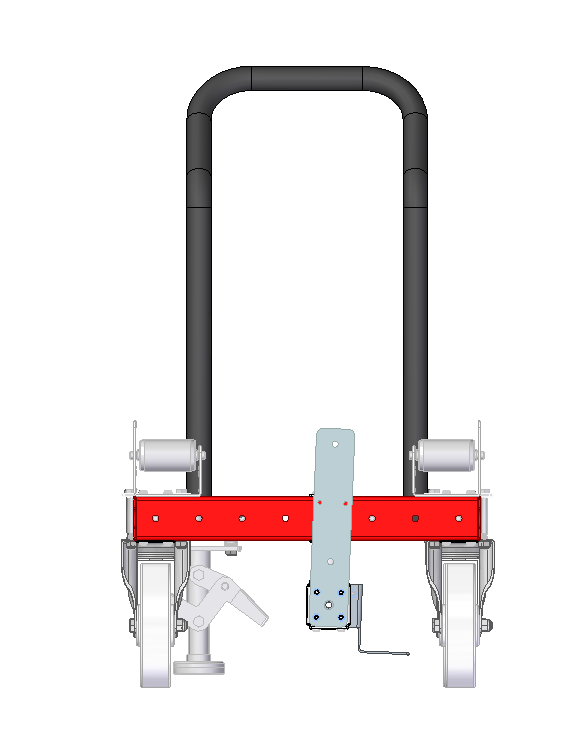

Roller top cart – 1120 x 560 mm

Q-100-0298

Roller top cart – 1120 x 560 mm

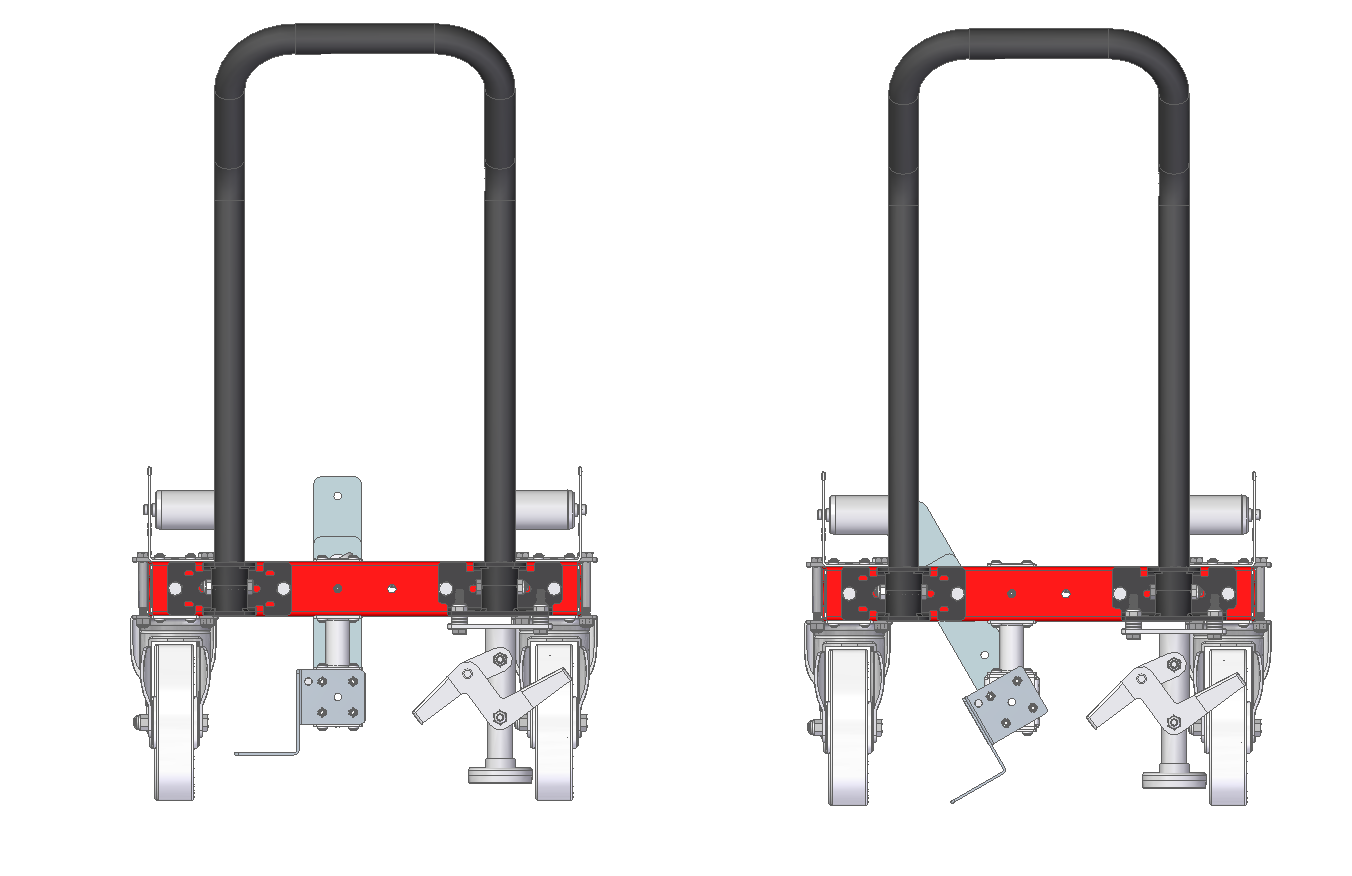

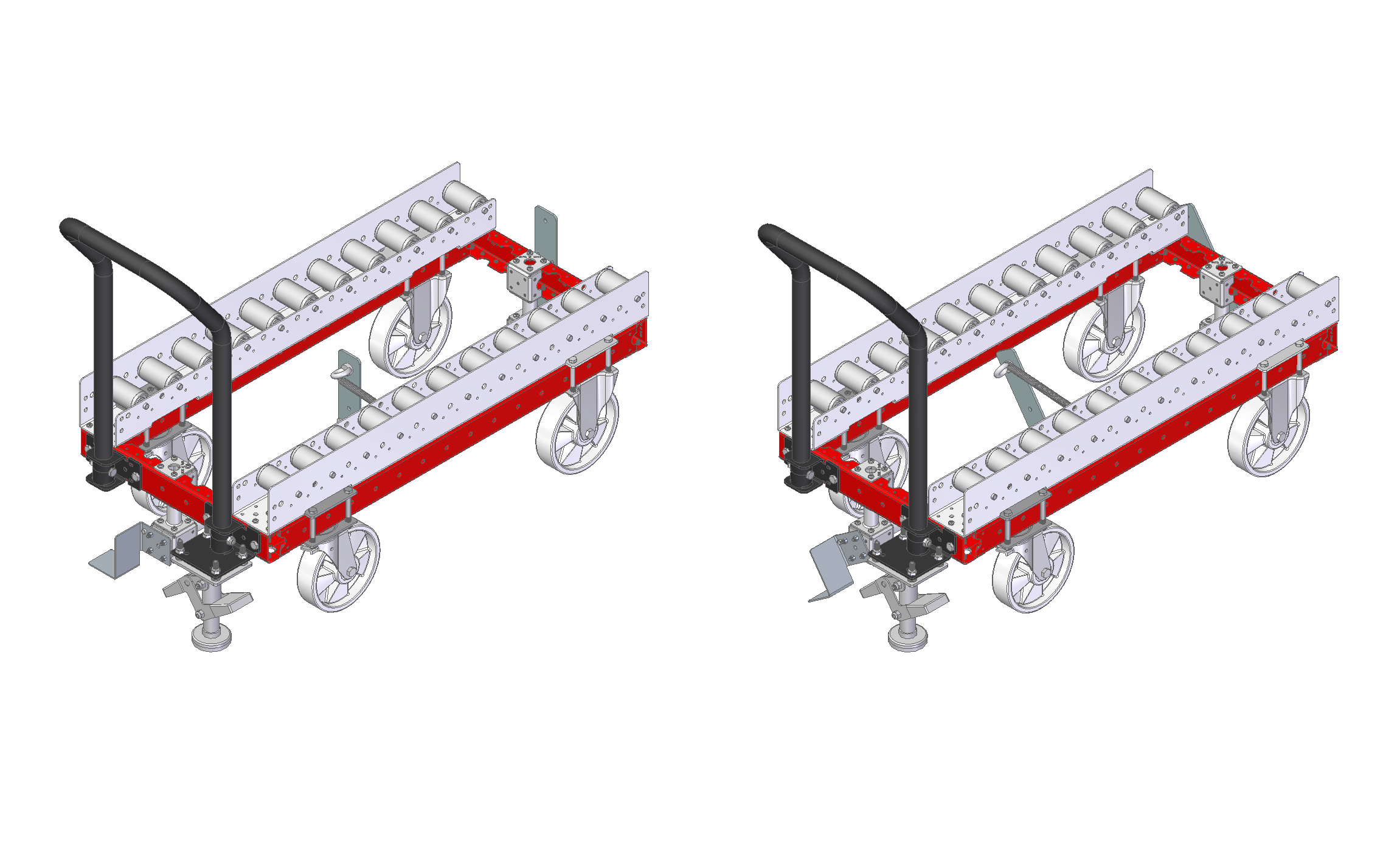

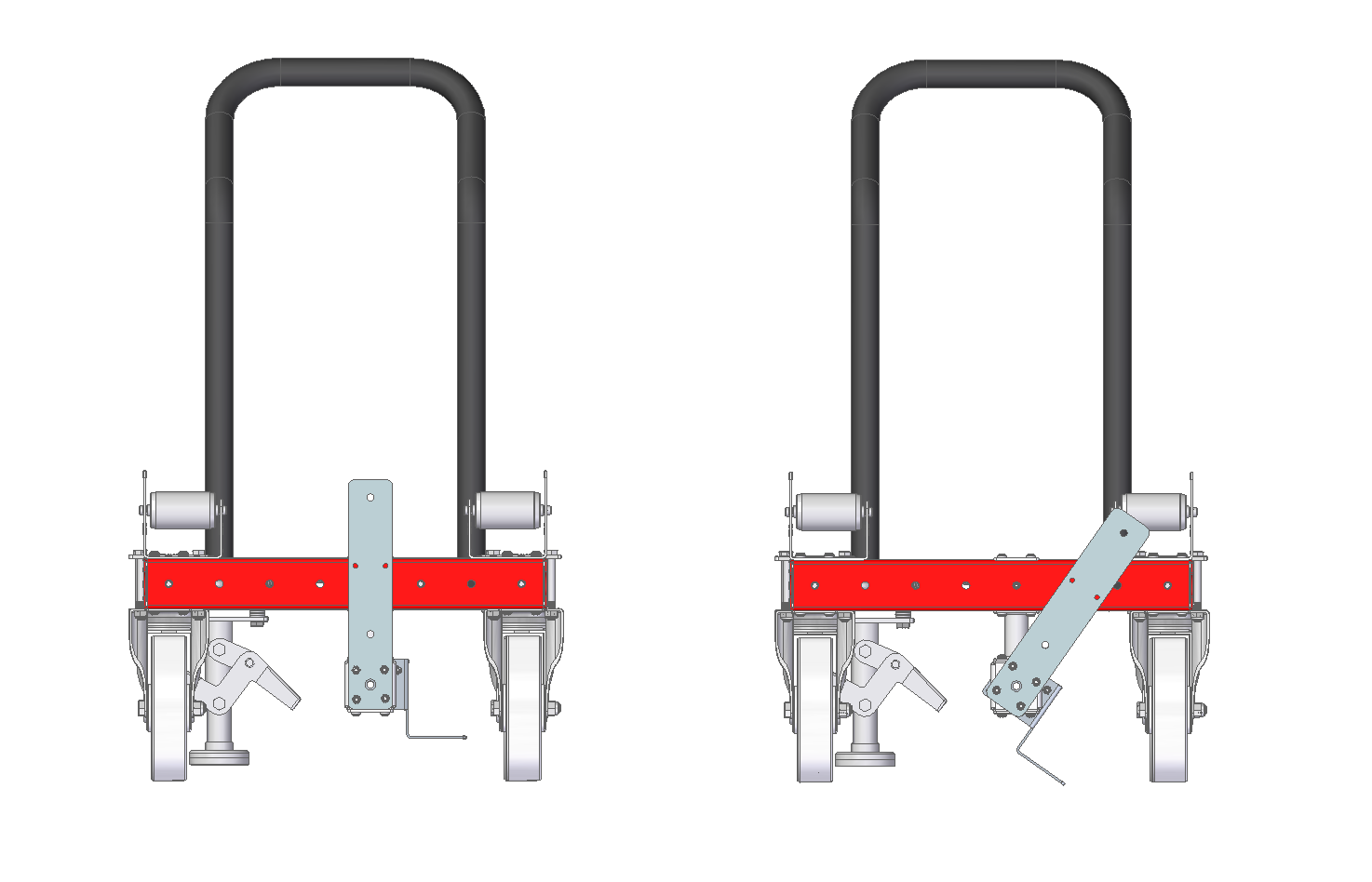

Conveyor cart designed to be used in combination with Q-100-0336. Equipped with a handlebar, floor brake, four nylon swivel casters and a foot activated locking mechanism.

Technical specifications

Category: Conveyor

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Transportation method: Manual

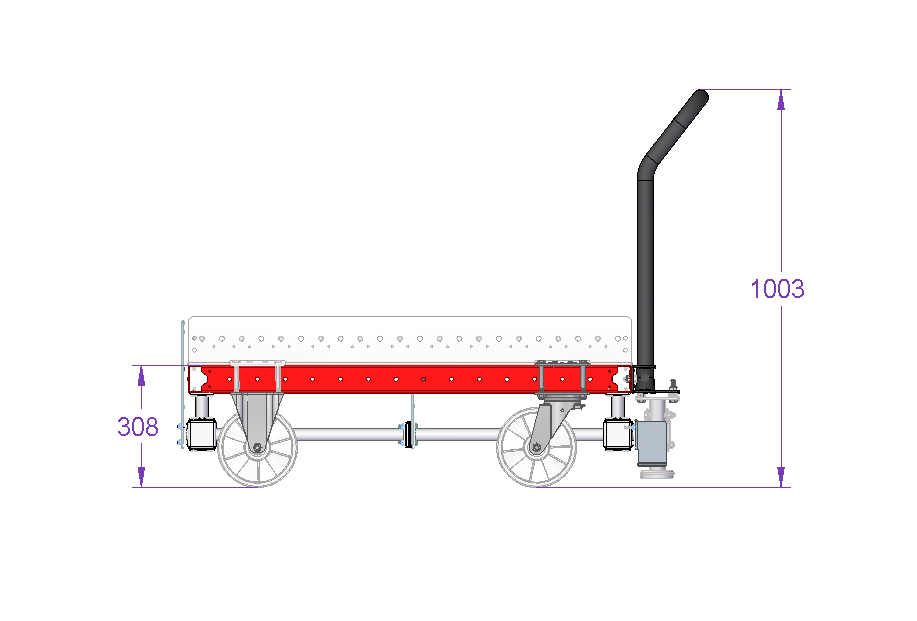

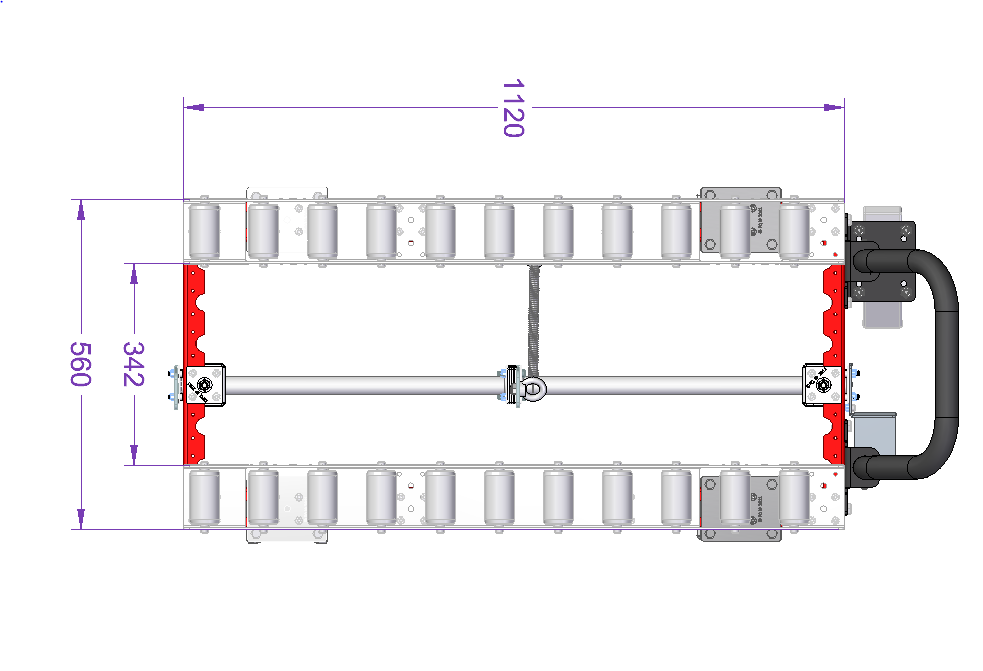

Width: 560 mm

Load capacity: 250 kg

Length: 1120 mm

Caster size: 200 mm

Caster Type: Nylon

More info

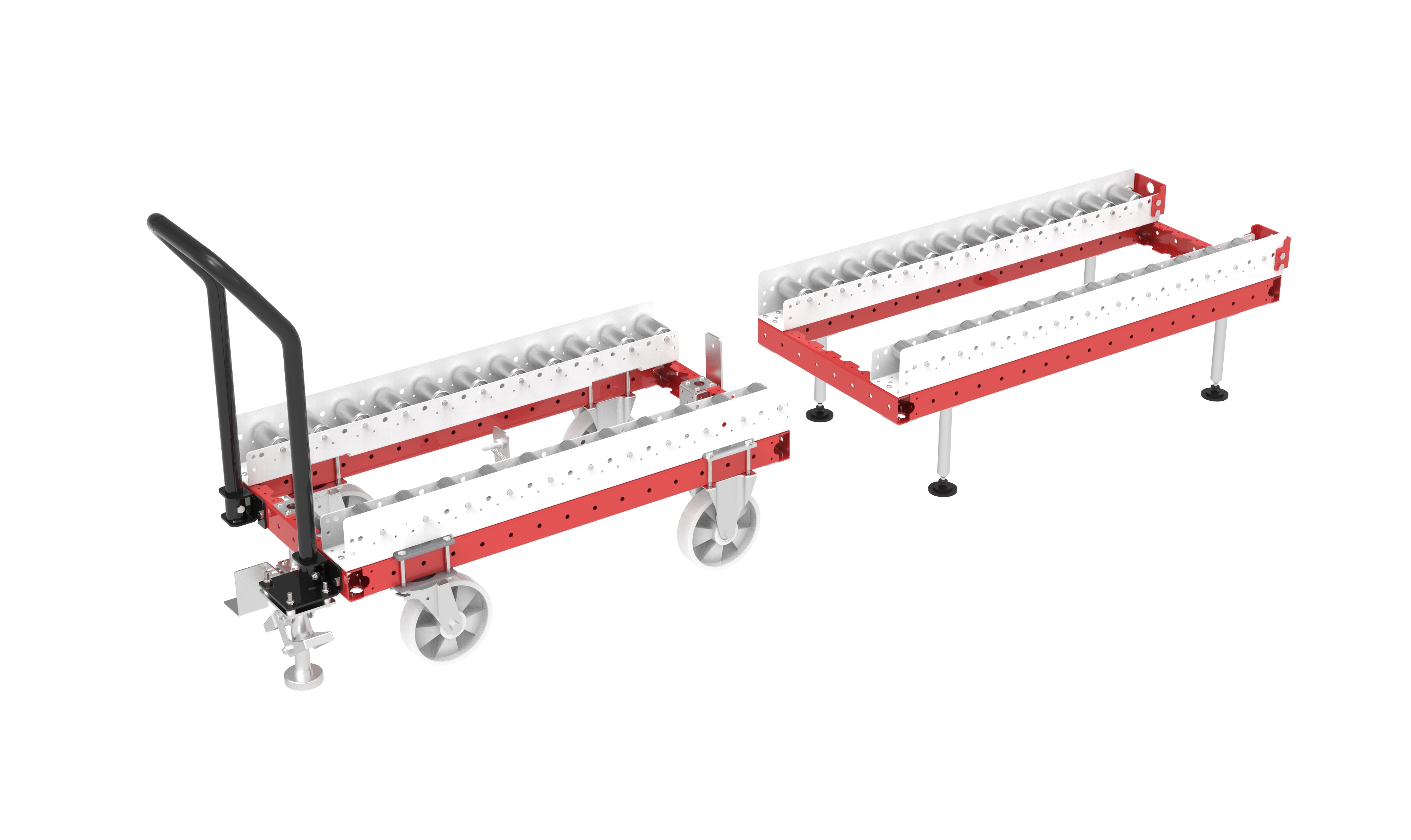

This conveyor cart was designed to be used in combination with Q-100-0336 and is most commonly used for transporting pallets, containers and boxes. The cart transports the material between warehouse and assembly line where the station is placed. The cart is equipped with a handlebar, floor brake, four nylon swivel casters and a foot activated locking mechanism.

Parts included

FlexTube™ 70 mm – Locking Nut 2 Q-000-1101

FlexTube™ 560 mm 2 Q-000-1182

FlexQube® 6 Q-001-1078

FlexBeam™ 1050 mm 4 Q-001-1302

FlexBeam™ 560 mm FE 2 Q-001-1409

FlexPlate™ 13 Q-002-1001

Wheel Attachment – 105 x 77.5 mm 4 Q-004-1065

Polyamide Caster 200 mm without Brake 2 Q-004-1352

Polyamide Caster 200 mm Fixed 2 Q-004-1354

Floor Brake LTL 200 1 Q-004-1359

Roller guide 1120 mm for 100 mm rollers 2 Q-005-0218

Foot pedal 1 Q-005-0236

Rotation handle and lock – 350 mm 1 Q-005-0239

Rotation Handle and Lock 242.5 mm 1 Q-005-1354

Roller top cart – 1120 x 560 mm 22 Q-100-0298

M10 Lifting Eye Bolt – 17 mm 2 Q-006-0020

M6 x 16 mm Allen Head 8 Q-006-1011

M6 x 30 mm Allen Head 1 Q-006-1012

M10 x 25 mm Hex Head 4 Q-006-1041

Locking Nut M10 28 Q-006-1042

Washer M10 24 Q-006-1043

Locking Nut M6 13 Q-006-1050

M10 x 90 mm Hex Head 16 Q-006-1132

M10 x 50 mm Hex Head Fully Threaded 4 Q-006-1343

Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384

M10 x 60 mm Hex Head Fully Threaded 2 Q-006-1502

Tow Bar Pull Spring – 245 mm 1 Q-012-0008

Handlebar/Floor Brake Attachment US 1 Q-015-0029

Handlebar Attachment US 1 Q-015-0031

Tube for handlebar US – 350 mm 1 Q-015-0045
