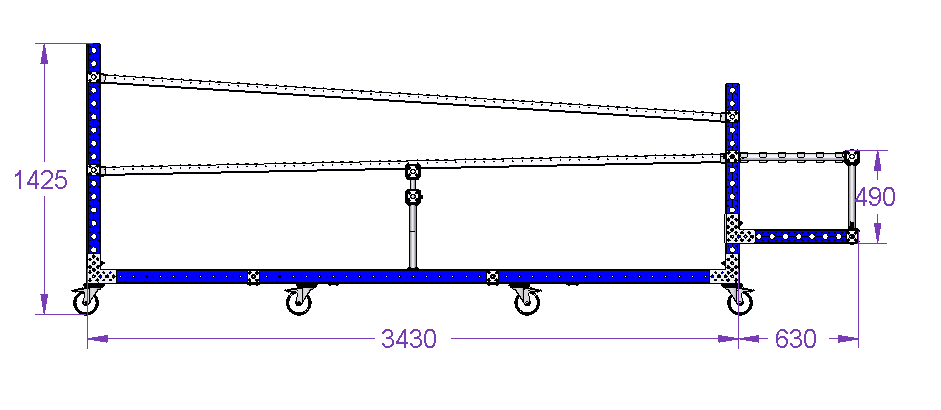

Roller Track Rack – 3430 x 560 mm
Roller track rack 3430 x 560 mm
Roller track rack 3430 x 560 mm
Q-100-0176

Roller Track Rack – 3430 x 560 mm

Custom designed roller rack for presenting materials to the operators.

Technical specifications

Transportation method: Manual

Category: Conveyor

Industry: Appliances & Electronics, Distribution, Medical Equipment

Length: 3430 mm

Width: 560 mm

Load capacity: 200 kg

Caster size: 125 mm

Caster Type: Polyurethane

More info

This long roller track helps the operators to return and present materials. It is designed to fit totes, bins and boxes. This rack is intended to be used alongside Q-100-0175 in your facility.

Parts included
FlexTube Inner – 280 mm 2 Q-000-0045
FlexTube™ 350 mm 4 Q-000-1055
FlexTube™ 560 mm 2 Q-000-1182
FlexTube™ 420 mm 8 Q-000-1270
FlexQube® 16 Q-001-1078
FlexBeam™ – 1260 mm 8 Q-001-1299
FlexBeam™ 840 mm 4 Q-001-1305
FlexBeam™ 1190 mm FE 4 Q-001-1400
FlexBeam™ 980 mm FE 4 Q-001-1403
FlexBeam™ 630 mm FE 4 Q-001-1408
FlexPlate™ 64 Q-002-1001
Delivery Connector Without Endstop 20 Q-003-1012
125 mm Swivel Caster with Brake 8 Q-004-1364
RTE Plug 4 Q-005-1289
64 mm FlexBeam™ Collet 8 Q-005-1426
Heavy Duty Joint M10 6 Q-005-1580
Wheel Attachment – 80 x 60 mm 8 Q-005-1722
M6 x 30 mm Allen Head 2 Q-006-1012
M10 x 120 mm Fully Threaded 4 Q-006-1037
Locking Nut M10 18 Q-006-1042
Locking Nut M8 32 Q-006-1181
M8 x 16 mm Countersunk 32 Q-006-1214
M10 x 90 mm Extra Low Head 10 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 344 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 32 Q-006-1385
