Q-100-0577

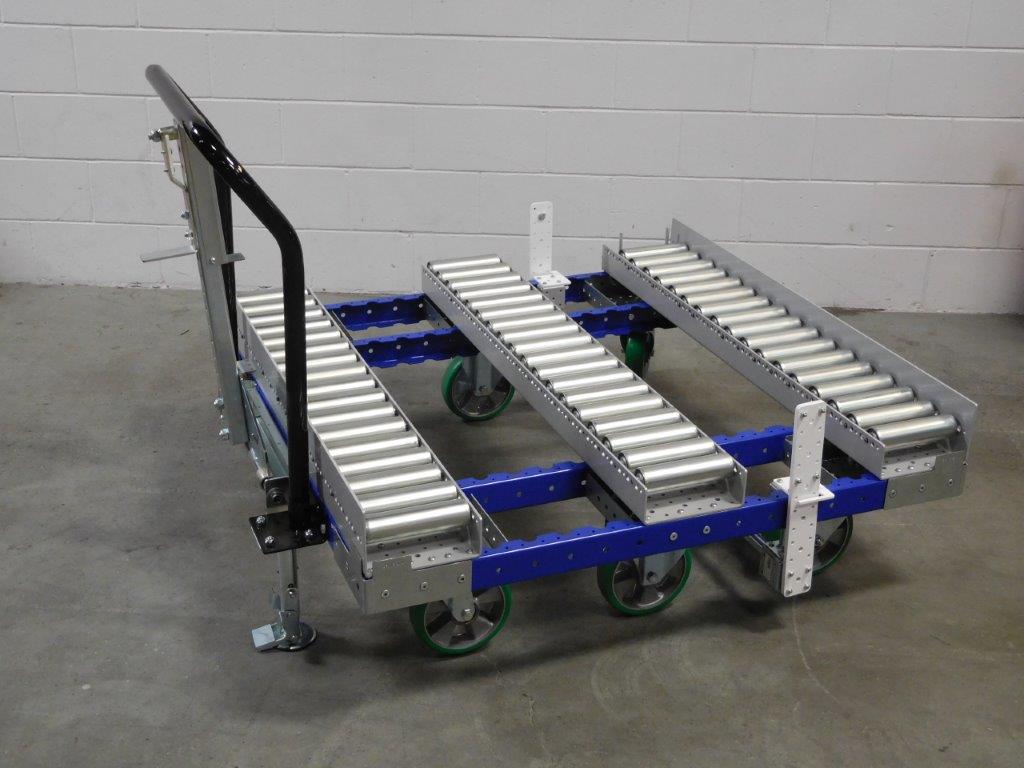

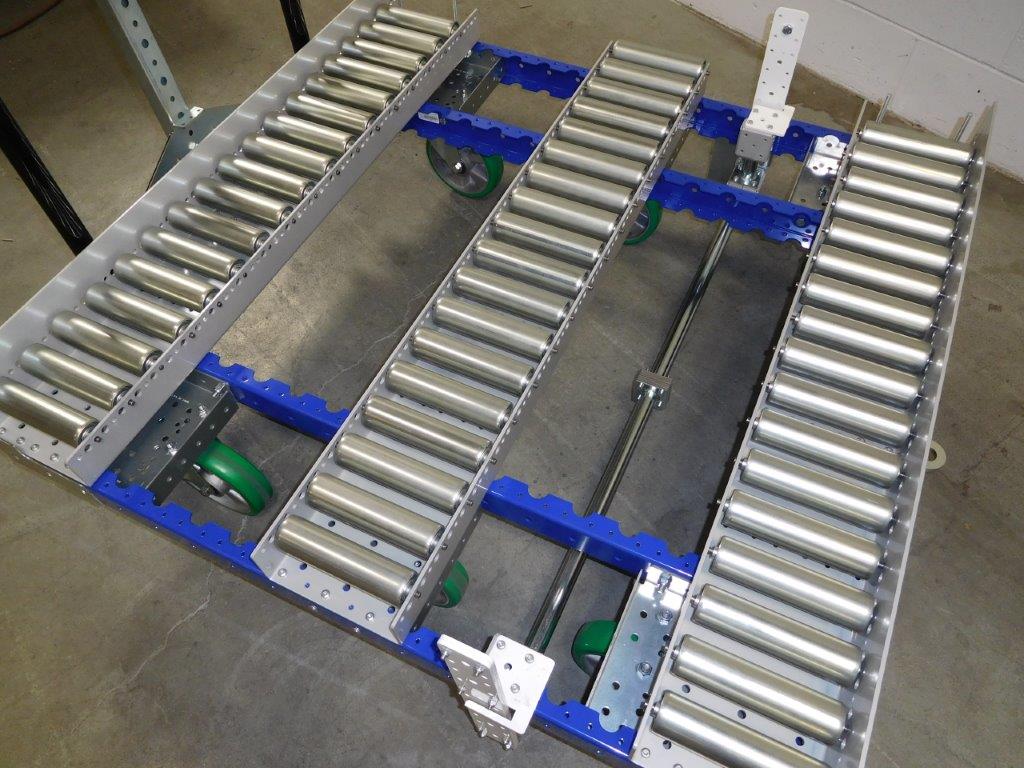

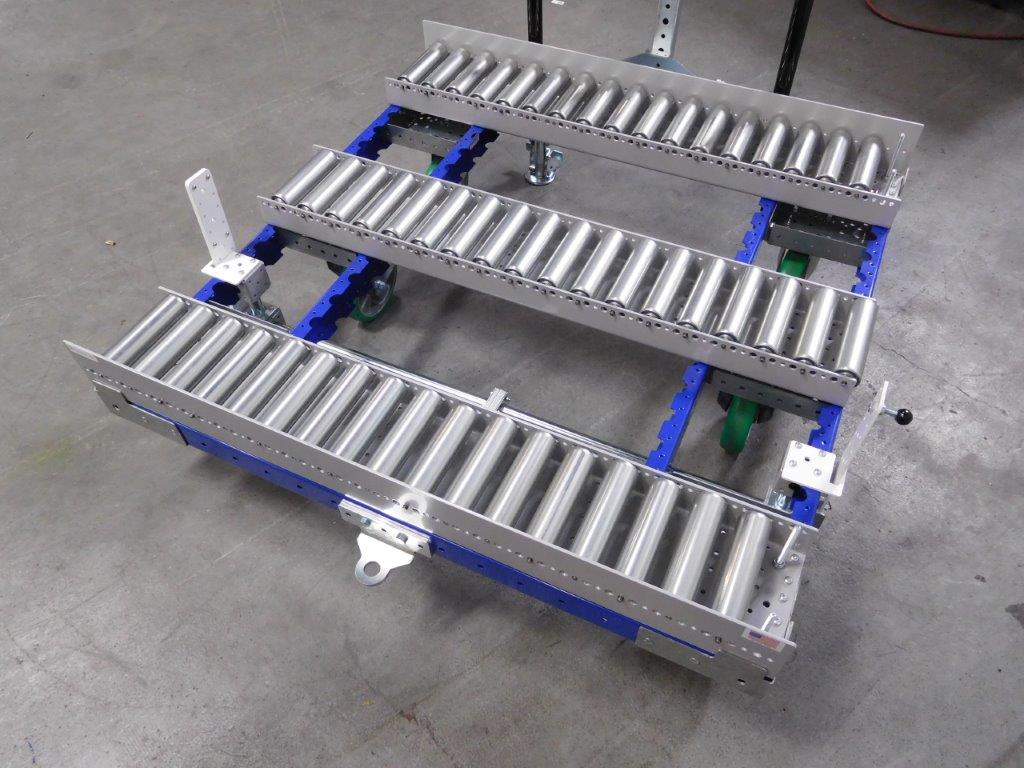

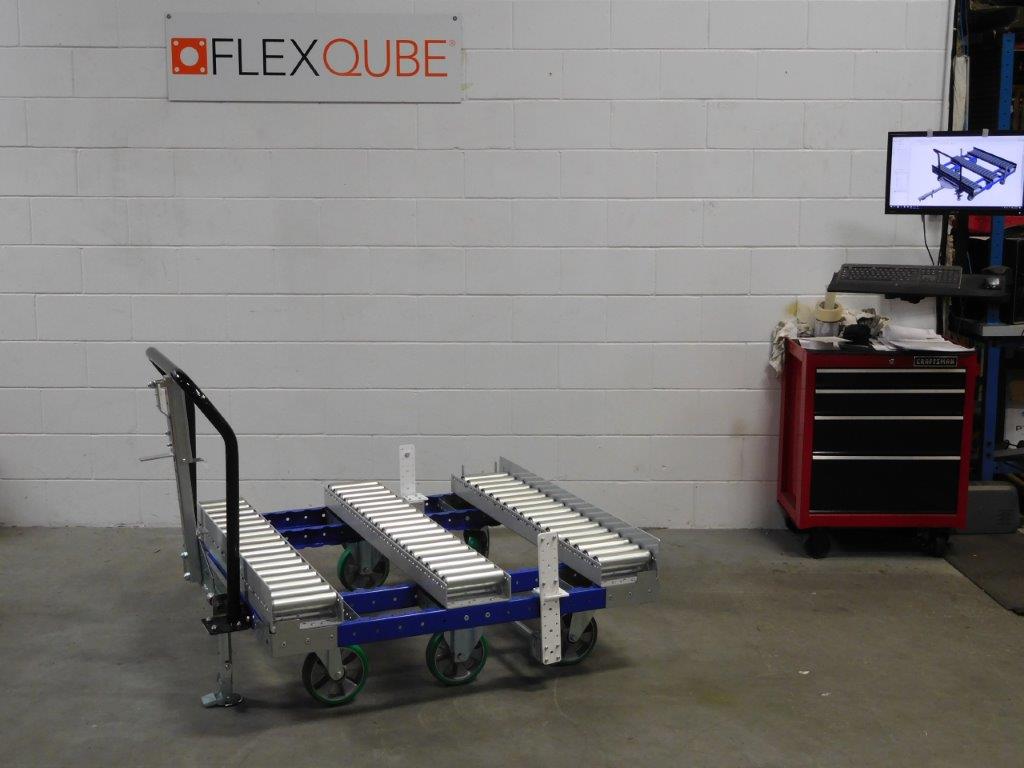

Roller transfer cart – 1260 x 1260 mm

Specially designed transfer cart for pallets and containers.

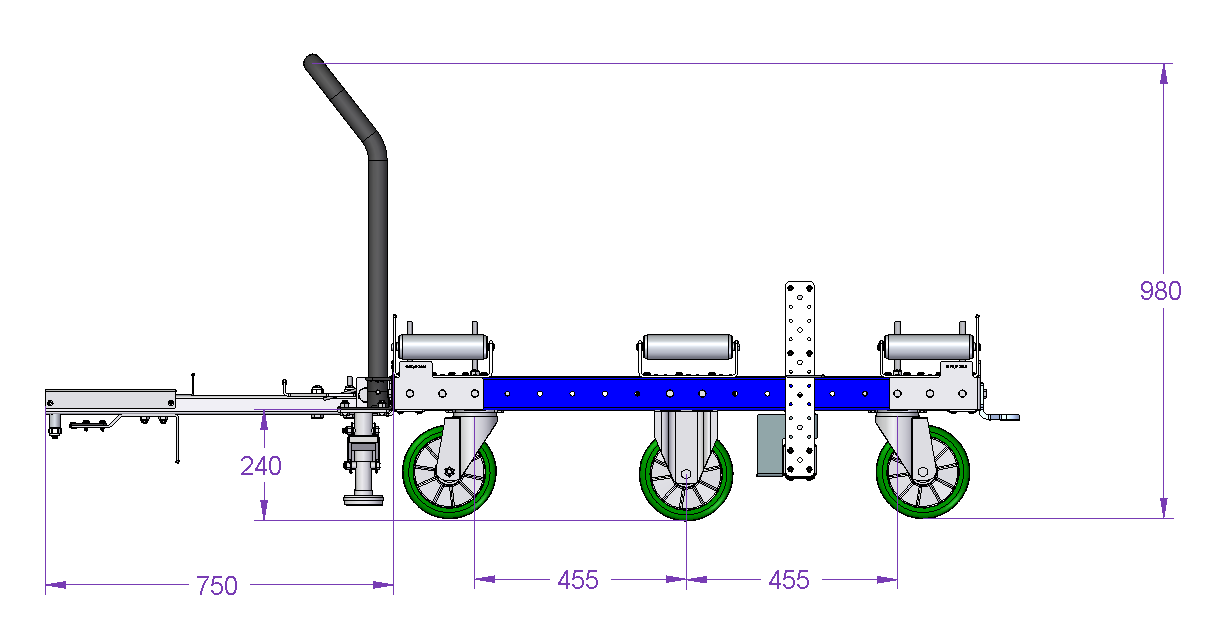

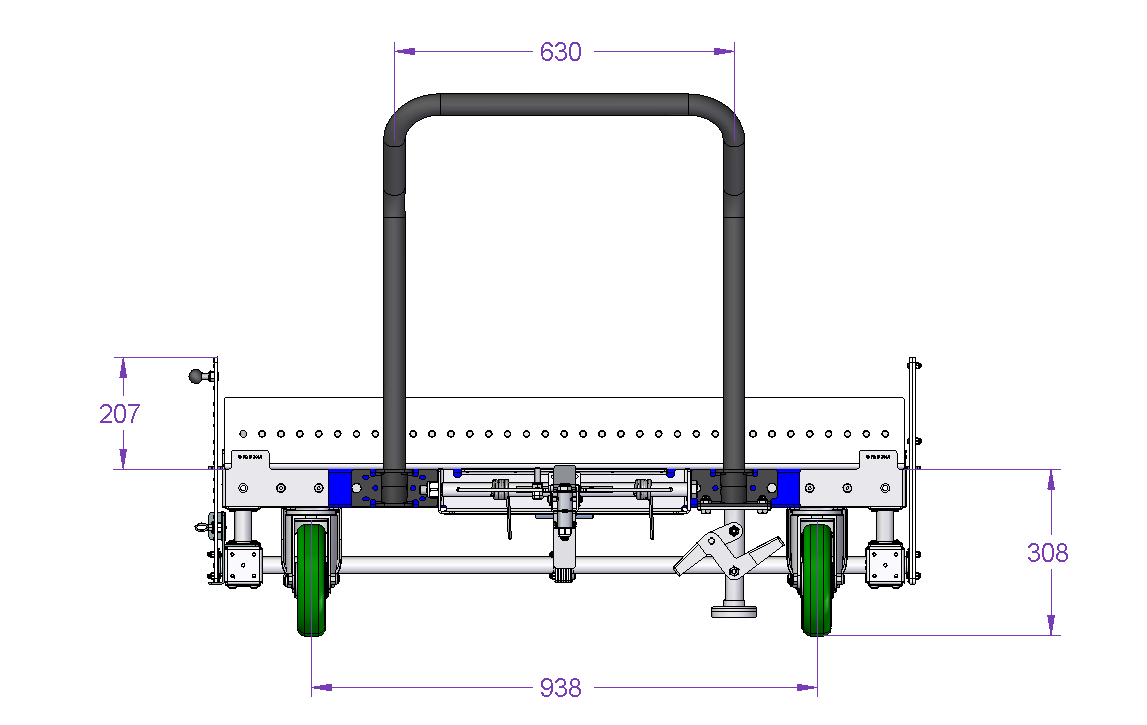

Technical specifications

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

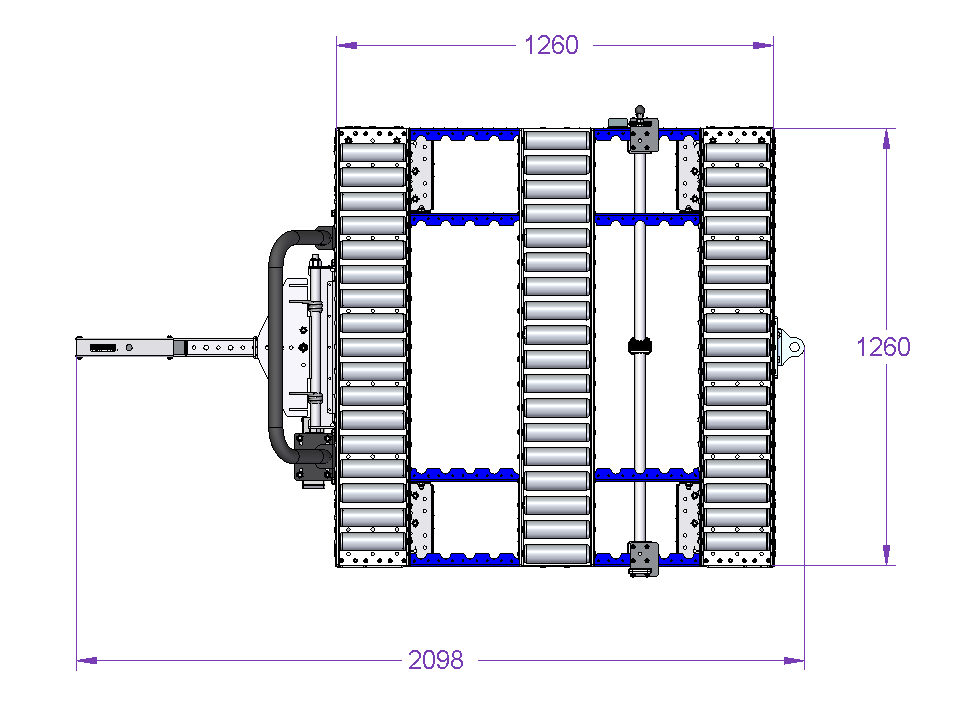

Width: 1260 mm

Length: 1260 mm

Load capacity: 450 kg

Transportation method: Manual, Tugger

Caster size: 200 mm

More info

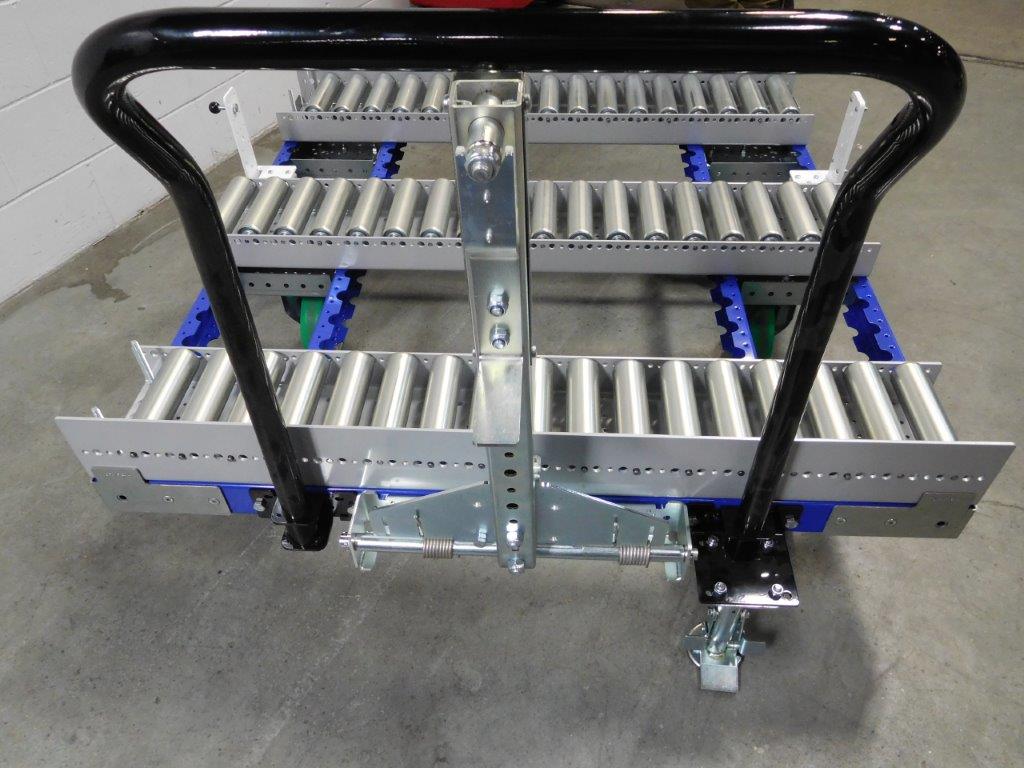

This roller transfer cart was designed to make it easier to transfer pallets and containers onto conveyors. It is equipped with an ergonomic handlebar for easier manual transportation. It also has a foot release tow bar for transportation in a tugger train system. The purpose of the foot release is to improve ergonomics and reduce the amount of bending down and stretching done by operators.

Parts included

FlexTube™ 70 mm – Locking Nut 2 Q-000-1101

FlexTube™ 630 mm 2 Q-000-1312

FlexQube® 6 Q-001-1078

FlexBeam™ 1190 mm 4 Q-001-1300

FlexBeam™ 1120 mm FE 2 Q-001-1401

FlexBeam™ 1260 mm FE 2 Q-001-1500

FlexPlate™ 15 Q-002-1001

Roller Fixture Side – 200 mm 2 Q-003-0025

Roller Fixture middle – 200 mm 1 Q-003-0026

Roller 200 mm 734105 52 Q-004-1060

Wheel Attachment – 105 x 77.5 mm 2 Q-004-1065

Caster Polyurethane – 200 mm 4 Q-004-1100

Caster Polyurethane – 200 mm Fixed 2 Q-004-1101

Floor Brake LTL 200 1 Q-004-1359

Locking Guide Plate 2 Q-005-0290

Rotation handle and lock – 420 mm 3 Q-005-0343

Spring Cover Plate 1 Q-005-1025

Spring for Tow Bar 2 Q-005-1070

Wheel Attachment Box 6 Q-005-1079

Pallet Guide Corner Plate 4 Q-005-1096

Spherical Knob 1 Q-005-1146

Rotation Handle Plunger Guide 1 Q-005-1352

Hex Head M14 x 90 mm 1 Q-005-1406

64 mm FlexBeam™ Collet 12 Q-005-1426

Indexing Plunger GN.37313 1 Q-005-1544

M20 x 500 mm Hex Head 1 Q-006-1016

M6 x 20 K6S 10.9 Round Head (black) 12 Q-006-1018

M14 x 60 mm Hex Head 2 Q-006-1036

M10 x 120 mm Fully Threaded 4 Q-006-1037

Locking Nut M14 3 Q-006-1039

M10 x 25 mm Hex Head 42 Q-006-1041

Locking Nut M10 82 Q-006-1042

Washer M10 14 Q-006-1043

Locking Nut M6 16 Q-006-1050

M10 x 95 mm Hex Head 2 Q-006-1088

M10 x 90 mm Hex Head 6 Q-006-1132

Nut M10 2 Q-006-1195

M10 x 50 mm Hex Head Fully Threaded 1 Q-006-1343

Extra low head [1.5 mm] M10 x 40 mm 1 Q-006-1361

M10 x 90 mm Extra Low Head 8 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 108 Q-006-1384

M20 Locking Nut 1 Q-006-1405

M10 x 25 mm Extra Low Head Allen 16 Q-006-1410

M10 x 60 mm Hex Head Fully Threaded 2 Q-006-1502

Spring 1.5 x 15yd x 70 1 Q-012-1141

Handlebar/Floor Brake Attachment US 1 Q-015-0029

Handlebar Attachment US 1 Q-015-0031

Tube for Handlebar US 1 Q-015-0032

US Modular Tow Bar VKR 670 mm – Foot Release 1 Q-017-0012

Foot Release Locking Lip 1 Q-017-0024

Locking lip attachment 1 Q-017-1043

Tow Hole 28 mm – Symmetrical 1 Q-017-1066

Tow Attachment to Beam 1 Q-017-1080

Tow Hinge 1 Q-017-1083

Towing Lock Pin US 1 Q-017-1105

39 mm Sleeve for M10 US 2 Q-017-1106
