Rotating cart - 840 x 1050 mm
Rotating Cart – 840 x 1050 mm
Rotating Cart – 840 x 1050 mm
Rotating Cart – 840 x 1050 mm
Rotating Cart – 840 x 1050 mm
Q-100-1383

Rotating cart - 840 x 1050 mm

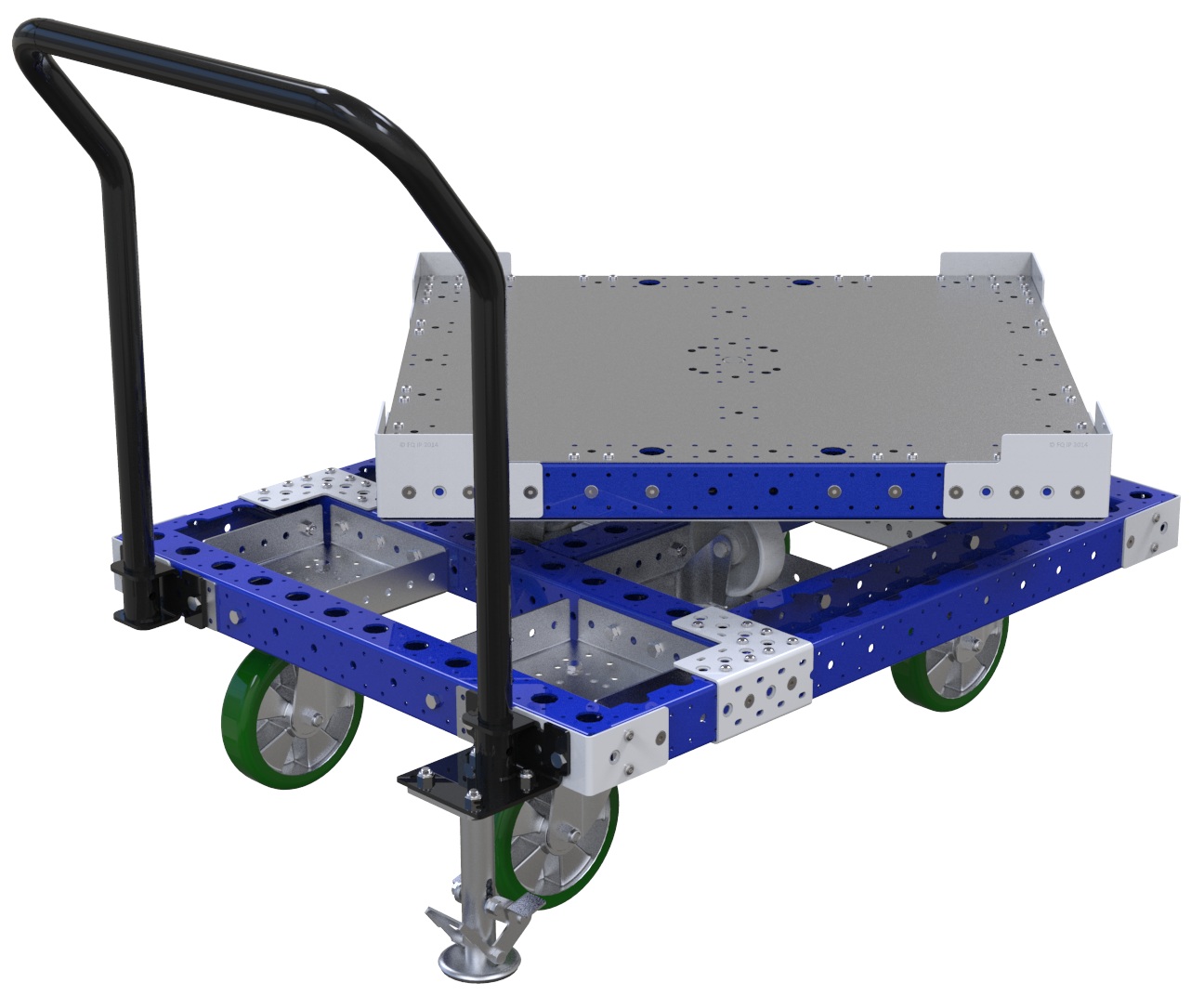

Pallet cart with a rotation platform. Equipped with four polyurethane casters, a floor brake and a handlebar.

Technical specifications

Category: Rotating

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 840 mm

Length: 1050 mm

Load capacity: 400 kg

Transportation method: Manual

Caster size: 200 mm

Caster Type: Polyurethane

More info

Pallet cart with a rotating platform. The base of the cart is larger than the platform to allow the platform to rotate without hitting the handlebar. The cart is equipped with four high quality polyurethane casters, a handlebar and a floor brake making it very easy to operate manually.

Parts included
FlexTube (One Plate) – 76 mm 2 Q-000-0178
Solid Tube – 25.4 x 243 mm 1 Q-000-0179
FlexPlate™ 4 Q-002-1001
Stiffener – Outside 4 Q-002-1050
Flexplate™ M10 2 Q-002-1162
Wheel Attachment – 105 x 77.5 mm 8 Q-004-1065
Caster Polyurethane – 200 mm Swivel 2 Q-004-1211
Caster Polyurethane 200 mm Fixed IP2 2 Q-004-1212
Polyamide Caster 125 mm 4 Q-004-1356
US Floor Brake – 200 mm 1 Q-004-1613
L Bracket Joint 4 Q-005-0031
M10 Collet – 70 mm 4 Q-005-0043
Rotation Lock Direction Plate 1 Q-005-0051
Triangle Joint 2 Q-005-0483
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 28 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Rotation Lock 1 Q-005-2020
M10 x 25 mm Hex Head 34 Q-006-1041
Locking Nut M10 109 Q-006-1042
Washer M10 8 Q-006-1043
M10 x 95 mm Hex Head 2 Q-006-1088
M10 x 90 mm Hex Head 23 Q-006-1132
M10 x 20 mm Hex Head 1 Q-006-1232
M10 x 90 mm Extra Low Head 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 180 Q-006-1384
M10 x 25 mm Extra Low Head Allen 26 Q-006-1410
69 – 18 mm Spring for 25 mm tube 1 Q-012-1050
Handlebar/Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top Plate – 770 x 840 mm 2 Q-016-0736
FlexBeam™ – 770 mm 6 Q-020-0770
FlexBeam™ – 980 mm 2 Q-020-0980
FlexBeam™ FE – 630 mm 6 Q-021-0630
