Shelf Cart - 63 x 33 inch
Shelf Cart – 63 x 33 Inches
Shelf Cart – 63 x 33 Inches
Shelf Cart – 63 x 33 Inches
Shelf Cart – 63 x 33 Inches
Shelf Cart – 63 x 33 Inches
Shelf Cart – 63 x 33 Inches
Q-100-0633

Shelf Cart - 63 x 33 inch

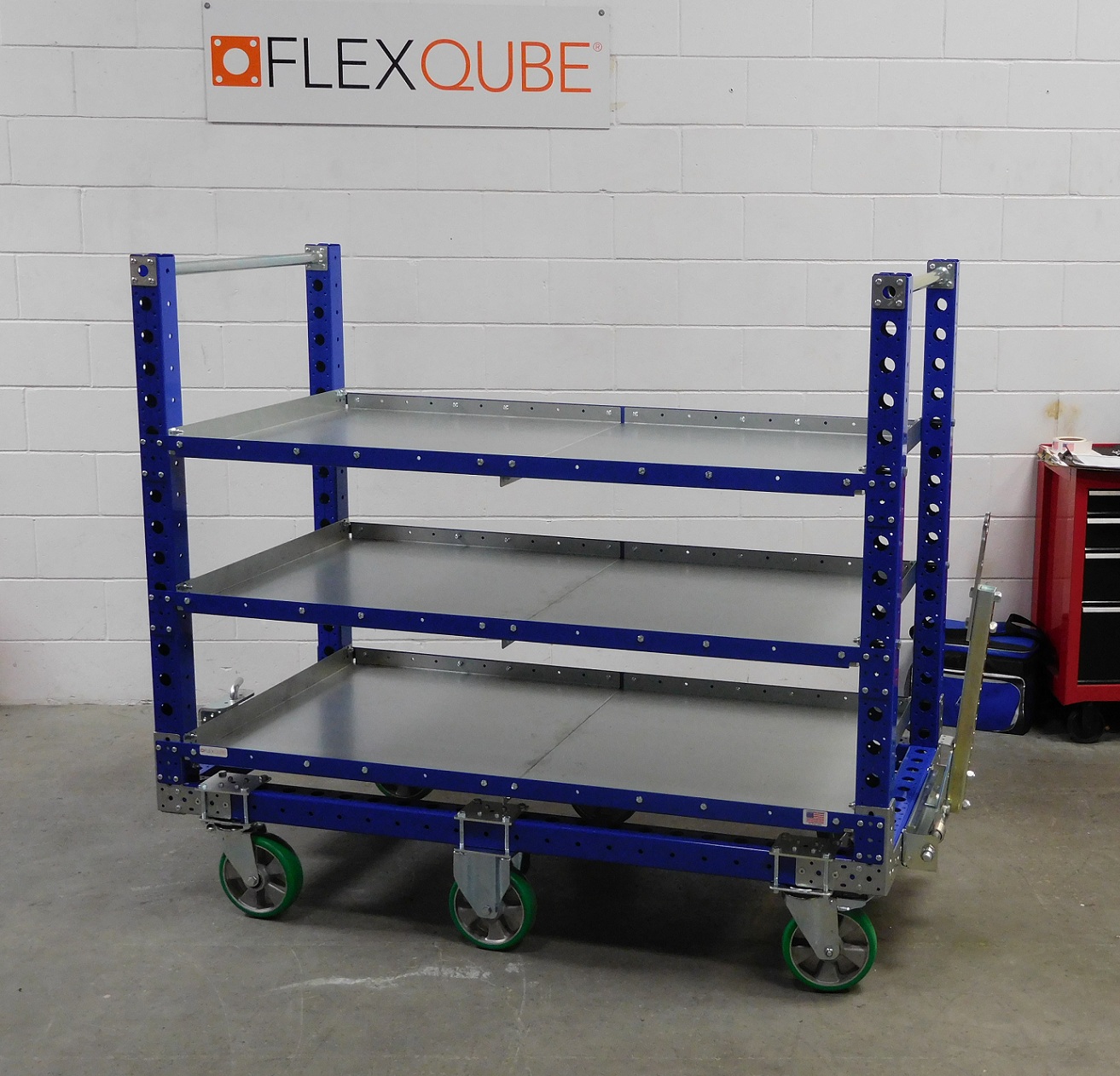

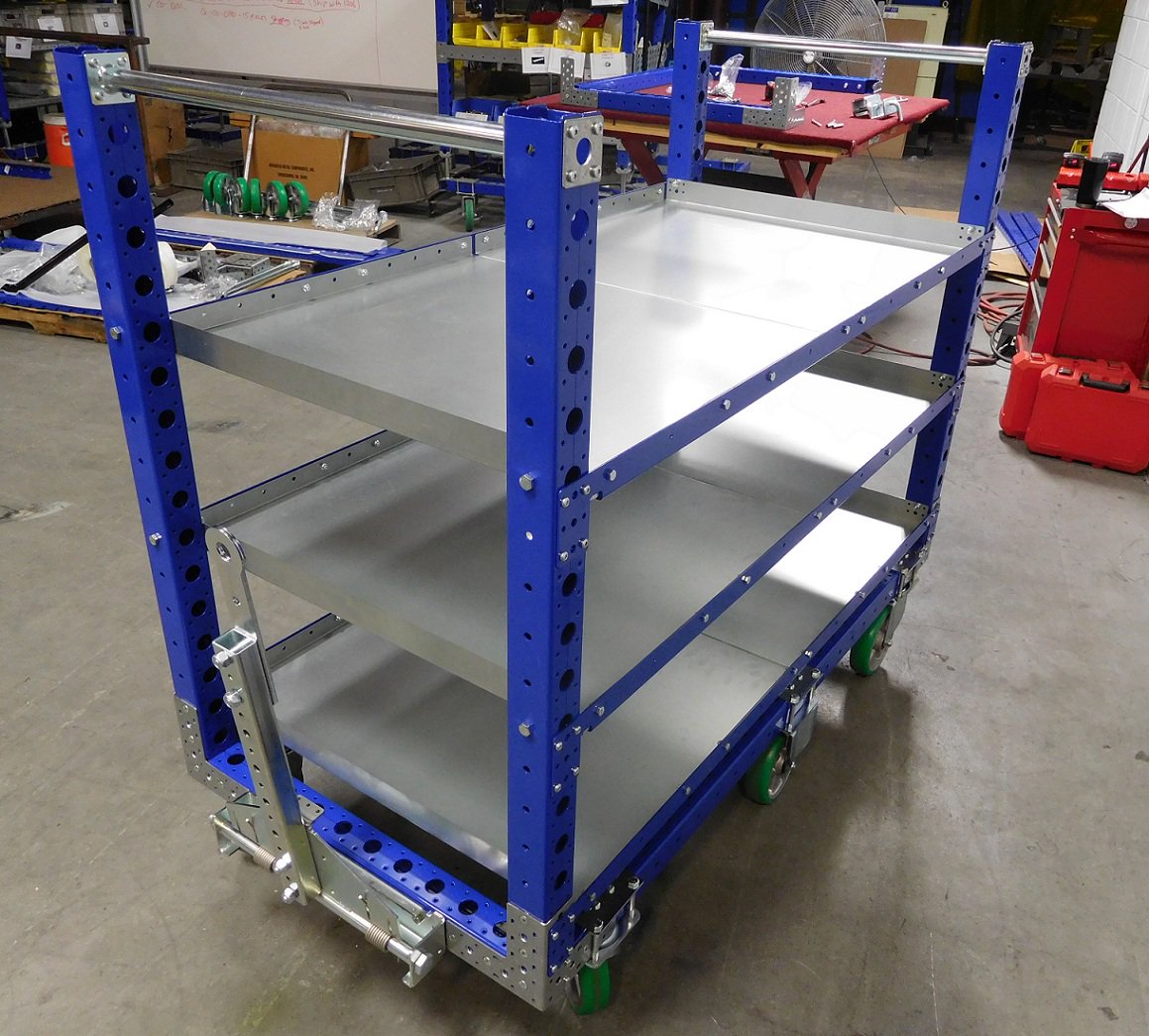

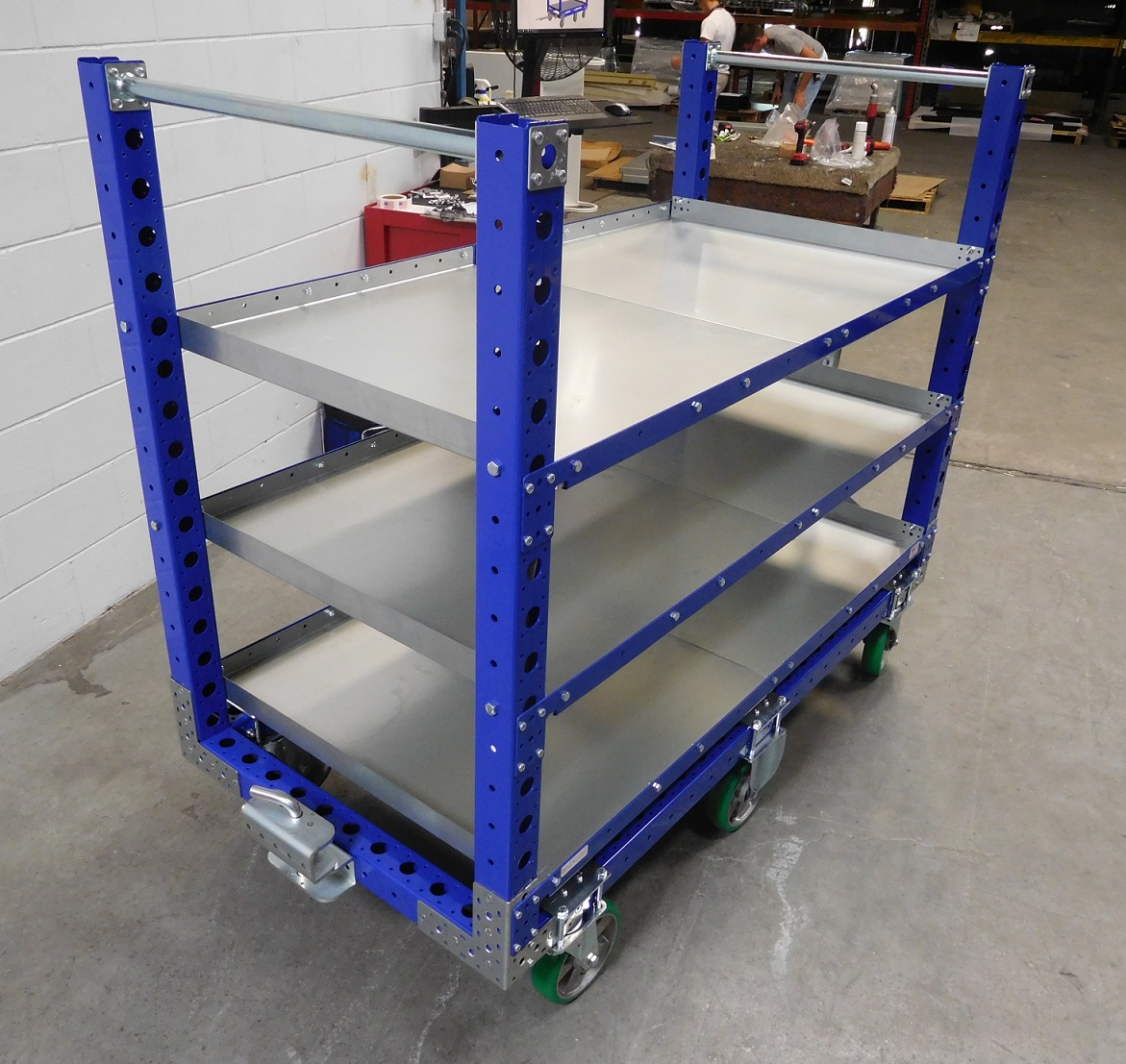

Standard flat shelf cart equipped with three flat shelves.

Technical specifications

Category: Flat Shelf

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 840 mm

Levels: 3

Load capacity: 408 kg

Load Capacity per Level: 136 kg

Transportation method: Tugger

Caster size: 200 mm

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This flat shelf cart was designed to transport totes, bins and boxes more efficiently. The three shelves can have their height adjusted easily up or down depending on your materials. It also comes equipped with a drop pin and hitch tow bar for transportation in a tugger train system.

Parts included
FlexTube™ 700 mm 2 Q-000-1002
FlexBeam™ – 1610 mm 4 Q-001-1294
FlexBeam™ 1190 mm FE 8 Q-001-1400
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 12 Q-002-1001
Wheel Attachment – 105 x 77.5 mm 8 Q-004-1065
Caster Polyurethane – 200 mm 4 Q-004-1100
Caster Polyurethane – 200 mm Fixed 2 Q-004-1101
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 36 Q-005-1426
M6 x 30 mm Allen Head 1 Q-006-1012
M20 x 500 mm Hex Head 1 Q-006-1016
M14 x 60 mm Hex Head 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Locking Nut M10 69 Q-006-1042
Locking Nut M6 1 Q-006-1050
M10 x 95 mm Hex Head 8 Q-006-1088
M8 x 16 mm Hex Head 66 Q-006-1120
M10 x 90 mm Hex Head 30 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
Locking Nut M8 66 Q-006-1181
M8 Washer 32 Q-006-1183
Nut M10 1 Q-006-1195
M10 x 50 mm Hex Head Fully Threaded 1 Q-006-1343
M10 x 90 mm Extra Low Head 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 144 Q-006-1384
M20 Locking Nut 1 Q-006-1405
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Flat shelf – 770 x 840 mm 6 Q-016-0292
Angled plate – 1668 mm 6 Q-016-1092
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Towing Lip – 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
