Small Cart with Shelves and Handles – Daughter Cart
Small Cart with Shelves and Handles – Daughter Cart
Small Cart with Shelves and Handles – Daughter Cart
Small Cart with Shelves and Handles – Daughter Cart
Q-100-0421

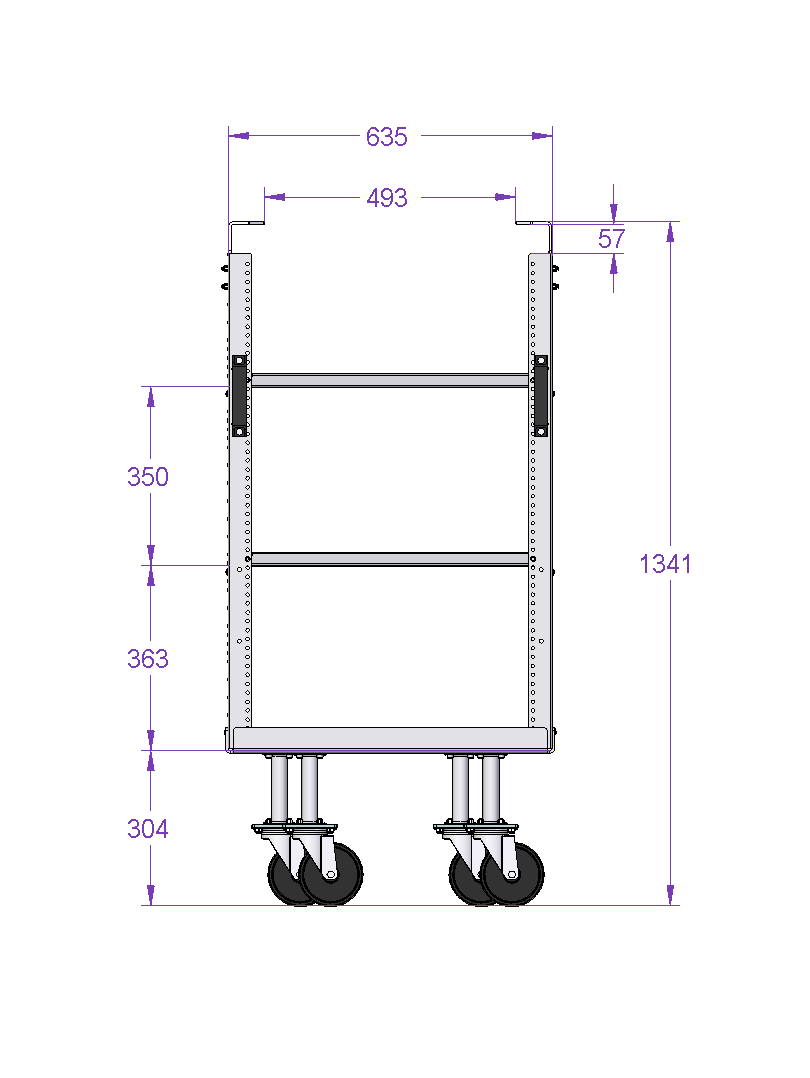

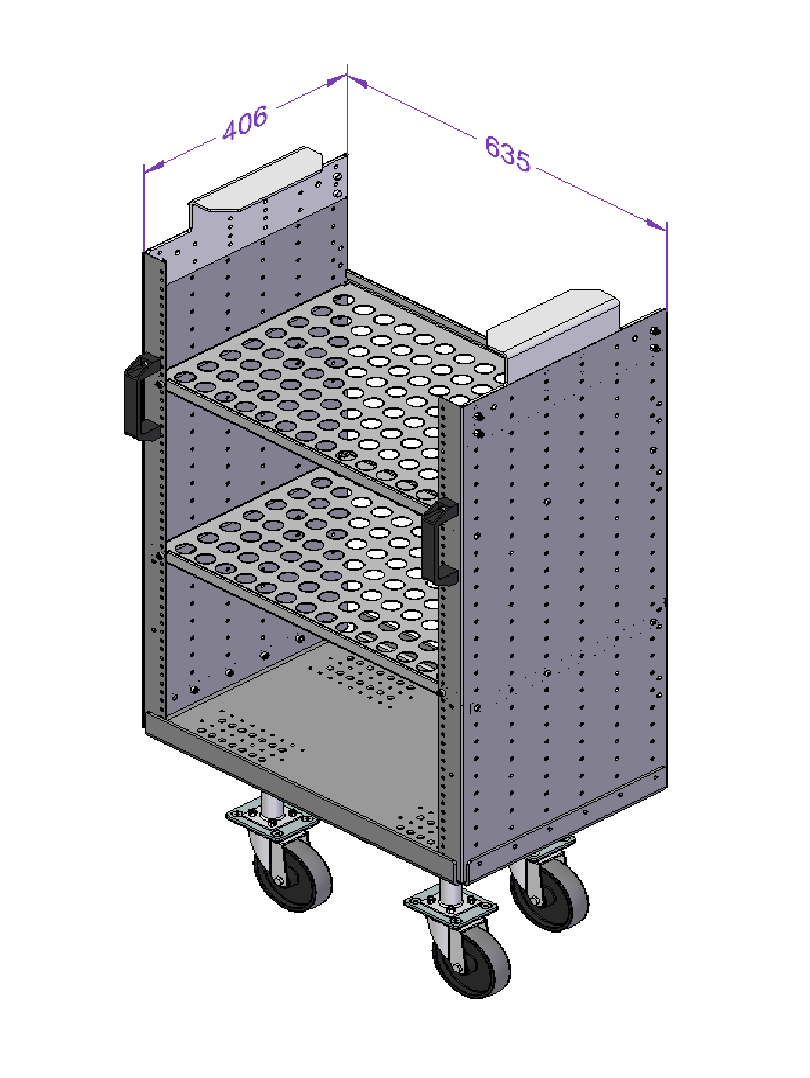

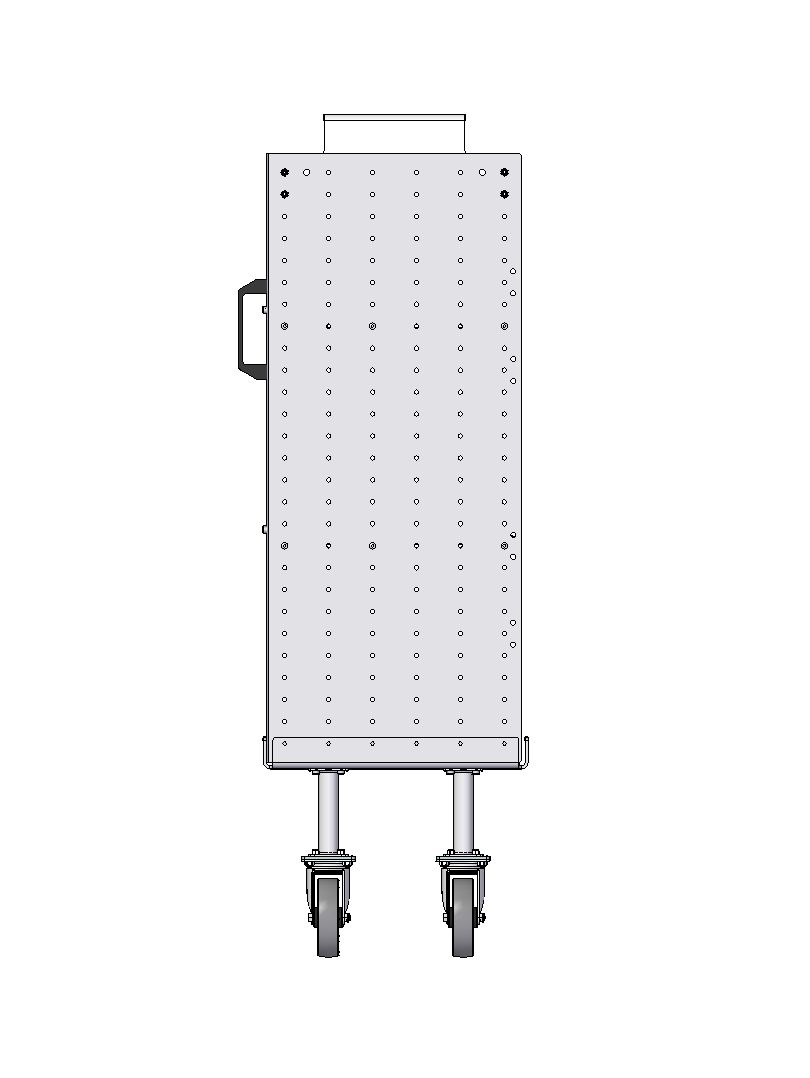

Small Cart with Shelves and Handles – Daughter Cart

Flat shelf cart designed to be used in a mother-daughter system. The cart is equipped with three shelves, four swivel casters and handlebars.

Technical specifications

Transportation method: Manual, Mother-Daughter Cart

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 645 mm

Width: 406 mm

Load Capacity per Level: 30 kg

Levels: 3

Load capacity: 90 kg

Caster size: 125 mm

Caster Type: Polyurethane

More info

This shelf cart is designed to be used in a mother-daughter system and two to six daughters can be transported in the mother at the same time. The cart is equipped with three flat shelves with a lip, two handlebars and four swivel casters for manual transportation.

Parts included
FlexTube™ 140 mm – Locking Nut 4 Q-000-1102
125 mm Swivel Caster 4 Q-004-1363
Daughter Cart Bottom 1 Q-005-1720
Daughter Cart Side 2 Q-005-1721
Wheel Attachment – 80 x 60 mm 4 Q-005-1722
L-Shape Daughter Cart Guide 2 Q-005-1723
M6 x 16 mm Allen Head 8 Q-006-1011
M8 x 20 mm Hex Head Fully Threaded 4 Q-006-1019
Locking Nut M6 24 Q-006-1050
M6 x 12 mm Round Head 12 Q-006-1051
Locking Nut M8 20 Q-006-1181
M6 x 16 mm Countersunk Allen Head 16 Q-006-1197
M8 x 16 mm Countersunk 16 Q-006-1214
M6 x 8 mm Allen Head 32 Q-006-1336
M8 Handle – 140 mm 2 Q-015-1409
632 x 405 mm Daughter Cart Shelf 2 Q-016-1049
