Q-100-0548

Stackable Shelf Carts For B-Frame

Stackable flat shelf cart for totes, bins and boxes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 1260 mm

Load capacity: 280 kg

Levels: 4

Load Capacity per Level: 70 kg

Width: 840 mm

Transportation method: LiftRunner Frames, Manual

Caster size: 200 mm

Caster Type: Nylon

More info

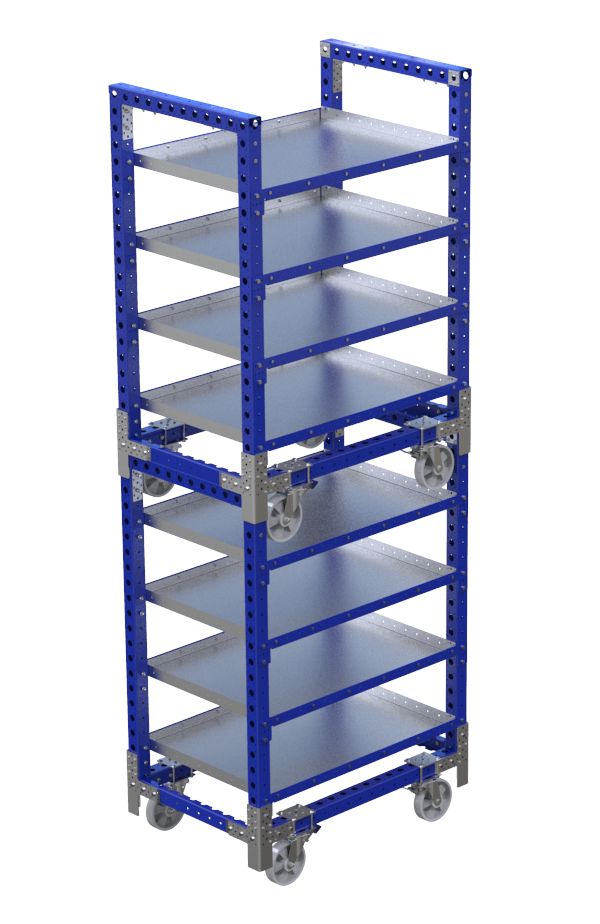

This custom designed flat shelf cart was designed to be stacked on top of each other. It is equipped with four flat shelves for the totes, bins and boxes. The shelves can be easily adjusted up or down depending on your materials. It comes equipped with four high quality polyamide casters for easier handling.

Parts included
FlexBeam™ – 1470 mm 8 Q-001-1296
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 840 mm FE 4 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 12 Q-002-1001
Flexplate™ M10 20 Q-002-1162
FlexPlate™ half 12 Q-002-1369
Wheel Attachment – 105 x 77.5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
L Bracket Joint 4 Q-005-0031
Beam to Beam Corner Plate for stackable carts – 5 mm 4 Q-005-0372
64 mm FlexBeam™ Collet 12 Q-005-1426
M10 x 25 mm Hex Head 12 Q-006-1041
Locking Nut M10 88 Q-006-1042
M8 x 16 mm Hex Head 48 Q-006-1120
M10 x 90 mm Hex Head 56 Q-006-1132
Locking Nut M8 48 Q-006-1181
M10 x 90 mm Extra Low Head 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 120 Q-006-1384
Flat Shelf – 1119 x 840 mm 4 Q-016-1237
1248 mm Angled Plate 8 Q-016-1238
