Sub Frame for EUR-Pallet Carts 1260 x 840 mm

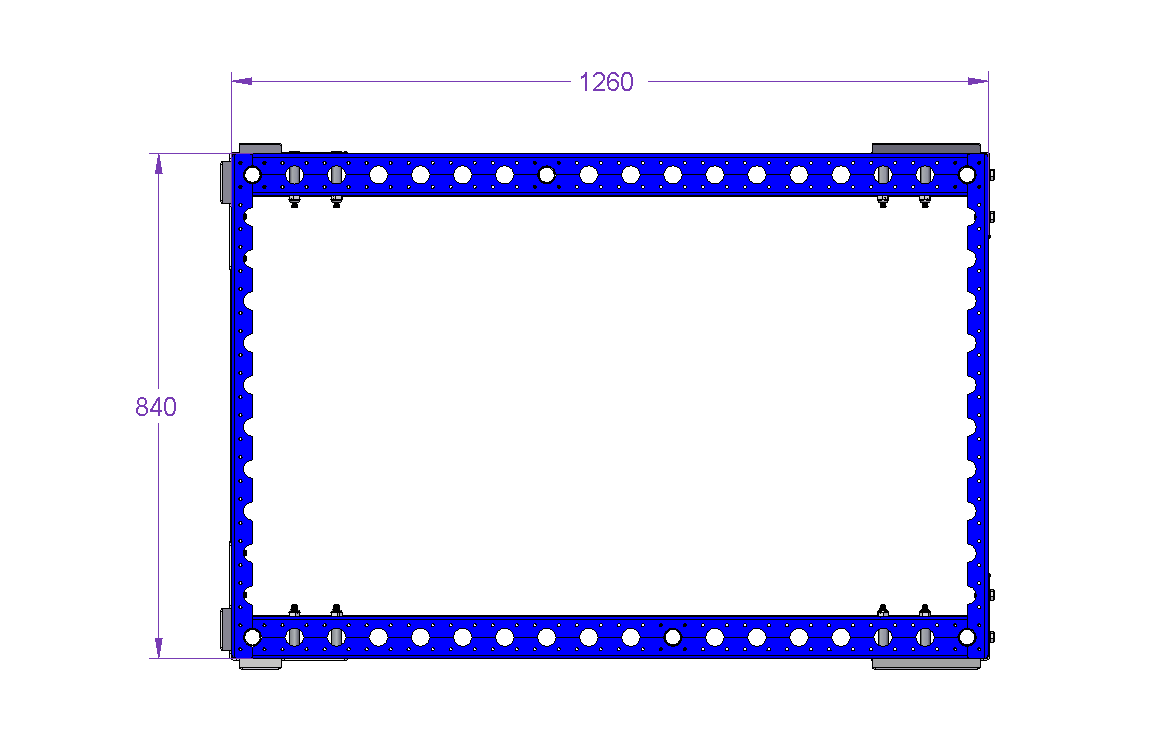

1260 x 840 mm subframe

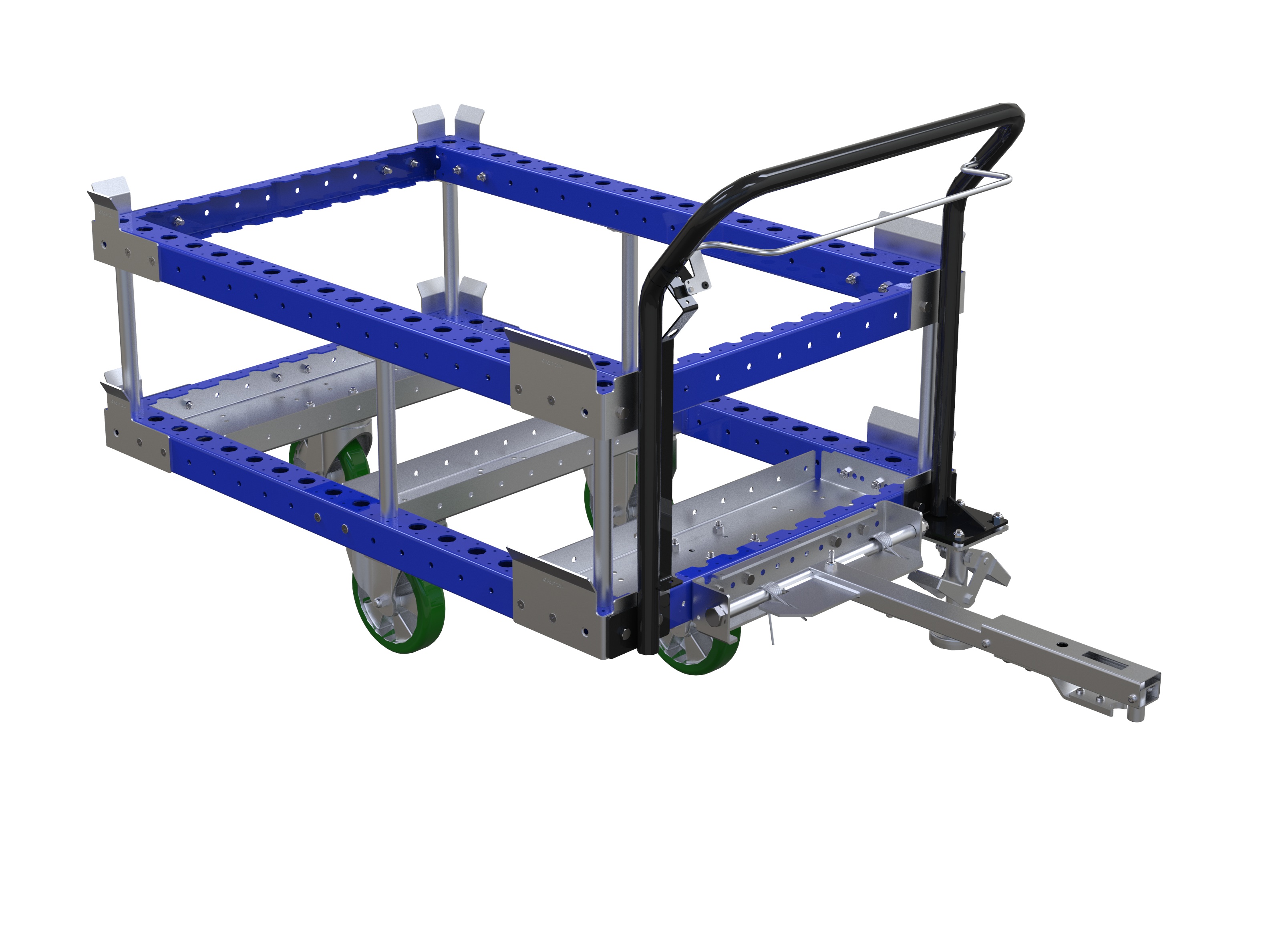

1260 x 840 mm subframe

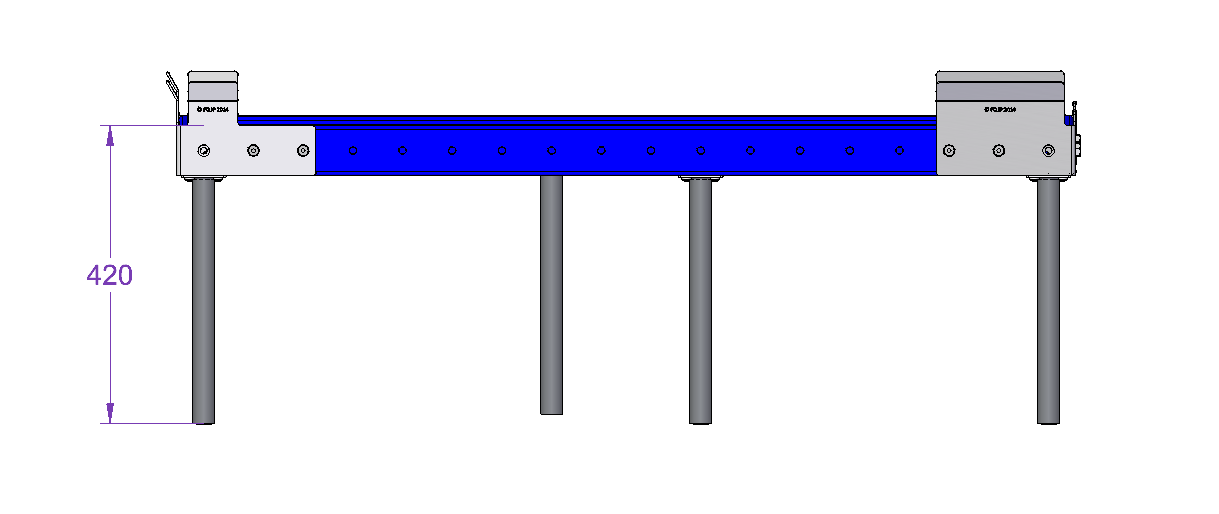

1260 x 840 mm subframe
Q-007-1320

Sub Frame for EUR-Pallet Carts 1260 x 840 mm

Top structure designed to fit a euro pallet cart.

Technical specifications

Category: Standard

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 840 mm

Length: 1260 mm

Load capacity: 1000 kg

Transportation method: Manual

More info

This sub frame was designed to fit euro pallet carts. This helps raise the tugger carts to the correct height for the operator. These top structures can be easily added or removed. The base tugger cart for this top structure is Q-007-1220.

Parts included
Outer tube (One Plate) 350 mm 6 Q-000-1414
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 840 mm FE 2 Q-001-1405
Left Angle Corner Plate 1 Q-005-1097
Angled Corner Plate 2 Q-005-1098
Right Angle Corner Plate 1 Q-005-1099
64 mm FlexBeam™ Collet 8 Q-005-1426
M10 x 25 mm Hex Head 4 Q-006-1041
Locking Nut M10 16 Q-006-1042
M10 x 90 mm Extra Low Head 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 24 Q-006-1384
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
