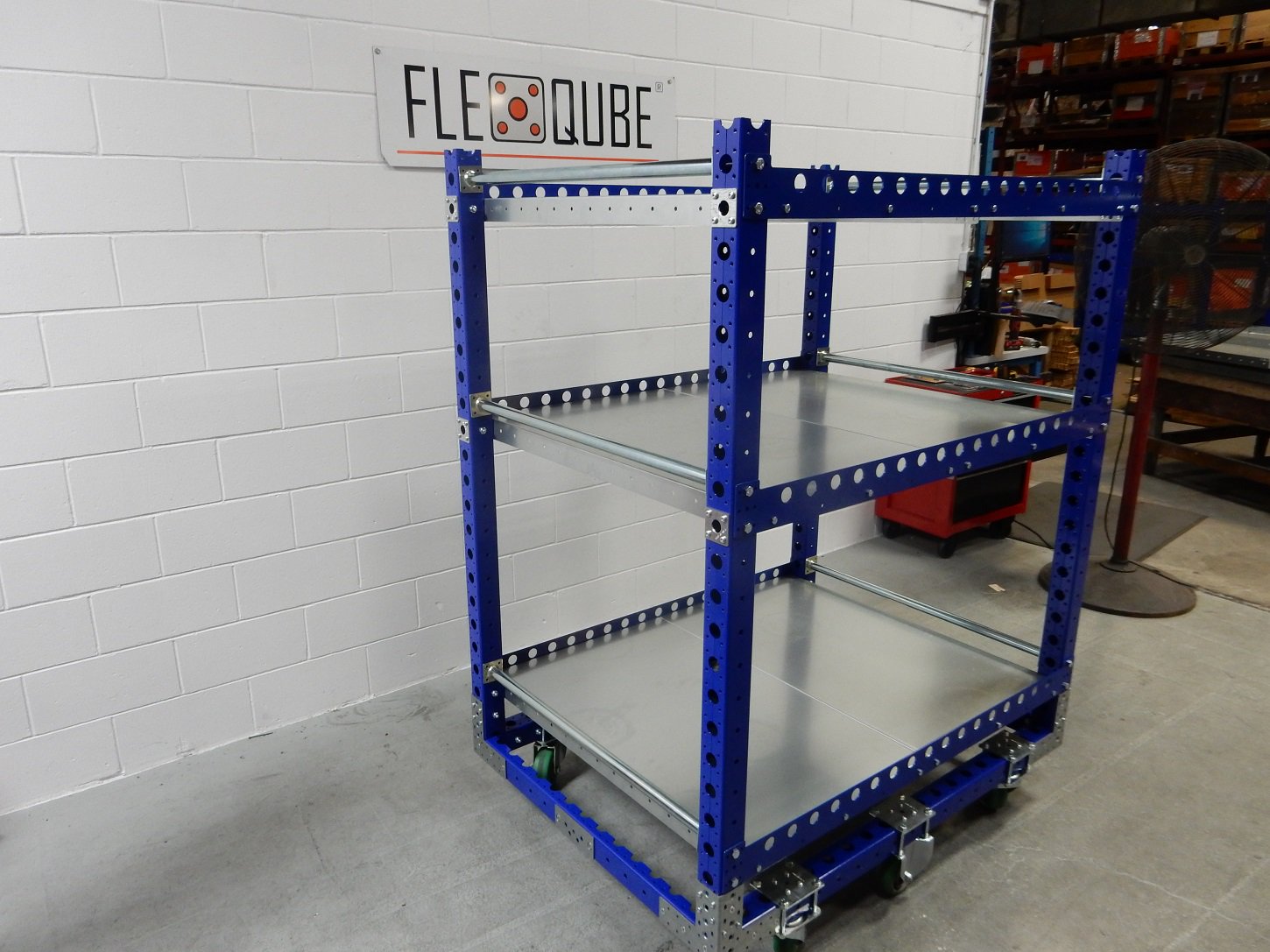

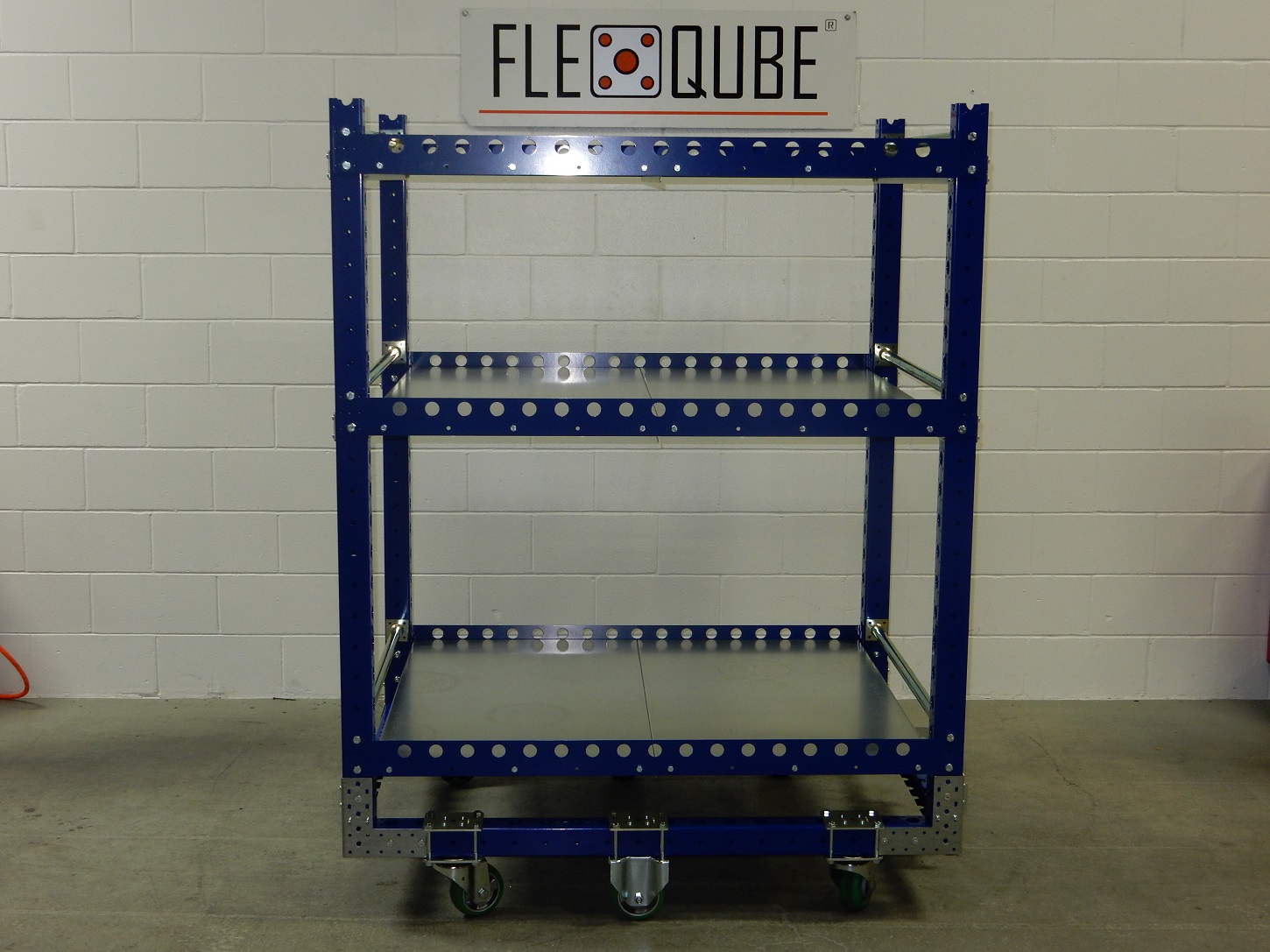

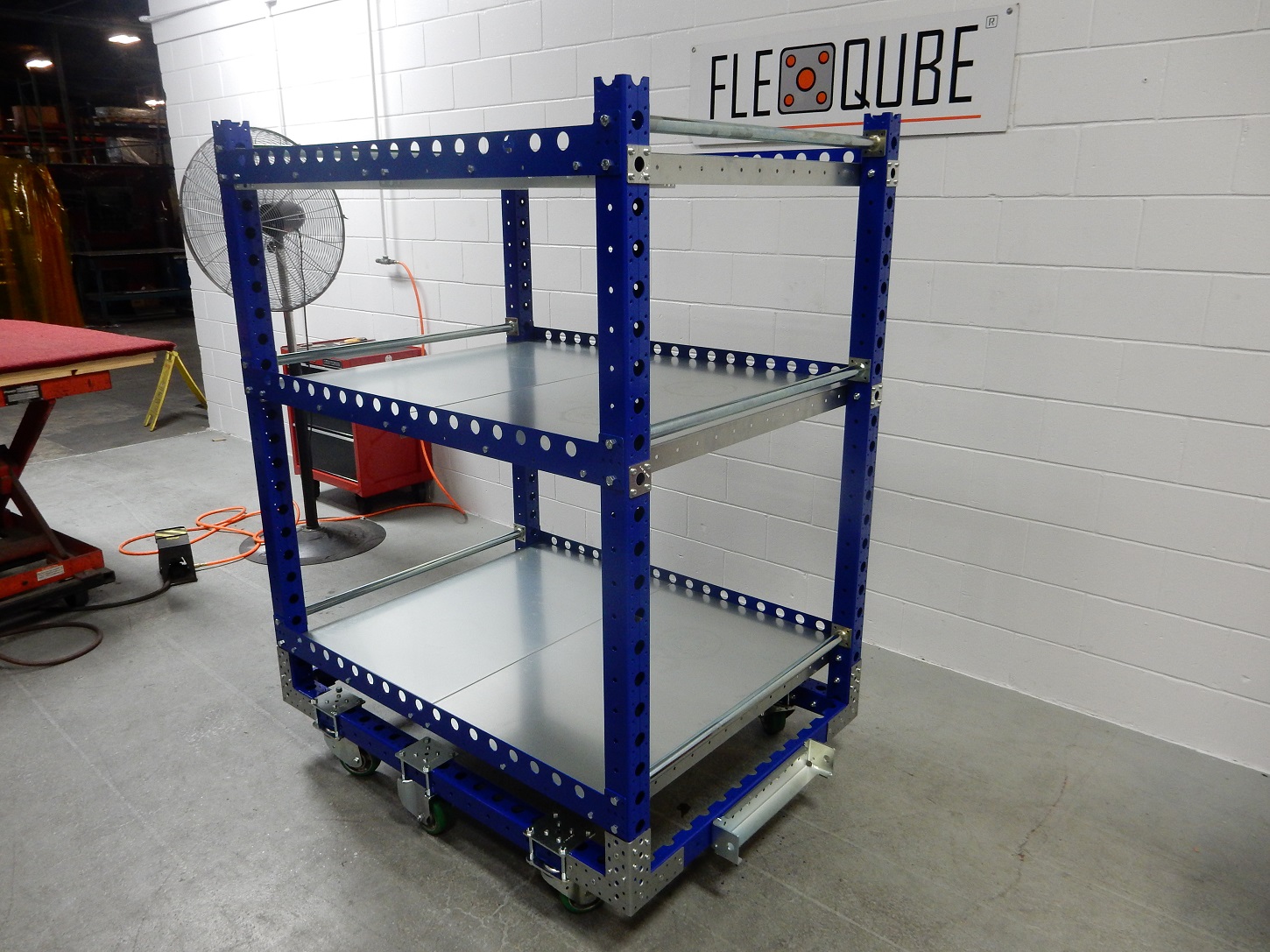

Tuggable Flat Shelf Cart – 55 x 41 Inches

Tuggable Flat Shelf Cart – 55 x 41 Inches

Q-100-0085

Tuggable Flat Shelf Cart – 55 x 41 Inches

Standard flat shelf cart for transporting totes, bins and boxes.

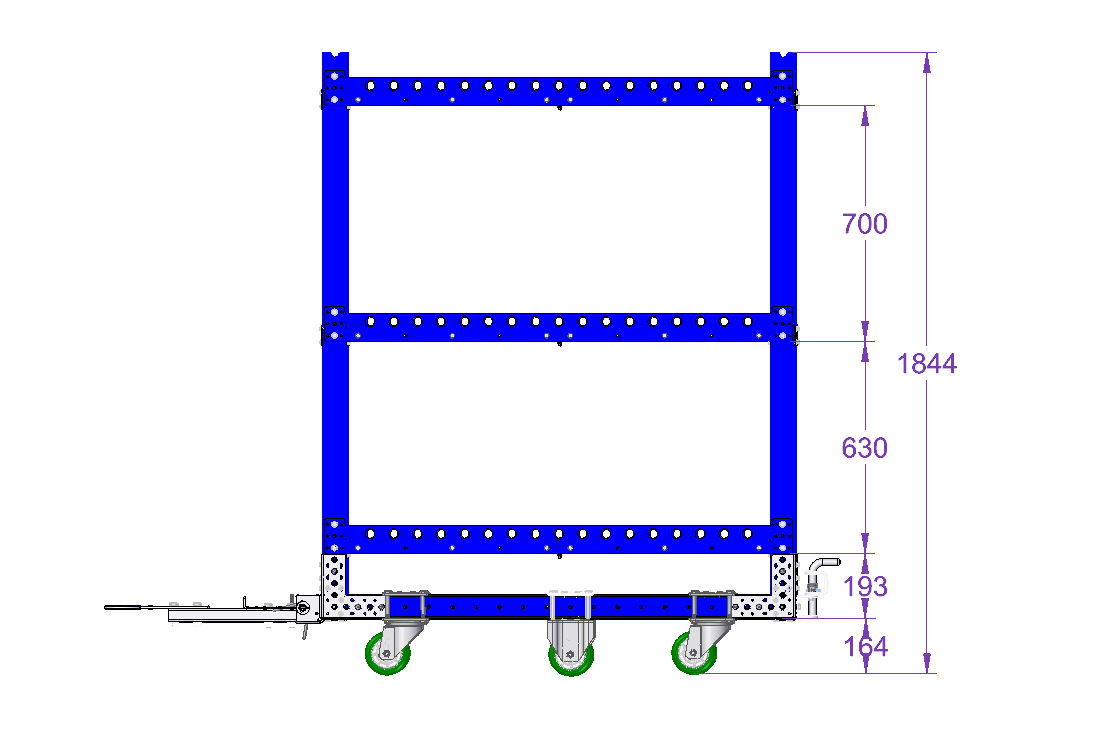

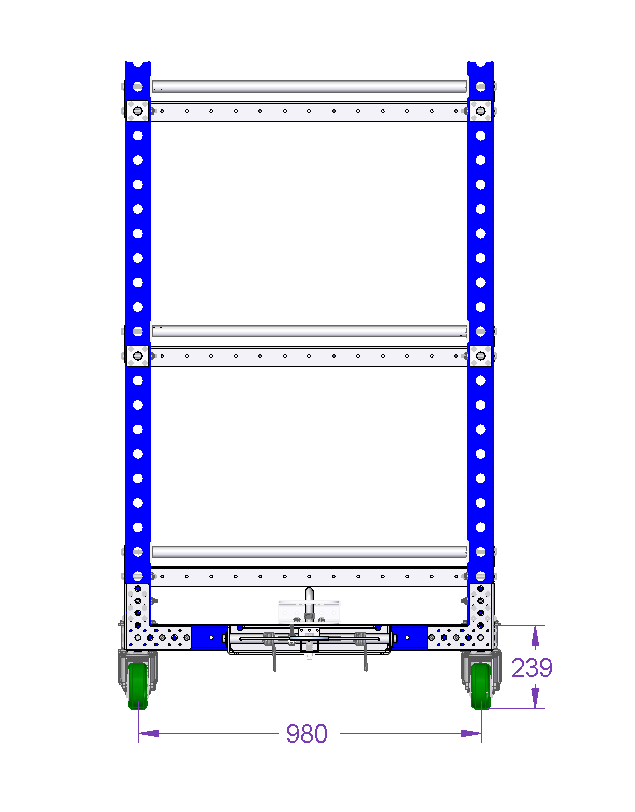

Technical specifications

Transportation method: Manual, Tugger

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

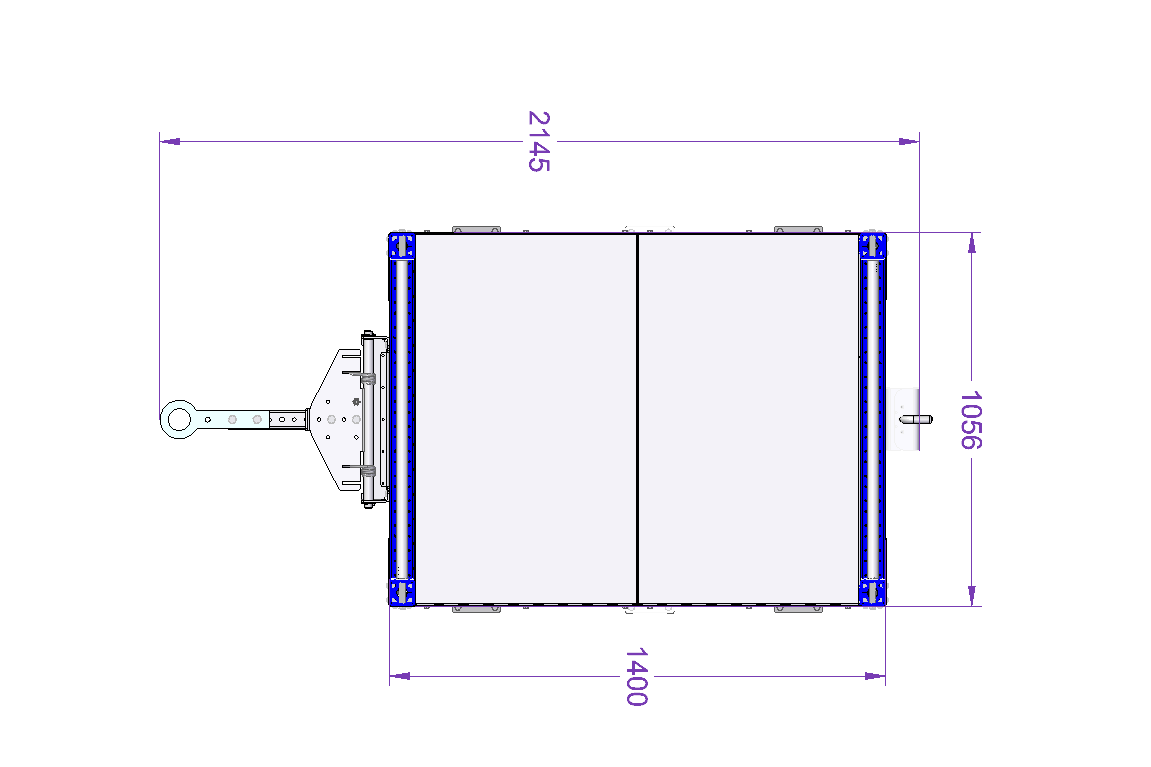

Length: 1400 mm

Width: 1050 mm

Caster size: 125 mm

Type of tow bar: Tongue and Hitch

Caster Type: Polyurethane

More info

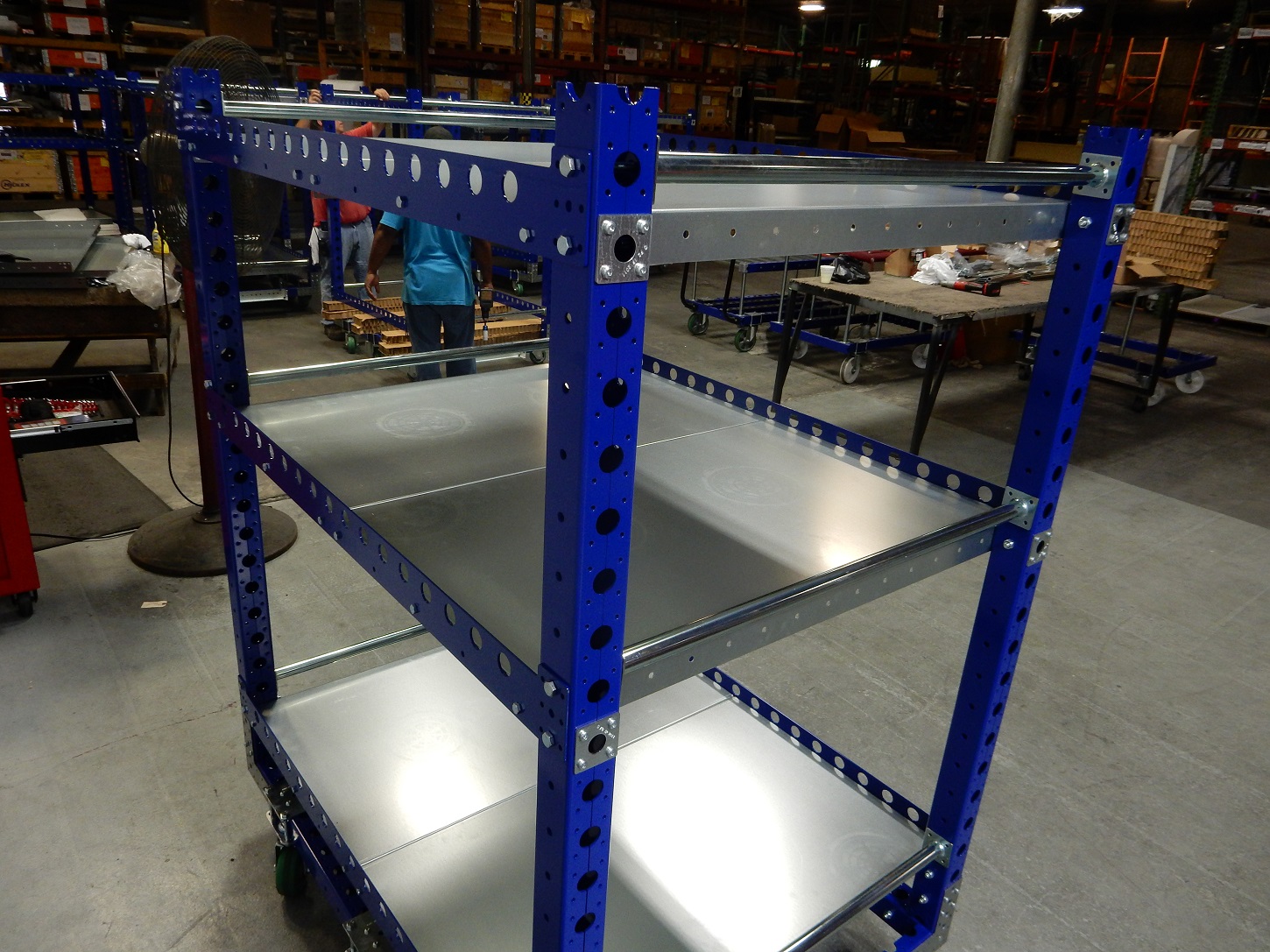

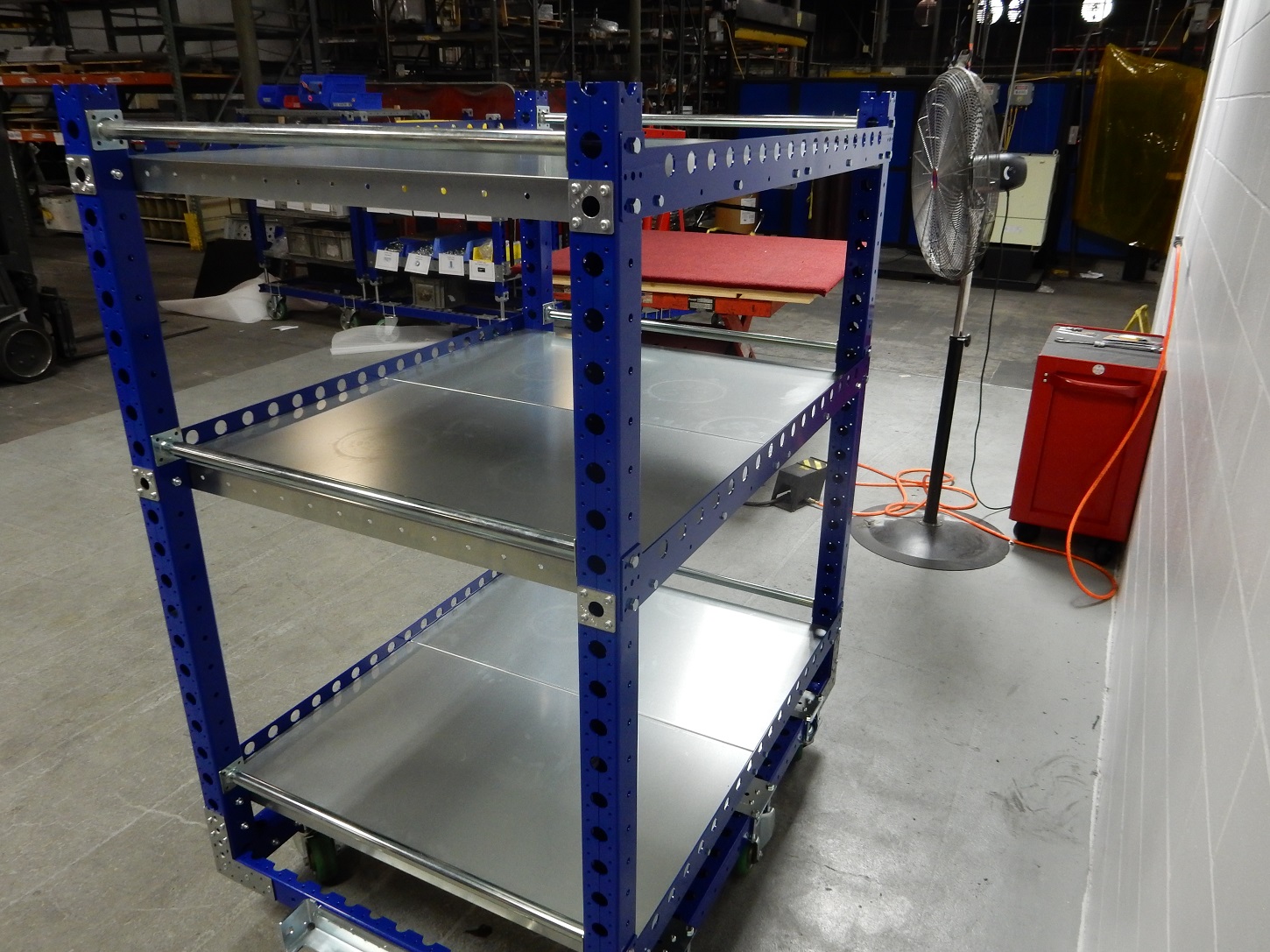

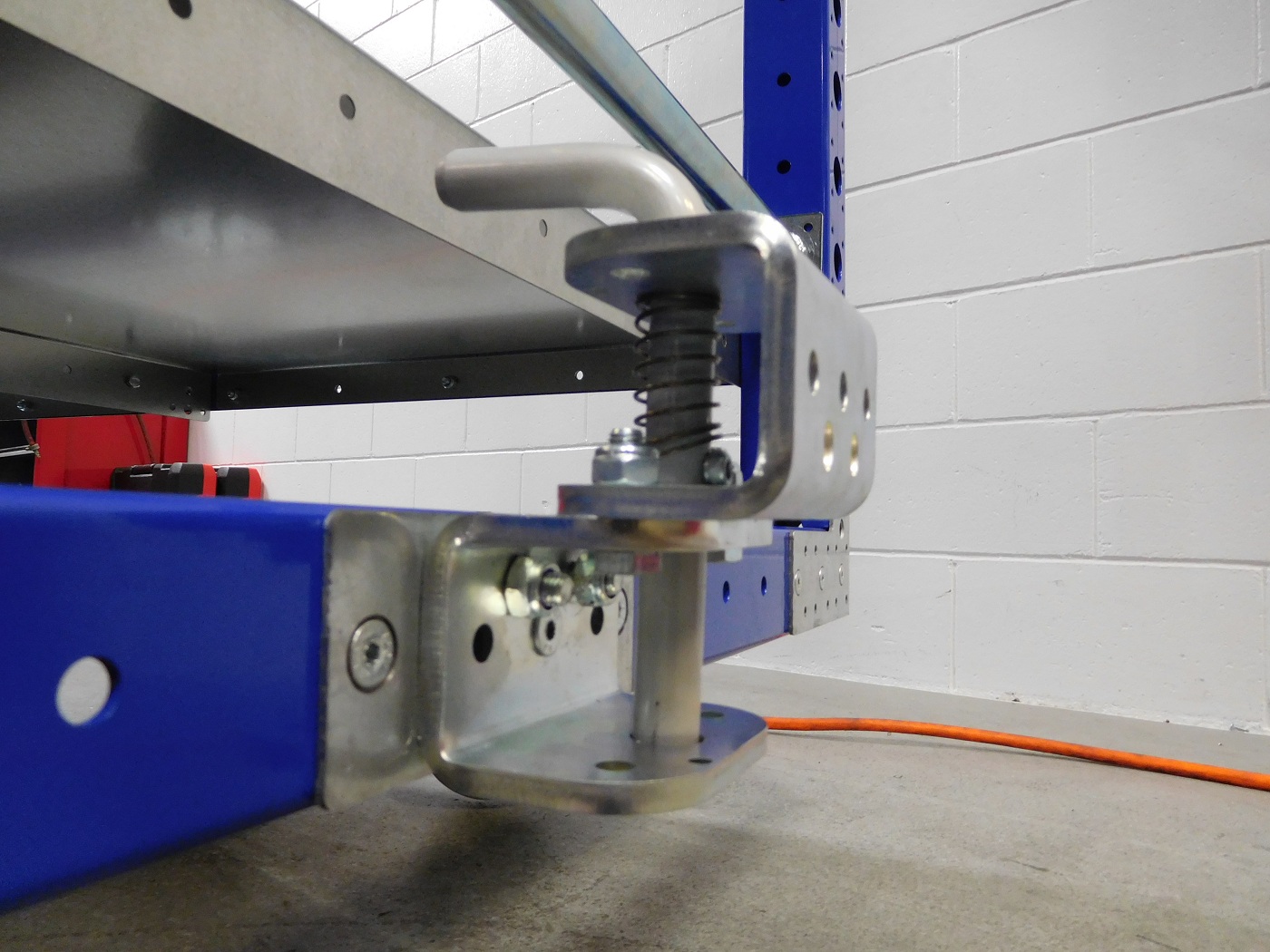

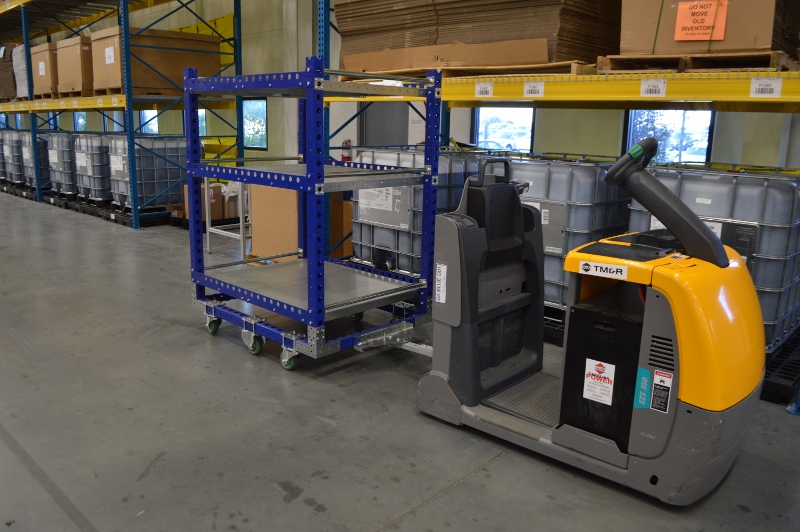

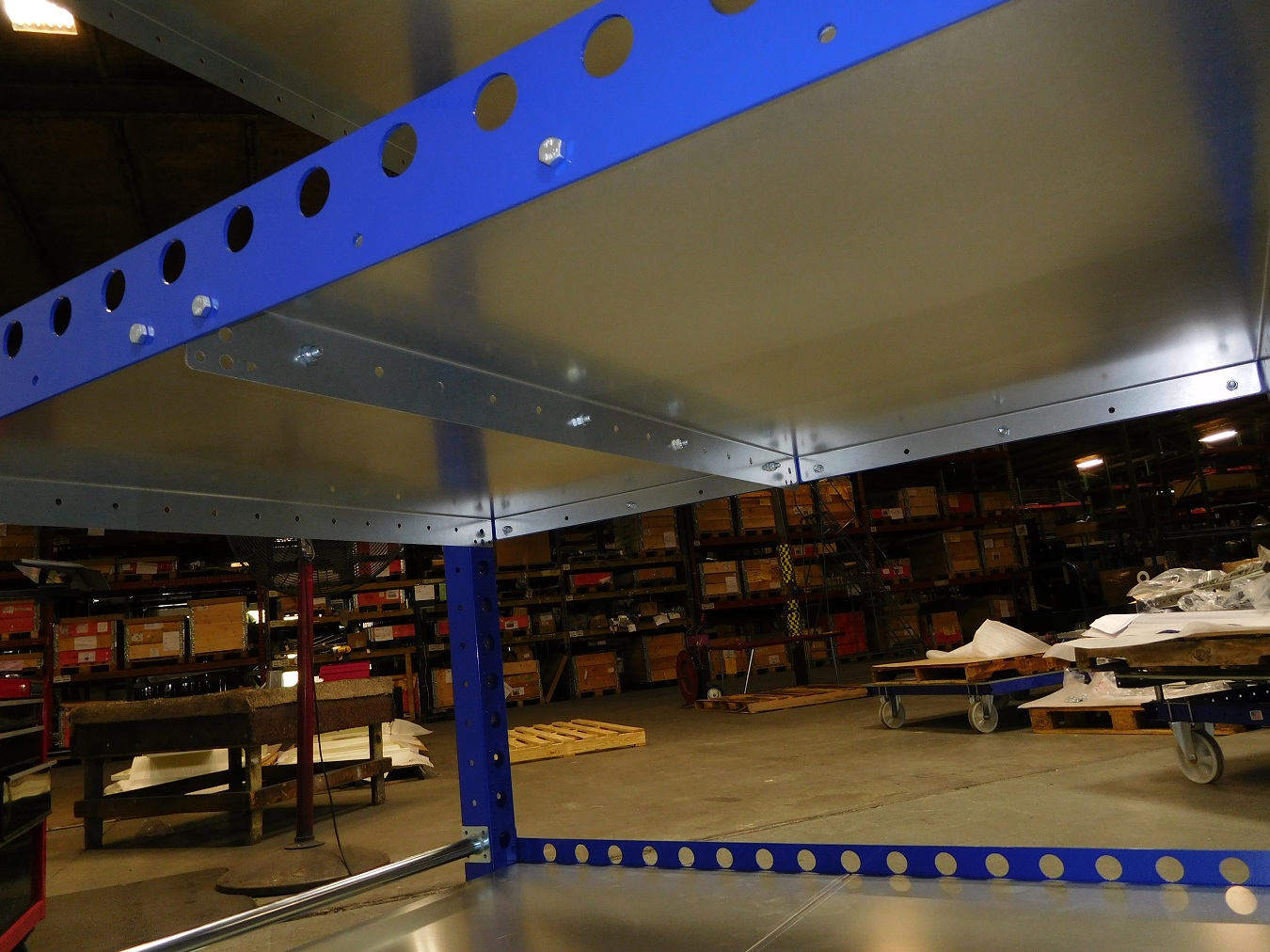

This heavy-duty flat shelf cart is equipped with three flat shelves. The height of the flat shelves can be easily adjusted up or down. It comes with a drop pin and hitch tow bar for transportation in a tugger train system. There are six high quality polyurethane casters attached for better tracking when in a train.

Parts included

FlexTube™ 910 mm 6 Q-000-1269

FlexBeam™ – 1610 mm 8 Q-001-1294

FlexBeam™ – 1330 mm 4 Q-001-1298

FlexBeam™ 1050 mm FE 2 Q-001-1402

FlexBeam™ 910 mm FE 2 Q-001-1404

FlexPlate™ 12 Q-002-1001

Wheel Attachment – 105 x 77.5 mm 6 Q-004-1065

Caster Polyurethane – 125 mm 4 Q-004-1106

Caster Polyurethane – 125 mm Fixed 2 Q-004-1107

Towing Hole 2 Q-005-1056

Spring for Tow Bar 2 Q-005-1070

RTE Plug 12 Q-005-1289

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 20 Q-005-1426

Washer M20 2 Q-006-0016

M6 x 30 mm Allen Head 1 Q-006-1012

M14 x 60 mm Hex Head 4 Q-006-1036

M10 x 120 mm Fully Threaded 12 Q-006-1037

Locking Nut M14 4 Q-006-1039

Locking Nut M10 69 Q-006-1042

Locking Nut M6 1 Q-006-1050

M8 x 16 mm Hex Head 48 Q-006-1120

M10 x 90 mm Hex Head 34 Q-006-1132

M10 x 30 mm Hex Head 2 Q-006-1161

Locking Nut M8 48 Q-006-1181

Nut M10 1 Q-006-1195

M10 x 100 mm Hex Head 8 Q-006-1302

M10 x 50 mm Hex Head Fully Threaded 1 Q-006-1343

M10 x 90 mm Extra Low Head 20 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 144 Q-006-1384

M10 x 25 mm Extra Low Head Allen 4 Q-006-1410

Compression Spring for US Tow Hitch 1 Q-012-0007

Angled Plate – 1388 mm 6 Q-016-0035

US Modular Tow Bar VKR 380 mm – Lip 1 Q-017-0015

Handle for Tow Hole 1 Q-017-0022

Cotter Pin – 3.2 x 32 mm 2 Q-017-0023

Towing Lip 2.5 Inch 1 Q-017-1012

Tow Bar Lock Tube – 498 mm 1 Q-017-1061

Tow Attachment to Beam 1 Q-017-1080

Tow Hinge 1 Q-017-1083
