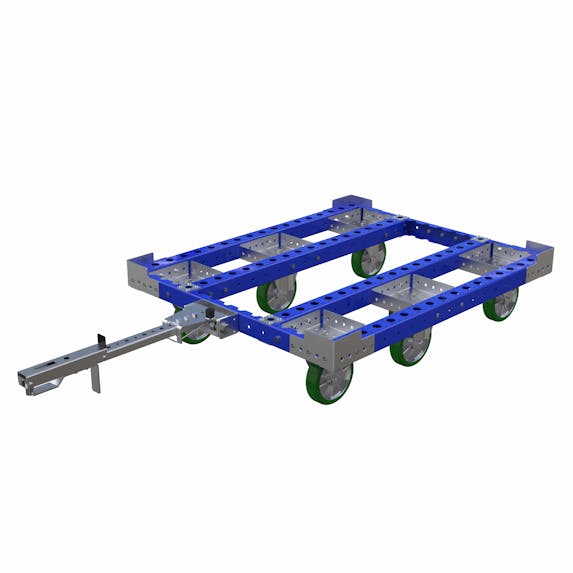

Tugger Cart 1260 x 1050 mm
Tugger Cart 1260 x 1050 mm
Tugger Cart 1260 x 1050 mm
Q-100-0178

Tugger Cart 1260 x 1050 mm

Tugger cart designed to transport pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 41 inch

Length: 50 inch

Transportation method: Manual, Tugger

Caster size: 8 inch

More info

This tugger cart without flat deck is designed for containers. This industrial cart is equipped with a foot release tow bar for improved ergonomics and use in a tugger train system. It is equipped with six polyurethane casters for improved tracking in a train.

Parts included
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexPlate™ 8 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Collet - 31 mm 2 Q-005-1008
Old part: Spring for Tow Bar 2 Q-005-1012
Spring Cover Plate 1 Q-005-1025
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 1 Q-005-1426
Sticker Green/Red 1 Q-005-1659
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M10 x 25 mm 31 Q-006-1041
Locking Nut M10 68 Q-006-1042
Countersunk - M10 x 70 mm 1 Q-006-1112
Hex Head - M10 x 90 mm 12 Q-006-1132
Hex Head Fully Threaded - M10 x 50 mm 2 Q-006-1343
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 38 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 1 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Countersunk Towing Lock Pin - 25 mm 1 Q-017-0010
Foot Release Locking Lip 1 Q-017-0024
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Tow Attachment to Beam 1 Q-017-1080
