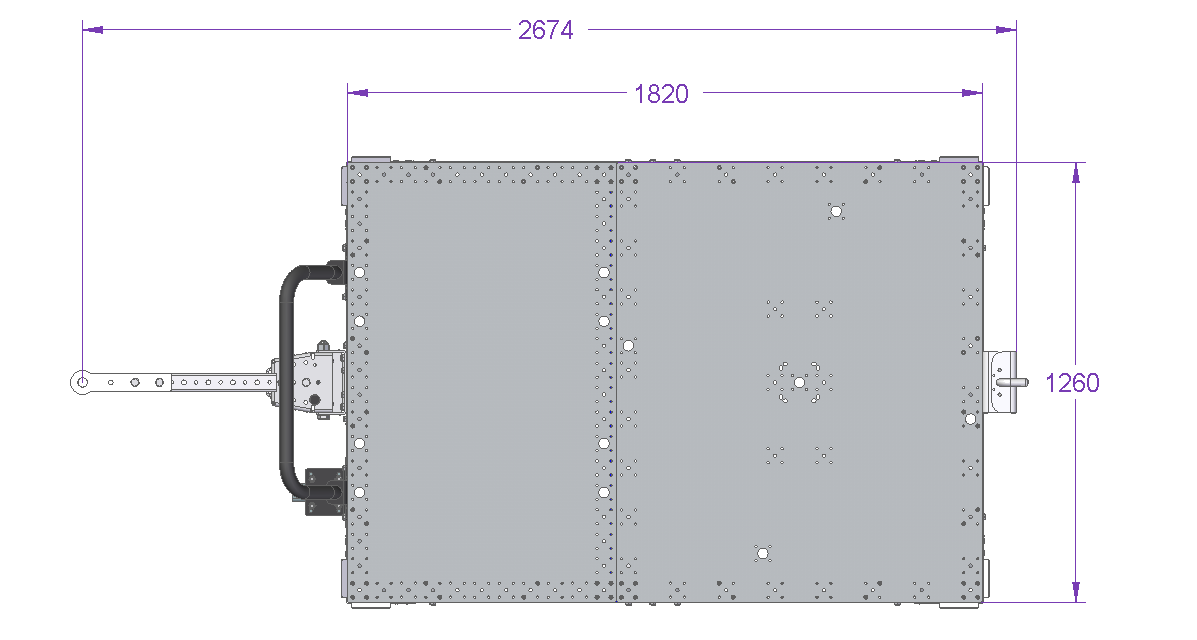

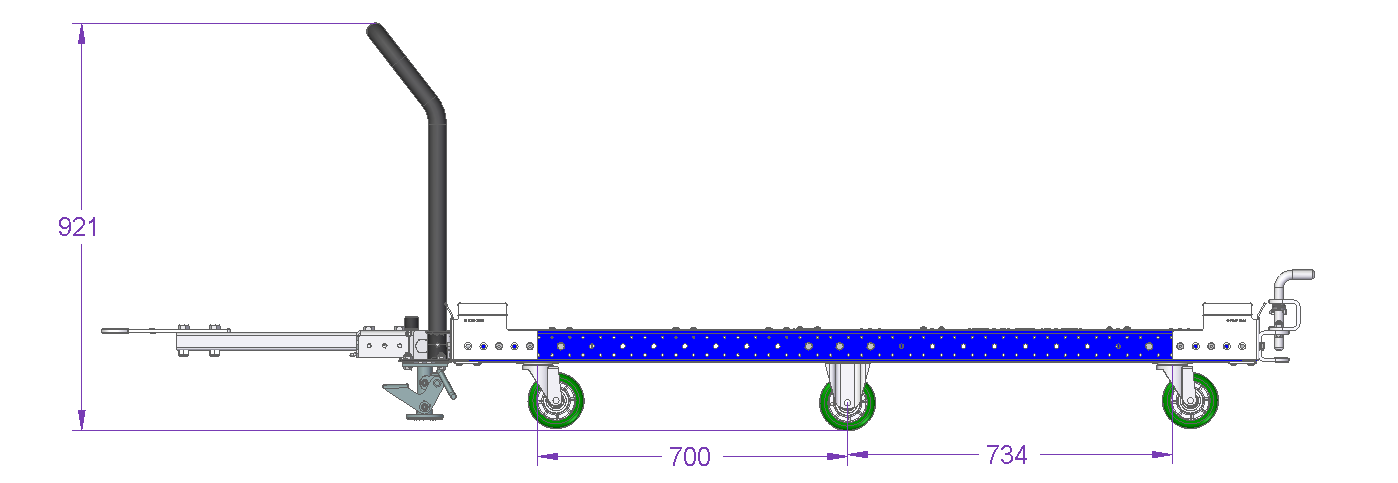

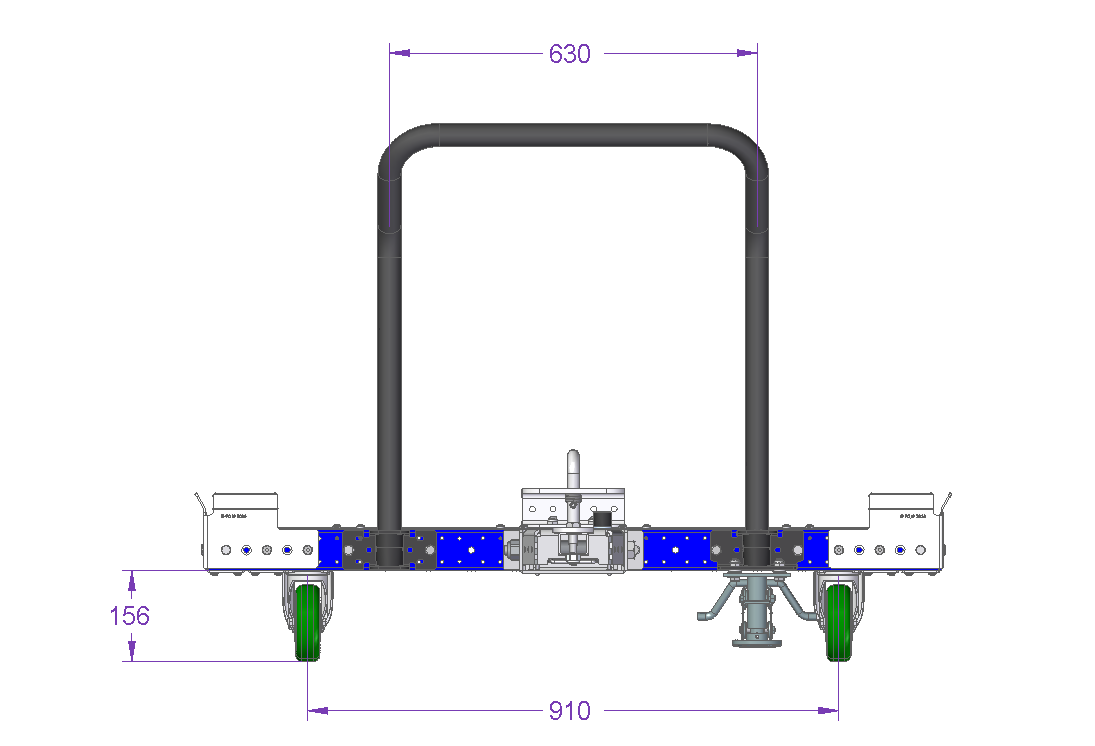

Tugger Cart – 1260 x 1820 mm
Tugger Cart – 1260 x 1820 mm
Tugger Cart – 1260 x 1820 mm
Tugger Cart – 1260 x 1820 mm
Q-100-1351

Tugger Cart – 1260 x 1820 mm

Tugger flatbed pallet cart equipped with a handlebar, floor brake and six polyurethane casters.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 1260 mm

Length: 1820 mm

Load capacity: 650 kg

Transportation method: Manual, Tugger

Caster size: 125 mm

Caster Type: Polyurethane

More info

This flatbed pallet cart is great for transportation of larger pallets and containers or several smaller ones. The cart is equipped with a tow bar and a floor brake as well as six high quality polyurethane casters which give the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Floor lock COLSON – 4" x 4–1/2" – 125 – 150 mm 1 Q-004-0031
Caster Polyurethane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm, 80 x 60, Fixed 2 Q-004-1221
Wheel Attachment Box 6 Q-005-1079
Angled Corner Plate 4 Q-005-1098
64 mm FlexBeam™ Collet 26 Q-005-1426
Wheel Attachment – 80 x 60 mm 2 Q-005-1722
M8 x 20 mm Hex Head Fully Threaded 24 Q-006-1019
M14 x 60 mm Hex Head 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
M10 x 25 mm Hex Head 16 Q-006-1041
Locking Nut M10 64 Q-006-1042
Washer M10 12 Q-006-1043
M10 x 95 mm Hex Head 2 Q-006-1088
M10 x 90 mm Hex Head 20 Q-006-1132
M10 x 30 mm Hex Head 4 Q-006-1161
Locking Nut M8 24 Q-006-1181
M10 x 90 mm Extra Low Head 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384
M10 x 16 mm Low Allen Head 2 Q-006-1409
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
Handlebar/Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top Plate – 1260 x 770 mm 1 Q-016-0517
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge – Narrow 1 Q-017-0087
Towing Lip – 28 mm 1 Q-017-1010
